VESA Barcode Scanner Holder Bracket

Use Our Universal Scanner Bracket/Holster on Any Ergomart Monitor Arm

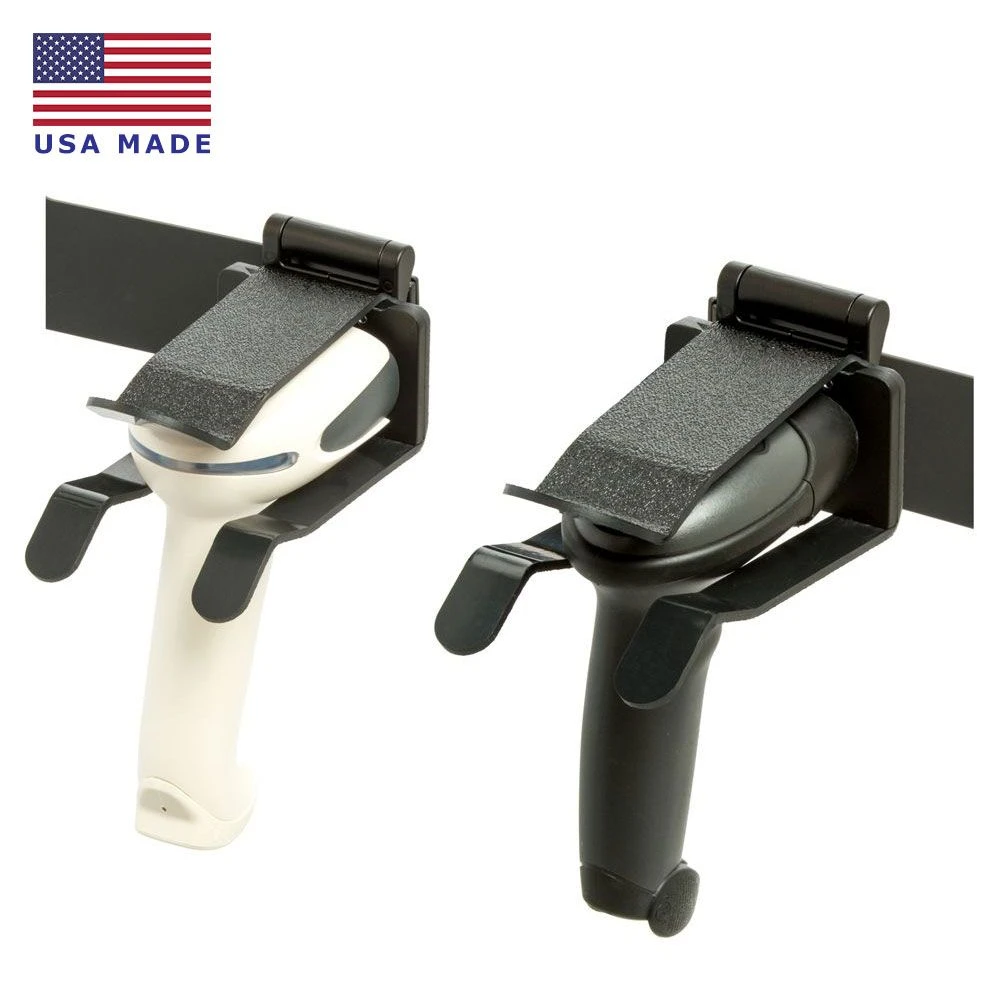

• The slide open and snap close cradle gently clasps scanners
• ABS plastic and powder coat steel components are durable and easy to clean
• Readily adjusts to work with most 19” to 27” wide screen monitors
• 15” of vertical adjustability and more than 3.5” of horizontal adjustability

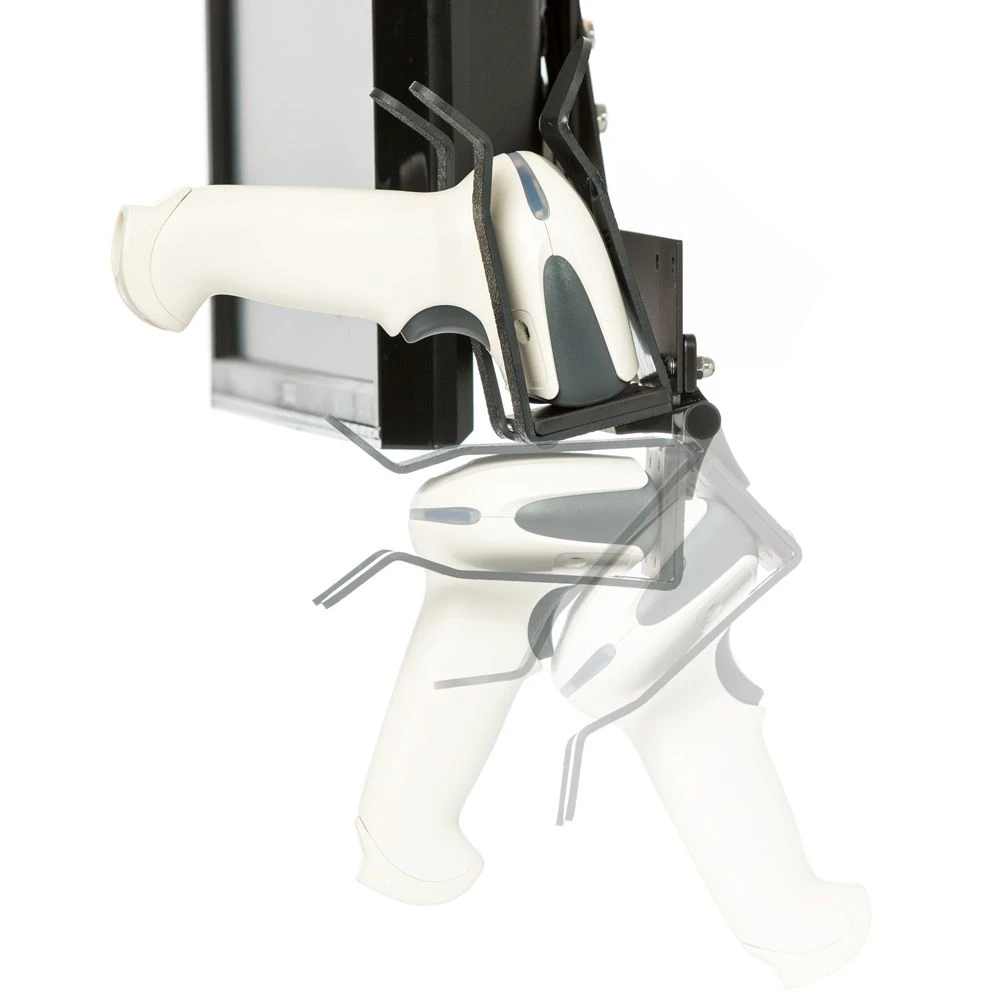

• Optional tilt angle feature means the gun holster opening position can be optimized
• Cradle accepts scanners with grips as wide as 1.85” and head heights to 1.95”
• Custom scanner bracket cradles are available for larger and smaller units
• For low profile wall mounted monitors consider combining with the Monolok.
• Use in tandem with the WM9110T articulating wall mount when some monitor tilt or swivel is desired

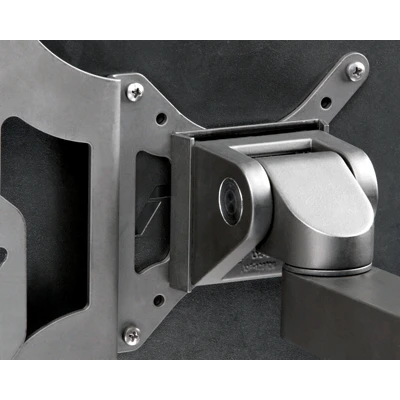

• Fits both 75 and 100 mm hole patterns as well as Ergomart SAA, TRS and LS products*
• The TLT1 rotation stop keeps monitors level and is used with SAA, TRS and LS products**

The VESA compatible universal barcode scanner bracket is designed for ultimate utility, convenience, and security. The ergonomic scanner cradle is highly adaptable and interfaces with a wide variety of gun-handle or gun-grip type laser scanners and UPC label and barcode readers while ensuring a secure fit. The cradle’s unique design allows the user to instantly and effortlessly insert or remove a scanner with complete confidence that it will not be easily jarred loose.

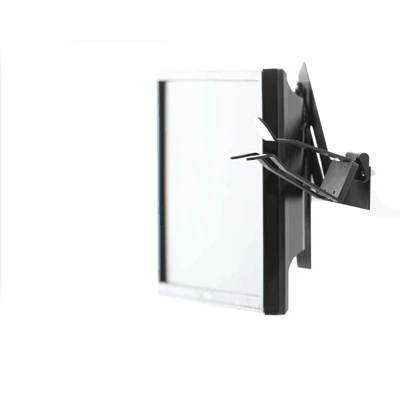

The underlying accessory bracket provides a great deal of vertical and horizontal adjustability which allows the installer to position the scanner precisely at the edge of a monitor, tablet or other equipment. The bracket/cradle may be positioned to the left or right side of a monitor and at the desired height. The optional hinge allows the scanner cradle to be tilted to a convenient angle for maximum ergonomic comfort.

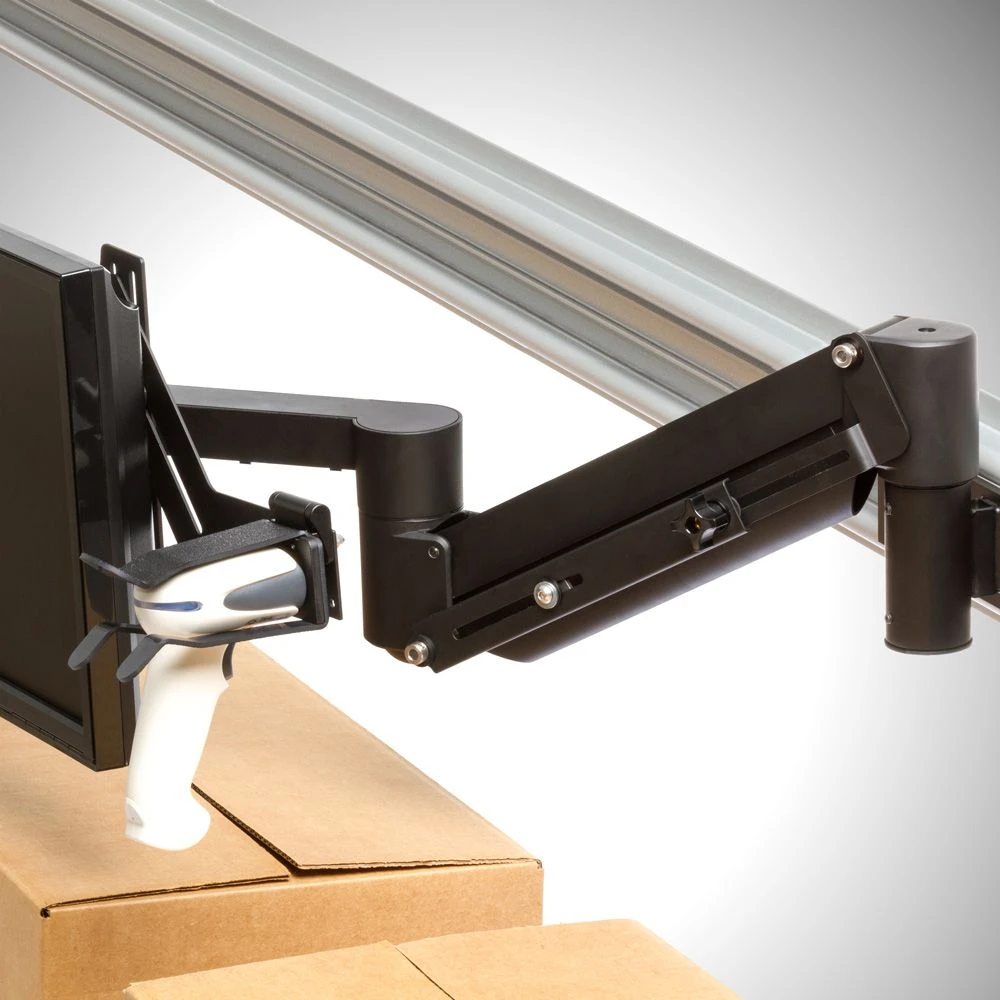

Since the scanner bracket can be installed where it is needed, users maximize the utilization of their work envelope and minimize inefficient and un-ergonomic movements. The scanner holster/bracket is specifically designed for use in medical and manufacturing environments but finds many other useful applications in shipping and receiving areas and on mobile computer workstations (WOWs) or computers on wheels (COWs) and other work environments where scanners and computers are involved.

NOTE: The Scanner Cradle and Accessory Bracket is compatible with the industry standard VESA® monitor interface and can be retrofitted to most existing monitor arms and stands. In particular, it is designed to work seamlessly with virtually all Ergomart mounting products. A rotation stop component (TLT1) compatible with Ergomart’s standard, spring and HD spring tilter heads is available for a small additional cost. It is intended for applications where the monitor orientation must remain fixed.

Shipping Weight	3 lb
Shipping Dimensions	12″ x 12″ x 4″
Warranty	5 year limited
Ergomart scanner bracket assemblies may be returned to Ergomart for materials recycling at the product’s end of life
Sturdily constructed from primarily steel components and some ABS or similar plastics.

*IMPORTANT NOTE: May or may not be compatible with some non-Ergomart interfaces – contact Ergomart for assistance

**IMPORTANT NOTE: A TLT1 comes standard with all TRS products. TLT1 is compatible with all SAA, DS and LS products.
