TRS2818D Dual Monitor And Keyboard Arm
Original price was: $336.00.$97.99Current price is: $97.99.
- Uncompromising quality, every time.
- Your questions, our prompt answers.
- 7 days return and exchange
- Free Shipping, No Compromise on Quality
STURDY, HEAVY-DUTY WORKSTATION IS DESIGNED FOR FREQUENT USE
- Easily adjust the tilt of both monitors and the tray
- Position the arm where desired for multiple users or sit-to-stand
- Manages two flat screen monitors up to 12 pounds each
- Reach out up to 23 inches from the mount to the monitors
- Up to 18 inches of vertical height adjustment when not restricted
- Available in Black and Metallic Gray
- Works with Ergomart’s 192 Pole Floor Mounts
- Choice of 75 x 75mm, 100 x 100mm, or 100 x 200mm VESA monitor supports
- Wires are kept out of the way below the arm
- Please watch our YouTube Video for tips on installing and adjusting the arm component included with this product

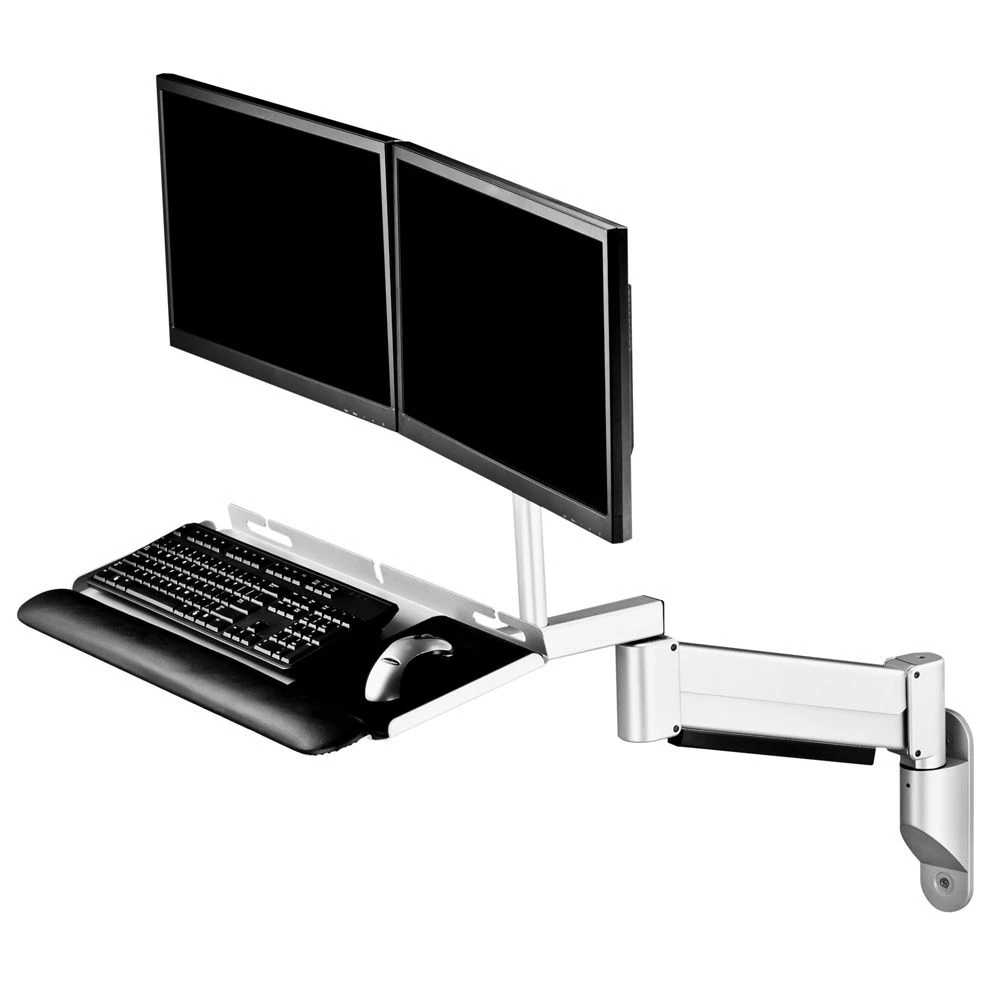

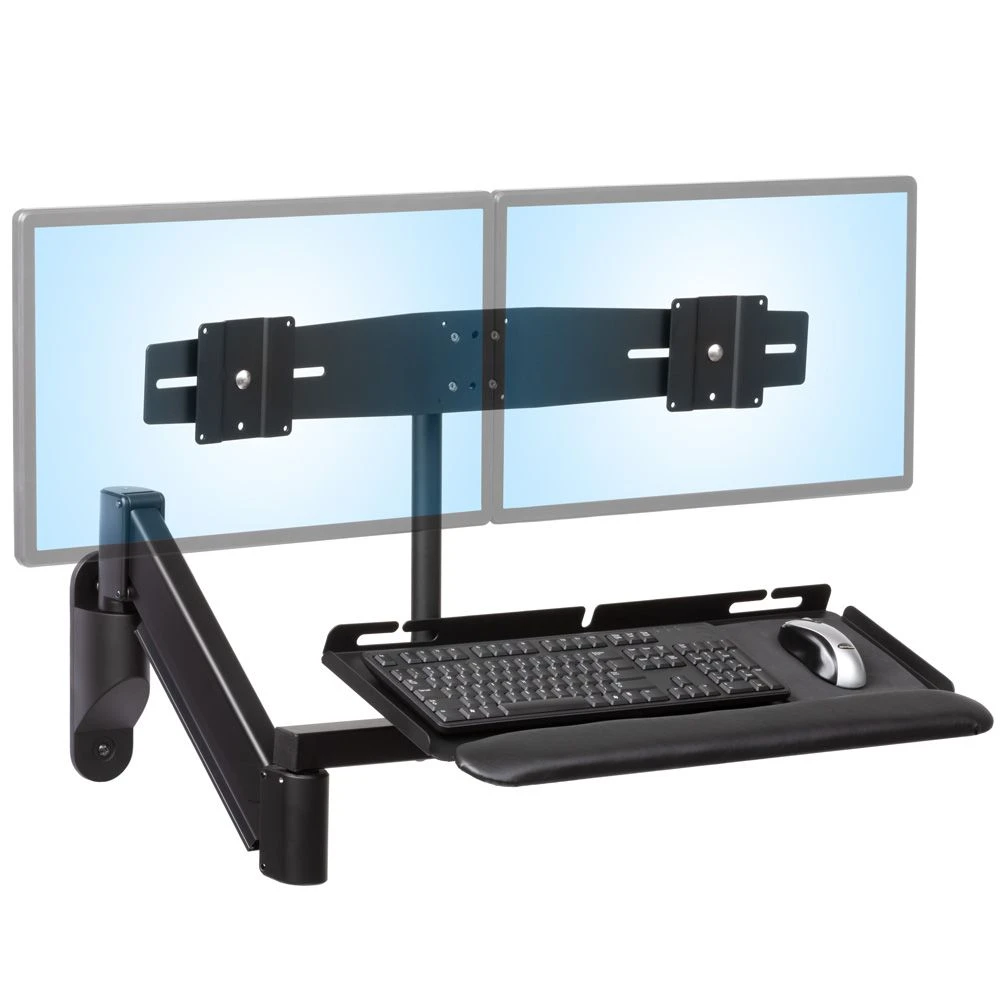

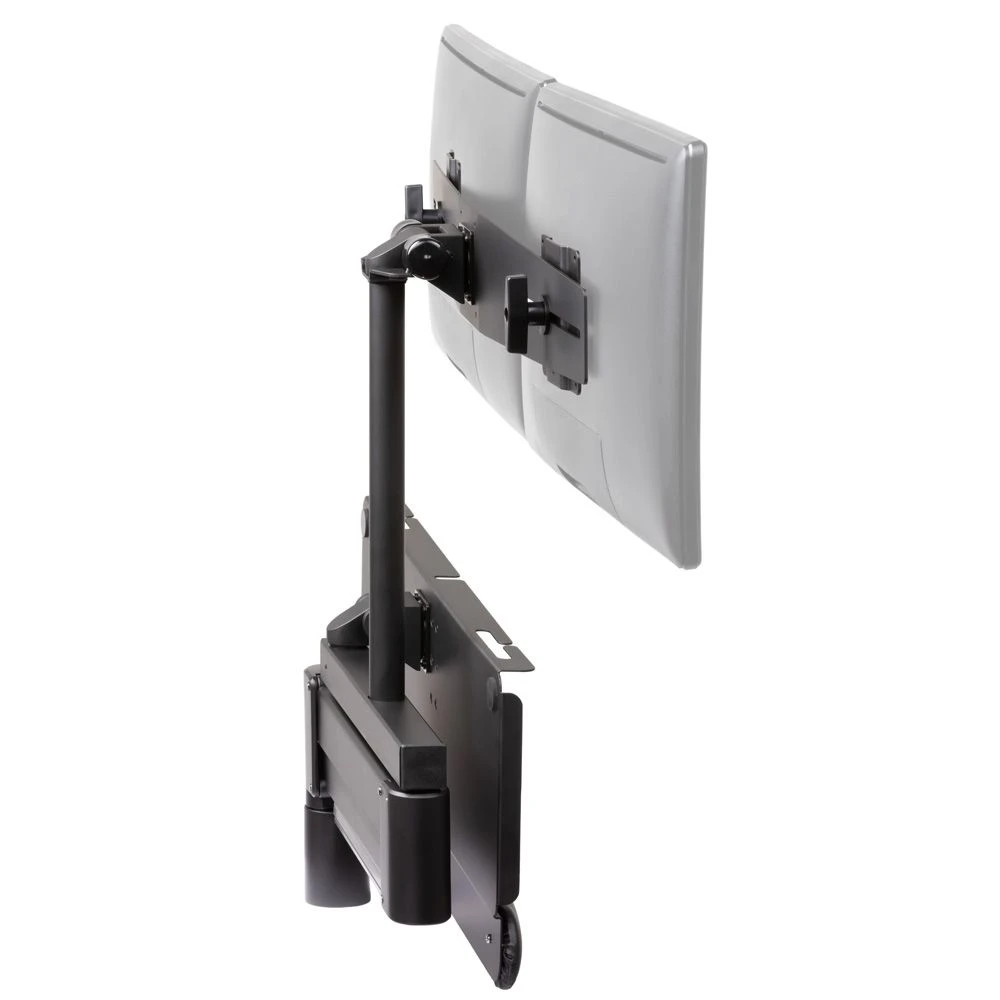

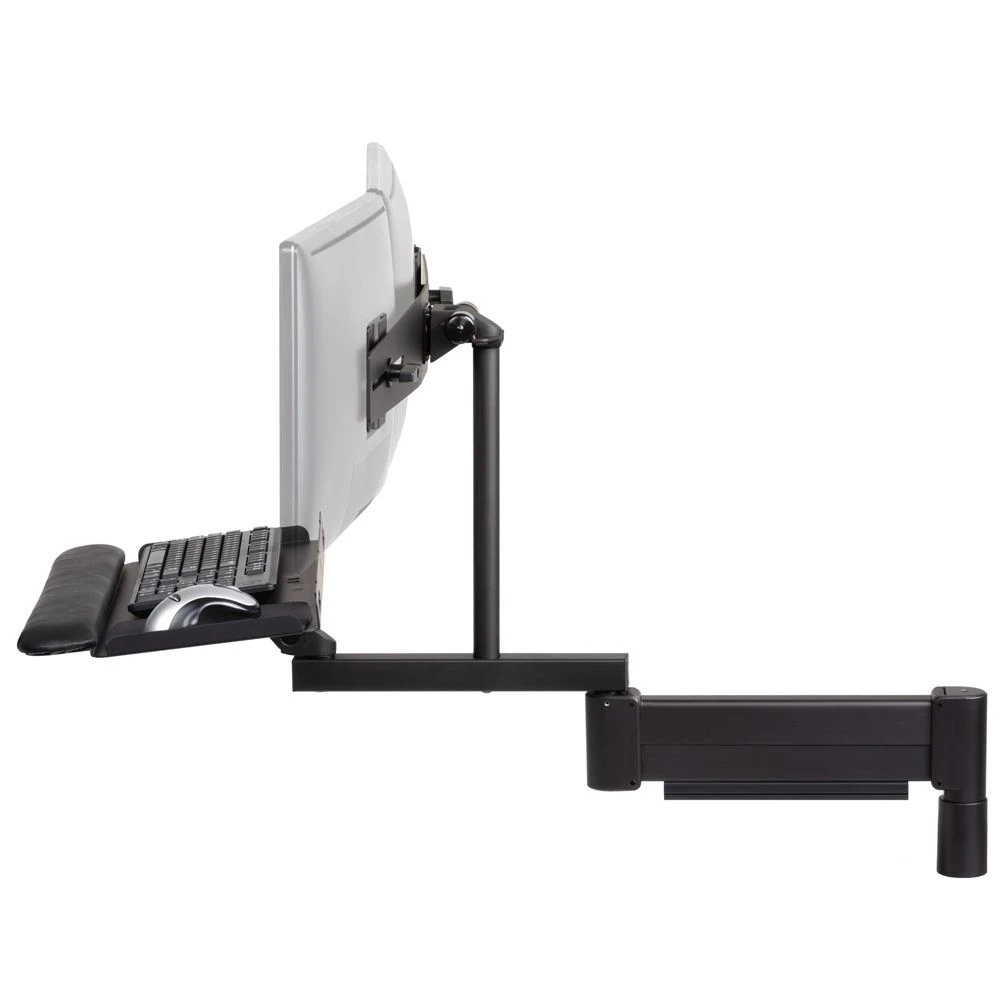

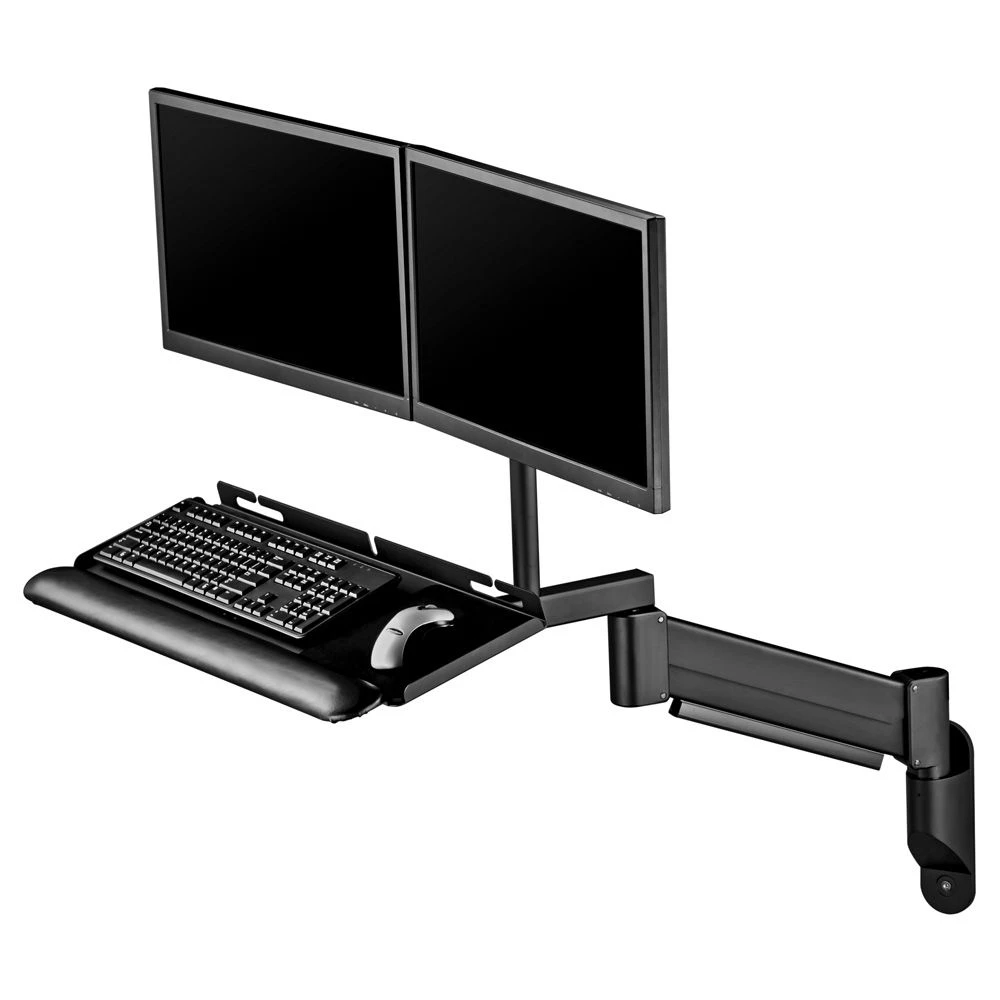

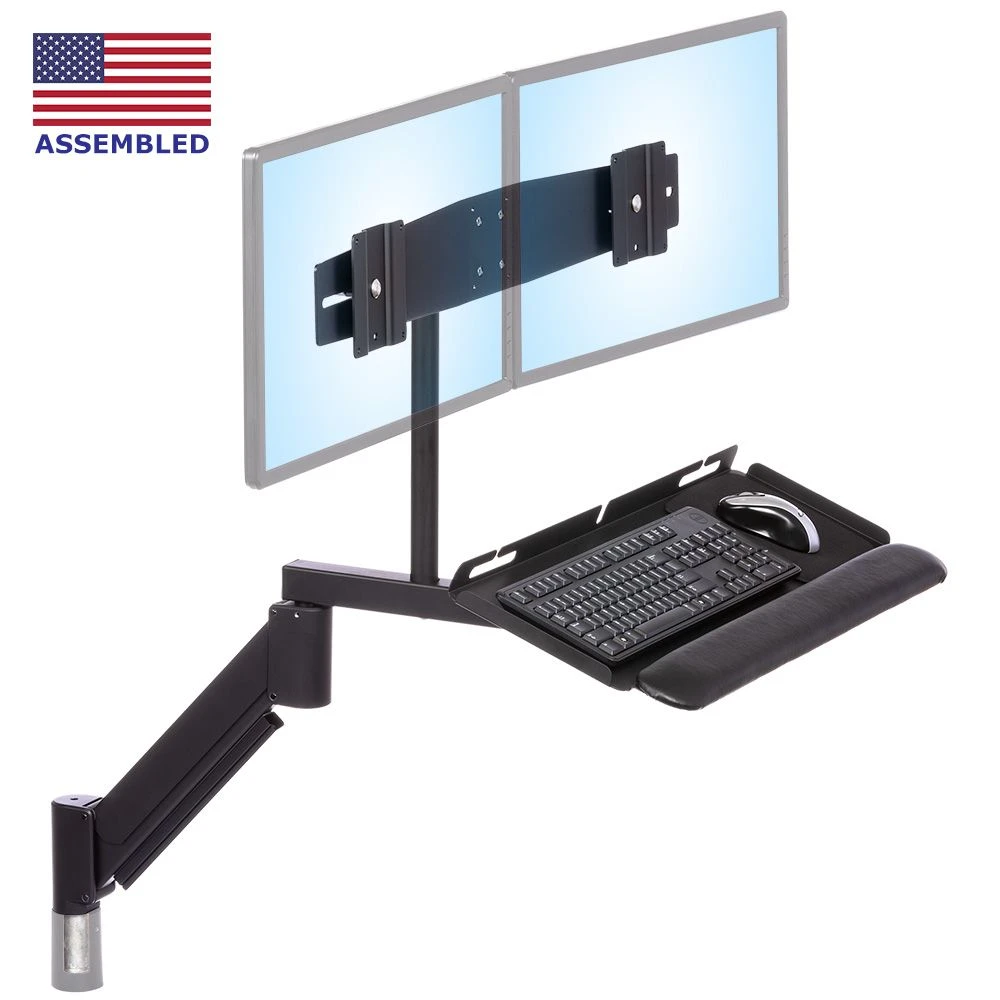

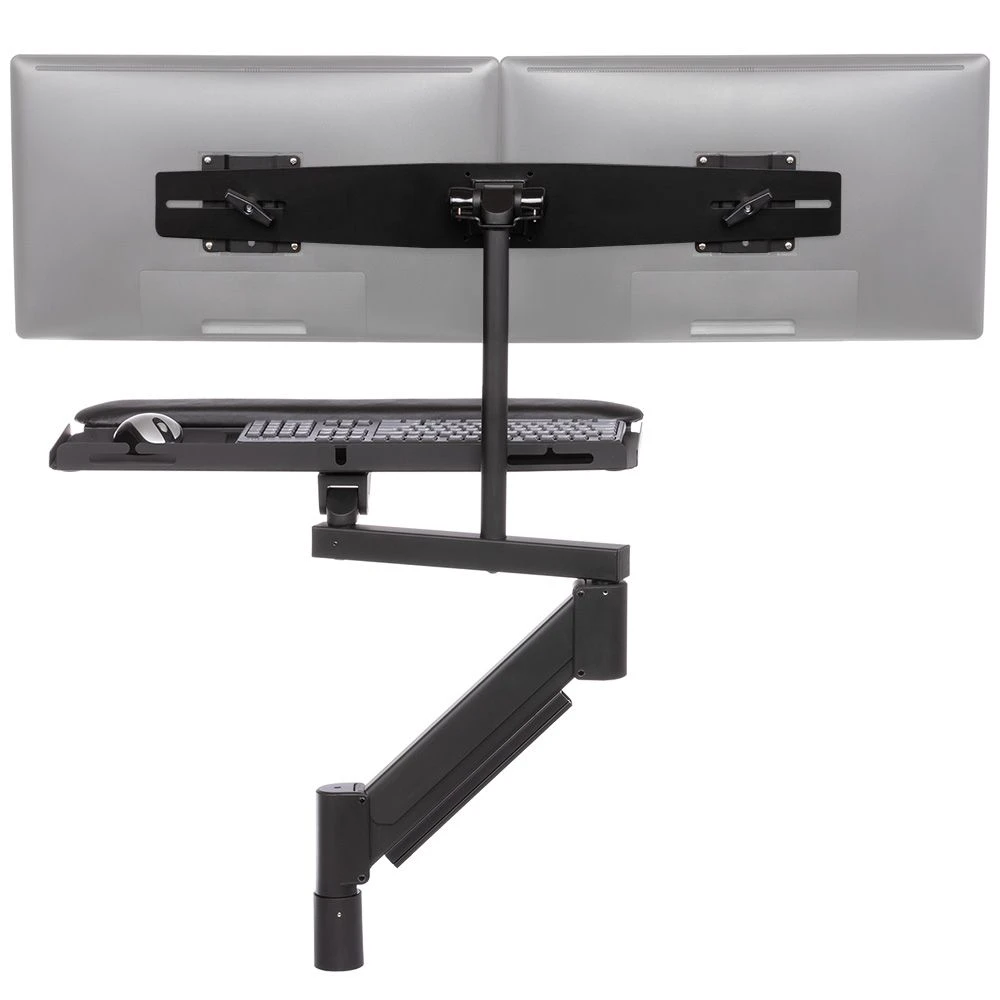

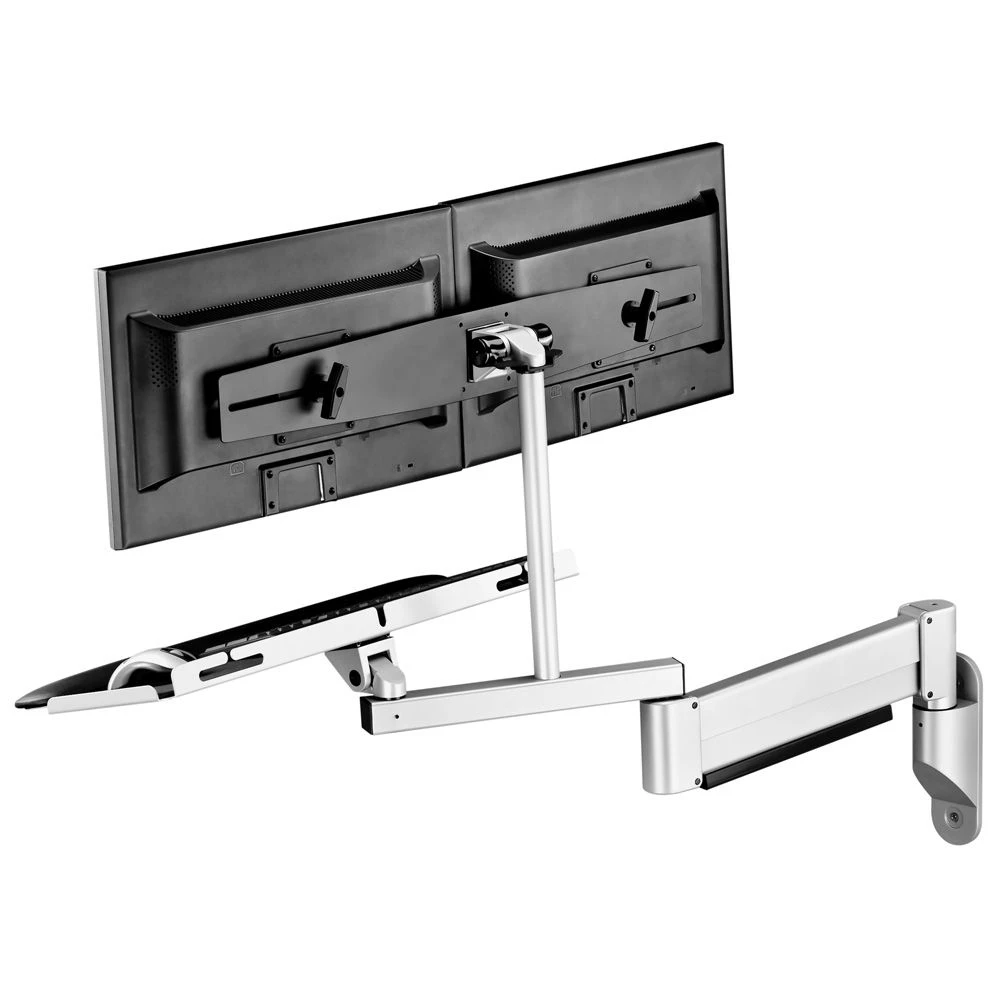

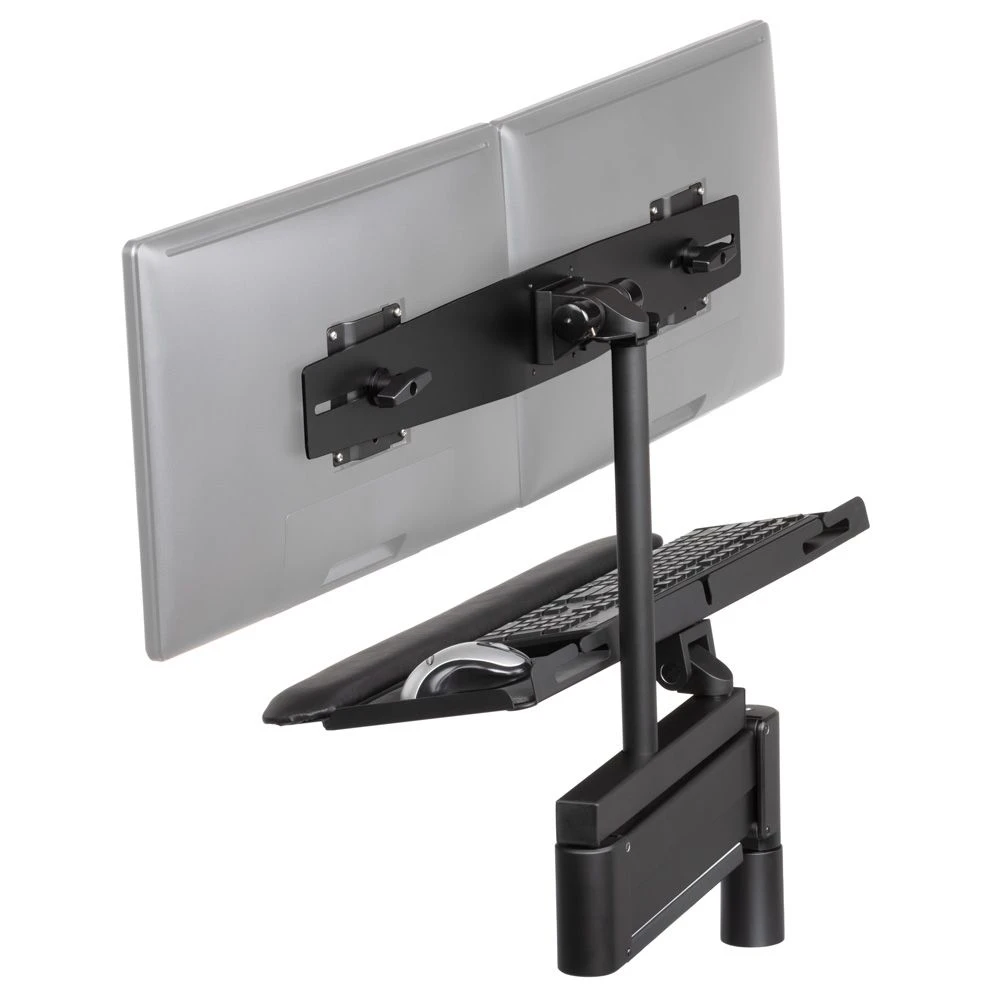

The TRS2818D mounts two monitors side-by-side above a keyboard tray on a heavy-duty arm. The gas-spring cylinder within the arm is motion-resistant, making it ideal for frequent keying sessions as the arm will resist vertical movement. The monitors and keyboard tray sit a fixed height from each other, but both the monitors and keyboard trays can be tilted for comfort and viewing ease. The arm offers 18 inches of vertical travel, providing movement is not restricted by a mounting surface such as a desk. The arm comes with three tray options: a standard 20-inch wide platform, a 26-inch wide platform and a 27-inch wide metal platform with a palm rest.
MONITOR WEIGHTS
The lifting capacity of the total solution also depends on the tray selected since the 27-inch metal keyboard tray is heavier than the 20-inch and 26-inch trays. In summary, the arm can handle two monitors weighing 2-12 lb each if using the TRS20 or TRS26 tray and 0-12 lb each if using the TRT27 tray.
This workstation is also available as the TRS2818S monitor and keyboard tray arm, which mounts a single monitor.
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
| Shipping Weight (with Padded Metal Tray) Shipping Weight (with 20″ or 26″ Tray) | Box 1: 21 pounds | Box 2: 8 pounds 25 pounds |
| Shipping Dimensions (with Padded Metal Tray) Shipping Dimensions (with 20″ or 26″ Tray) | Box 1: 19″ x 17″ x 4″Â | Box 2: 27″ x 11″ x 2″ 26″ x 20″ x 8″ |
| Warranty | 5 year limited |
FLOOR STAND
WALL TRACK
CART
TRACK SLIDING
Â
ADAPTABLE • FUTURE PROOF
Â
| Color | Black, Metallic Gray |
|---|---|
| VESA Options | 75 x 75 |
| Keyboard Horizontal Reach | 23" |
| Keyboard Tray Tilt Range | +135° up, -80° down |
| Keyboard Tray Height Adjustment | 18" instant and simultaneous adjustment of monitors and keyboard |
| Keyboard Trays | 20" x 8.5" Tray |
| Monitor Tilt Range | +90° up, -45° down |
| Max Swivel (at Monitor) | 360° |
| Max Swivel (at Elbow) | 360° |
| Max Swivel (at Base) | 360° |
| Portrait to Landscape | Yes |
| Horizontal Extensions | Call for information. |
| Dual Bracket | Mid-Size Bracket with 75mm VESA, Mid-Size Bracket with 100mm VESA, Large Bracket with 75mm VESA, Large Bracket with 100mm VESA, Large Bracket with 100x200mm VESA |
| Vertical Adjustment | 18" instant and simultaneous adjustment of monitors and keyboard |
| Monitor Horizontal Reach | 24" Max to front of tilter |
| Weight Range | 0-22 lb per monitor (with 1 lb for keyboard/mouse) |
| Mounting | |
| Number of Monitors | 2 |
| Mount Type | Monitor and Keyboard Arm |
| Vertical Extension (optional) | 5" Vertical Extension, 5" Vertical Extension, 8" Vertical Extension, 8" Vertical Extension, 12" Vertical Extension, 12" Vertical Extension |

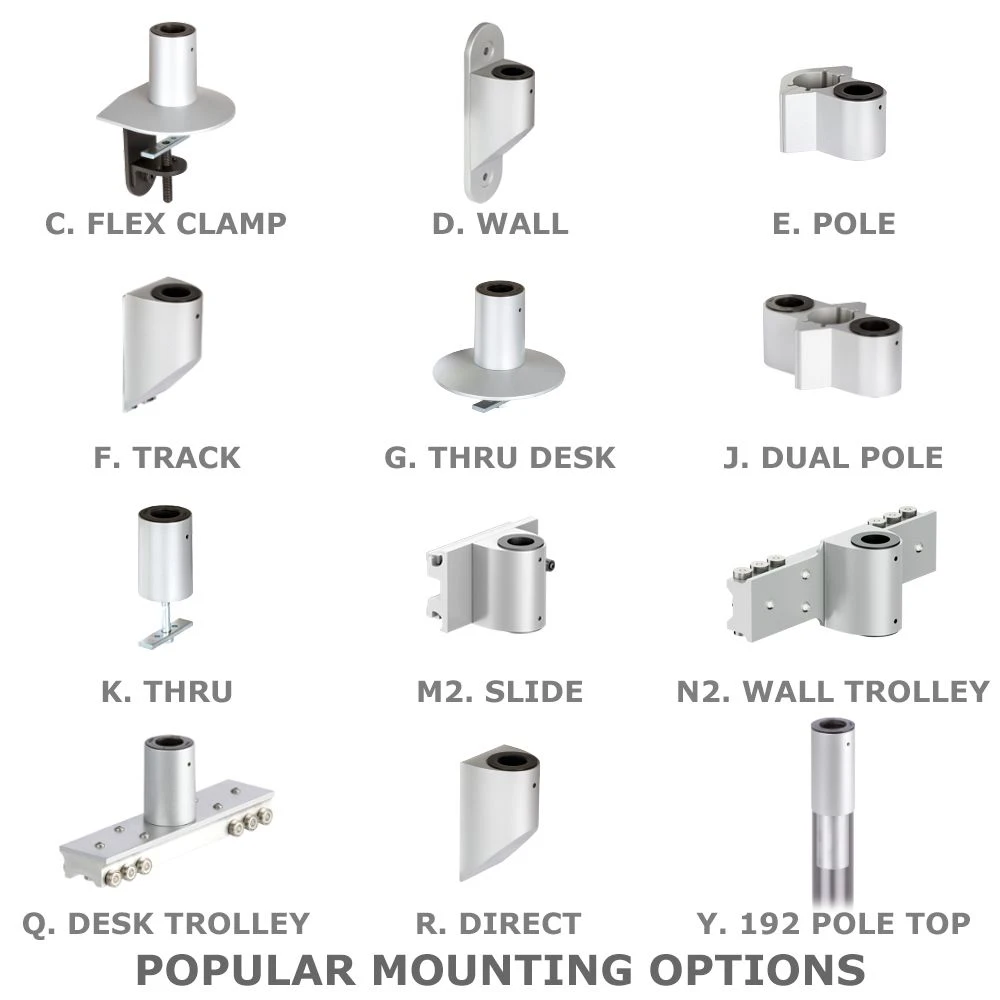

| Mount Kit | No Mount Kit, Flexible Mount Kit C, Flexible Mount Kit C, HD Wall Mount Kit D, HD Wall Mount Kit D, HD Dual Wall Mount Kit D3, HD Dual Wall Mount Kit D3, HD Track Mount Kit F, HD Track Mount Kit F, HD Thru Desk Mount Kit G, HD Thru Desk Mount Kit G, Column Mount Kit K, Column Mount Kit K, Dual Arm Mount Kit L, Dual Arm Mount Kit L, OEM Mount Kit R, OEM Mount Kit R, Dovetail Medical Mount Kit S (call), Dovetail Medical Mount Kit S (call), Slatwall Mount Kit H (call), Slatwall Mount Kit H (call), HD Pole Mount Kit E, Dual Pole Mount Kit J, Pole Top Mount Kit Y (call), Horizontal Track Slider Kit M, Horizontal Track Slider Kit M, Roller Track Positioner Kit M2, Roller Track Positioner Kit M2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2 with Brake, Roller Track Trolley Mount N2 with Brake, Desktop Roller Trolley Kit Q, Desktop Roller Trolley Kit Q, Ceiling Roller Trolley Kit U (call), Ceiling Roller Trolley Kit U (call) |
| Keyboard Tray | 20-inch Tilter Head Tray, 26-inch Tilter Head Tray, 27-inch Metal Tray w/ Palm Rest and Mouse Pad, 27-inch Metal Tray w/ Palm Rest and Mouse Pad |
| Monitor Height Relative to Keyboard | VESA plate 12.5" above keyboard |
