SAA2010 Compact Monitor Arm
Original price was: $380.00.$98.99Current price is: $98.99.
- Uncompromising quality, every time.
- Your questions, our prompt answers.
- 7 days return and exchange
- Free Shipping, No Compromise on Quality
IDEAL FOR TIGHT SPACES: FREELY FLOAT YOUR MONITOR ABOVE THE DESK
- Extends out to 18.6″ and folds into 3.9″
- Floats the attached monitor within a 9.6″ vertical range
- Optional 2″ and 6″ extensions add height
- Monitor pivots for landscape and portrait viewing
- The display can tilt anywhere within its 200 degree range
- Accommodates monitors between 4 to 34 pounds

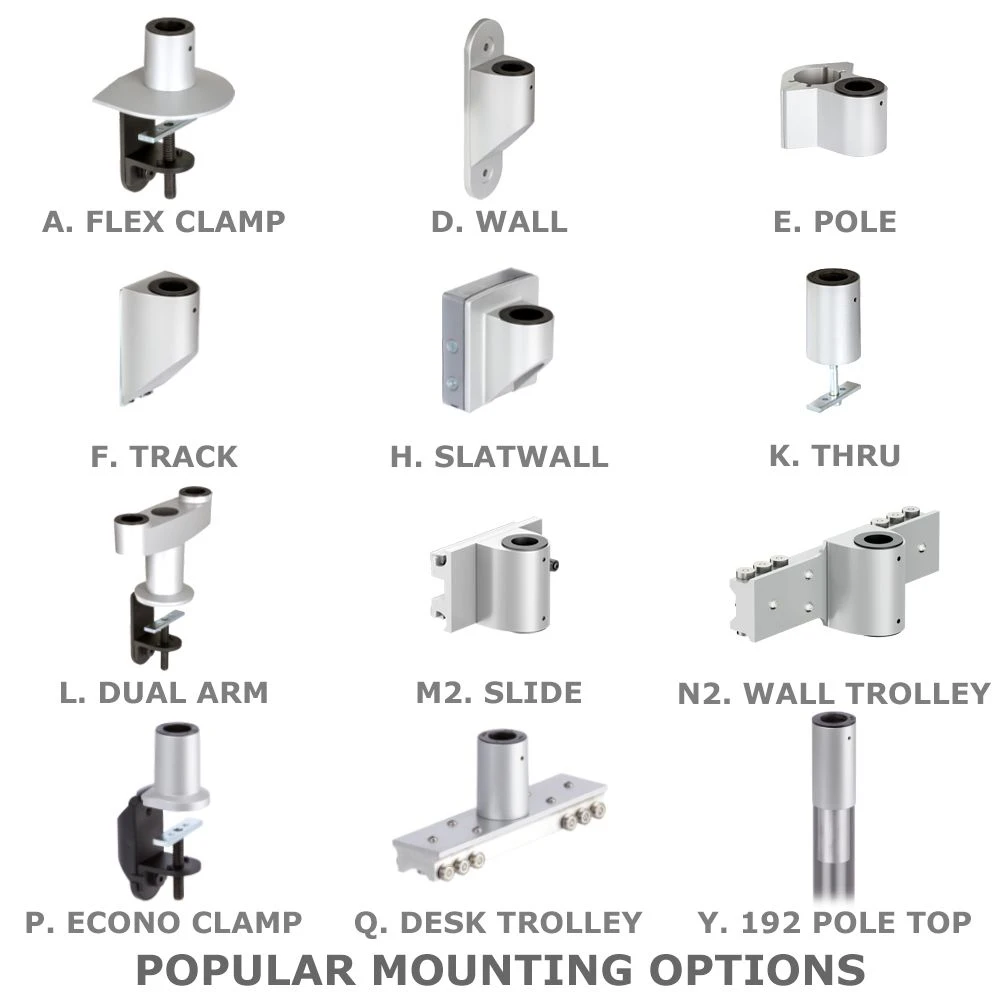

- Flex Mount Kit can clamp to a desk, mount to a wall and more
- VESA 75 x 75mm and 100 x 100mm compliant
- Cables are concealed within the arm
- Please watch the YouTube Video for monitor arm installation tips and adjustment instructions
When desk space is at a premium, the SAA2010 allows you to reclaim valuable work surface area while also providing the ability to reposition the monitor for optimal comfort with a simple grasp, move and release. If the desktop does not inhibit movement, the SAA2010 offers 9.6″ of vertical and 18.6″ horizontal adjustment. When the monitor is not in use, the arm can be folded back into a mere 3.9″ in depth to further clear the work environment.
The SAA2010 is extremely flexible and versatile. The arm itself rotates 360 degrees at 3 separate joints. The tilter head allows for 200 degrees of monitor tilt and pivots from landscape to portrait. The available mounts provide a variety of options to best suit your needs – including the Flexible Mount Kit which offers 6 configurations in one mount.
The purchasing options on this page provide a great deal of flexibility in configuring your product. Please be aware that Mount Kit A and the 2″ and 6″ Vertical Extensions are not compatible with all components. You may consult the table and the Drawings tab to determine the compatibility of various components.
| Shipping Weight | 11 pounds |
| Shipping Dimensions | 23″ x 14″ x 4″ |
| Warranty | 5 year limited |
INSTALLING AND ADJUSTING YOUR SAA ARM:
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
FLOOR STAND
WALL TRACK
CART
TRACK SLIDING
Â
ADAPTABLE • FUTURE PROOF
Â
-
SCREEN ROTATION
The screen can rotate 360° on the tilter head allowing the user to switch from portrait or landscape viewing with ease.
-
TILTERHEAD ROTATION
This top view shows how the direction of the monitor can be changed by rotating the tilter horizontally within its 180° range, allowing two people sitting on opposite sides of a desks to take turns viewing the screen.
-
TILTERHEAD ADJUSTMENT
The monitor can be adjusted 90° upward and 45° downward with respect to the vertical orientation,allowing the user to select to most comfortable viewing angle.
-
ARM EXTENSION

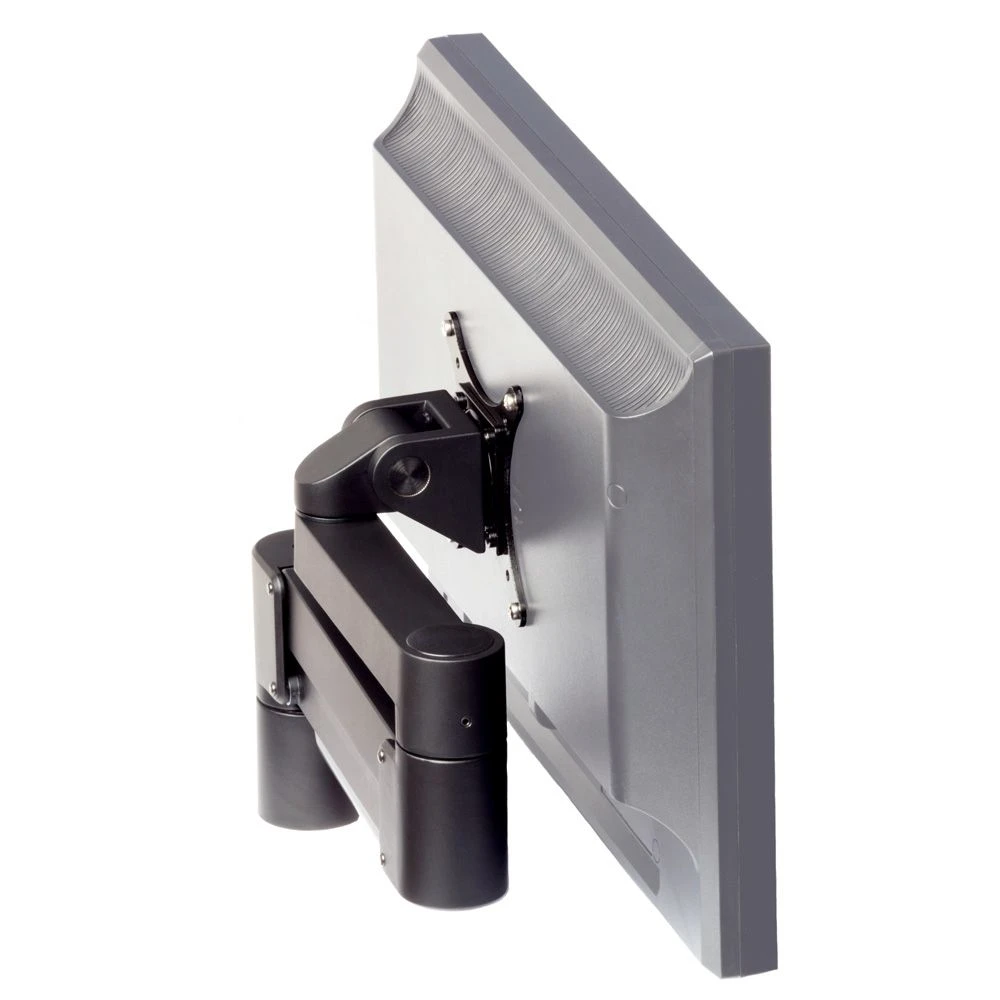

The arm can be extended up to 19.75″ from the mount for up close viewing, or folded to 3.5″ to create space as illustrated in this view from the top.
-
ELBOW ROTATION
The forearm can also rotate 360° at the elbow joint where it meets the lifting arm.
-
ARM ROTATION
As seen in this top view, the arm can rotate a full 360° at the base.
-
VERTICAL ARM RANGE
The arm enables a monitor height adjustment range of 9.5″ from 4.5″ below the horizontal position to 5″ above, provided that the arm’s vertical motion is not obstructed.
| Color | Black, Metallic Gray, Matte White |
|---|---|
| Monitor Horizontal Reach | 18.6" from center of mounting pin to front of VESA plate |
| Max Swivel (at Monitor) | Up to 360° based on monitor size/tilt |
| Max Swivel (at Elbow) | 360° |
| Max Swivel (at Base) | 360° |
| Portrait to Landscape | Yes |
| VESA Options | 75 x 75 |
| Horizontal Extensions | 4.5", 9.5", 15.5" HD extensions |
| Vertical Adjustment | 9.6" instant adjustment |
| Weight Range | 4-34 lb |
| Monitor Arm Capacity | 4 to 9 lb arm, 4 to 9 lb arm, 4 to 9 lb arm, 10 to 19 lb arm, 10 to 19 lb arm, 10 to 19 lb arm, 16 to 34 lb arm, 16 to 34 lb arm, 16 to 34 lb arm |
| Mounting | |
| Number of Monitors | 1 as is |
| Mount Type | Monitor Arm |
| Horizontal Extension (optional) | Not compatible with selected mount kit, 4.5" Single Pin Horizontal Extension, 4.5" Single Pin Horizontal Extension, 4.5" Single Pin Horizontal Extension, 9.5" Single Pin Horizontal Extension, 9.5" Single Pin Horizontal Extension, 9.5" Single Pin Horizontal Extension, 15.5" Single Pin Horizontal Extension, 15.5' Single Pin Horizontal Extension, 15.5" Single Pin Horizontal Extension |
| Vertical Extension (optional) | No Vertical Extension, 2" Vertical Extension, 2" Vertical Extension, 2" Vertical Extension, 5" Vertical Extension, 5" Vertical Extension, 5" Vertical Extension, 6" Vertical Extension, 6" Vertical Extension, 6" Vertical Extension, 8" Vertical Extension, 8" Vertical Extension, 8" Vertical Extension, 12" Vertical Extension, 12" Vertical Extension, 12" Vertical Extension |
| Mount Kit | No Mount Kit, Small Flexible Mount Kit A, Small Flexible Mount Kit A, Small Flexible Mount Kit A, Flexible Mount Kit C, Flexible Mount Kit C, Flexible Mount Kit C, HD Wall Mount Kit D, HD Wall Mount Kit D, HD Wall Mount Kit D, HD Dual Wall Mount Kit D3, HD Dual Wall Mount Kit D3, HD Track Mount Kit F, HD Track Mount Kit F, HD Track Mount Kit F, HD Thru Desk Mount Kit G, HD Thru Desk Mount Kit G, HD Thru Desk Mount Kit G, Dual Arm Mount Kit L, Dual Arm Mount Kit L, Dual Arm Mount Kit L, Compact Flex Mount Kit P, Compact Flex Mount Kit P, Column Mount Kit K, Column Mount Kit K, Column Mount Kit K, Offset Surface Mount Kit K2, Offset Surface Mount Kit K2, OEM Mount Kit R, OEM Mount Kit R, OEM Mount Kit R, Dovetail Medical Mount Kit S (call), Dovetail Medical Mount Kit S (call), Slatwall Mount Kit H (call), Slatwall Mount Kit H (call), HD Pole Mount Kit E, Dual Pole Mount Kit J, Pole Top Mount Kit Y (call), Horizontal Track Slider Kit M, Horizontal Track Slider Kit M, Roller Track Positioner Kit M2, Roller Track Positioner Kit M2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2 with Brake, Roller Track Trolley Mount N2 with Brake, Desktop Roller Trolley Kit Q, Desktop Roller Trolley Kit Q, Ceiling Roller Trolley Kit U (call), Ceiling Roller Trolley Kit U (call) |
| VESA | 75 x 75 mm and 100 x 100 mm, 100 x 200 mm |
| Monitor Tilter Head Capacity | Standard Tilter Head, Standard Tilter Head, Standard Tilter Head, HD Spring Tilter Head, HD Spring Tilter Head, HD Spring Tilter Head |
| Monitor Tilt Range | +90° up, -45° down |
