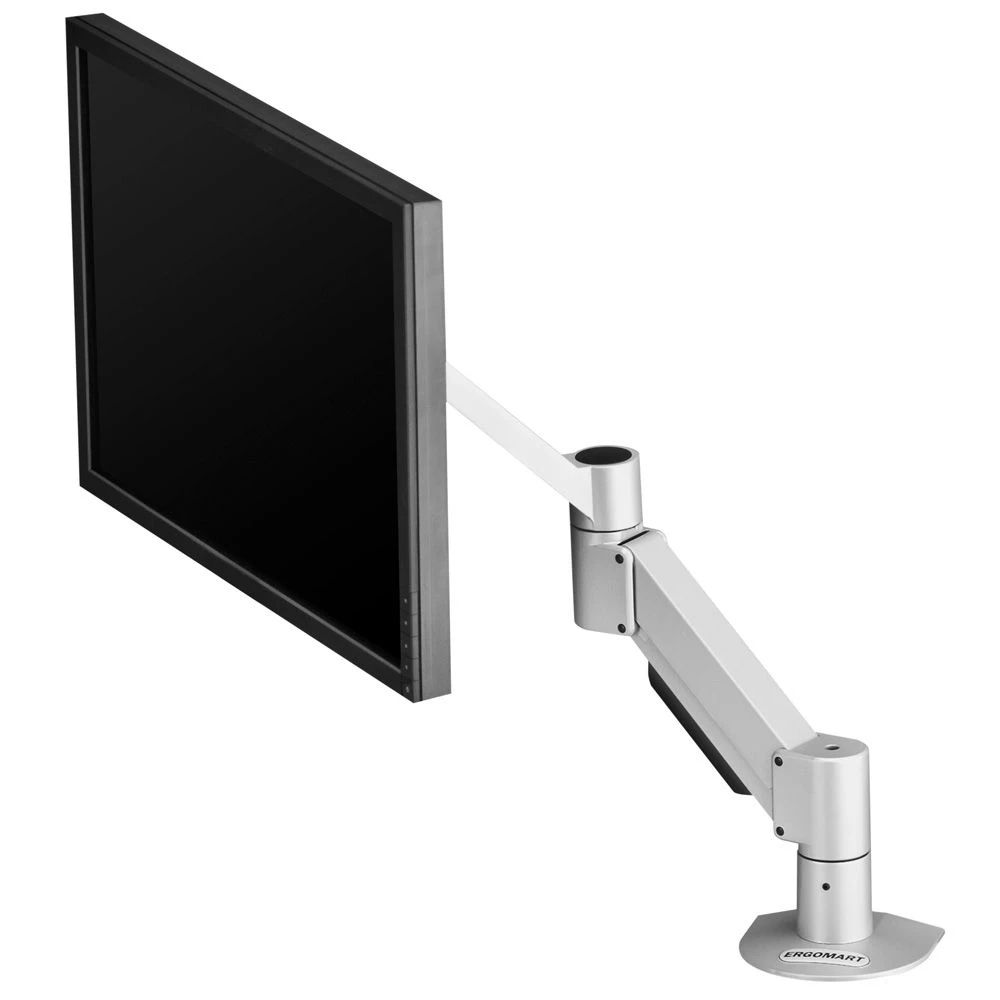

SAA179 Ergonomic Monitor Arm
Original price was: $322.00.$97.99Current price is: $97.99.
- Uncompromising quality, every time.
- Your questions, our prompt answers.
- 7 days return and exchange
- Free Shipping, No Compromise on Quality
OUR MOST COMPACT HEIGHT ADJUSTABLE ARM – NIMBLE, RUGGED AND AMAZINGLY STRONG FOR ITS SIZE
- Nearly 10 inches of vertical travel for monitors weighing 9 to 36 lb
- Over 16 inches of horizontal reach
- Collapses to occupy a depth of 3.9 inches
- Instantly rotate – landscape to portrait
- Integrated cable management
- Use vertical extensions to increase desk top range

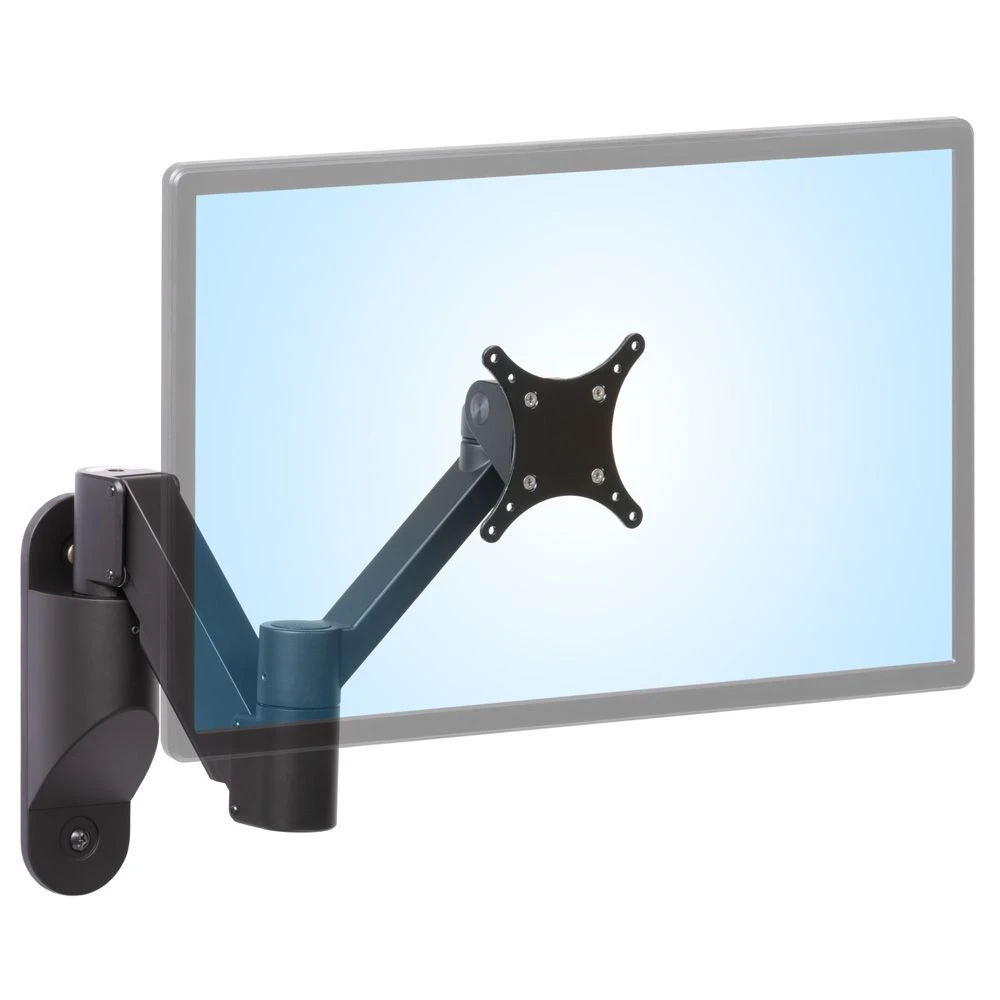

- Desk mount, pole mount or wall mount
- Black is our standard quick ship color
- Available in other colors with 3 week lead time
- More Questions? Please call us at 888 420 3200
- Some assembly is required
- Please watch the YouTube Video for monitor arm installation tips and adjustment instructions

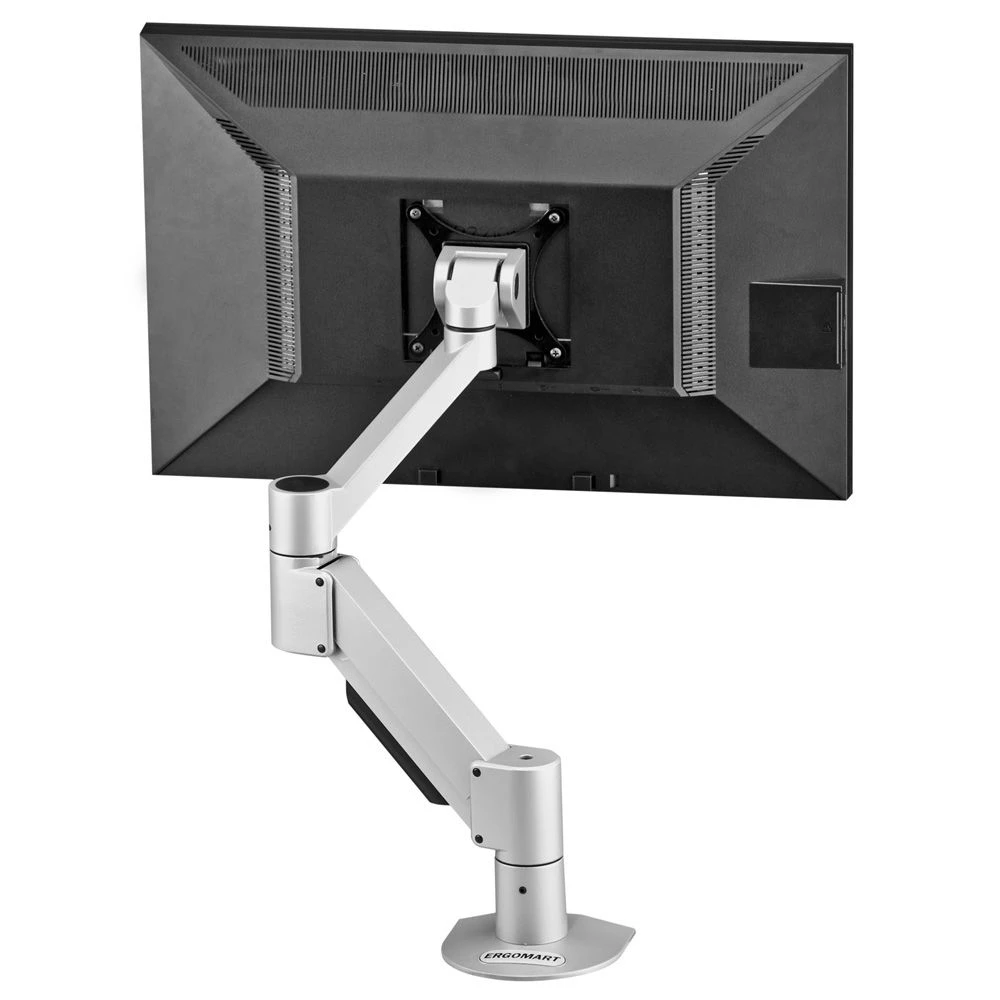

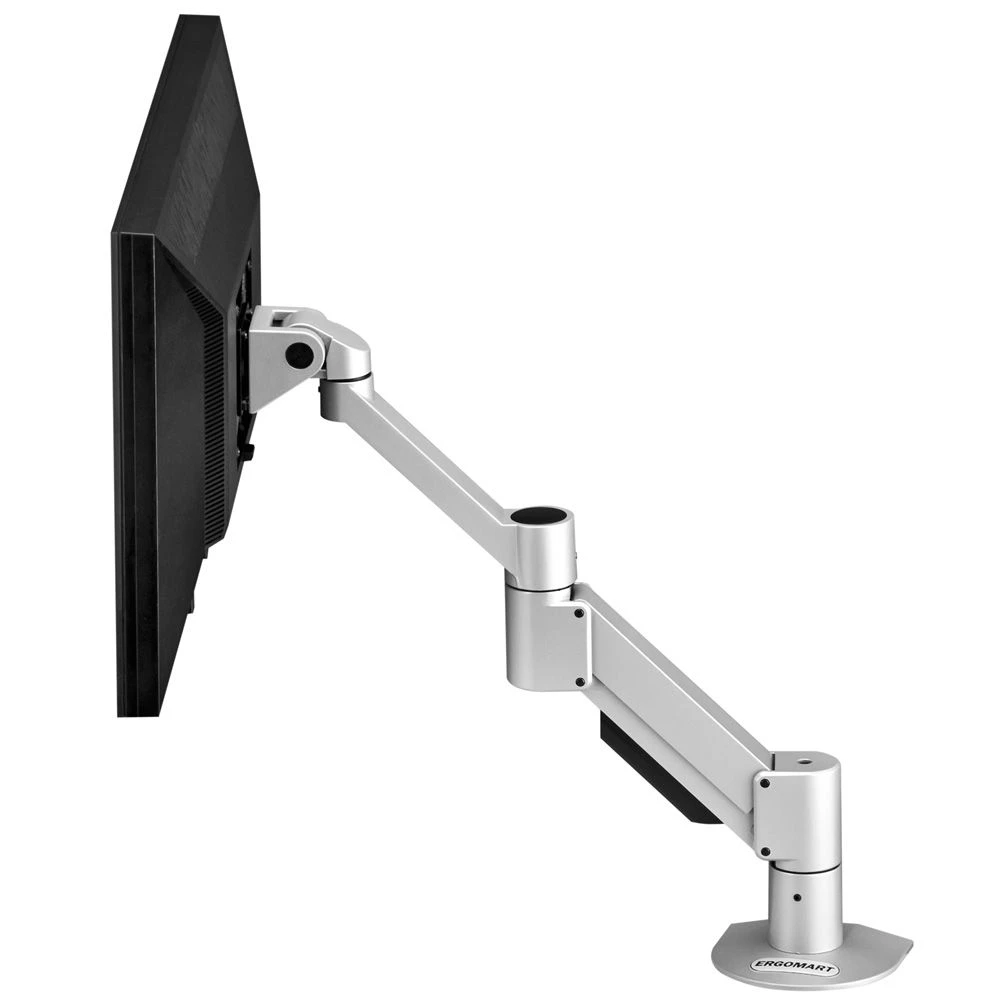

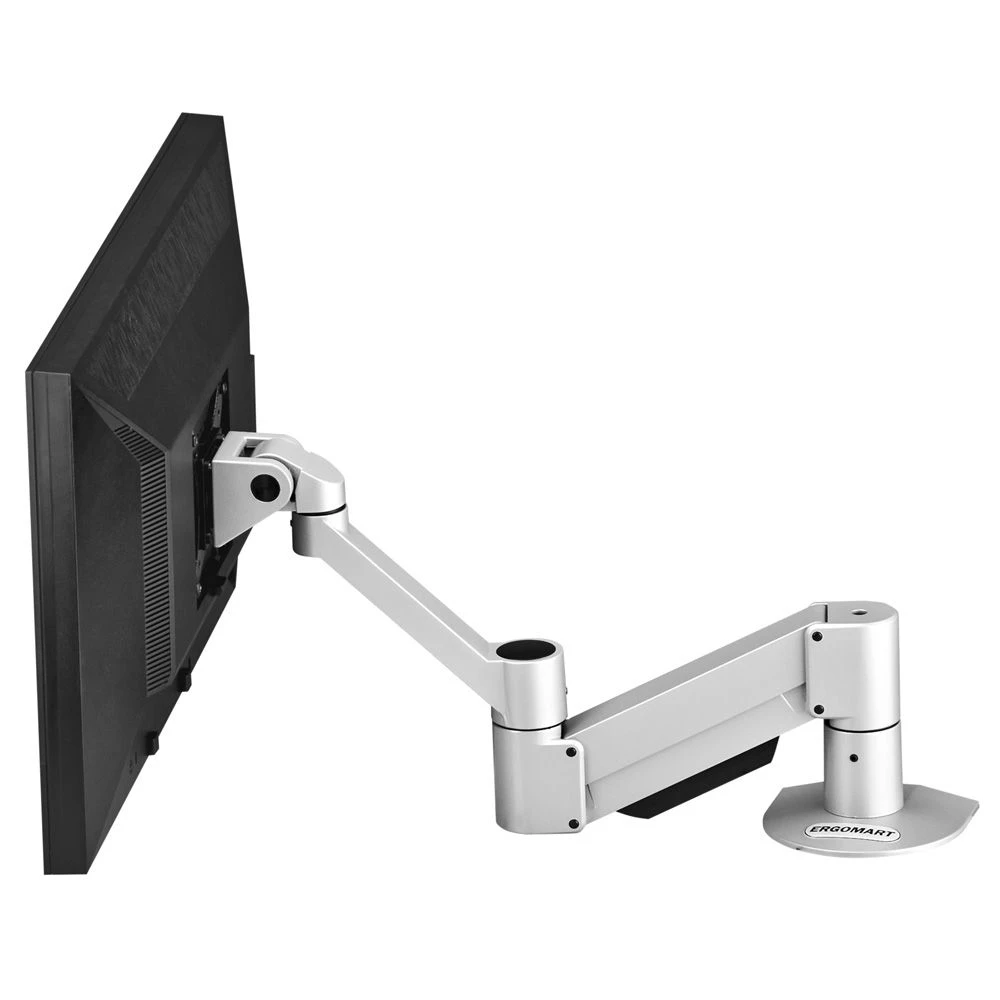

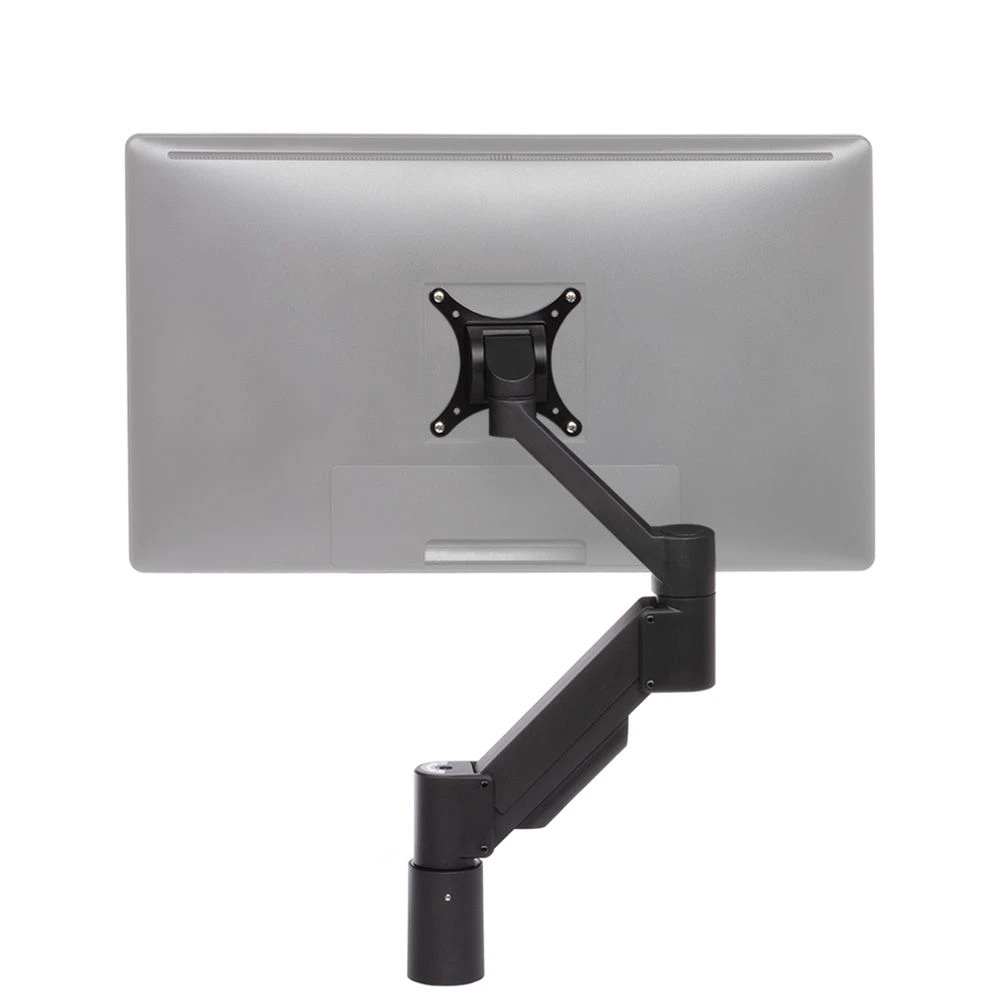

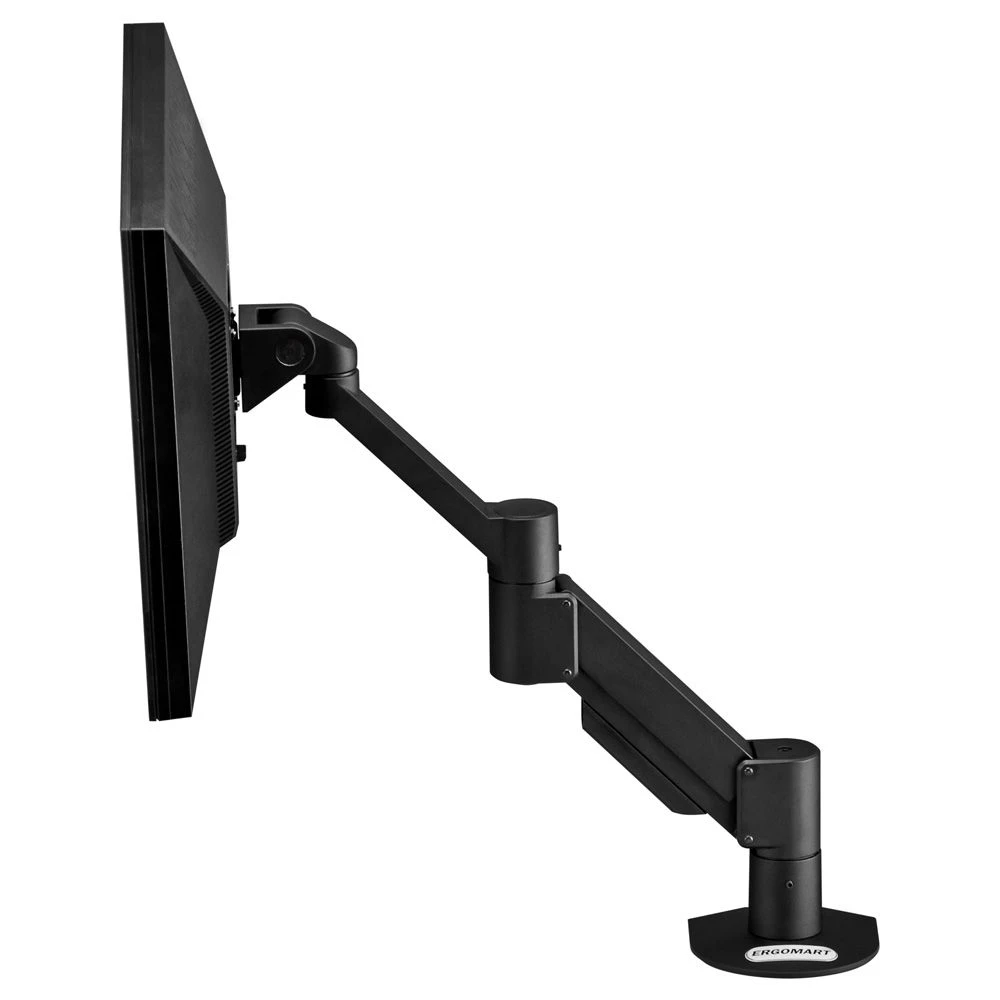

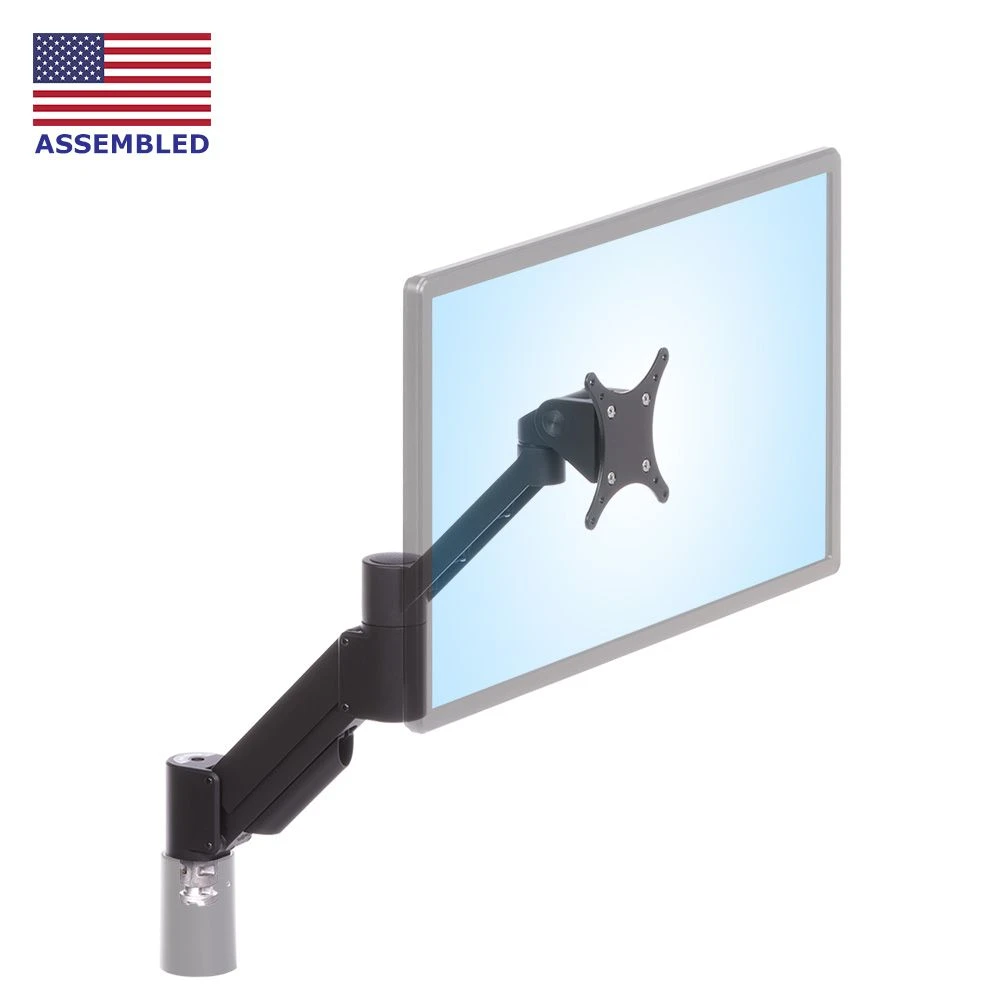

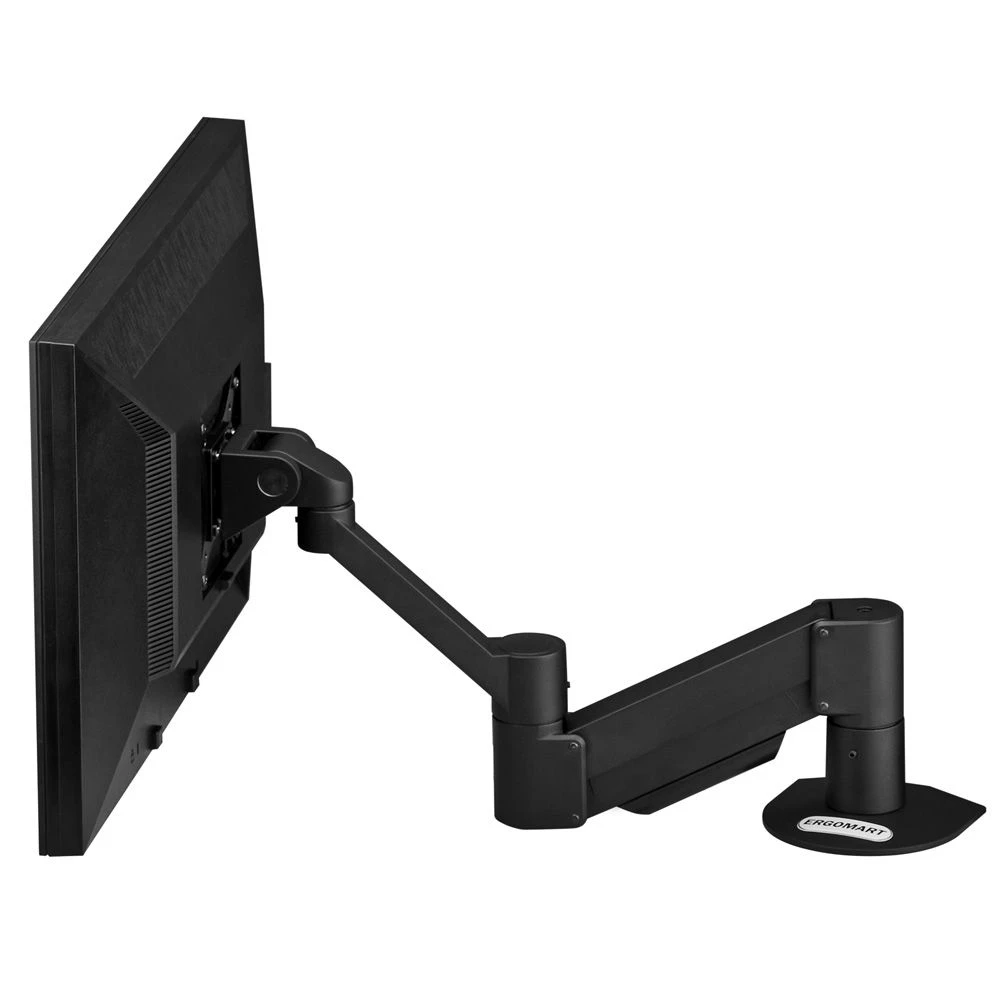

The SAA179 LCD Monitor Arm provides excellent adjustability and effortlessly floats LCD and LED monitors as well hefty touchscreen monitors and even big 27″ all-in-PCs and iMacs of all sizes. This very compact monitor arm has an angled forearm that preserves the full range of vertical travel as the user moves the arm through its full range of motion. When folded in on itself, positioned at or against the mounting surface, the SAA179 collapses to about 3.9″ of depth. When mounted with a KIT A to a horizontal surface that stops the downward travel of the lifting arm, the SAA179 achieves just under 8″ of vertical range (please see specification tab images). When mounted to a pole or vertical surface where there are no obstructions, the downward movement of the lifting arm achieves its full range of vertical travel of nearly 10″. Using the 2” or 6” vertical extension option will allow the arm to achieve its full vertical transit of over 9.5”. The triple articulating arm rotates 360° in the mount, elbow and tilter head. The tilter head mechanism tilts more than 200°. Maneuver a monitor with fingertip ease and achieve maximum mobility in a minimum of space.
Selecting the Flexible Mount Kit A supplies a highly configurable mounting kit that can be assembled as a clamp to desk edge mount, thru desk mount, wall mount, or box edge mount. Other more application specific mounts are available and provide alternative heavy duty, use appropriate and aesthetic solutions. The SAA179 easily handles monitors up to 30″ (screen size measured diagonally). The LCD mounting arm is available in two standard weight ranges. Contact Ergomart for assistance if your monitor weighs less than 9 pounds. Weigh your monitor without the stand to determine which arm weight range (gas spring cylinder) and which tilter head best fits your specific monitor.
The purchasing options on this page provide a great deal of flexibility in configuring your product. Please be aware that Mount Kit A is incompatible with the Heavy-Duty Horizontal extensions and the 5″, 8″, and 12″ vertical extensions.
| Shipping Weight | 9 pounds |
| Shipping Dimensions | 23″ x 14″ x 4″ |
| Warranty | 5 year limited |
INSTALLING AND ADJUSTING YOUR SAA ARM:
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
FLOOR STAND
WALL TRACK
CART
TRACK SLIDING
ADAPTABLE • FUTURE PROOF
| Color | Black, Metallic Gray, Matte White |
|---|---|
| Monitor Horizontal Reach | 16.9" from center of mounting pin to front of VESA plate |
| Max Swivel (at Monitor) | Up to 360° based on monitor size/tilt |
| Max Swivel (at Elbow) | 360° |
| Max Swivel (at Base) | 360° |
| Portrait to Landscape | Yes |
| VESA Options | 75 x 75 |
| Horizontal Extensions | 4.5", 9.5", 15.5" HD extensions |
| Vertical Adjustment | 9.5" instant adjustment |
| Weight Range | 9-36 lb |
| Monitor Arm Capacity | 9 to 19 lb arm, 9 to 19 lb arm, 9 to 19 lb arm, 19 to 36 lb arm, 19 to 36 lb arm, 19 to 36 lb arm |
| Mounting | |
| Number of Monitors | 1 as is |
| Mount Type | Monitor Arm |
| Horizontal Extension (optional) | Not compatible with selected mount kit, 4.5 inch Single Pin Horizontal Extension, 4.5 inch Single Pin Horizontal Extension, 4.5 inch Single Pin Horizontal Extension, 9.5 inch Single Pin Horizontal Extension, 9.5 inch Single Pin Horizontal Extension, 9.5 inch Single Pin Horizontal Extension, 15.5 inch Single Pin Horizontal Extension, 15.5 inch Single Pin Horizontal Extension, 15.5 inch Single Pin Horizontal Extension |
| Vertical Extension (optional) | No Vertical Extension, 2" Vertical Extension, 2" Vertical Extension, 2" Vertical Extension, 5" Vertical Extension, 5" Vertical Extension, 5" Vertical Extension, 6" Vertical Extension, 6" Vertical Extension, 6" Vertical Extension, 8" Vertical Extension, 8" Vertical Extension, 8" Vertical Extension, 12" Vertical Extension, 12" Vertical Extension, 12" Vertical Extension |
| Mount Kit | No Mount Kit, Economy Mount Kit P, Economy Mount Kit P, Small Flexible Mount Kit A, Small Flexible Mount Kit A, Small Flexible Mount Kit A, Flexible Mount Kit C, Flexible Mount Kit C, Flexible Mount Kit C, HD Wall Mount Kit D, HD Wall Mount Kit D, HD Wall Mount Kit D, HD Dual Wall Mount Kit D3, HD Dual Wall Mount Kit D3, HD Track Mount Kit F, HD Track Mount Kit F, HD Track Mount Kit F, HD Thru Desk Mount Kit G, HD Thru Desk Mount Kit G, HD Thru Desk Mount Kit G, Column Mount Kit K, Column Mount Kit K, Column Mount Kit K, Offset Surface Mount Kit K2, Offset Surface Mount Kit K2, Dual Arm Mount Kit L, Dual Arm Mount Kit L, Dual Arm Mount Kit L, OEM Mount Kit R, OEM Mount Kit R, OEM Mount Kit R, Dovetail Medical Mount Kit S (call), Dovetail Medical Mount Kit S (call), Slatwall Mount Kit H (call), Slatwall Mount Kit H (call), HD Pole Mount Kit E, Dual Pole Mount Kit J, Pole Top Mount Kit Y (call), Horizontal Track Slider Kit M, Horizontal Track Slider Kit M, Roller Track Positioner Kit M2, Roller Track Positioner Kit M2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2 with Brake, Roller Track Trolley Mount N2 with Brake, Desktop Roller Trolley Kit Q, Desktop Roller Trolley Kit Q, Ceiling Roller Trolley Kit U (call), Ceiling Roller Trolley Kit U (call) |
| VESA | 75 x 75 mm and 100 x 100 mm, 100 x 200 mm |
| Monitor Tilter Head Capacity | Standard Tilter Head, Standard Tilter Head, Standard Tilter Head, HD Spring Tilter Head, HD Spring Tilter Head, HD Spring Tilter Head |
| Monitor Tilt Range | +90° up, -45° down |
