Roller Track Sliding Horizontal Mount System

SLIDING MOUNTS FOR TVs, MONITORS AND OTHER EQUIPMENT

• Use the Roller Track to slide TVs, monitors and various equipment with finger-tip ease
• Order an overhead sliding TV mount configured to fit your mounting location by contacting our team
• Multiple Mount Kit options compatible with all SERIES-118 monitor arms and other mounting devices

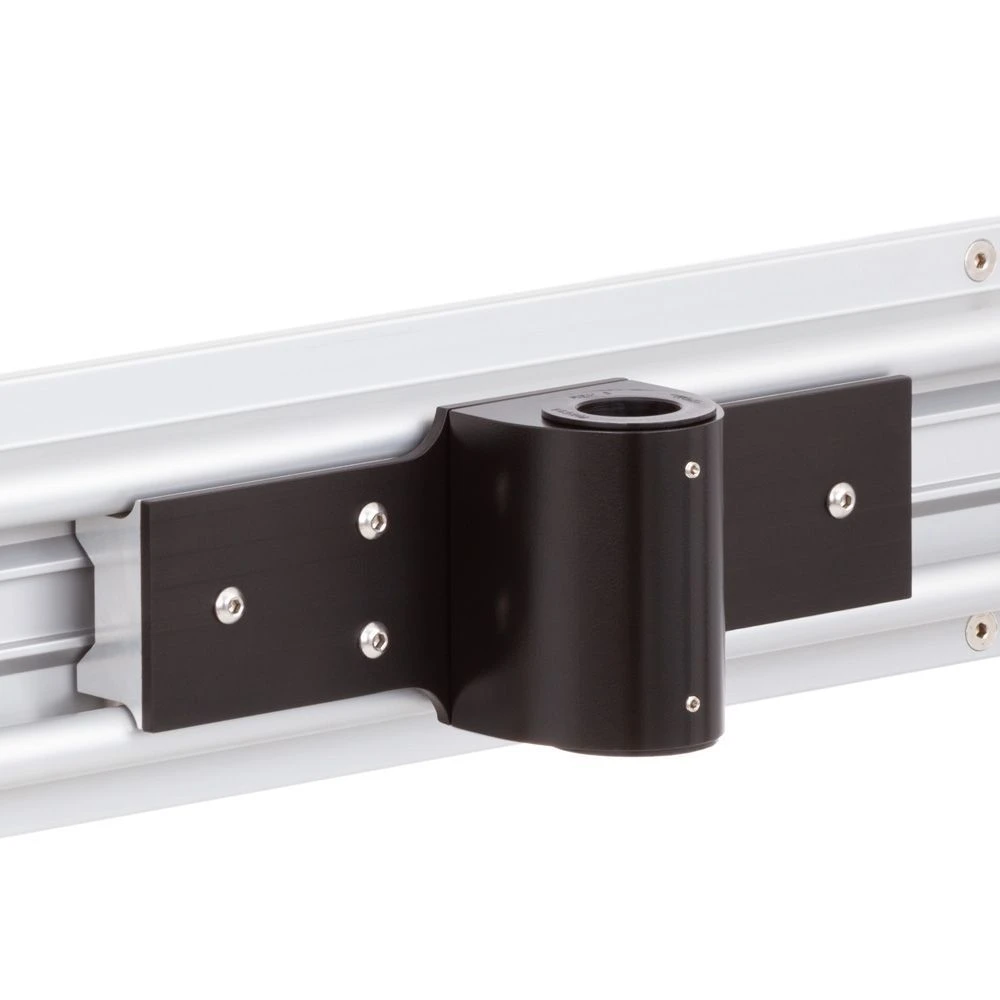

• Trolley mount (MKIT-N2) moves monitor and equipment up to 100 lb along the track
• Heavy duty trolleys and poles are available for TVs up to 85 inches
• Fixed mounting options are available when instant lateral motion is not required

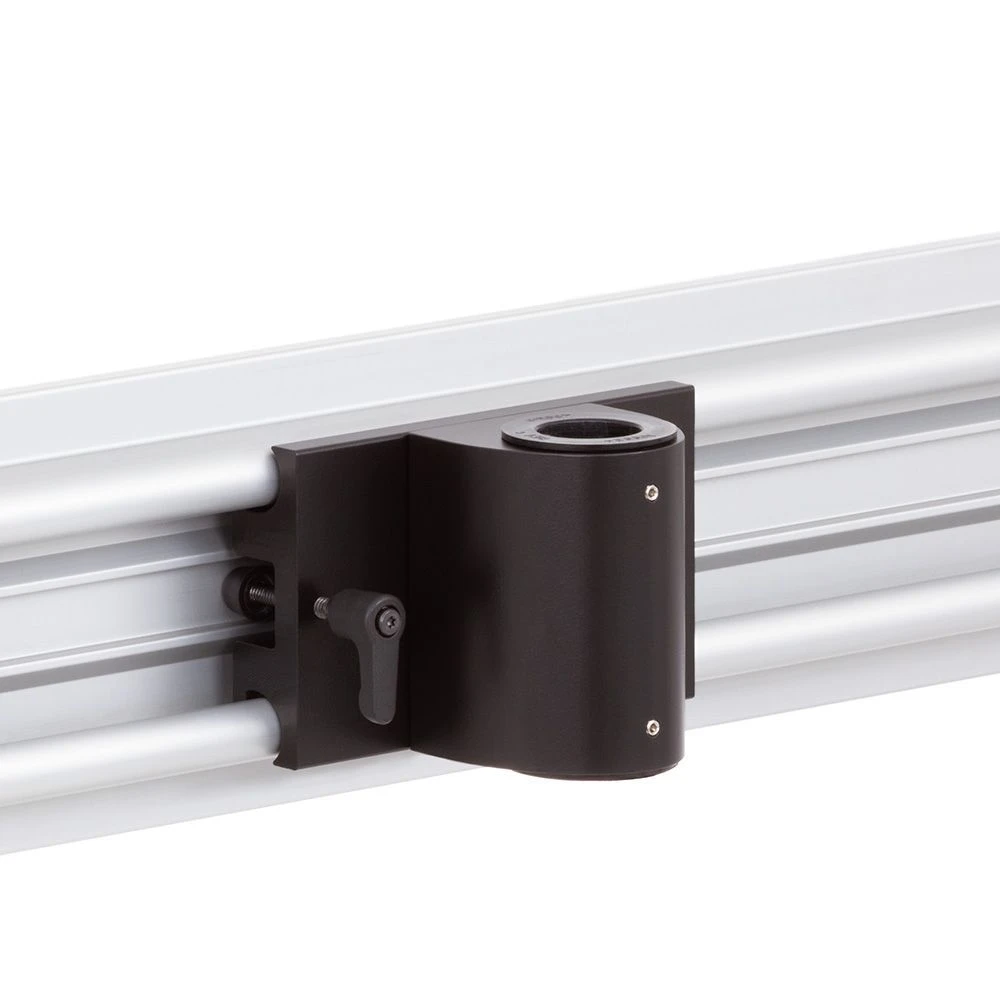

• MKIT-M2 is a “lift and slide” movable mount with a simple lever brake to lock it in place

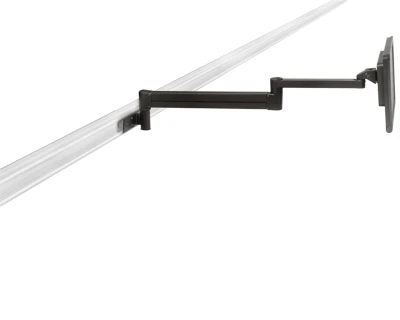

• Add one or more of Ergomart’s monitor arms for vertical reach and mobility
• Use with horizontal extensions and pole mounted assemblies for added versatility
• High capacity cable management trough handles cables and even surge suppressors
• Power/video/data cables are routed using a drag chain running inside the wire management channel
• Standard tracks are available in 39, 78 and 156 inch lengths
• Professional Installation required – must attach to wood studs or correctly engineered heavy backer
• Need a lighter duty alternative? See the New ViewTrack

The Ergomart Roller Track (R-Track) System is a heavy-duty horizontal track/rail that allows equipment to slide or roll laterally with ease. The R-Track System provides a unique and powerful set of answers to meet many mounting challenges encountered across a broad range of applications and environments. This specialty mounting solution is ideal for technical, manufacturing and industrial workstations, broadcast and monitoring environments and medical facilities where sliding monitor mounts are needed. A variety of Ergomart lifting arms and mounts work in conjunction with mobile trolleys or repositionable brackets to deliver vertical travel of up to 28″.

Unlike most slat-wall systems, the R-Track can manage substantial loads between 24″ fastening locations. The Rail component can handle 90 pound loads with four feet of space between anchoring points while still providing instant lateral mobility. The R-Track system is ideally suited for pairing with dynamic work environments like ball transfer tables and conveyor based manufacturing environments where a monitor and other equipment can be continuously repositioned for optimal usability.

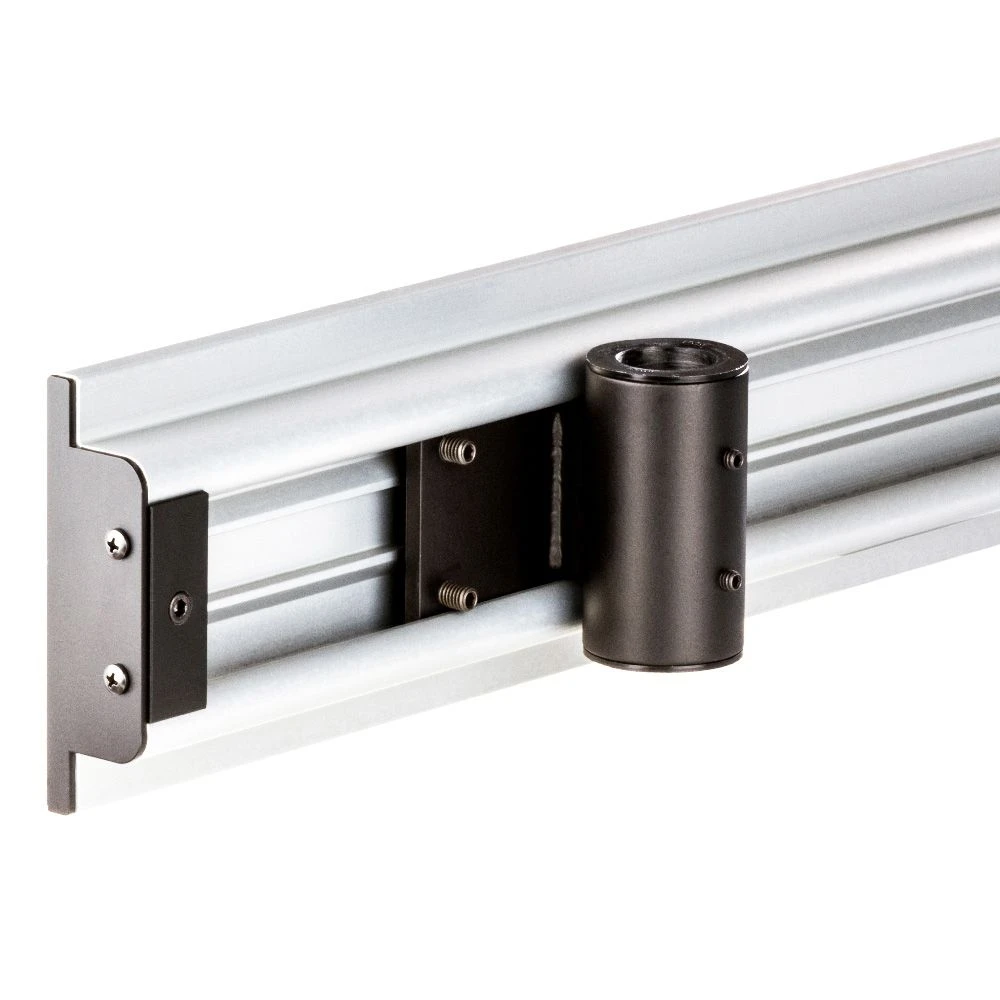

The R-Track system serves as a scalable wall mounting infrastructure accommodating countless possibilities for reconfiguration and expansion while maintaining organization and visual harmony as equipment needs evolve. Dynamically height-adjustable systems result by mounting compatible monitor, keyboard, or other equipment arms to the available RT Mount Kits. These products can be ordered from their respective product pages or you may contact Ergomart for a configuration quoted to your exact requirements.

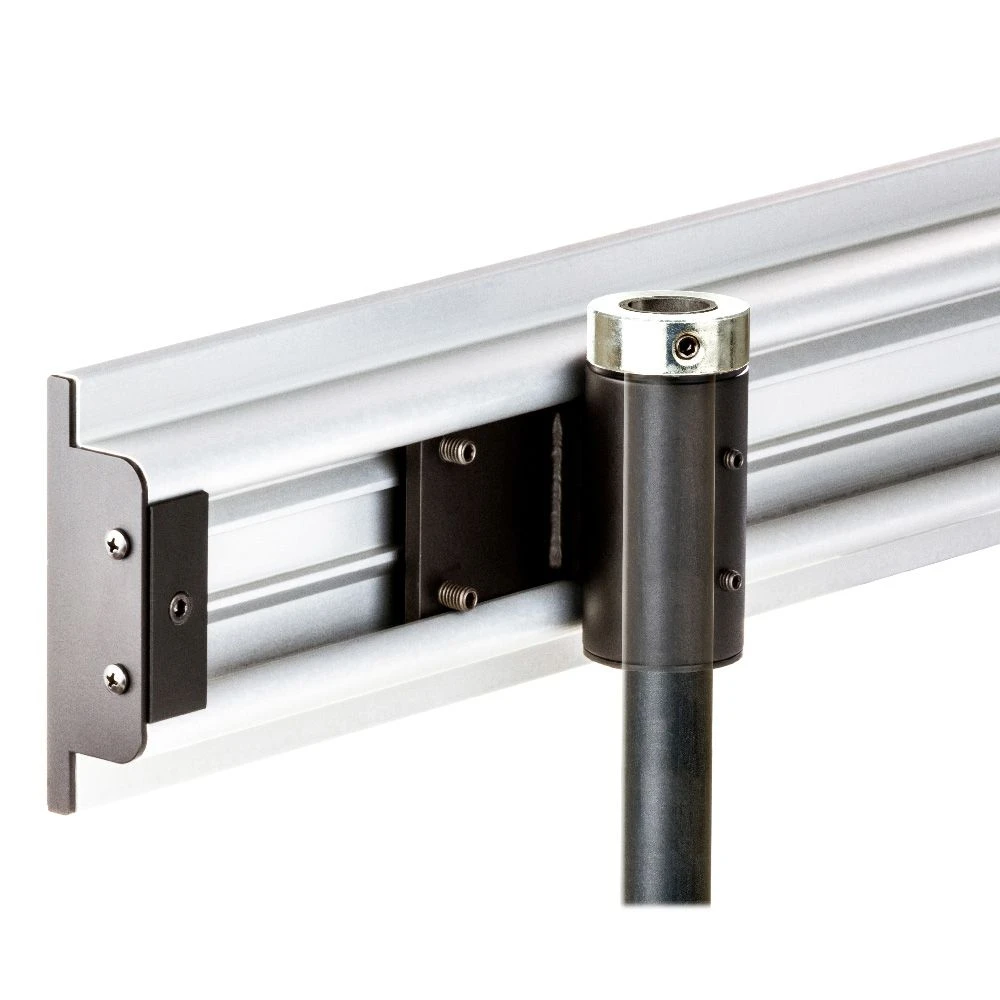

When fixed height positioning is needed, a combination of Straight Arms, Poles, Pole Mounts, Monitor Tilter Heads and VESA adapters can be used to achieve the desired result. A simple system consists of monitors mounted close to the track using a short horizontal arm, and the appropriate tilter head and VESA plate combination. A longer horizontal arm can provide additional separation from the wall. A pole attached to the RT Mount or to the receiver at the end of the arm can provide vertical reach. Pole mounts allow equipment to be positioned along the shaft of the pole and come in single or dual mount varieties.

The R-Track is for:

• Equipment moved frequently (e.g., audio visual studios, manufacturing or packing workstations)

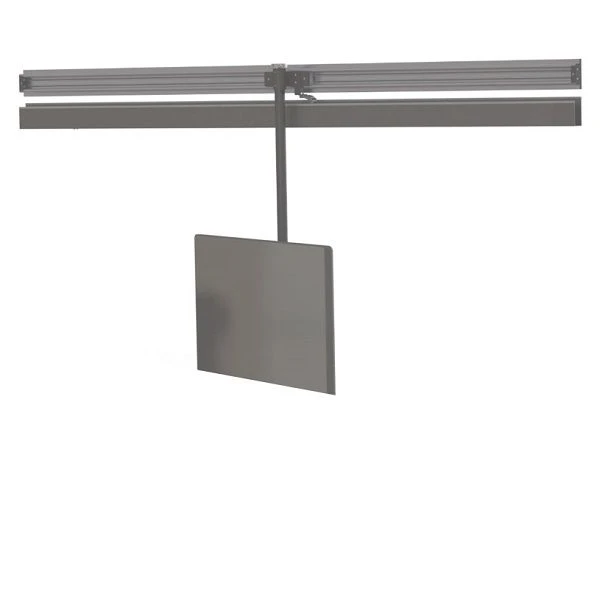

• Monitors or other devices mounted overhead and moved laterally and pulled down for user interface and then pushed back out of the way after use (e.g., medical/patient care)
• Equipment that must be added or replaced relatively frequently (e.g., showrooms, stores, gyms, restaurants and sports bars, growing businesses)

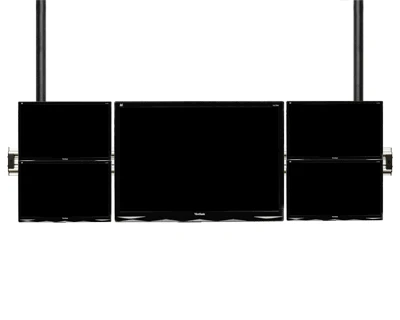

• Disparate sized monitors that need to be arranged on a wall in logical and useful configurations to create order and organization (e.g., security monitoring stations, showrooms)

For assistance putting together a customized R-Track solution call 1-888-420-3200 (international +1 214-742-6066)

Straight Arms, Poles, Pole Mounts, Tilter Heads and VESA adaptors can be used to create customized fixed-height mounting solutions that complement our sizable offering of off-the-shelf solutions. All types and sizes of monitors can be mounted tight to the track or using horizontal arms of differing lengths. Various monitor tilter heads can accommodate monitors weighing up to 75 lb. Pole mounts allow equipment to be positioned along the shaft of the pole above and/or below the mount and come in single or dual mount varieties. Please call for help in creating a solution that suits your specific needs.
