Roller Track Quick Release Tilting Sliding Monitor Mount
Original price was: $244.34.$96.99Current price is: $96.99.
- Uncompromising quality, every time.
- Your questions, our prompt answers.
- 7 days return and exchange
- Free Shipping, No Compromise on Quality
Low-Profile, Tilting, Movable Monitor Mounts for Roller Track
Movable Tilting Monitor Mounts for the Roller Track (RT-FLUSH-TILT) are low-profile, VESA-compliant brackets that enable users to easily move monitors along a heavy duty horizontal track and to set tilt viewing angles between 5° up and 15° down. Their robust design and usability make them well-suited for sports bars, digital signage, meeting rooms, conference rooms, sporting venues and restaurant applications.
The information below highlights important attributes of the various Quick Release Tilting Roller Track Monitor Mount options. If you have any questions or require more information, please don’t hesitate to get in touch with an Ergomart representative.
VERSATILE • ADAPTABLE • FUTURE-PROOF
Â
Flush Tilt Mount Options
Flush Tilt Mount Features

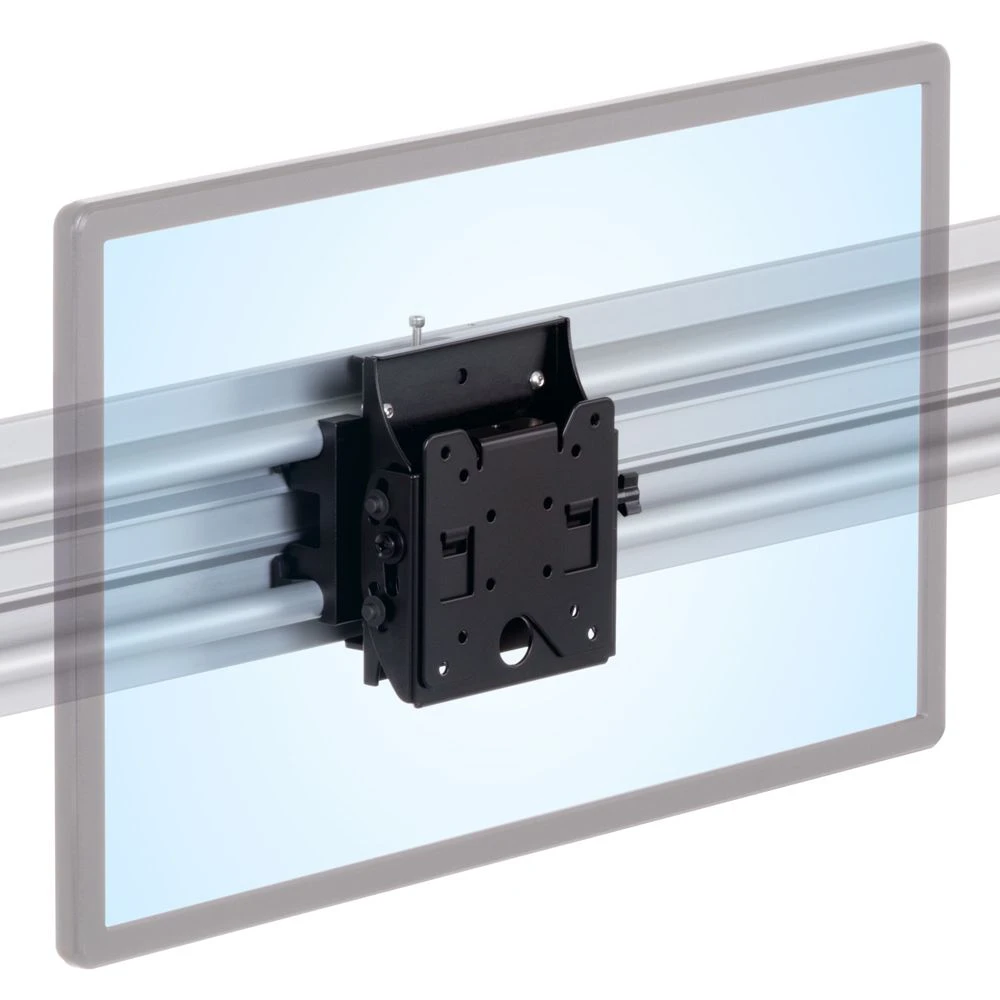

Lift and Shift Positioner
- Position anywhere along the track
- Ideal for occasional repositioning
- To adjust: lift payload, move and release
- Suited for devices up to 100 lb
Gliding Roller Trolley
- Easily slides along the track on roller bearings
- Ideal for frequent, one-touch movement
- To adjust: push the device to the desired position
- Handles payloads up to 115 lb
Flush Tilt Mount Features
Brake
- Brake limits unintentional shifting of payload
- Locks and disengages by turning thumb screw
- Use a 5/32 allen head tool for added tightening

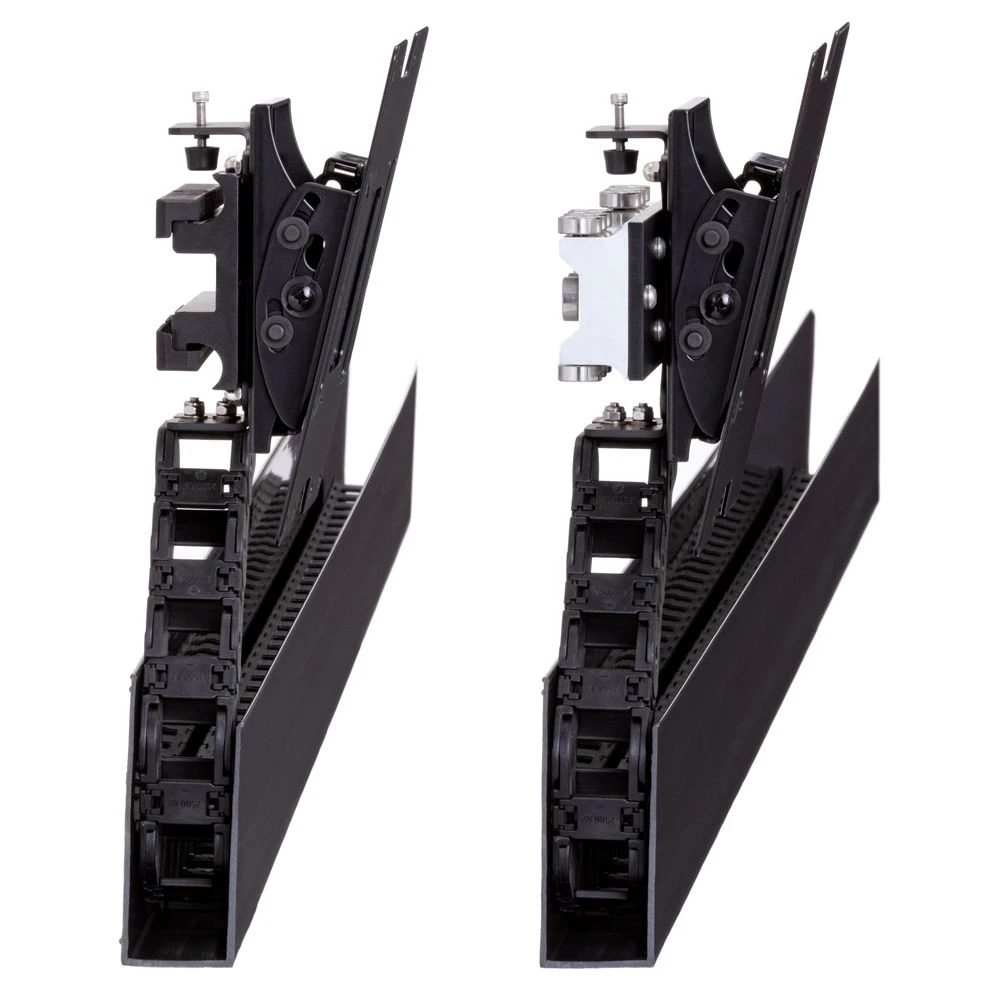

Wire Management Interface
- Both versions of movable tilting bracket will interface with a simple trough or our advanced wire manager system (call to order) available for purchase separately.
RT-632 Monitor Mount Features
Easy Attachment/Removal
- Simply slide the monitor adapter plate into place by inserting the clips into the receiving slots
- Secure brackets together using the included M5 screw
- Detach by removing the locking screw and lifting the device upwards
Tilt Angle
- Tilt can be adjusted 15° forward and -5° back to optimize viewing angle
- Tilt angle is locked in place by tightening the thumbscrew to the side
Standard & Security Screws
- Standard M5 lock screw locks the front and back bracket components together
- Theft-deterrant security screw and bit kit option available
- M4, M6 and M8 screws are included to cover most VESA compliant monitors with up to 200 x 200 mm hole patterns
VESA Sizes
75 x 75mm
100 x 100mm
100 x 200mm
200 x 200mm
- All sizes are included with the monitor mount as standard
- For a detailed description of VESA plates, see Ergomart’s VESA Reference Guide
Additional Considerations:
If you are looking for a flush mount without the need for tilting or quick release features, the Flush Movable Roller Track Monitor Mount is a basic but heavy-duty option. The Quick Release Rotating Flush Mount allows for easy adjustment from landscape to portrait.
The Quick Release Tilting Roller Track Monitor Mount is part of an entire family of modular mounts that can be assembled to meet almost any need. Our team at Ergomart is always ready to help you design a system that works for your requirements.
Â
| Positioner Option | Trolley Option | |
| Shipping Weight | 5.8 lbs | 8.1 lbs |
| Shipping Dimensions | 17″ x 14″ x 7″ | 17″ x 14″ x 7″ |
| Warranty | 5 year limited | |
| Mount Option | Positioner Mount, Trolley Mount |
|---|---|
| Mount Type | Horizontal Wall Track |
| Number of Monitors | 1 per RT-FLUSH-TILT mount |
| Mounting | Wall Track Mount |
| Weight Range | Positioner: Up to 100 lb / Trolley: Up to 115 lb |
| Monitor Horizontal Reach | As little as 3.67" from mounting surface to back of monitor |
| VESA Options | 75 x 75 mm |
| Portrait to Landscape | N/A |
| Max Swivel (at Monitor) | N/A |
| Monitor Tilt Range | +15°/-5° |
| Track Lengths | 39" |
