Slide an articulating monitor arm laterally along a wall-mounted track
The Wall-Mounted Roller Track with Articulating Monitor Arm is a heavy-duty horizontal rail equipped with an adjustable monitor arm, perfect for medical, industrial, manufacturing and technical environments. There are three options available for various monitor weight ranges. The SAA7000 handles the low and medium payload weight ranges. The SAA2415 is suitable for heavier monitors.
Below is a breakdown of the components of the Articulating Monitor Arm Mount, highlighting the capabilities, similarities and differences of each component. If you have any questions or require more information, please don’t hesitate to get in touch with an Ergomart representative.
VERSATILE • ADAPTABLE • FUTURE-PROOF
Arms

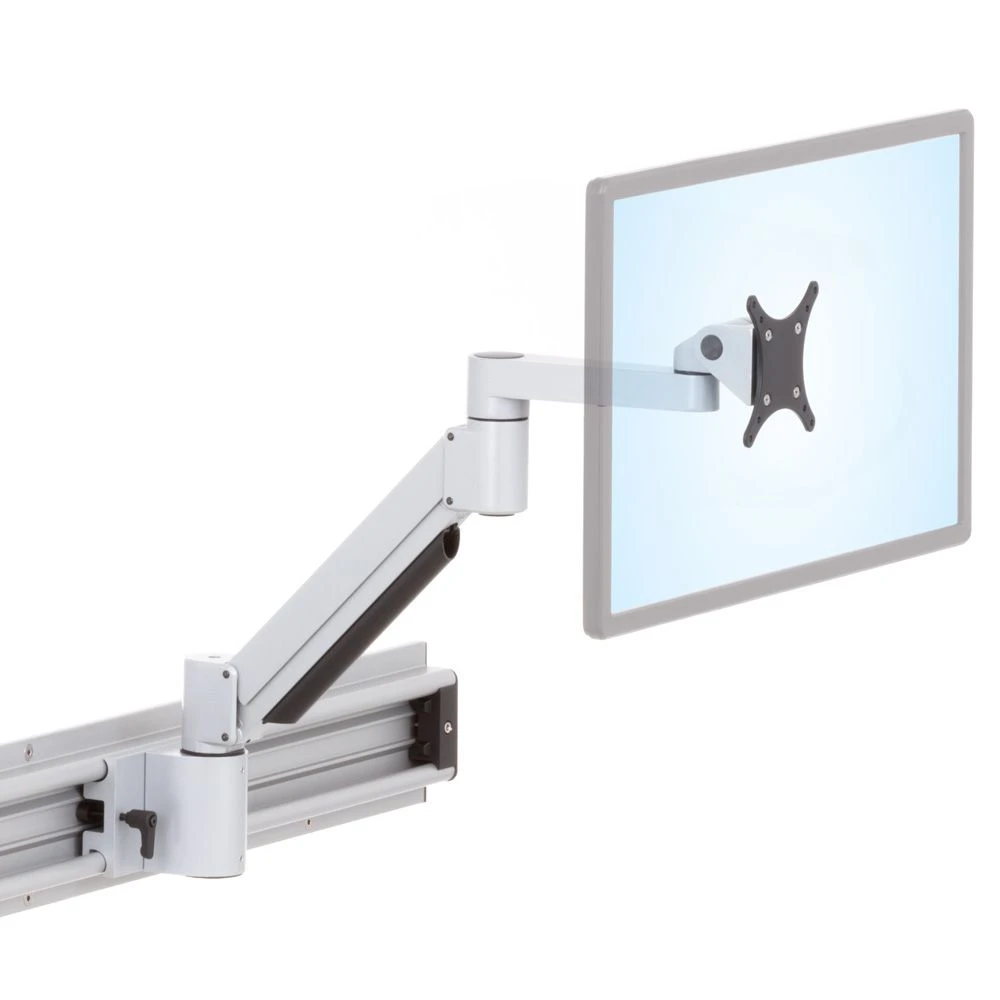

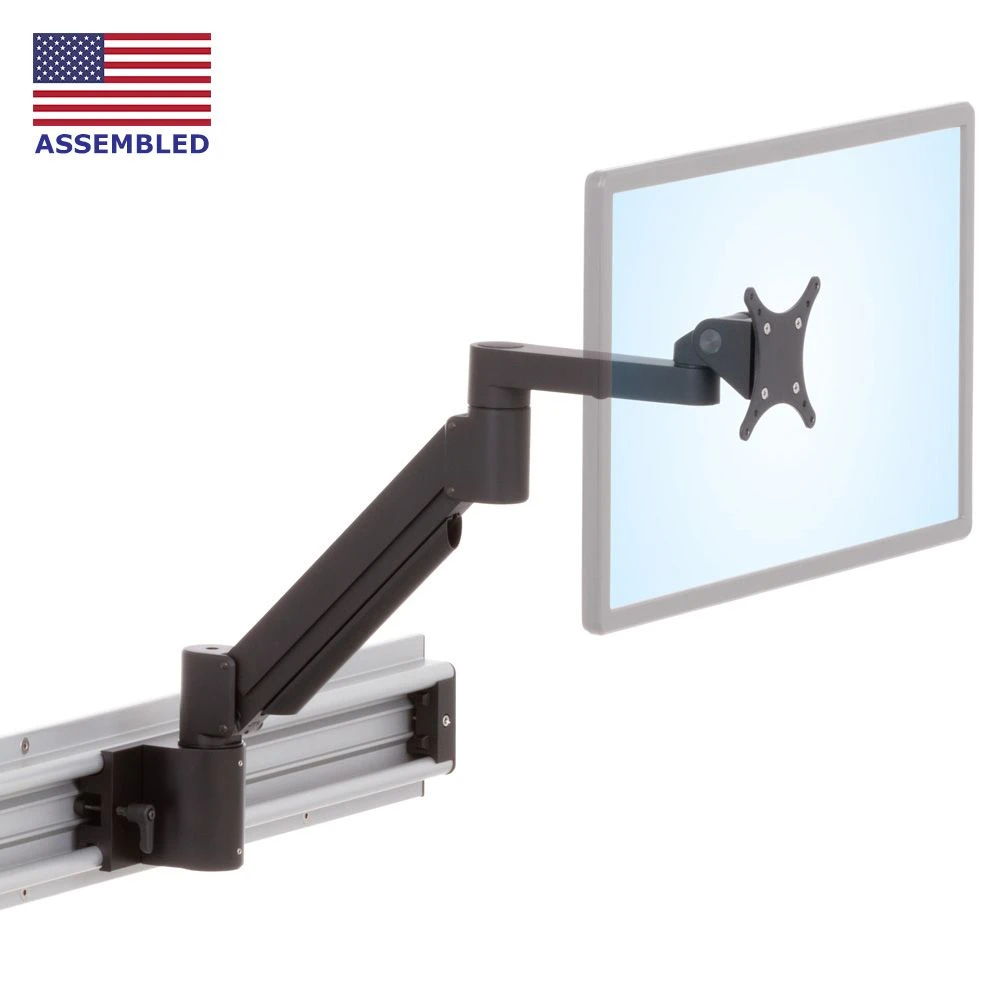

SAA7000
- The SAA7000 is suitable for monitors weighing up to 23 lb
- Base of the arm inserts into the MKIT track mount
- Three 360° articulation points throughout the arm (base, elbow and monitor) when unobstructed
- Instant portrait/landscape screen rotation
- +90° upward, -45° downward monitor tilt
- Available in black or metallic gray

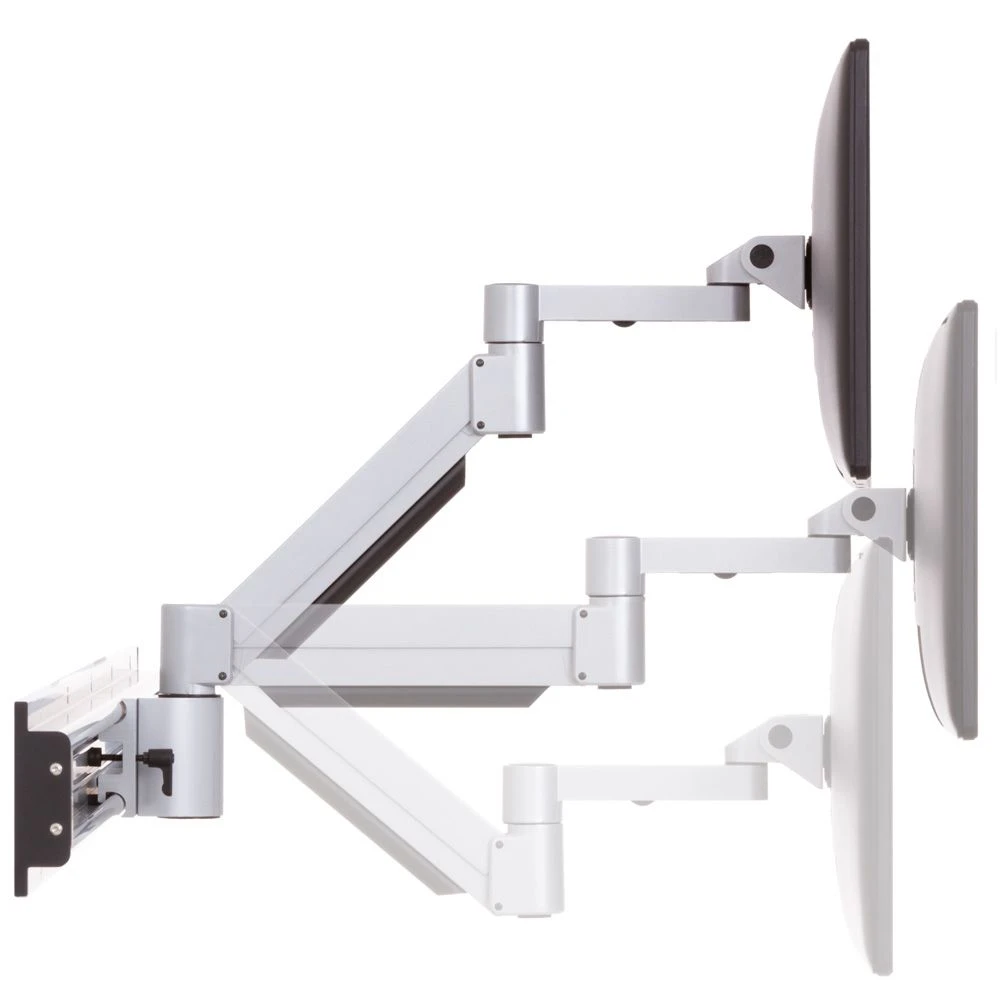

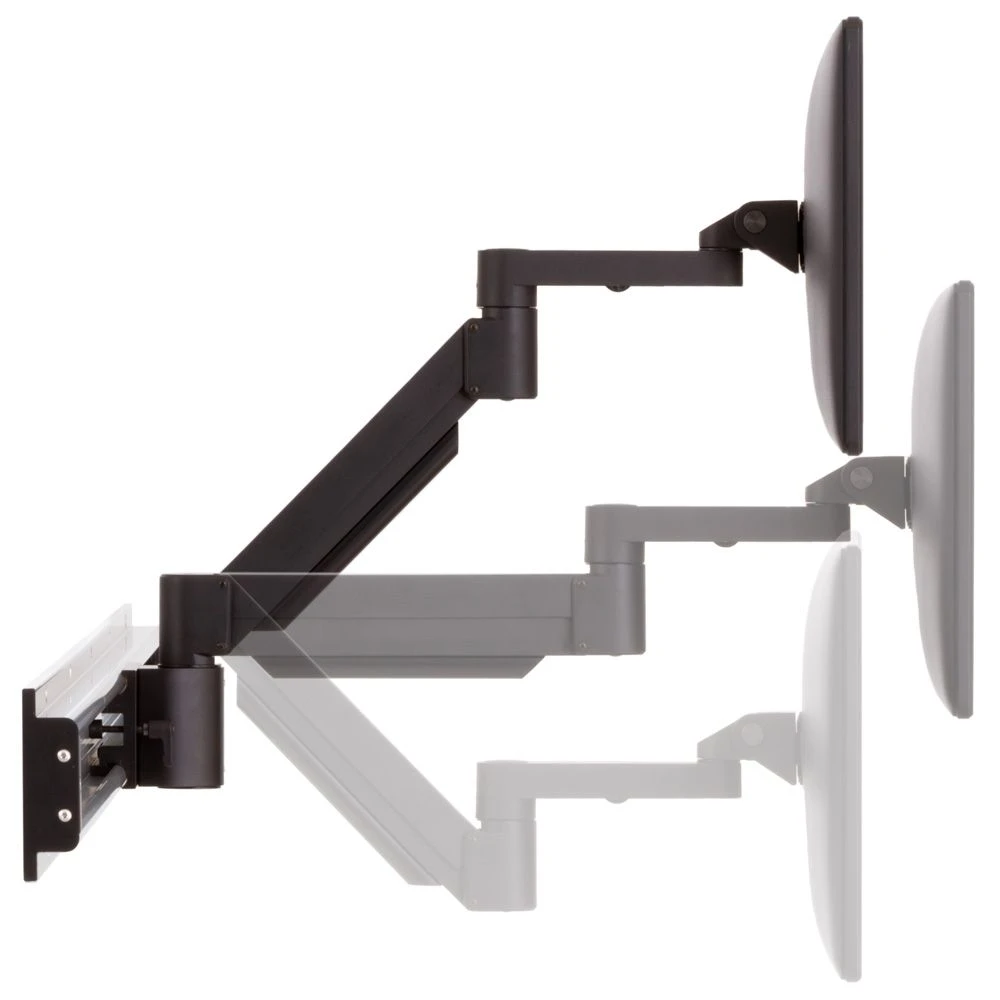

- 16″ of instant vertical adjustment
- Reaches out up to 24″ at maximum extension
- The SAA7000 comes in two version for different weight ranges
- Smaller cylinder handles monitors 5 to 13 lb
- Larger cylinder supports monitors 9 to 23 lb
- For details on monitor cylinders and weight capacities, see Ergomart’s Monitor Arm Capacity Reference Guide
Standard Tilter Head
- The standard tilter is used with monitors weighing up to 35 lb
- Inserts into the receiver at the front of the lifting arm
- VESA plate is attached to the front of the mechanism
- For a detailed description of tilter head capabilities, see Ergomart’s Tilter Mechanisms Reference Guide

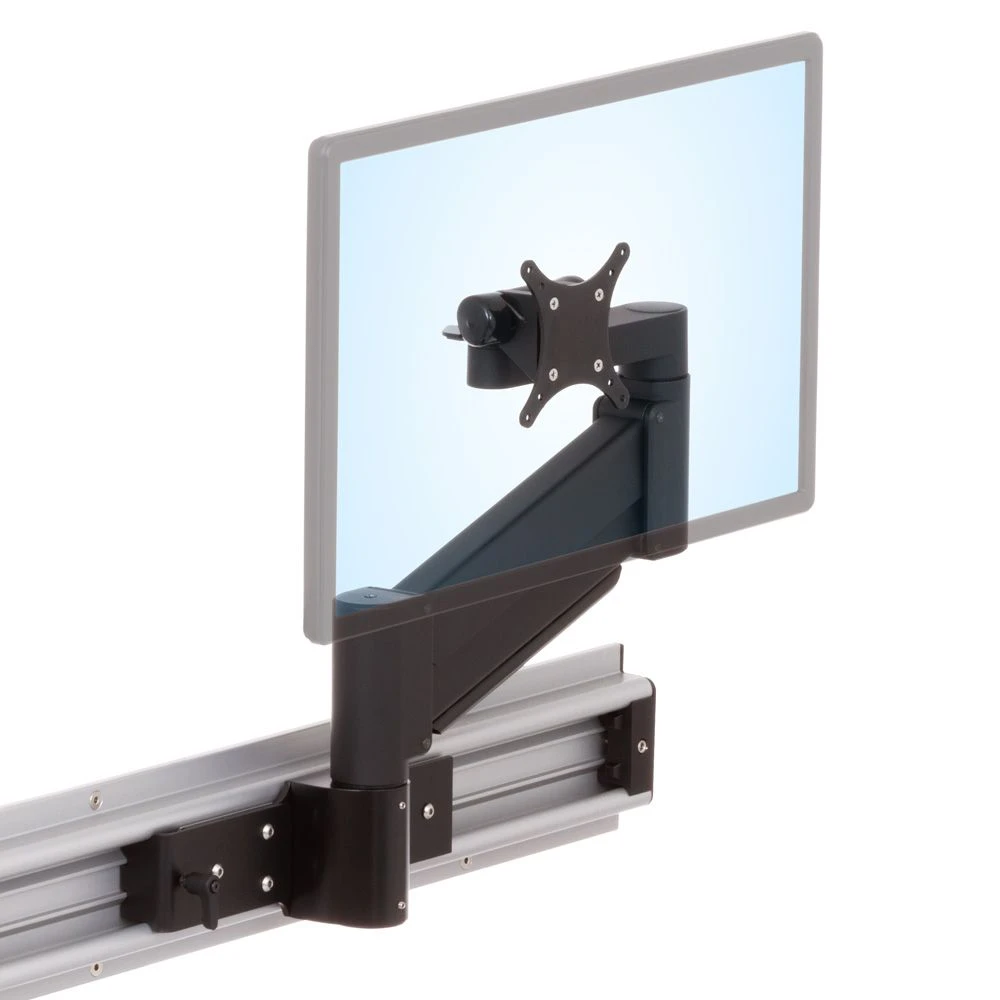

SAA2415
- Heavy-duty monitor arm option for substantial payloads
- Base of the arm is installed into the MKIT track mount
- Three 360° articulation points throughout the arm (base, elbow and monitor) when unobstructed
- Instant portrait/landscape screen rotation
- +90° upward, -45° downward monitor tilt
- Available in black or metallic gray
- Reaches out up to 22″ when fully extended
- 14.5″ of instant vertical adjustment
- Suitable for monitors weighing 24 to 55 lb
- For details on the monitor cylinders and weight capacities, see Ergomart’s Monitor Arm Capacity Reference Guide
Heavy Duty Tilter Head
- The HD tilter is built for equipment weighing up to 55 lb.
- Installs into the forearm of the lifting arm
- VESA plate is attached to the front of the mechanism
- For details on the tilter head capabilities, see Ergomart’s Tilter Mechanisms Reference Guide
Mounting Options

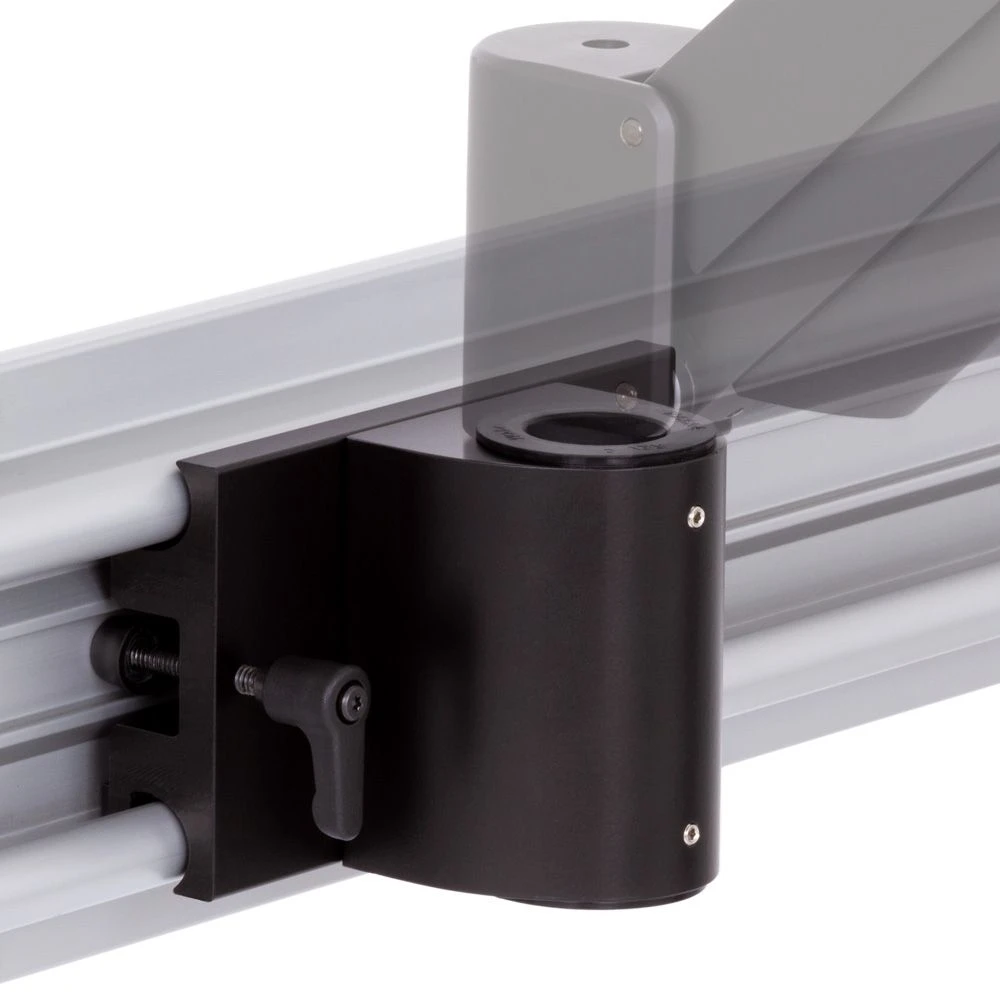

MKIT-M2
- Position anywhere along the track
- Ideal for infrequent repositioning
- To adjust: lift the monitor up, move along track and release
- Included clamp lock immobilizes the mount once positioned
- Mount can be oriented to position brake on either side
- Available in black and metallic gray
- For more details, see the M-KIT M2 Mounting Kit product page

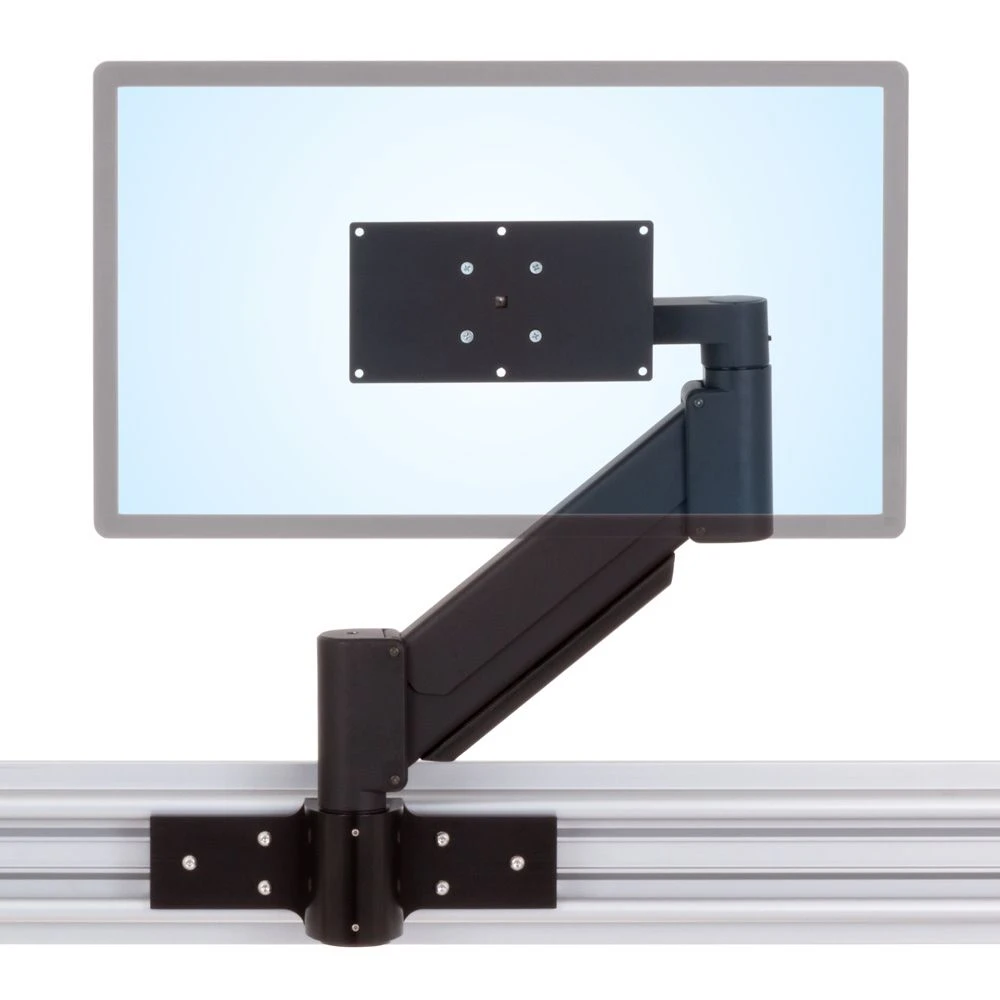

MKIT-N2
- Slide anywhere along the track
- Ideal for frequent, one-touch left/right movement
- To adjust: simply push the device to the desired position
- Available in black and metallic gray
- For more details, see the M-KIT N2 Sliding Mounting Kit product page

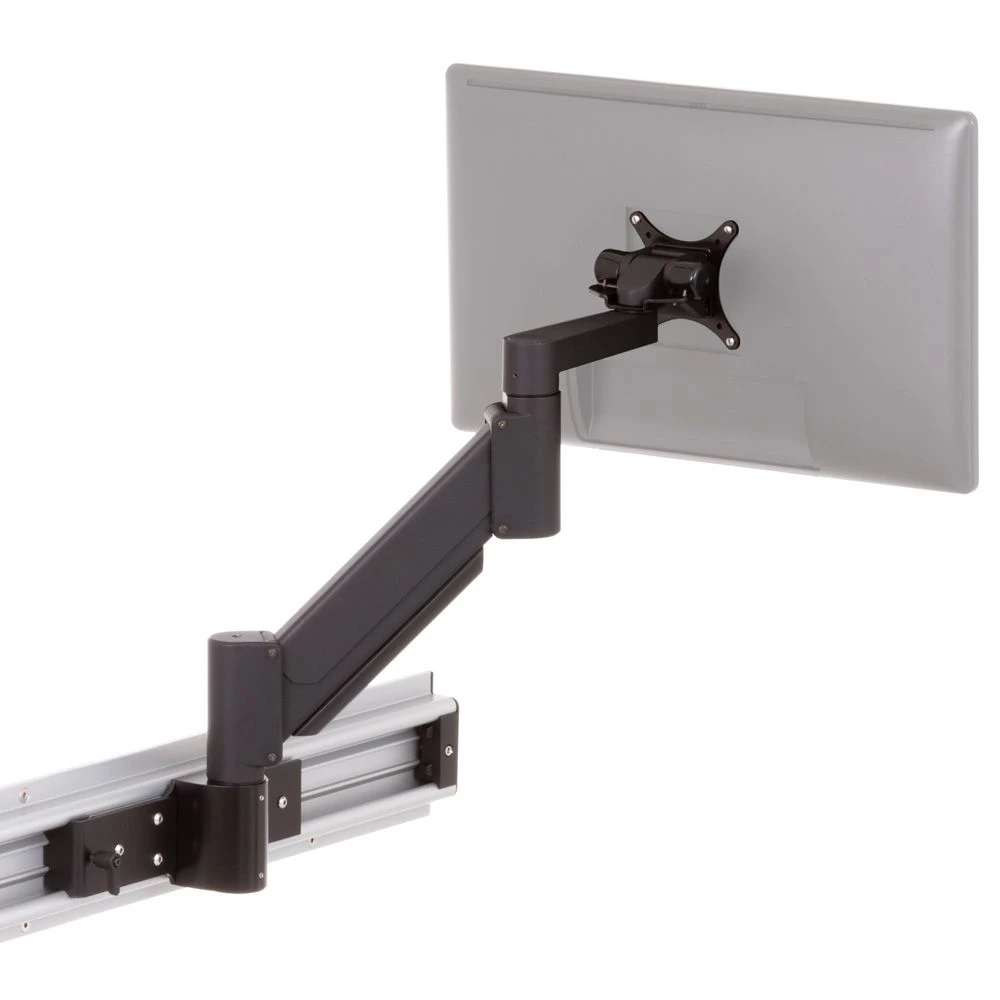

MKIT-N2 with Brake
- Slide and lock anywhere along the track
- Ideal for frequent, one-touch left/right movement
- To adjust: simply push the device to the desired position
- Clamp brake prevents unintentional movement
- Mount can be oriented to position brake on either side
- Available in black and metallic gray
- For more details, see the M-KIT N2 Sliding Mounting Kit product page
VESA Plates
75 x 75mm & 100 x 100mm
Star VESA
100 x 200mm
200 x 200mm
(accessories tab)
200 x 400mm
(accessories tab)
100 x 300mm to 400 x 600mm
(accessories tab)
- For a detailed description of VESA plates, see Ergomart’s VESA Reference Guide
Track
- Available in 3 sizes: 39”, 78”, and 156”
- The track is available in clear anodized aluminum
- Includes 2 end caps and stops to secure mount on track
- Custom sizes available – please call to discuss
- Professional Installation required – must attach to wood studs or correctly engineered heavy backer
Wire Management
- Generally mounted below track to contain and conceal monitor wires
- Ample space for power strips and multiple monitor cords
- Available in two sizes: 39” and 78”
- Not pre-drilled: fastener and outlet access can be added during installation to suit workspace
- More sophisticated solutions available – please contact us for more info
Additional Considerations:
If you are looking for a more compact monitor mount, the Low-Profile Articulating Roller Track Mount may suit your needs. The Roller Track Data Entry Arm combines a monitor arm and keyboard tray with the same easy sliding movement along the track.
The Wall-Mounted Roller Track with Articulating Monitor Arm is part of an entire family of modular mounts that can be assembled to meet almost any need. Our team at Ergomart is always ready to help you design a system that works for your requirements.
Key Features:
- Unparalleled movement and adjustability: slide a fully articulating arm along a track
- Monitor arm provides tilt, swivel and landscape/portrait rotation
- Tilt the attached monitor up to 90 degrees and down 45 when unobstructed
- Easily rotate the device from landscape to portrait
- Arm provides over 15″ of vertical adjustment, reaches 23″ and folds to under 4″
- Mounting Kit N2 provides fingertip adjustment for the arm along the track
- Optional locking mechanism holds the mount in place when movement is not desired
- Handles monitors from 5 to 55 pounds
- Compatible with 75x75mm, 100x100mm and 100x200mm VESA patterns
- Large cable management trough holds cables and surge protectors
- Two color options available: black and metallic gray
- Three track length options: 39 inches, 78 inches and 156 inches
- Custom track lengths available: contact Ergomart for assistance
| Box 1 Monitor Arm/Mount) | Box 2 (39-inch Track) | Box 2 (78-inch Track) | |
| Shipping Weight | 8.8 to 22.5 lbs | 14.5 lbs (add 2.4 lb for optional wire manager) | 24.2 lbs (add 4.7 lb for optional wire manager) |
| Shipping Dimensions | 26″ x 18″ x 12″ | 41″ x 7″ x 7″ | 80″ x 7″ x 7″ |
| Warranty | 5 year limited | ||
