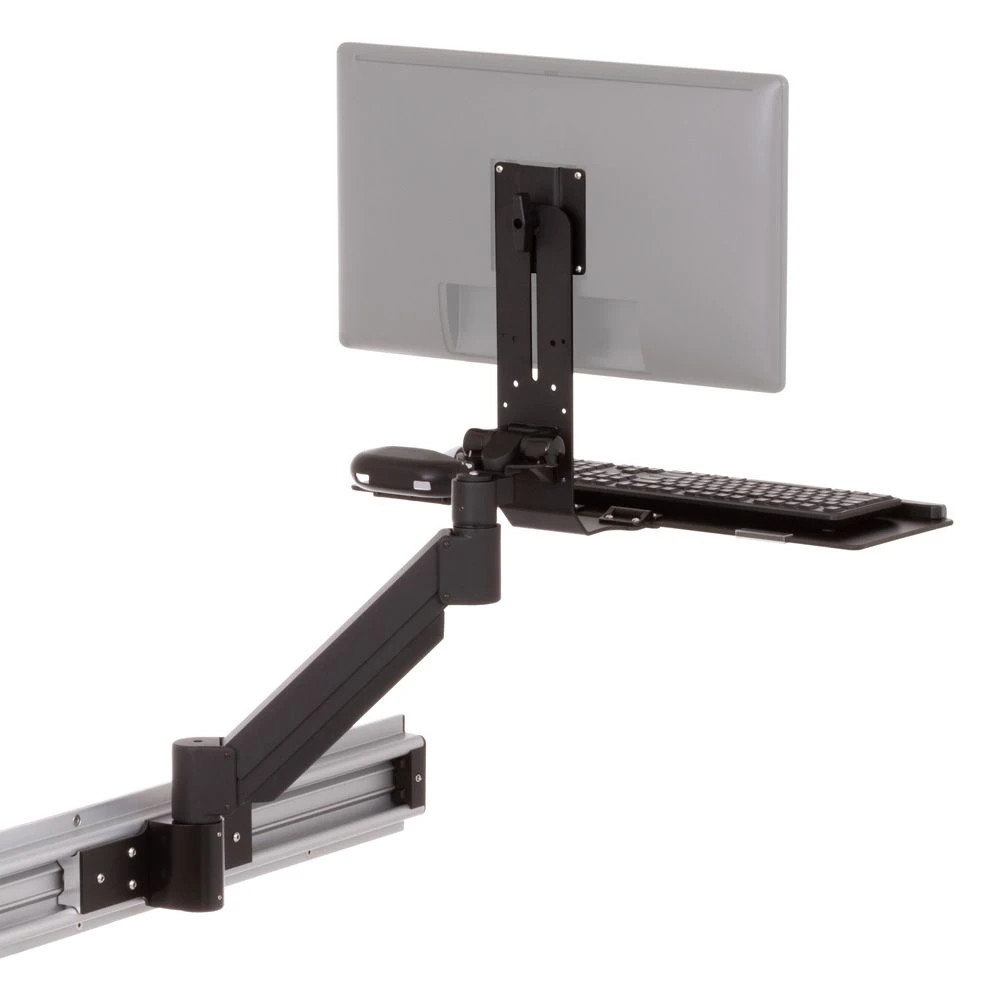

Slide a monitor & keyboard arm combo anywhere on a sturdy wall-mounted track
The Wall-Mounted Track with Sliding Data Entry Arm features an articulating monitor arm fitted with both a monitor and keyboard tray mount that is affixed to a heavy-duty rail, ideal for office, medical, technical and light industrial environments.
Below is a breakdown of the components of the Monitor and Keyboard Mount, highlighting the capabilities, similarities and differences of each component. If you have any questions or require more information, please don’t hesitate to get in touch with an Ergomart representative.
VERSATILE • ADAPTABLE • FUTURE-PROOF
Monitor & Keyboard Arm
- Arm supports monitors weighing up to 20 lb
- Three points of 360° articulation (base, elbow, bracket) when unobstructed
- Entire monitor and keyboard bracket tilts
- Full left/right swivel when obstruction-free
- Available in black and metallic gray

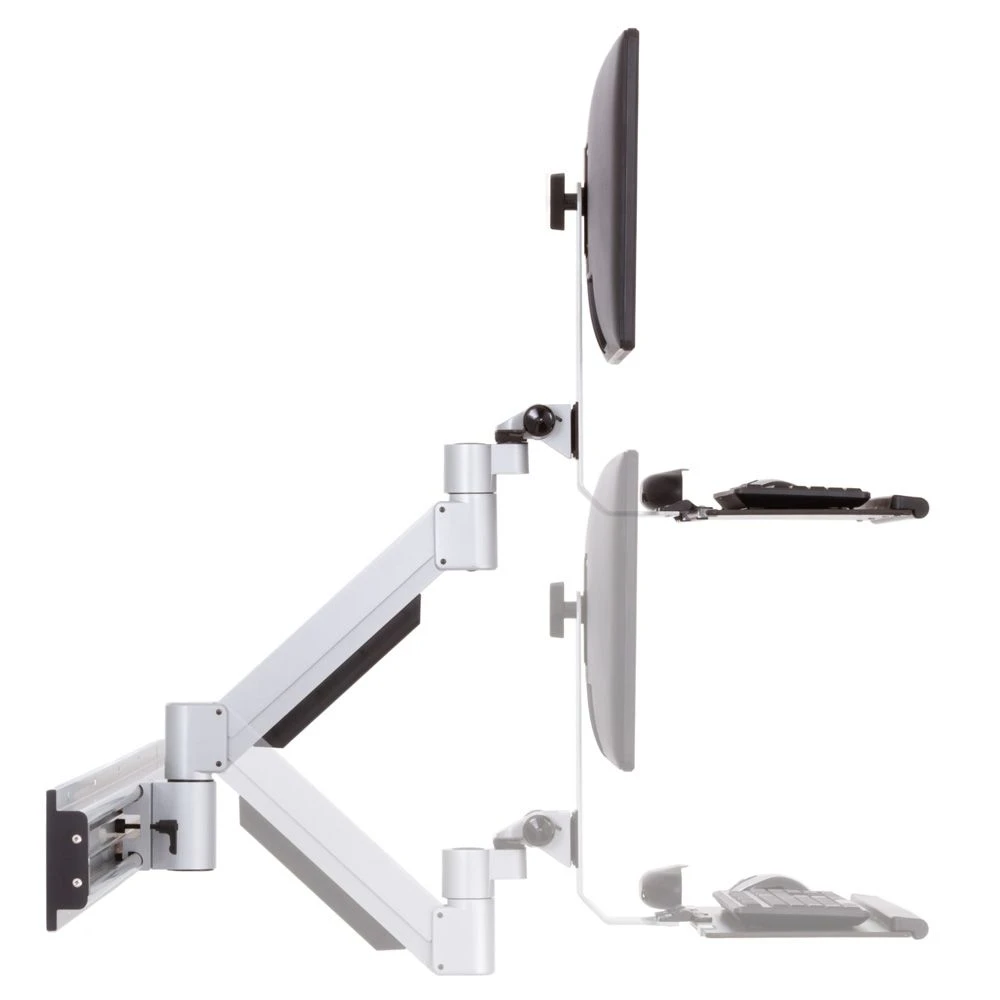

- 18” of instant vertical travel
- Mount the tilter head to the bracket at 1 of 3 mounting locations to set the height with respect to the arm
- Keyboard tray reaches out 37” at maximum extension

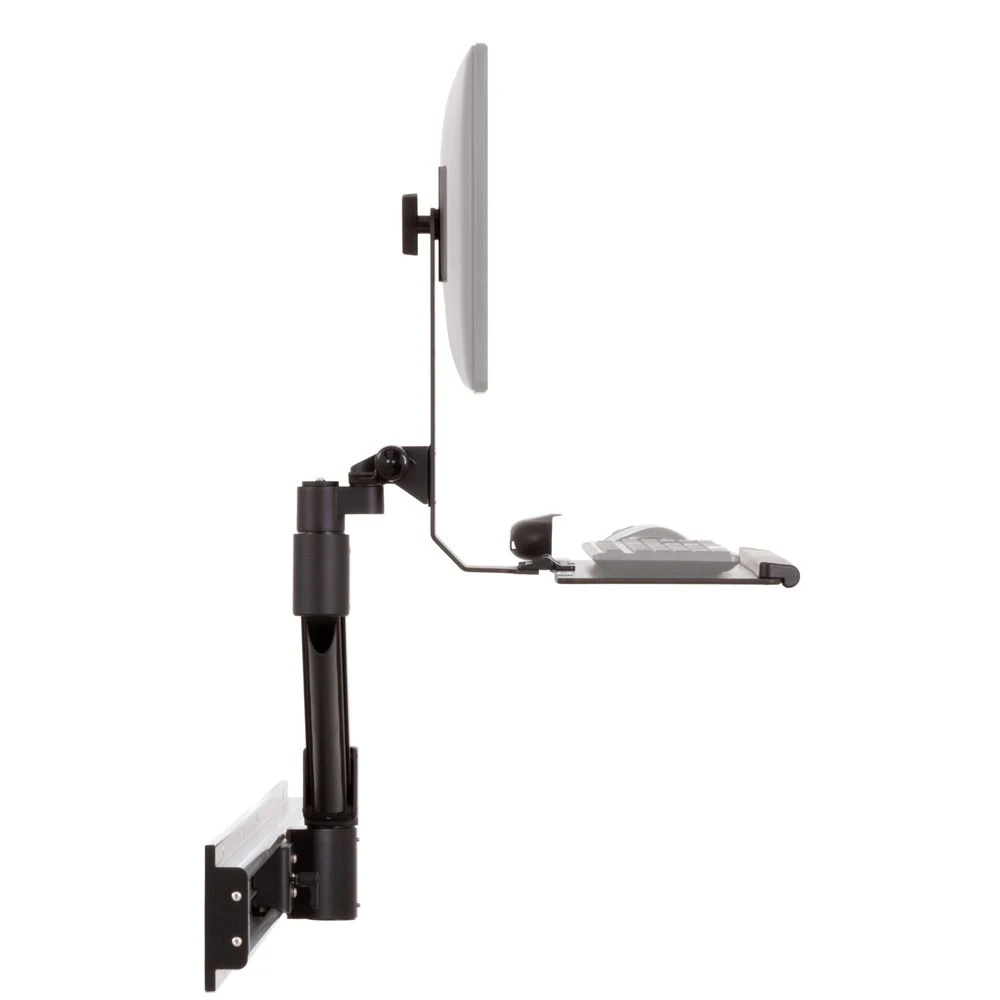

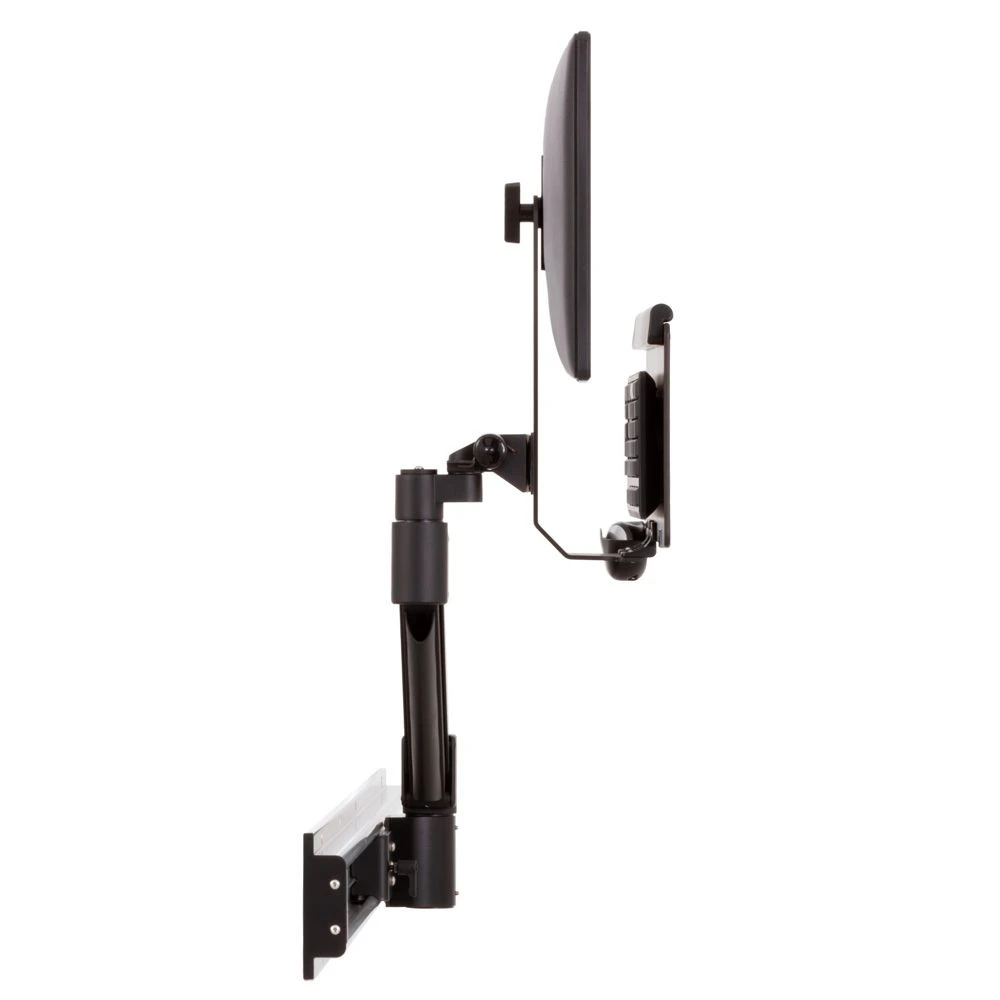

- Arm and keyboard tray fold away to 8.6” from the wall when not in use
Keyboard Trays
20” Phenolic Tray
- 20” wide by 8.5” deep
- Suited for keyboard-only set-ups
- Folds away when not in use
- +135° up and -80° downward tilt
- Included Velcro® strips securely affix the keyboard
- Wire management clips attach to the back edge of the tray
26” Phenolic Tray
- 26” wide by 8.5” deep
- Size suited for both keyboard and mouse
- Folds away when not in use
- +135° up and -80° downward tilt
- Included Velcro® strips securely affix the keyboard
- Wire management clips attach to the back edge of the tray
20″ Phenolic Tray
with Palm Rest
- 20” wide by 8.5” deep
- Suited for keyboard-only set-ups
- Folds away when not in use
- +135° up and -80° downward tilt
- Palm rest for increased wrist and hand comfort
- Included Velcro® strips securely affix the keyboard
- Wire management clips attach to the back edge of the tray
26″ Phenolic Tray
with Palm Rest
- 26” wide by 8.5” deep
- Size suited for both keyboard and mouse
- Folds away when not in use
- +135° up and -80° downward tilt
- Palm rest for increased wrist and hand comfort
- Included Velcro® strips securely affix the keyboard
- Wire management clips attach to the back edge of the tray
VESA Adapters
- Adjust the distance between the monitor and keyboard up to 6.7” with the sliding VESA plate
- Rotate the monitor landscape to portrait
75 x 75mm
Sliding VESA Adapter
100 x 100mm
Sliding VESA Adapter
100 x 200mm
Sliding VESA Adapter
- For a detailed description of VESA plates, see Ergomart’s VESA Reference Guide
Mounting Options

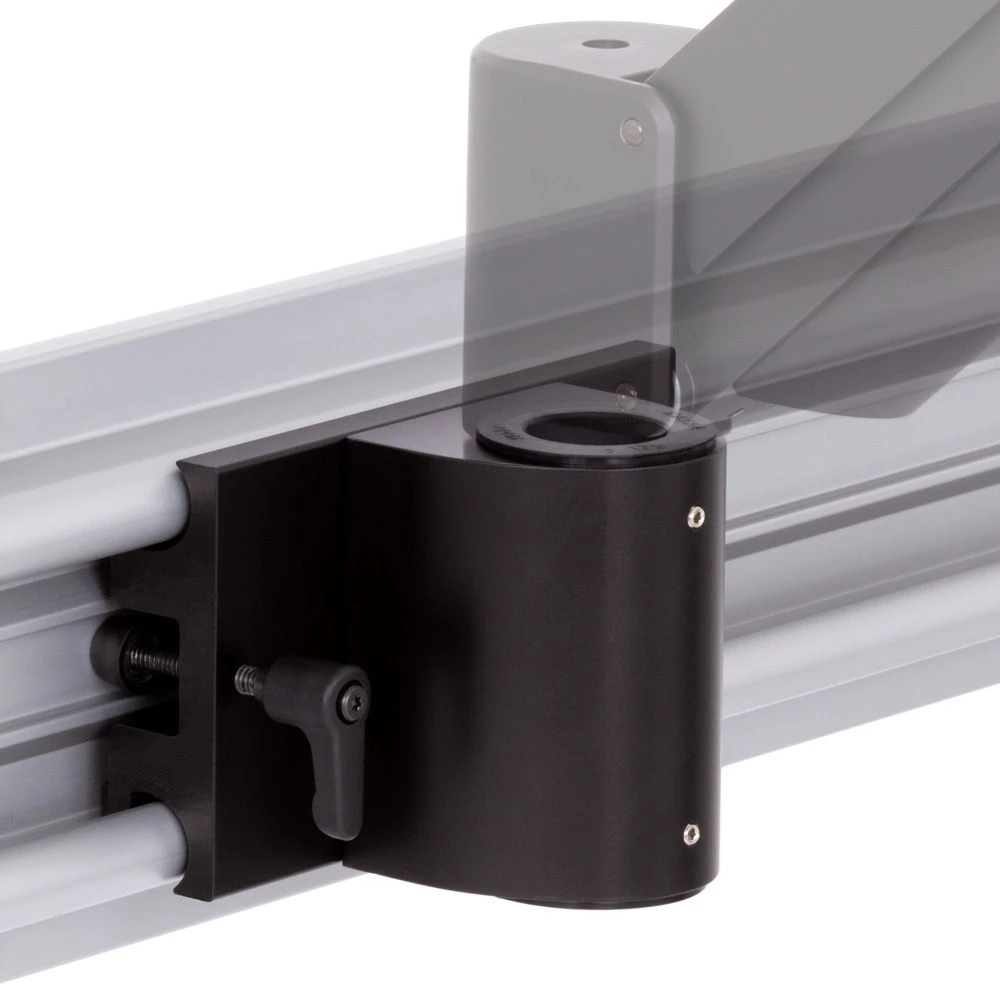

MKIT-M2
- Position anywhere along the track
- Ideal for infrequent repositioning
- To adjust: lift the monitor up, move along track and release
- Included clamp lock immobilizes the mount once positioned
- Mount can be oriented to position brake on either side
- Available in black and metallic gray
- For more details, see the M-KIT M2 Mounting Kit product page

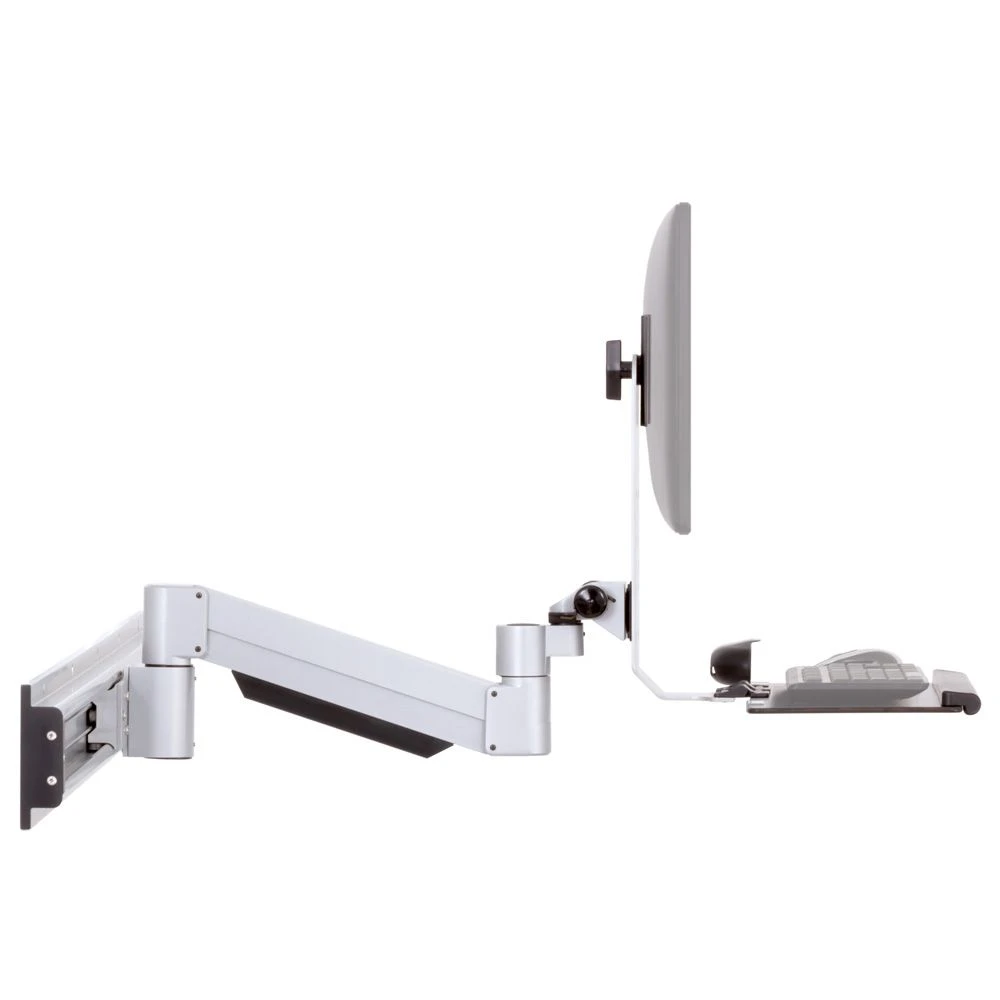

MKIT-N2
- Slide anywhere along the track
- Ideal for frequent, one-touch left/right movement
- To adjust: simply push the device to the desired position
- Available in black and metallic gray
- For more details, see the M-KIT N2 Sliding Mounting Kit product page

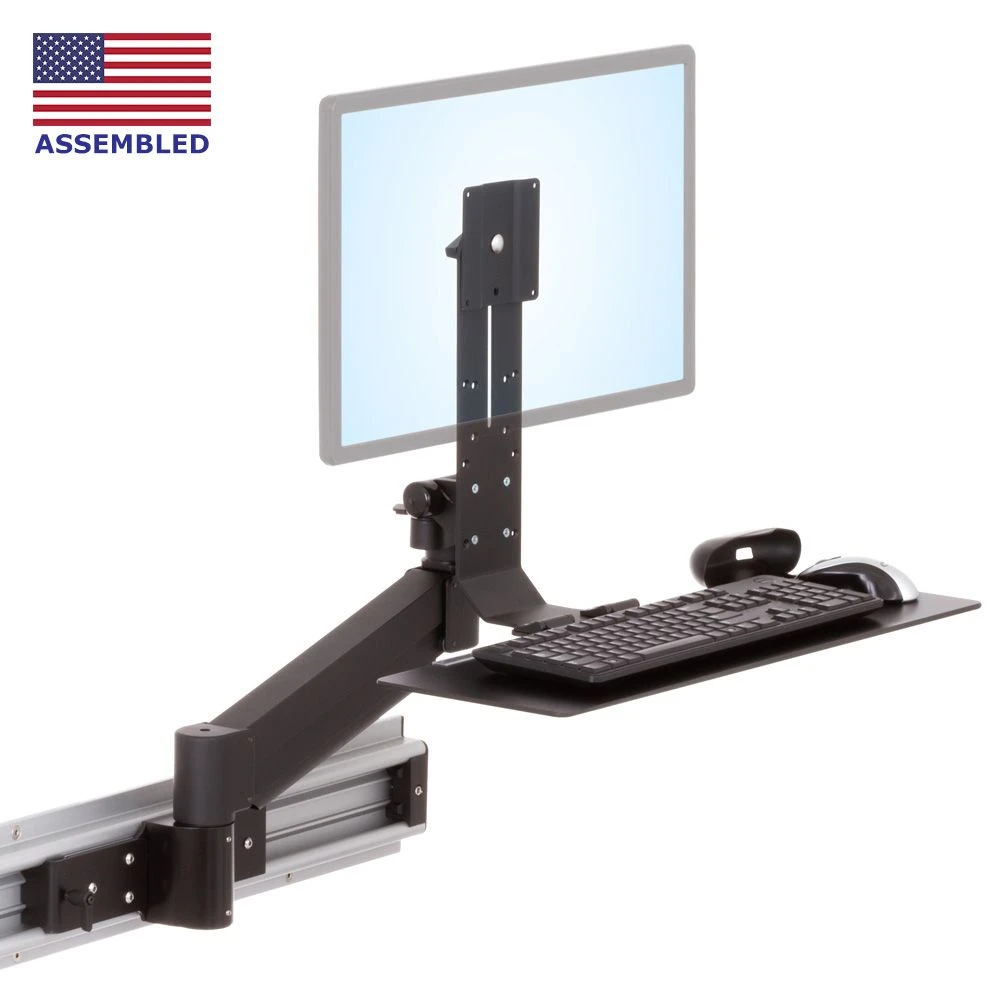

MKIT-N2 with Brake
- Slide and lock anywhere along the track
- Ideal for frequent, one-touch left/right movement
- To adjust: simply push the device to the desired position
- Clamp brake prevents unintentional movement
- Mount can be oriented to position brake on either side
- Available in black and metallic gray
- For more details, see the M-KIT N2 Sliding Mounting Kit product page
Track
- Available in 3 sizes: 39”, 78”, and 156”
- The track is available in clear anodized aluminum
- Includes 2 end caps and stops to secure mount on track
- Custom sizes available – please call to discuss
- Professional Installation required – must attach to wood studs or correctly engineered heavy backer
Wire Management
- Contains and conceals monitor wires
- Ample space for power strips and multiple monitor cords
- Available in 2 sizes: 39” and 78”
- Not pre-drilled: fastener and outlet access can be added during installation to suit workspace
- More sophisticated solutions available – please contact us for more info
Additional Considerations:
If you are looking for simply a monitor mount without a keyboard tray, the Wall-Mounted Roller Track with Articulating Monitor Arm provides excellent adjustment as an articulating monitor arm. The Low Profile Articulating Roller Track Monitor Mount features a compact monitor mount that sits close to the track.
The Wall-Mounted Track with Sliding Data Entry Arm is part of an entire family of modular mounts that can be assembled to meet almost any need. Our team at Ergomart is always ready to help you design a system that works for your requirements.
Key Features:
- Mounting Kit N2 allows for easy left-right movement of the data-entry arm along track
- Optional locking mechanism holds the mount in place when movement is not desired
- Articulating arm provides 18″ of vertical travel and reaches out 20″
- Compact arm and tray fold to 8.6″ from the mounting surface
- Handles monitors weighing up to 20 pounds
- Adjust height between monitor and keyboard tray
- Compatible with 75 x 75mm, 100 x 100mm and 100 x 200mm VESA patterns
- Cable management routed under the arm and under the track
- Three track lengths and two color options available
- Custom track lengths available: contact Ergomart for assistance
| Box 1 Monitor/Keyboard Arm Mount) | Box 2 (39-inch Track) | Box 2 (78-inch Track) | |
| Shipping Weight | 22 lbs | 14.5 lbs (add 2.4 lb for optional wire manager) | 24.2 lbs (add 4.7 lb for optional wire manager) |
| Shipping Dimensions | 26″ x 18″ x 12″ | 41″ x 7″ x 7″ | 80″ x 7″ x 7″ |
| Warranty | 5 year limited | ||
