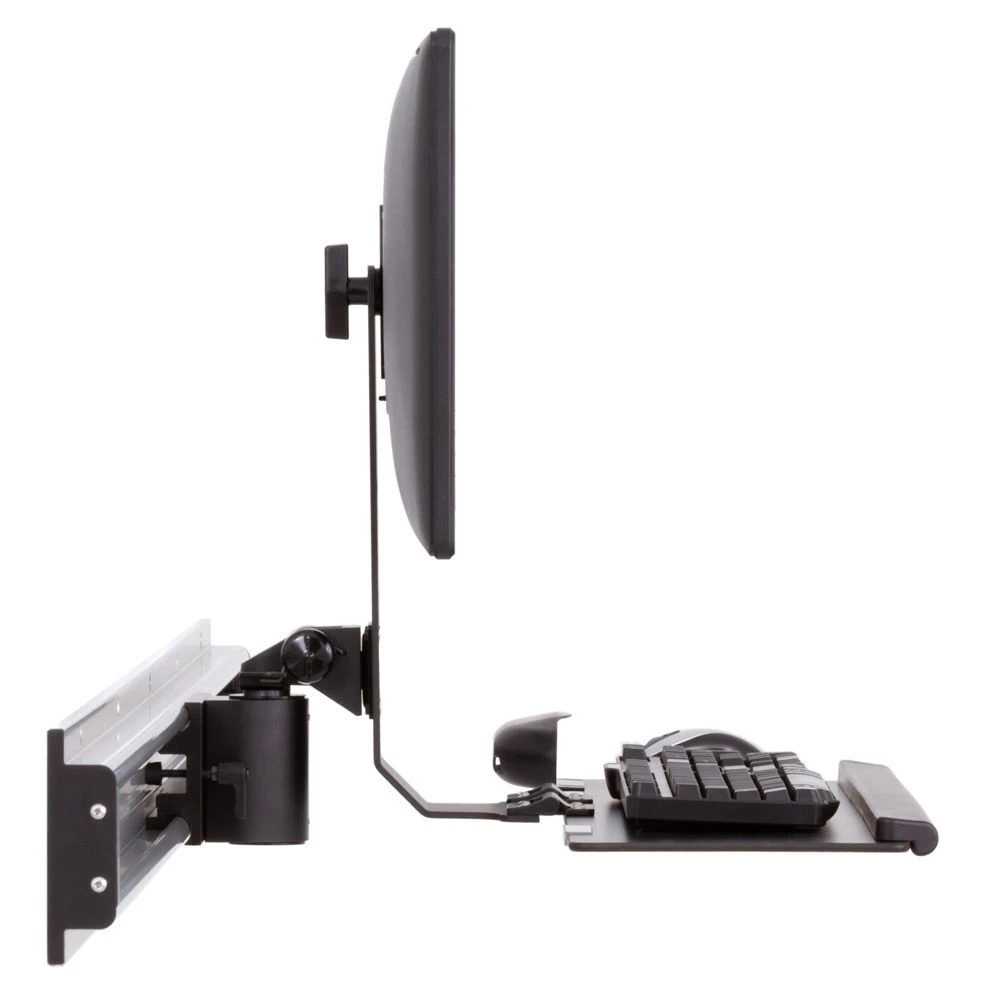

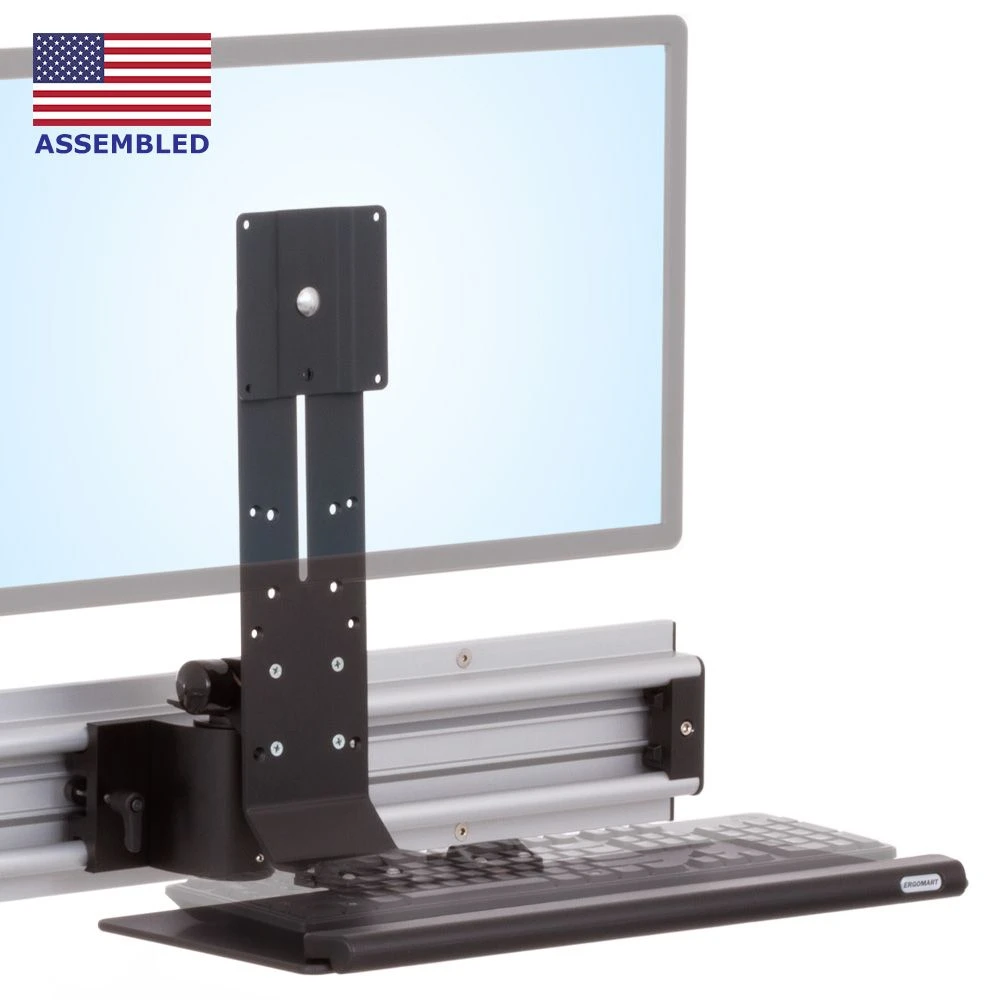

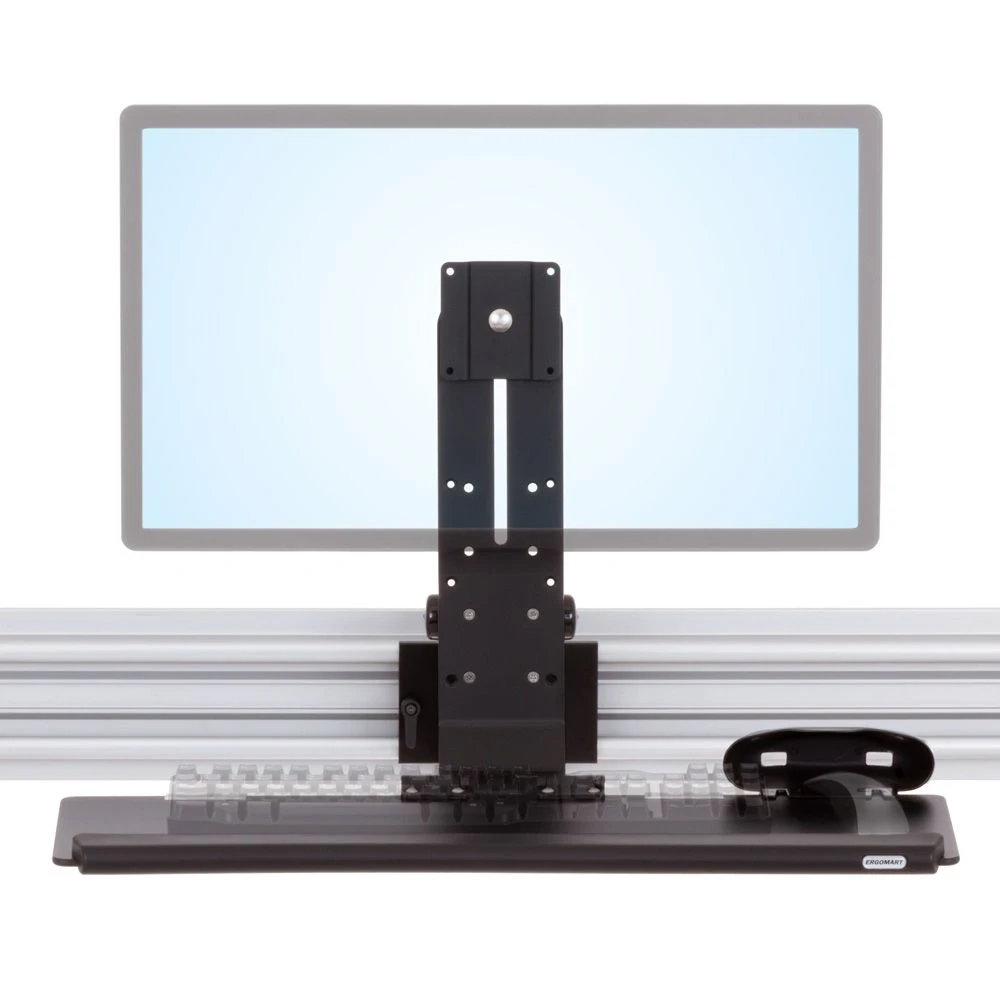

Slide a monitor & keyboard combo easily along an Ergomart wall-mounted roller track
The Ergomart Sliding Monitor & Keyboard Mount on a Wall Track features a compact, adjustable monitor and keyboard tray mount that is affixed to a heavy-duty rail, ideal for retail, office, medical, technical, and light industrial environments.
Below is a breakdown of the components of the Compact Monitor and Keyboard Mount, highlighting the capabilities, similarities and differences of each component. If you have any questions or require more information, please don’t hesitate to get in touch with an Ergomart representative.
VERSATILE • ADAPTABLE • FUTURE-PROOF
Monitor & Keyboard Mount
Tray Options
- Compact but sturdy monitor and keyboard tray mount

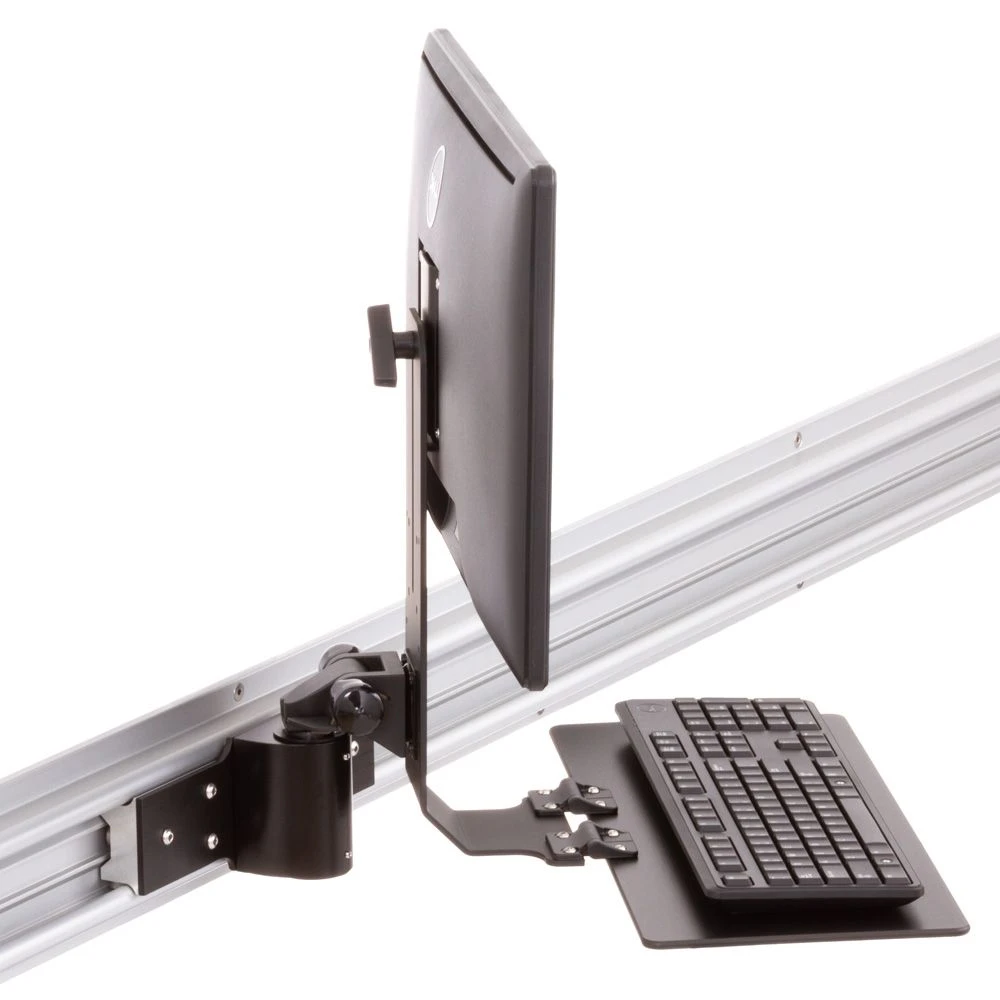

- Full left/right swivel when obstruction-free
- Tilts upwards 90° and down 45°

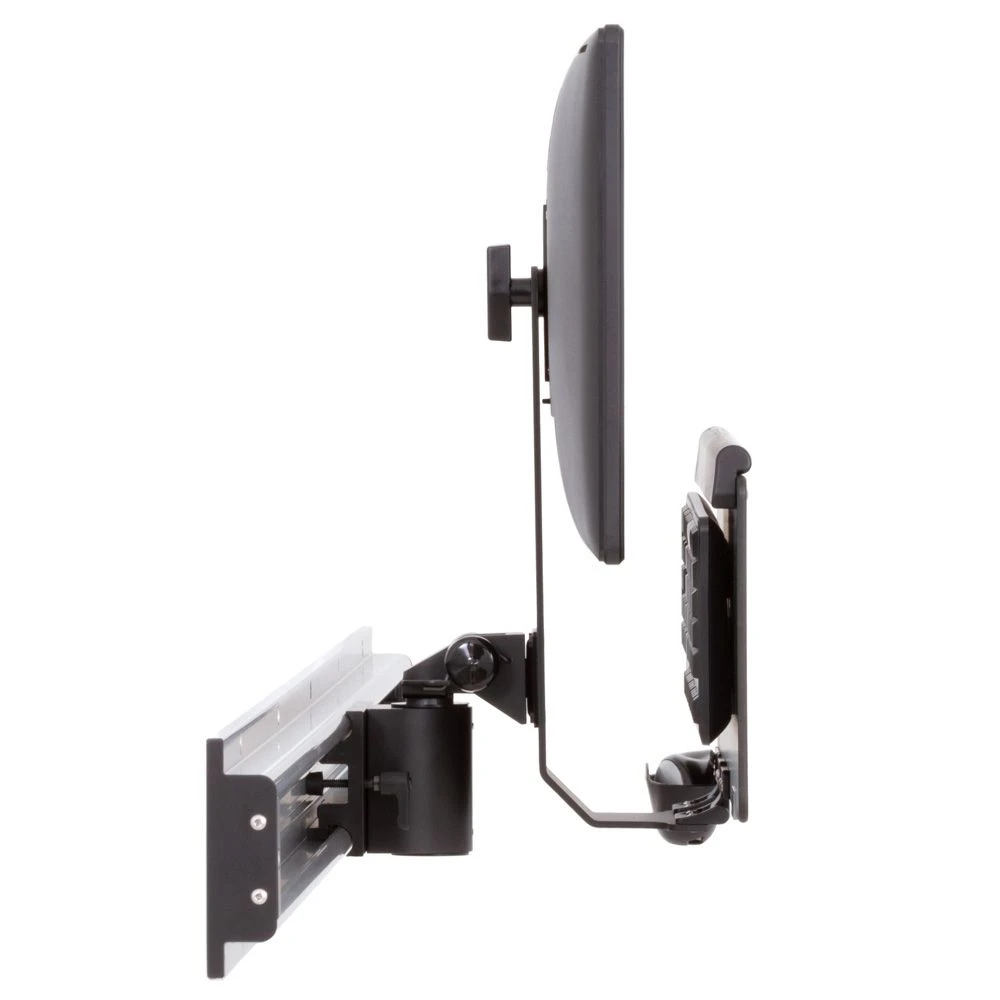

- Keyboard tray folds away when not in use
- Works with monitors weighing up to 35 lb

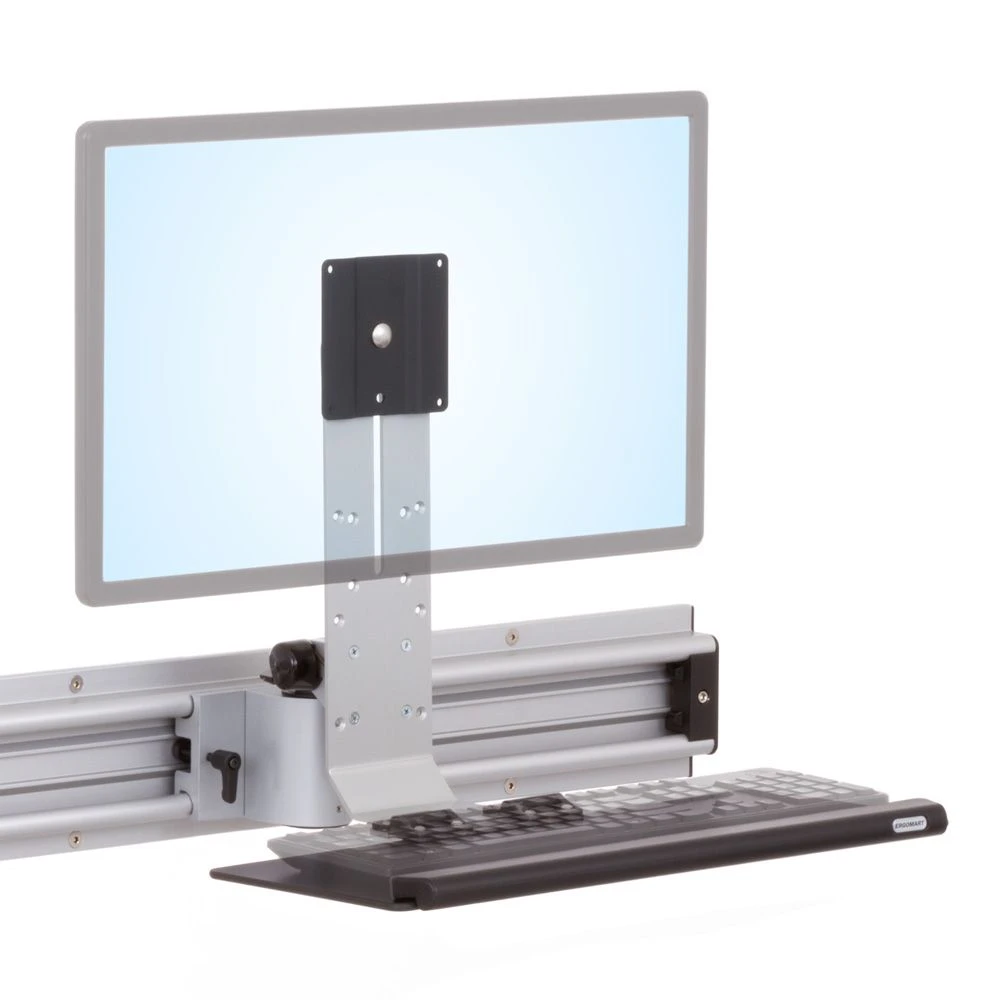

- Available in black and metallic gray
- Mount the tilter head to the bracket at 1 of 3 mounting locations to set the height with respect to the track
- Each mounting location is 1.9″ apart
Tray Options
- 20” wide by 8.5” deep for keyboard-only set-ups
- 26” wide for keyboard and mouse
- Optional palm rest for increased wrist and hand comfort
- Trays tilt +135° upward and -80° downward
- Included Velcro® strips securely affix the keyboard
- 26″ tray’s MouseTrap captures mouse when stowed up
- Wire management clips attach to the back edge of the tray
VESA Adapters
- Adjust the distance between the monitor and keyboard up to 6.7” with the sliding VESA plate
- Rotate the monitor landscape to portrait
75 x 75mm
Sliding VESA Adapter
100 x 100mm
Sliding VESA Adapter
100 x 200mm
Sliding VESA Adapter
- For a detailed description of VESA plates, see Ergomart’s VESA Reference Guide
Mounting Options

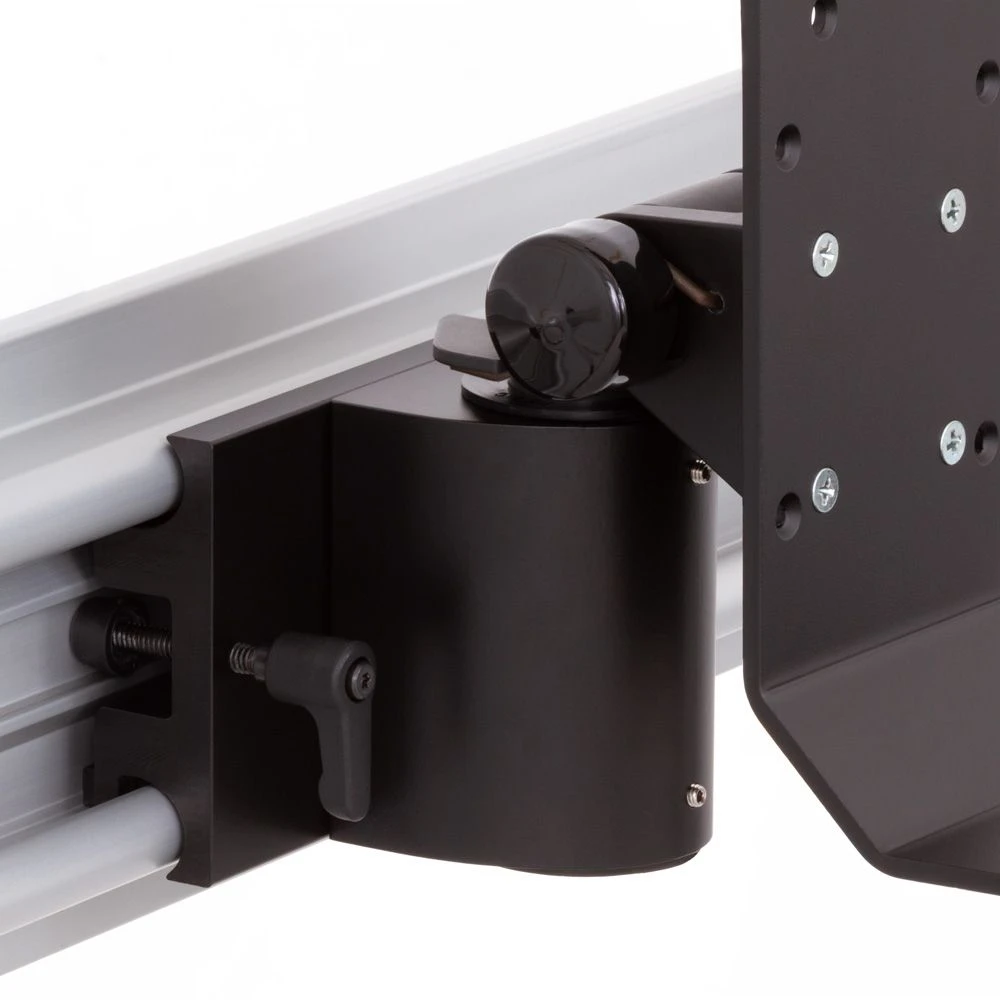

MKIT-M2
- Position anywhere along the track
- Ideal for infrequent repositioning
- To adjust: lift the monitor up, move along track and release
- Included clamp lock immobilizes the mount once positioned
- Mount can be oriented to position brake on either side
- Available in black and metallic gray
- For more details, see the M-KIT M2 Mounting Kit
MKIT-N2
- Slide anywhere along the track
- Ideal for frequent, one-touch left/right movement
- To adjust: simply push the device to the desired position
- Available in black and metallic gray
- For more details, see the M-KIT N2 Sliding Mounting Kit

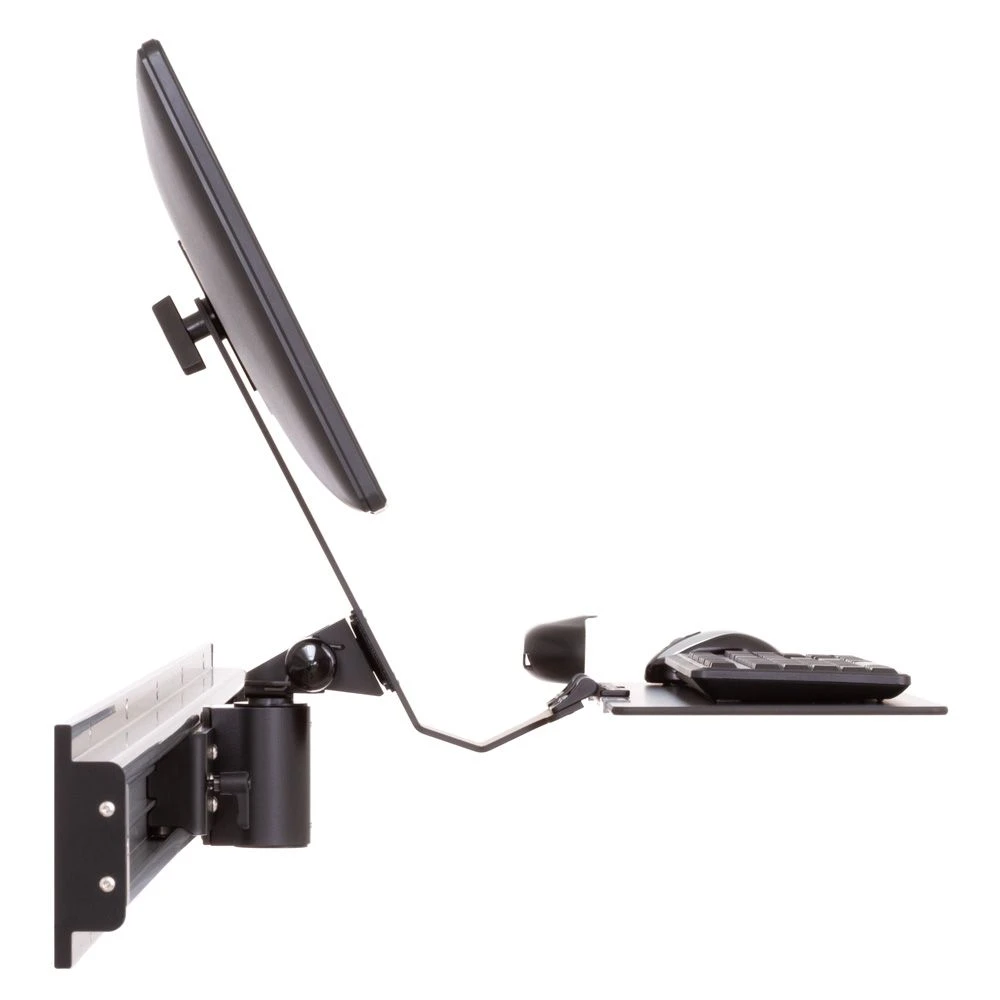

MKIT-N2 with Brake
- Slide and lock anywhere along the track
- Ideal for frequent, one-touch left/right movement
- To adjust: simply push the device to the desired position
- Clamp brake prevents unintentional movement
- Mount can be oriented to position brake on either side
- Available in black and metallic gray
- For more details, see the M-KIT N2 Sliding Mounting Kit
Track
- Available in 3 sizes: 39”, 78”, and 156”
- The track is available in clear anodized aluminum
- Includes 2 end caps and stops to secure mount on track
- Custom sizes available – please call to discuss
- Professional Installation required – must attach to wood studs or correctly engineered heavy backer
Wire Management
- Contains and conceals monitor wires
- Ample space for power strips and multiple monitor cords
- Available in 2 sizes: 39” and 78”
- Not pre-drilled: fastener and outlet access can be added during installation to suit workspace
- More sophisticated solutions available – please contact us for more info
Additional Considerations:
If you are looking for a monitor and keyboard tray with vertical adjustment, try the Wall-Mounted Track with Sliding Data Entry Arm. The monitor and keyboard bracket is attached to a heavy-duty Ergomart monitor arm that provides excellent vertical movement and forward extension.
The Sliding Monitor & Keyboard Mount on a Wall Track is part of an entire family of modular mounts that can be assembled to meet almost any need. Our team at Ergomart is always ready to help you design a system that works for your requirements.
Key Features:
- Mounting Kit N2 glides the monitor and keyboard on the track with one-touch simplicity
- Mounting Kit M2 repositions the data entry mount by lifting and sliding
- Three track length options to choose from: 39″, 78″ and 156″
- Monitor/keyboard mount handles monitors up to 35 pounds
- Two keyboard tray size options both available with or without a palm rest
- Ideal for tight spaces – keyboard tray folds out of the way when not in use
- Monitor can tilt, swivel and rotate landscape to portrait
- Distance between monitor and keyboard can be adjusted for ideal positioning
- Compatible with 75 x 75mm, 100 x 100mm and 100 x 200mm VESA patterns
- Custom track lengths available: contact Ergomart for assistance
| Box 1 (Monitor/Keyboard Mount) | Box 2 (39-inch Track) | Box 2 (78-inch Track) | |
| Shipping Weight | 13.9 to 21.3 lbs | 14.5 lbs (add 2.4 lb for optional wire manager) | 24.2 lbs (add 4.7 lb for optional wire manager) |
| Shipping Dimensions | 26″ x 18″ x 12″ | 41″ x 7″ x 7″ | 80″ x 7″ x 7″ |
| Warranty | 5 year limited | ||
| Color | Black, Metallic Gray |
|---|---|
| Mount | Roller Track Positioner Kit M2, Roller Track Positioner Kit M2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2, Roller Track Trolley with Brake N2-BR, Roller Track Trolley with Brake N2-BR |
| VESA | 75x75mm VESA Slider Plate Kit with Hardware, 100x100mm VESA Slider Plate Kit with Hardware, 100x200mm VESA Slider Plate Kit with Hardware |
| Keyboard Tray | 20×8.5-inch Phenolic, 20×8.5-inch Phenolic with Palm Rest, 26×8.5-inch Phenolic, 26×8.5-inch Phenolic with Palm Rest |
| Track Length | 39-inch Roller Track, 78-inch Roller Track, 156-inch Roller Track |
| Wire Management Trough | 39-inch Trough, 78-inch Trough |
| Mount Type | Horizontal Wall Track |
| Number of Monitors | 1 |
| Mounting | Wall Track Mounting |
| Weight Range | Can move payloads up to 55 lb |
| VESA Options | 75 x 75 |
| Portrait to Landscape | Yes |
| Track Lengths | 39" |
