Reviung 39

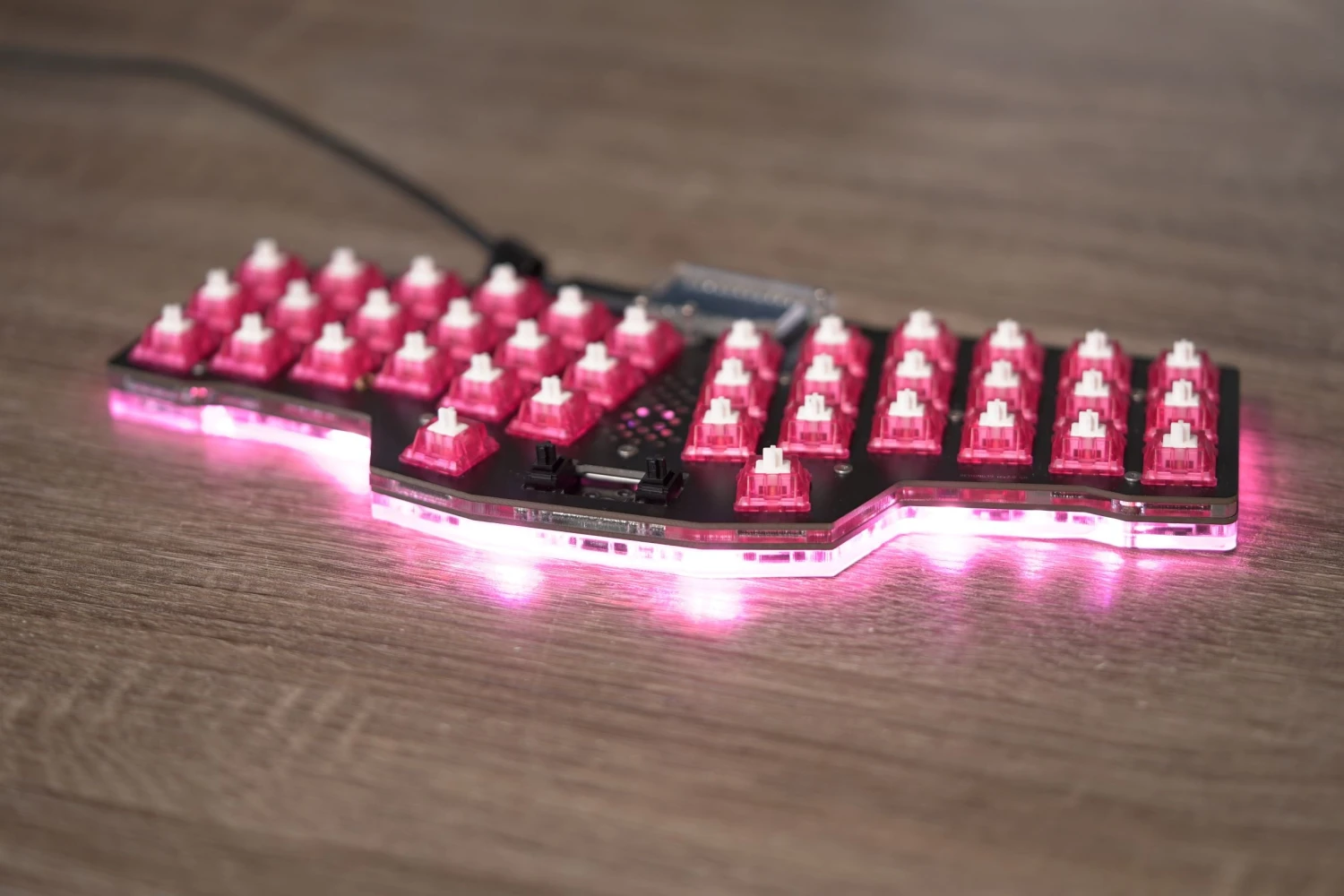

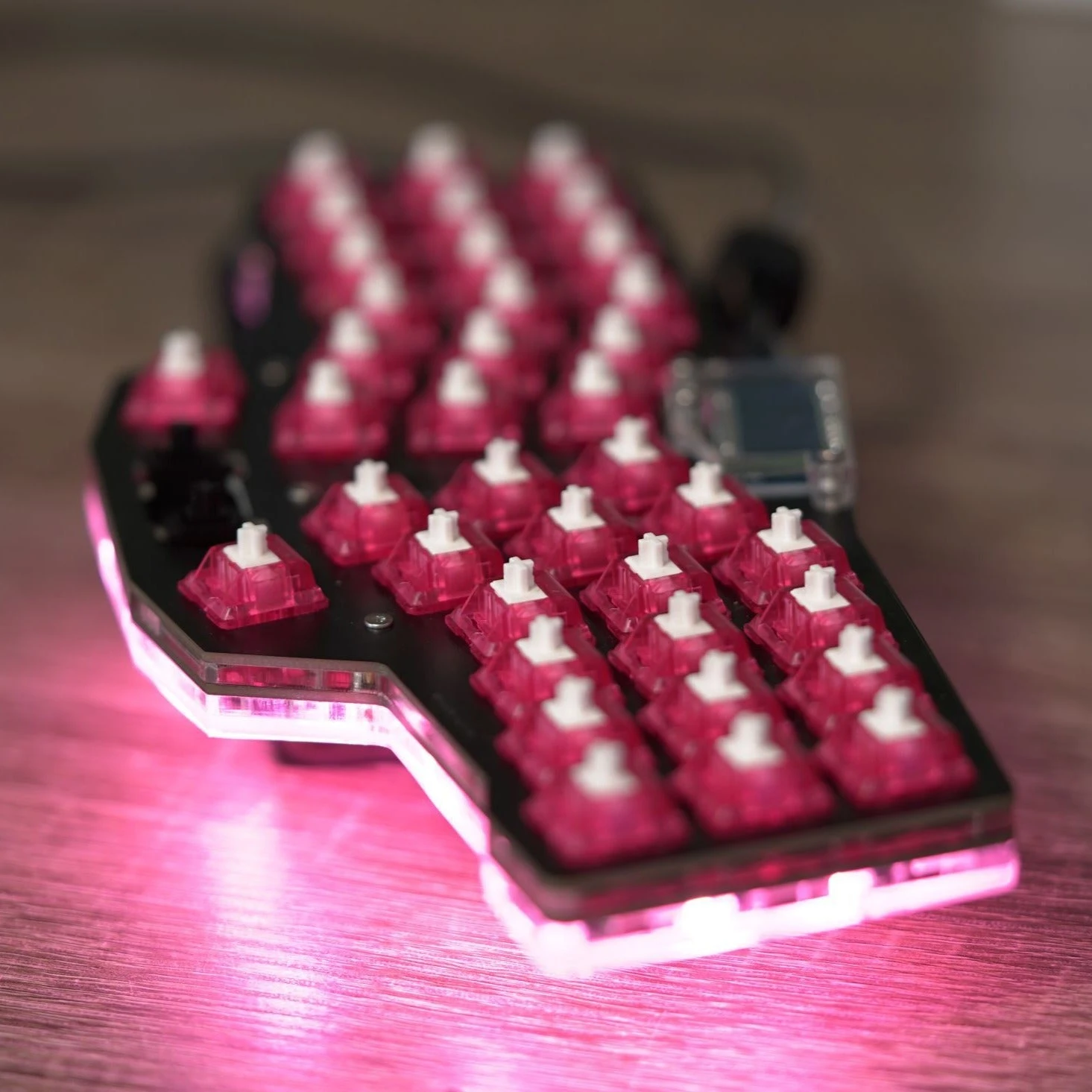

The REVIUNG39 is 39-key column staggered, one piece, split keyboard.

This is a medium difficulty DIY project that will require SMD soldering for the diodes and RGB lighting. The keyboard is powered by a pro-micro (or compatible) controller.

Contents

• 1 x Top Plate (FR4)
• 1 x PCB
• 3x Acrylic layers
• 1 x Pushbutton Switch (2×6)
• 42 x Kailh Hotswap Sockets
• 42 x SOD-123 Diodes
• 11 x 7mm Brass Standoffs
• 15 x WS2812 RGB LEDs (Some spare for errors)
• 22 x M2 6mm Torx Screws
• 4 x Rubber Feet

Optional

• Pro-Micro Acrylic Cover (included)
• 3x M2x10mm Screws (not provided)
• 3x M2 Nuts (not provided)

Required Components

• 1 x Pro Micro or Sea Micro

Tools required to complete this kit

• Soldering Iron and Solder
• T5 Torx Driver
• Tweezers (Non-magnetic)

Pre-assembled Reviung kits will include 1x Sea Micro.

This keyboard is an open source design by Gtips. Please see his github repository here
