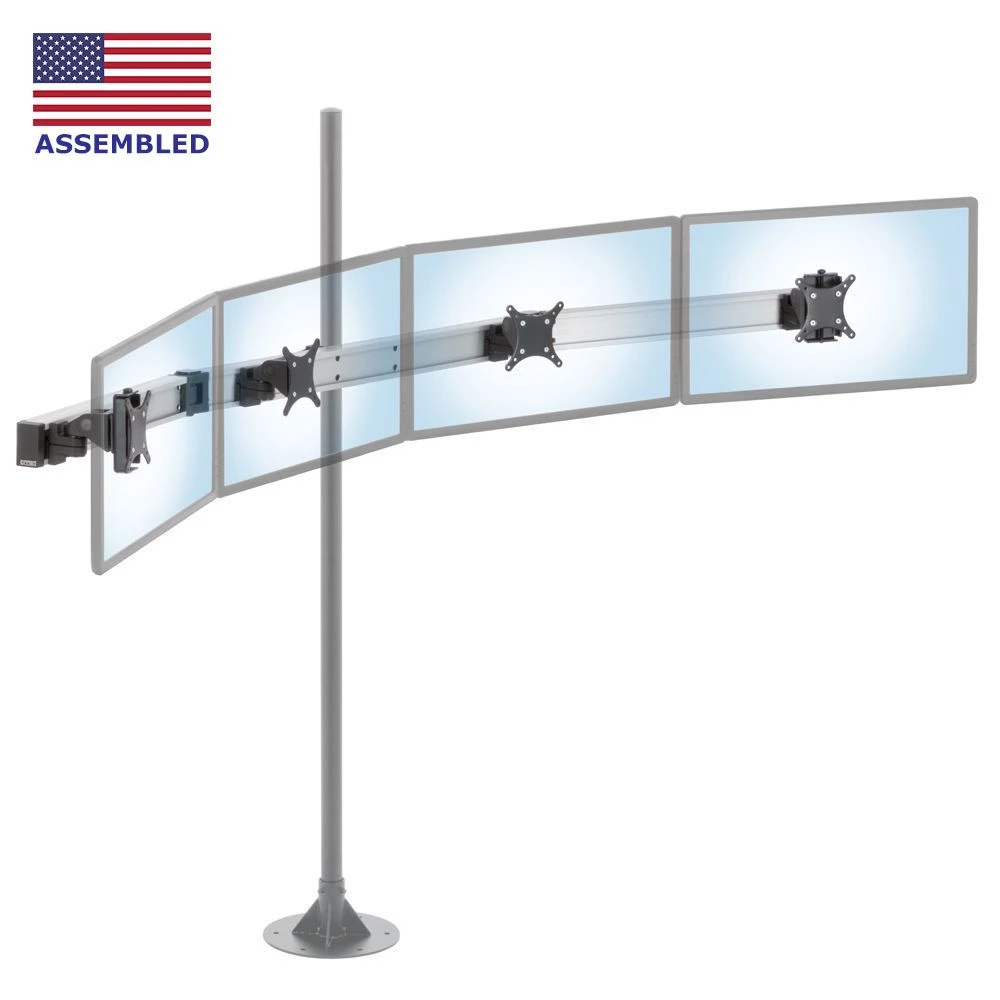

PM64 Quad/Eight Monitor Pole Mount

THREE ARTICULATING BEAMS SUPPORT FOUR INDIVIDUALLY ADJUSTABLE MONITORS

• Three heavy-duty articulating beams mount four monitors weighing up to 30 lb each
• Accommodates four identical monitors of 24.5″ width in flat formation
• Each monitor can be independently swiveled, tilted and rotated from portrait to landscape
• Maximum monitor width is reduced to approximately 22″ in a curved formation
• Create a multi-monitor system without the need for furniture or wall space
• Ideal as a point of sale stand or presentation or informational display
• Designed for use with Ergomart’s PM192 pole floor stands

Without the need for furniture or wall space, you can create a multi-monitor system practically anywhere, including educational and medical environments, stores and lobbies and much more. The PM64 utilizes the versatile CONNECT monitor mount, a heavy-duty set of 3 hinge-connected beams that accommodate four monitors. Adding a second set of beams creates an impressive eight-monitor mount. The PM64 monitor mount system was created to be used with Ergomart’s PM192 pole floor stands, which are available in five standard lengths but can be customized if required.

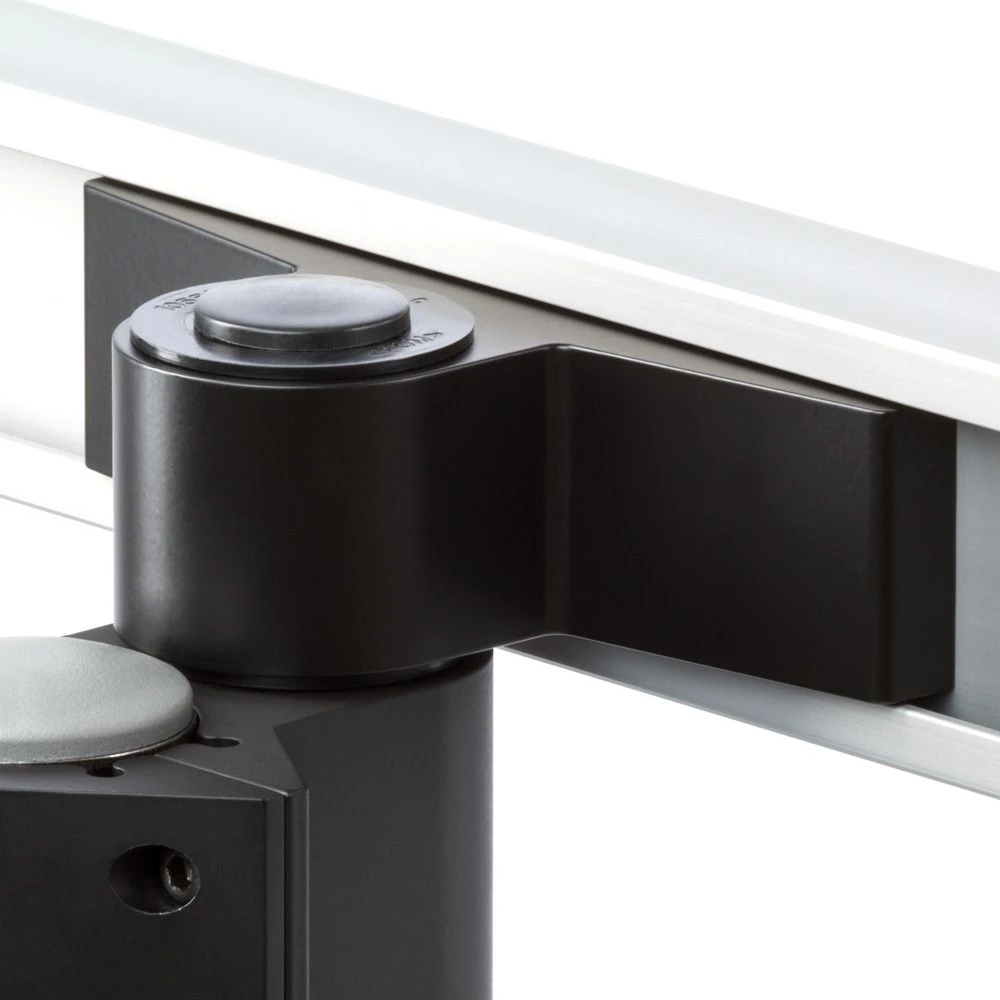

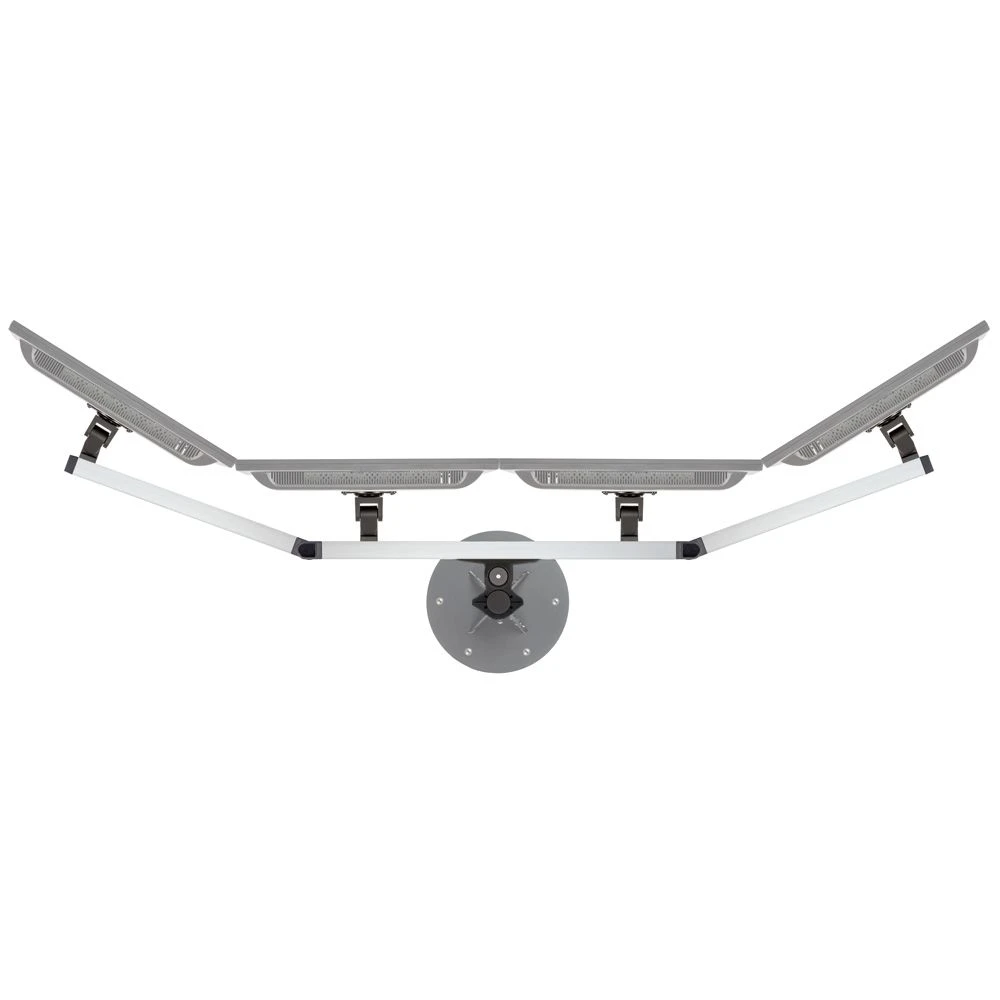

The four monitors are mounted on three heavy-duty beams. The middle beam measures 30″ and holds two monitor tilter attachments. The two hinged side beams are 20″ in length and mount one monitor each. Each monitor mount can be placed anywhere along their associated beam, allowing for any monitor size to sit flush with the other mounted screens. If equally sized, the maximum monitor width is 24.67″ in flat configuration. The hinged side beams can be tilted inwards to create a curved formation, but this reduces the maximum monitor size as the bezels will interfere on larger monitors. If tilted to 20 degrees, the maximum screen width is approximately 22″. For fine adjustment, each monitor can individually be tilted, swiveled and rotated.

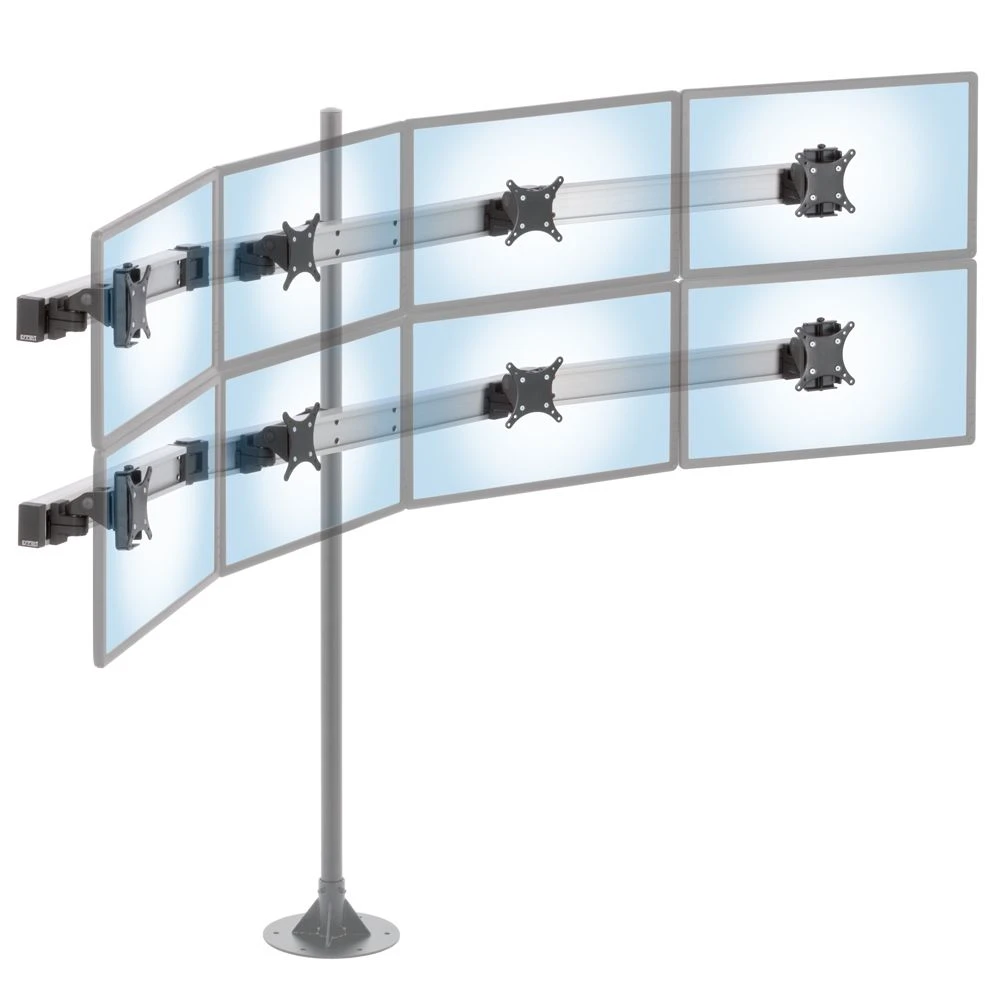

An eight monitor mount system can be created by adding another row of beams. These beams can be attached anywhere to the mounting pole, making it simple to accommodate any monitor height.

The PM64 is designed to be used in conjunction with Ergomart’s PM192 pole floor stands. They are available in three options – the flange pole floor stand, which is bolted with six fasteners to the floor and two movable options, the offset pole floor stand and center pole floor stand. However, if the pole is stable and can support the mounted weight, any pole can be used with an outside diameter of 1.5″ – 2″.
