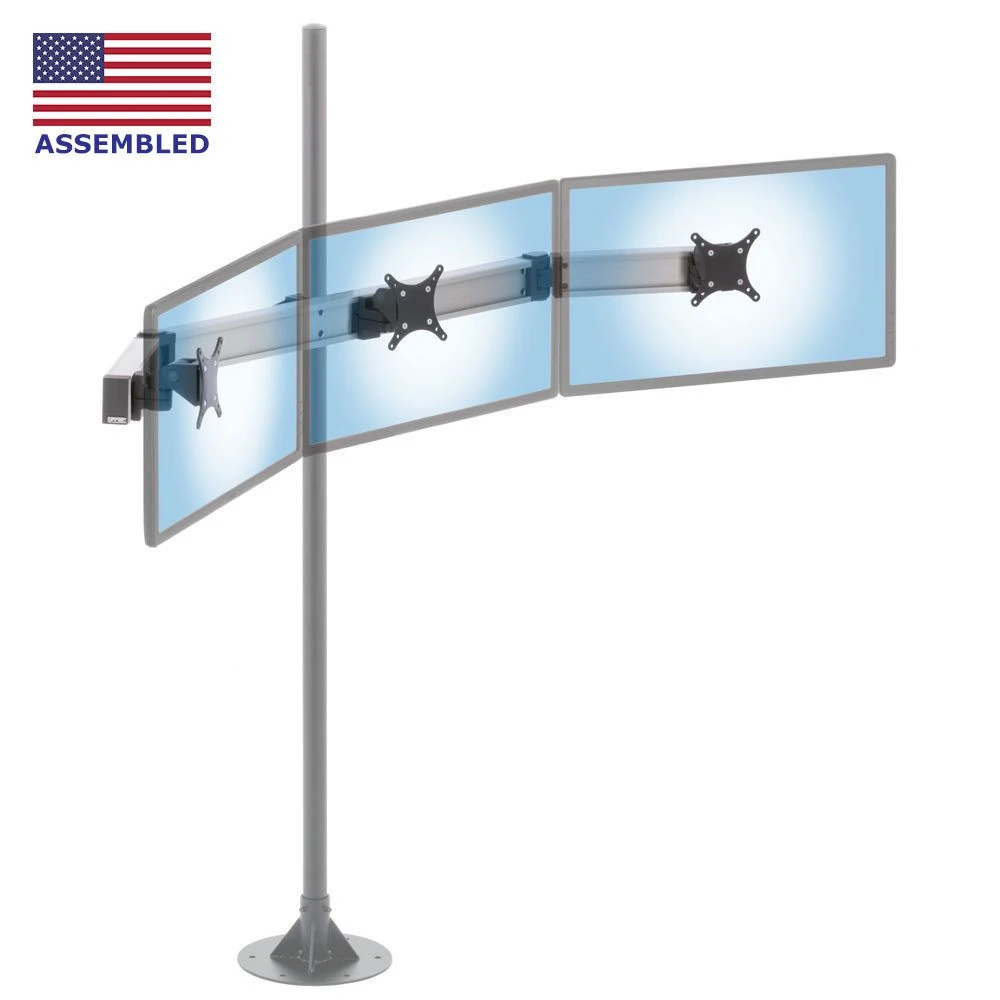

PM63 Triple/Six Monitor Pole Mount

HEAVY-DUTY BEAMS HOLD THREE INDIVIDUALLY ADJUSTABLE MONITORS IN A ROW

• Mount three monitors weighing up to 30 lb each across three sturdy articulating beams
• Each beam row accommodates three monitors up to 27″ wide in flat orientation
• The attached monitors can be individually tilted, rotated and swiveled
• Max monitor size is reduced to approximately 24″ when outside monitors tilted inwards 20 degrees
• Perfect for users lacking furniture or wall space for a multi-monitor system
• Ideal for use with Ergomart’s PM192 floor pole stands

Create a presentation display, an informational station, or point of sale stand wherever is needed, without the need for wall space or mounting furniture. Perfect for virtually any environment, including education, lobbies, stores, medical and more. The PM63 makes use of the CONNECT monitor mount, supporting three adjustable monitor attachments on three articulating beams. An additional row of beams can be added to mount an impressive six monitors. The PM63 monitor mount system is designed to be used in conjunction with Ergomart’s PM192 floor stands, sturdy 2″ diameter poles available in multiple lengths.

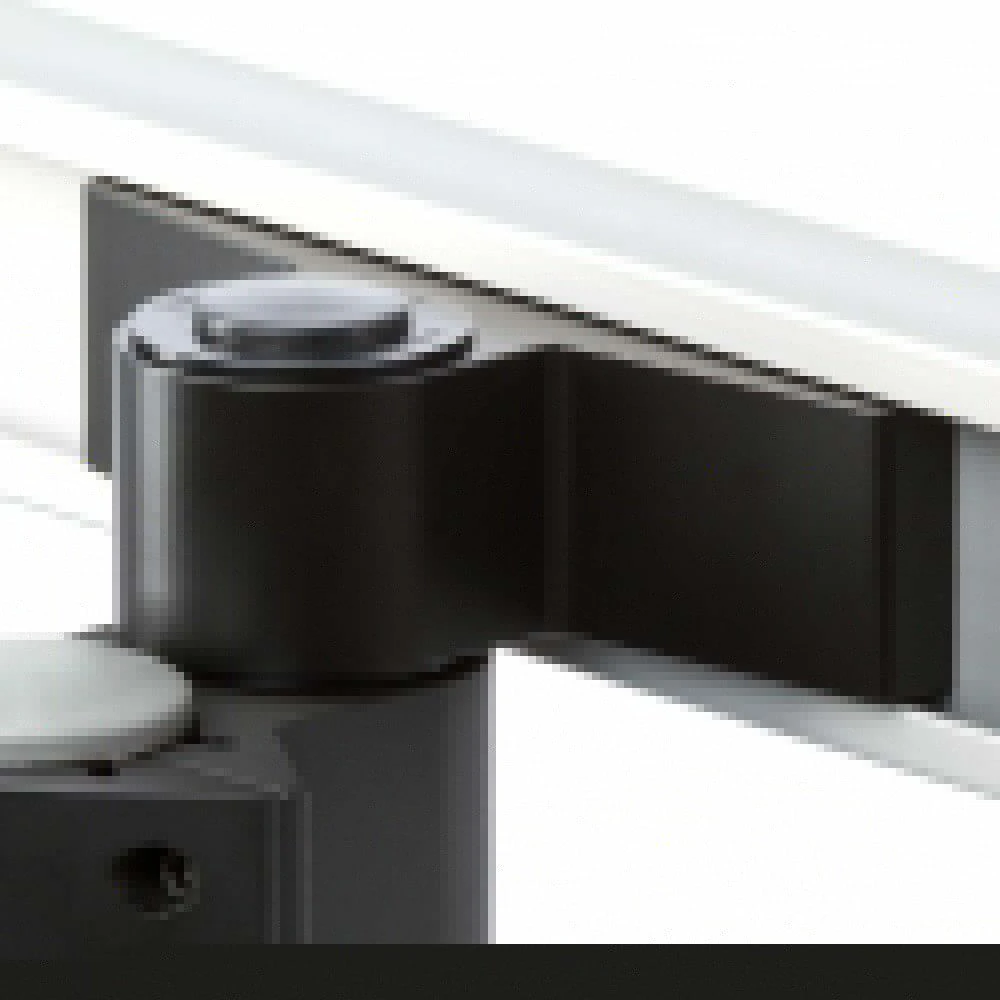

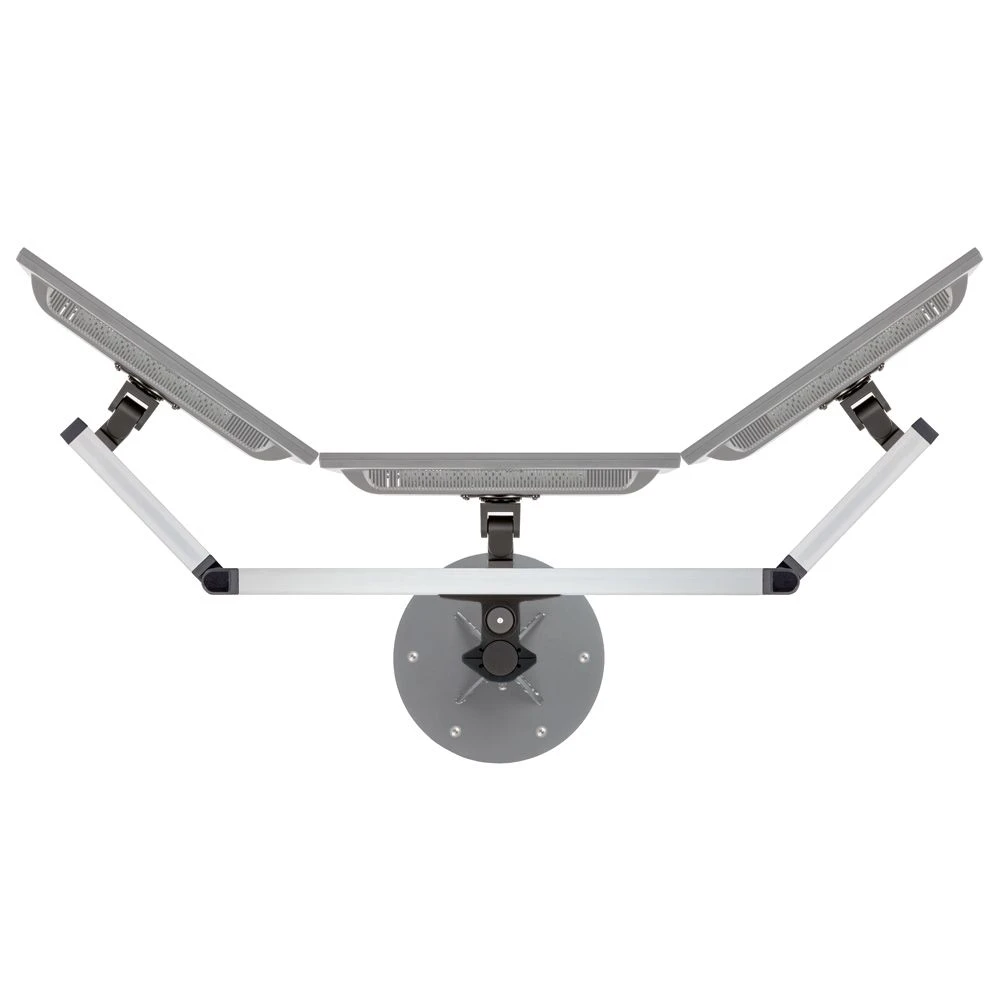

The PM63 consists of three horizontal beams, a 30″ center beam and two 10″ beams on either side, each designed to hold one monitor. The beams are connected via hinges, which can be moved to place the monitors in a more curved configuration. The monitor tilter head attachments can be placed anywhere along their corresponding beam, allowing for multiple monitor sizes to remain flush. When used in a flat configuration with equally sized monitors, the largest compatible monitor size is 27″ in width. If the outside beam arms are tilted in 20 degrees, the maximum monitor width is reduced to approximately 24″ as the bezels will impede movement. Each monitor can be separately tilted, rotated and swiveled for fine adjustments.

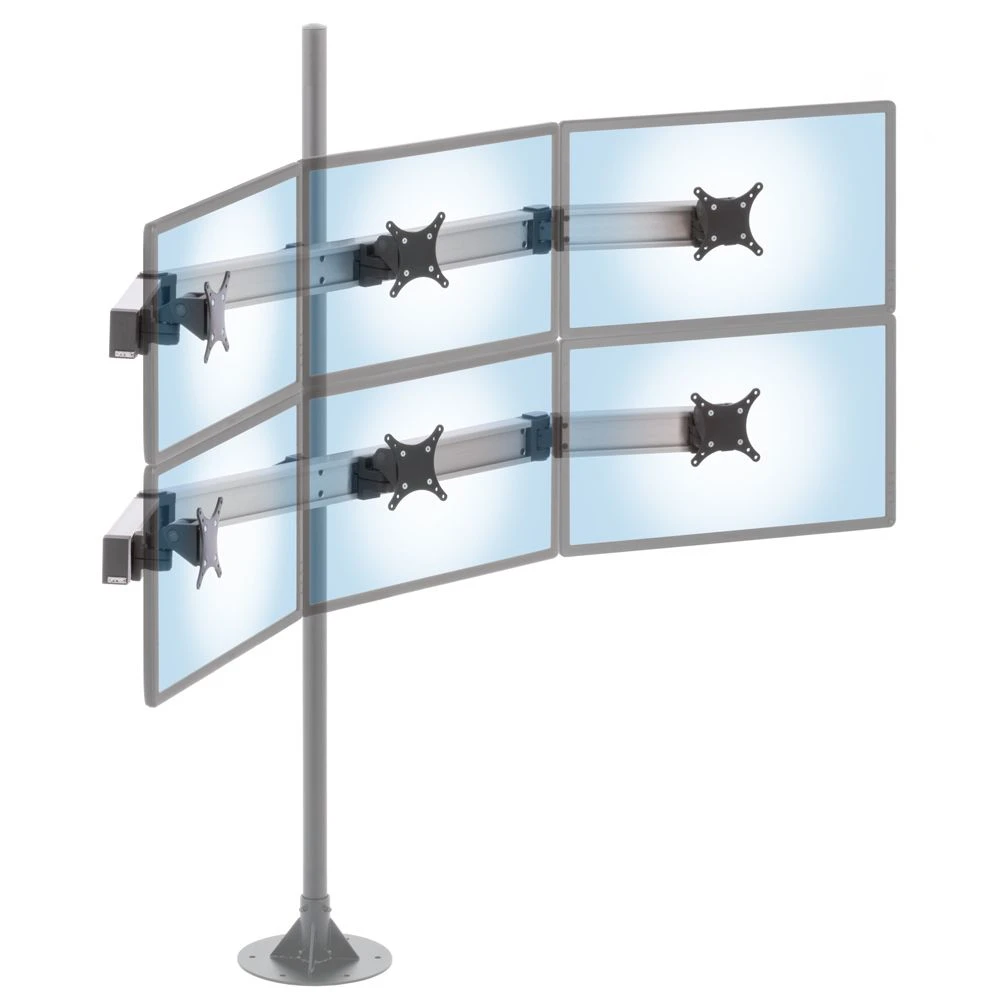

To create a six-monitor mount system, another row of beams is added. This second beam can be attached anywhere on the mounting pole, allowing for monitors of any height to sit flushly with the other beam if desired.

Ergomart recommends using the PM63 monitor mount with a PM192 pole floor stand. It is available in three options – the flange pole floor stand, which is bolted with six fasteners to the floor and two movable options, the center pole floor stand and offset pole floor stand. However, providing the pole is adequately stable, the monitor mount can be attached any pole with an outside diameter of 1.5″ – 2″.
