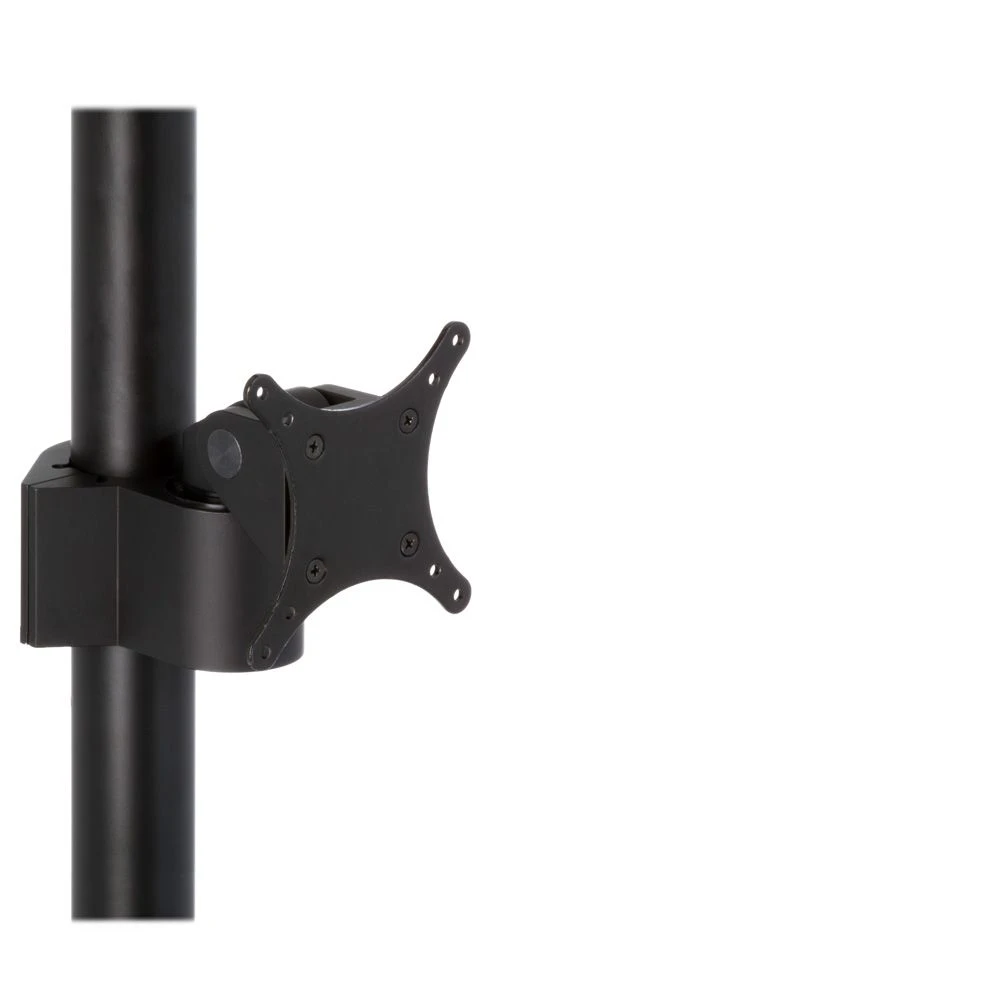

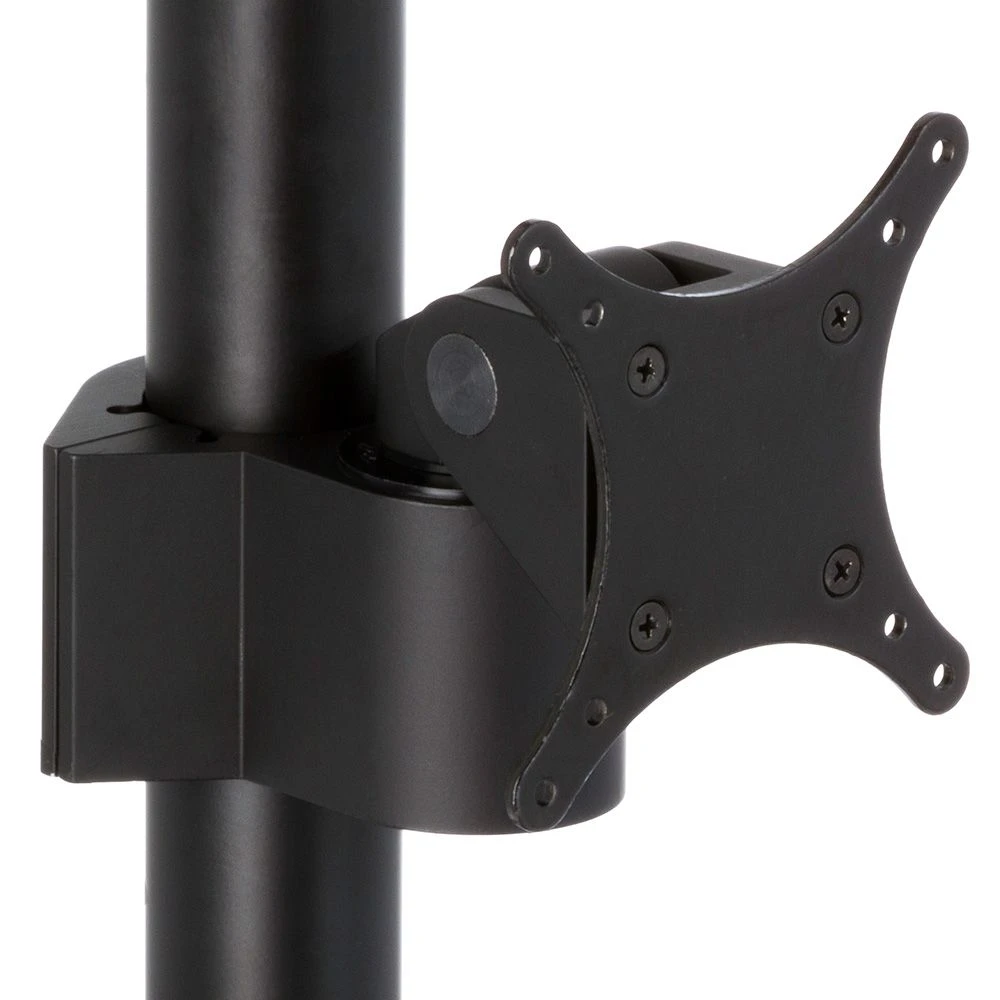

PM40 Monitor Pole Mount

LCD Pole Mount with Optional Extensions

• Screen may be rotated from portrait to landscape instantly
• Movement resistance controls can be set to suit application
• LCD tilts 90 degrees up and 44 degrees down with ease
• Compatible with our PM192 Pole Floor Mount Systems

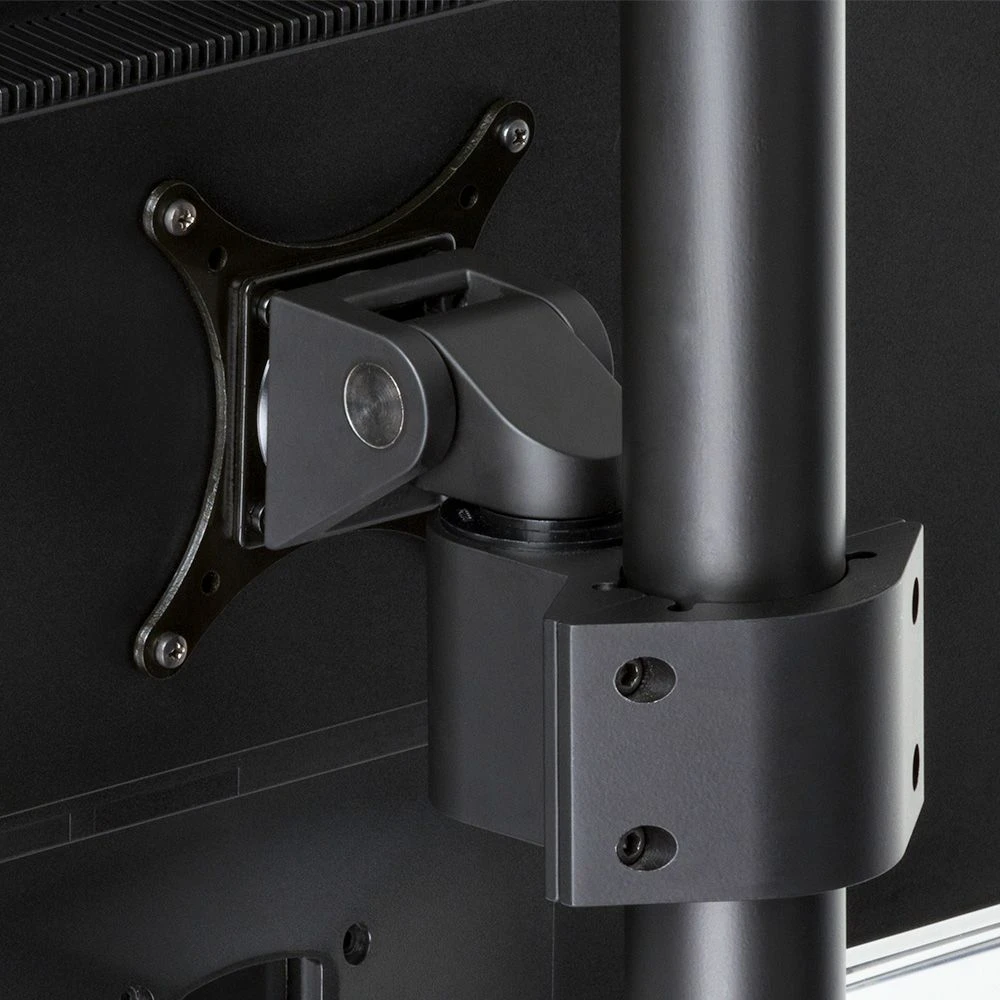

• Pole clamp for poles with OD of 1.5–2 inches
• Holds LCD monitors weighing up to 55 lb
• Easily swings left and right over 180 degrees

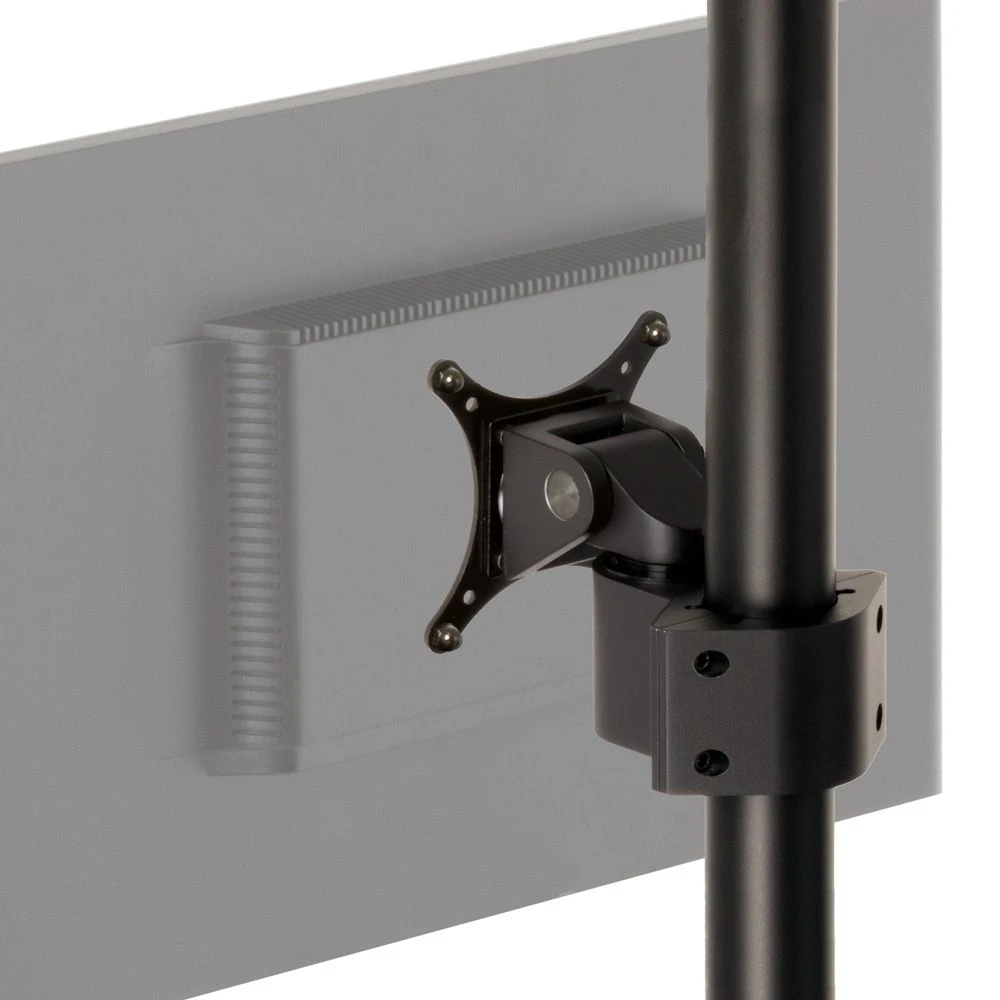

• Choose the standard VESA 100mm or VESA 75mm

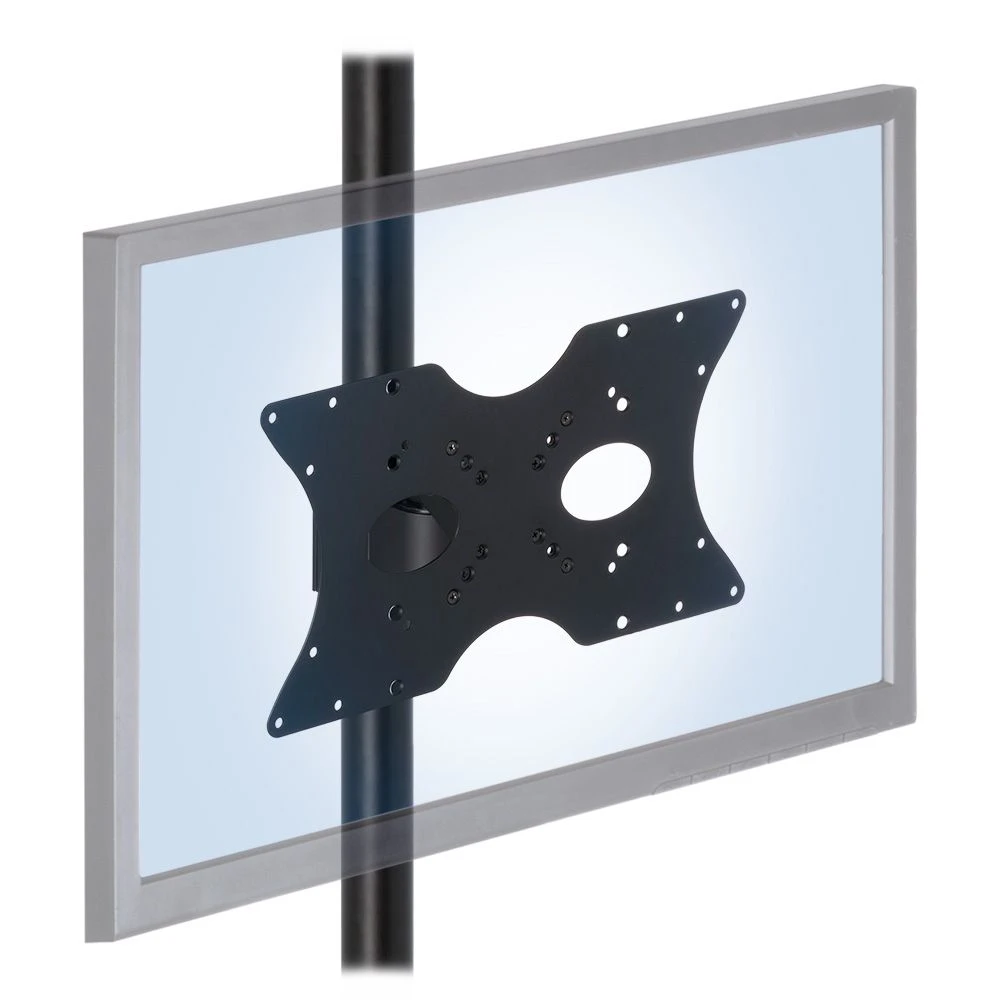

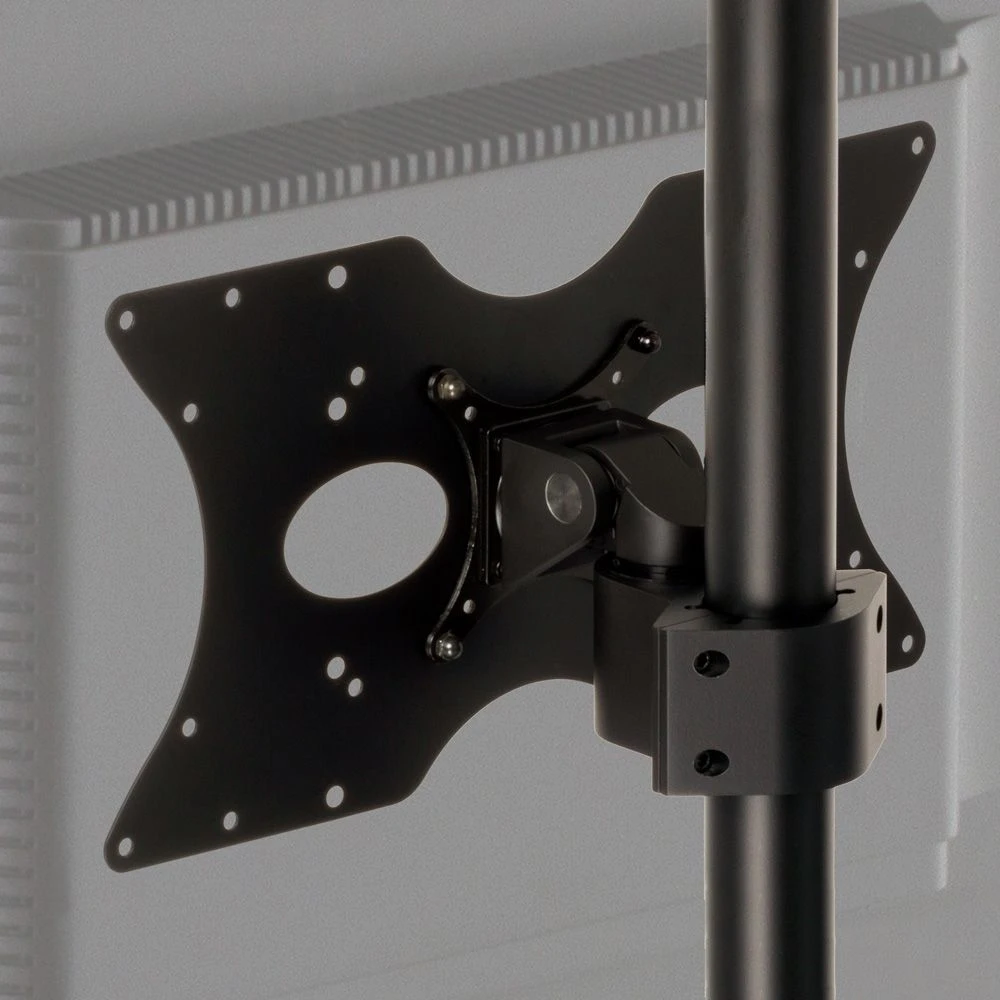

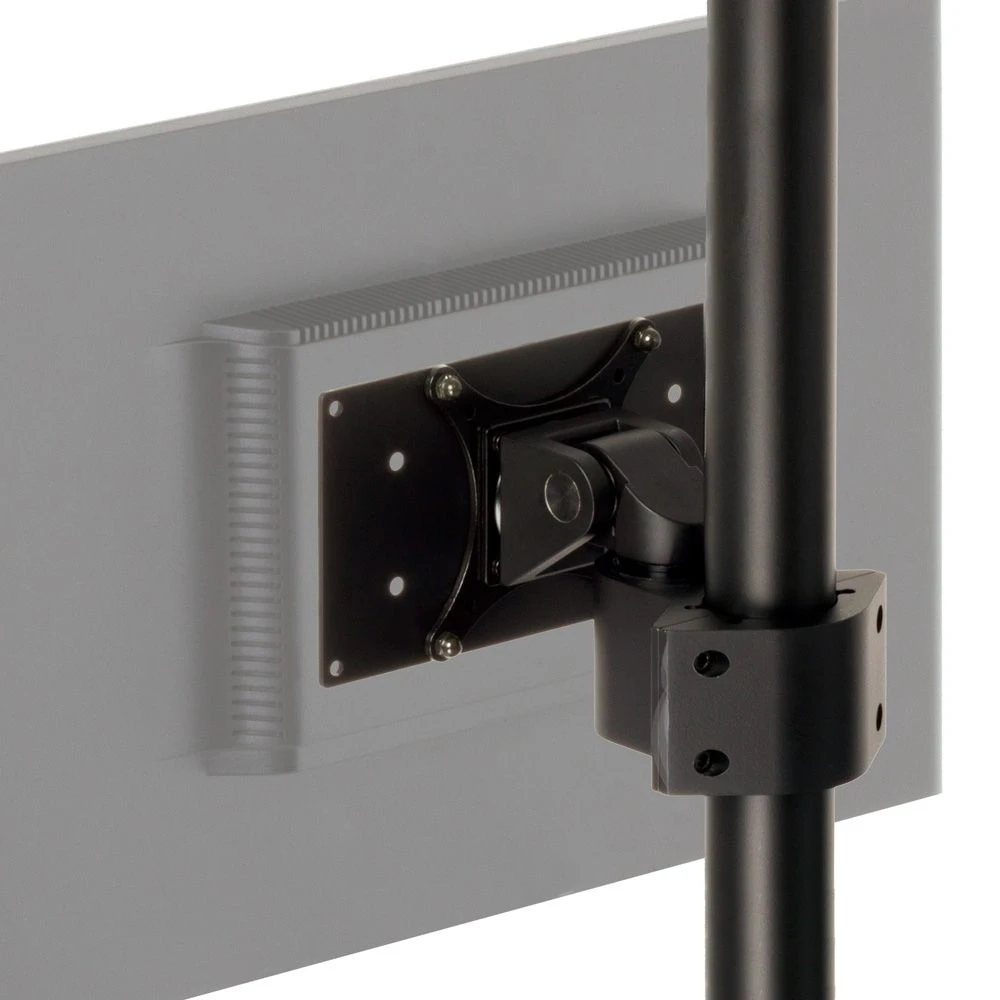

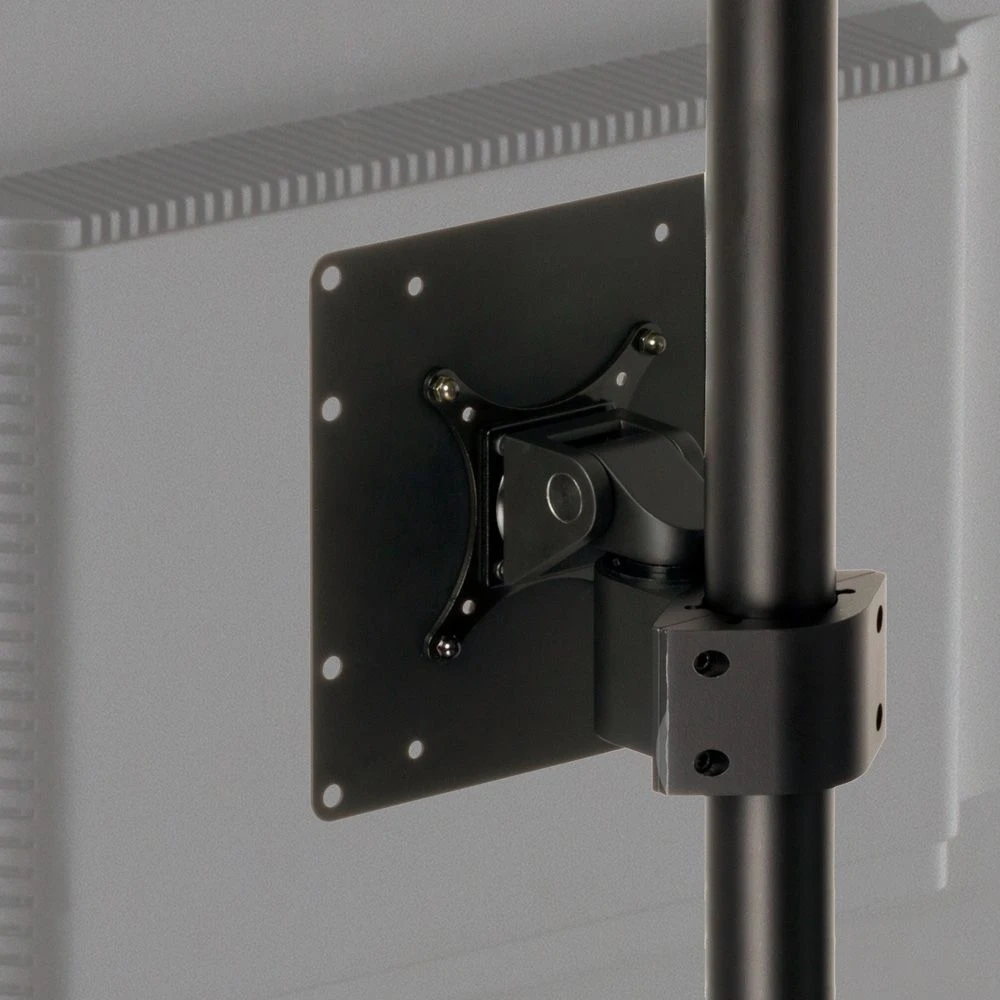

• Total of five VESA sizes available up to 400x600mm
• Modular Extensions are available to increase reach
• Monitor Pole Mount is black; custom colors are available with large quantity orders

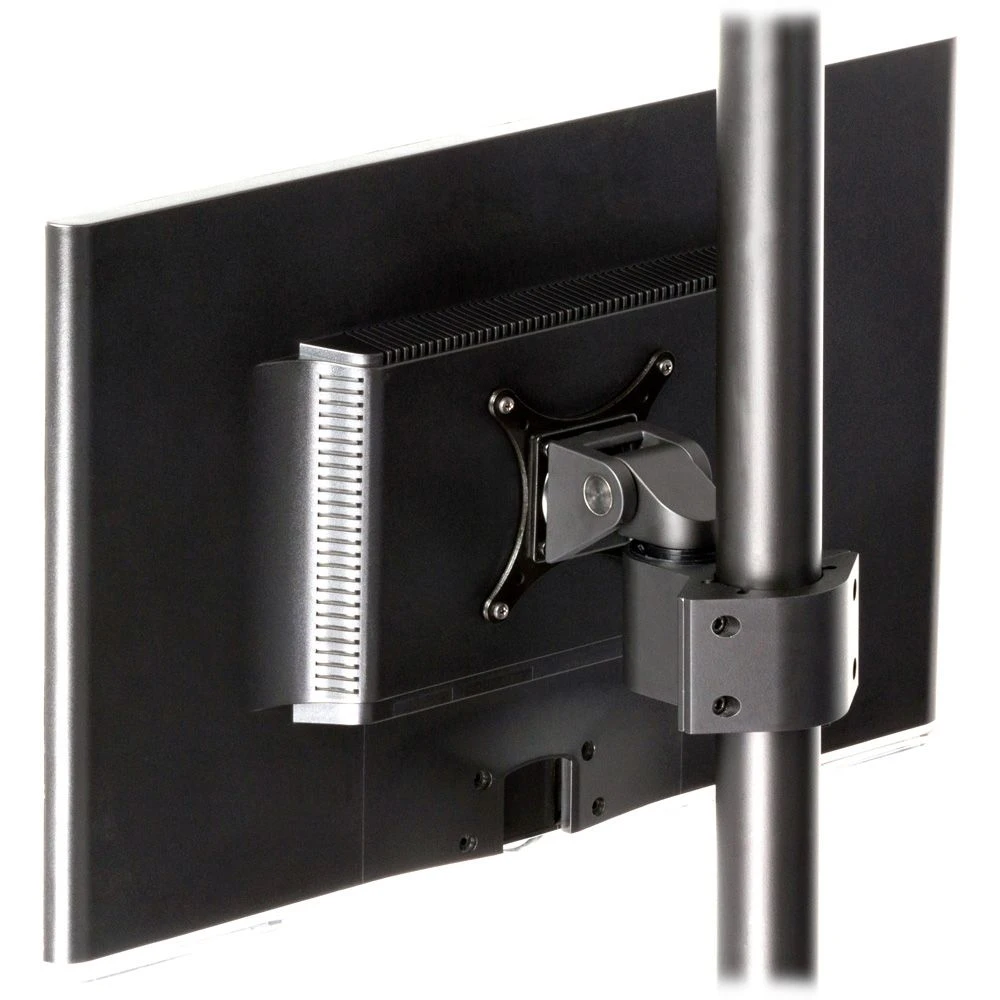

The PM40 is the perfect flat screen pole mount for medical or dental offices, laboratories, kiosks and retail environments—any place you need to mount a monitor with a minimal footprint. An LCD monitor may be quickly tilted and turned, allowing for easy repositioning. Ergomart’s Pole Mount works for poles with outside diameters (OD) between 1.5 and 2 inches, and in particular, our PM192 Pole Floor Mount Systems. This is a heavy-duty product and will stand up to the toughest environments. Tilt and swivel resistance are easily adjusted for quick and easy movement or may be set for greater resistance to movement for use with Touch Screens.

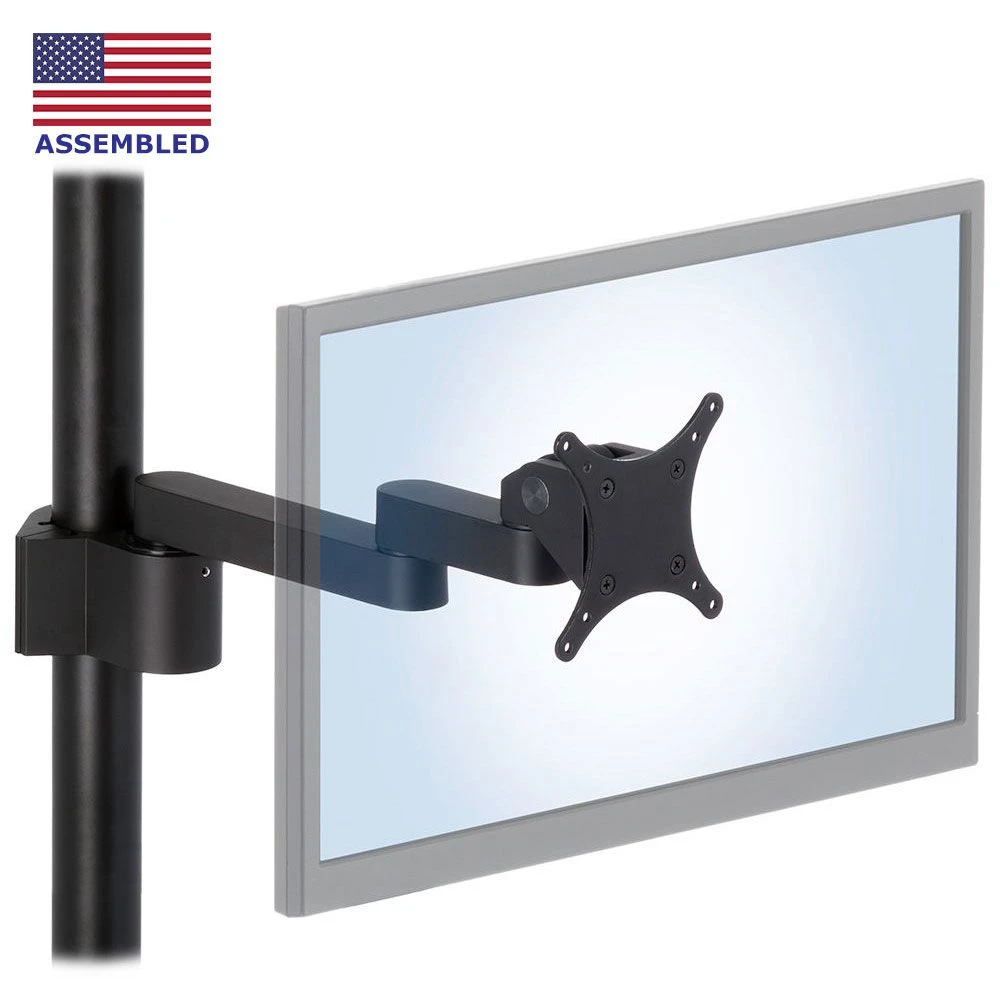

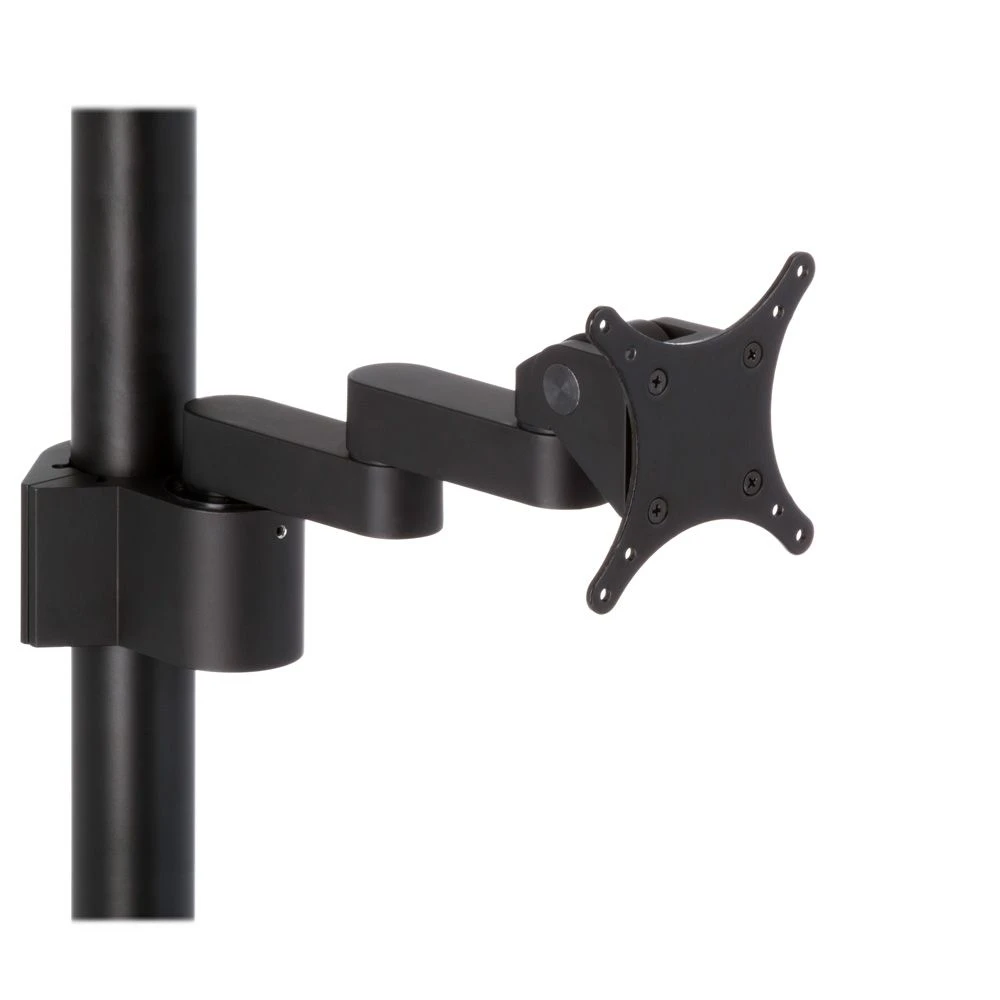

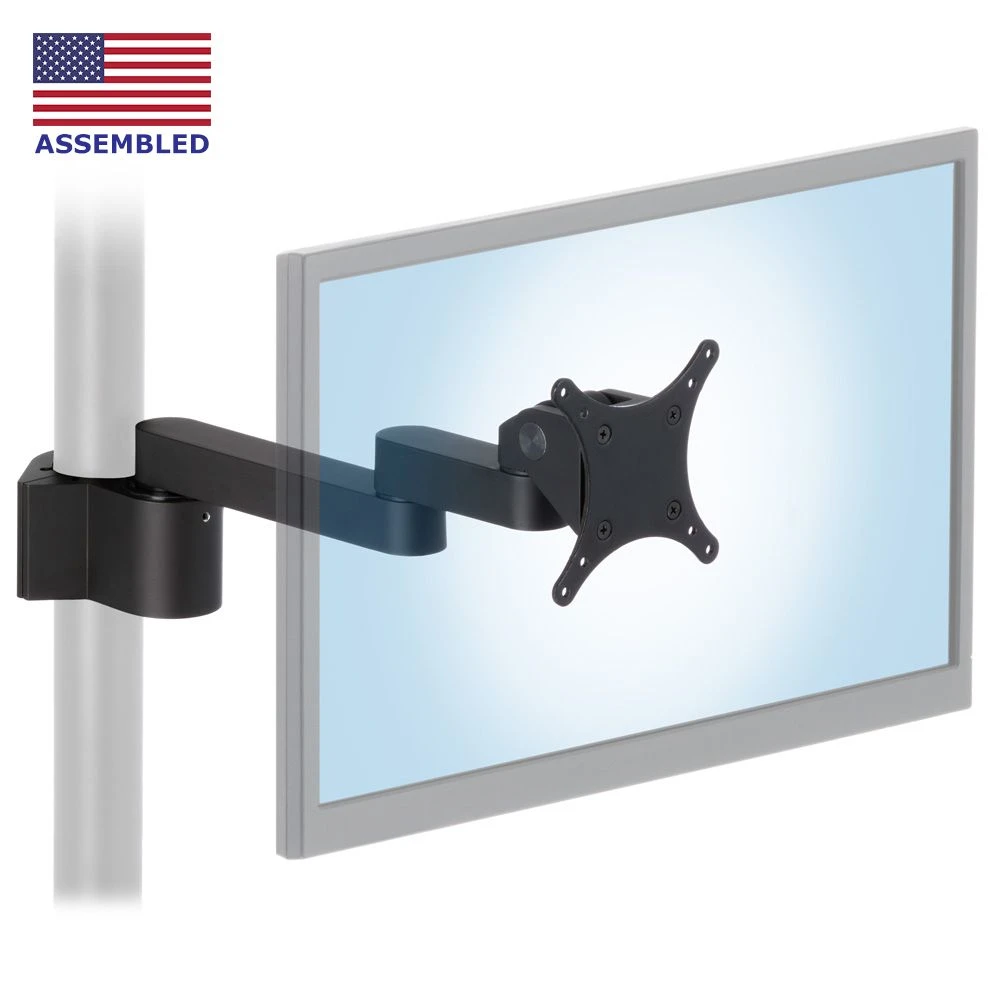

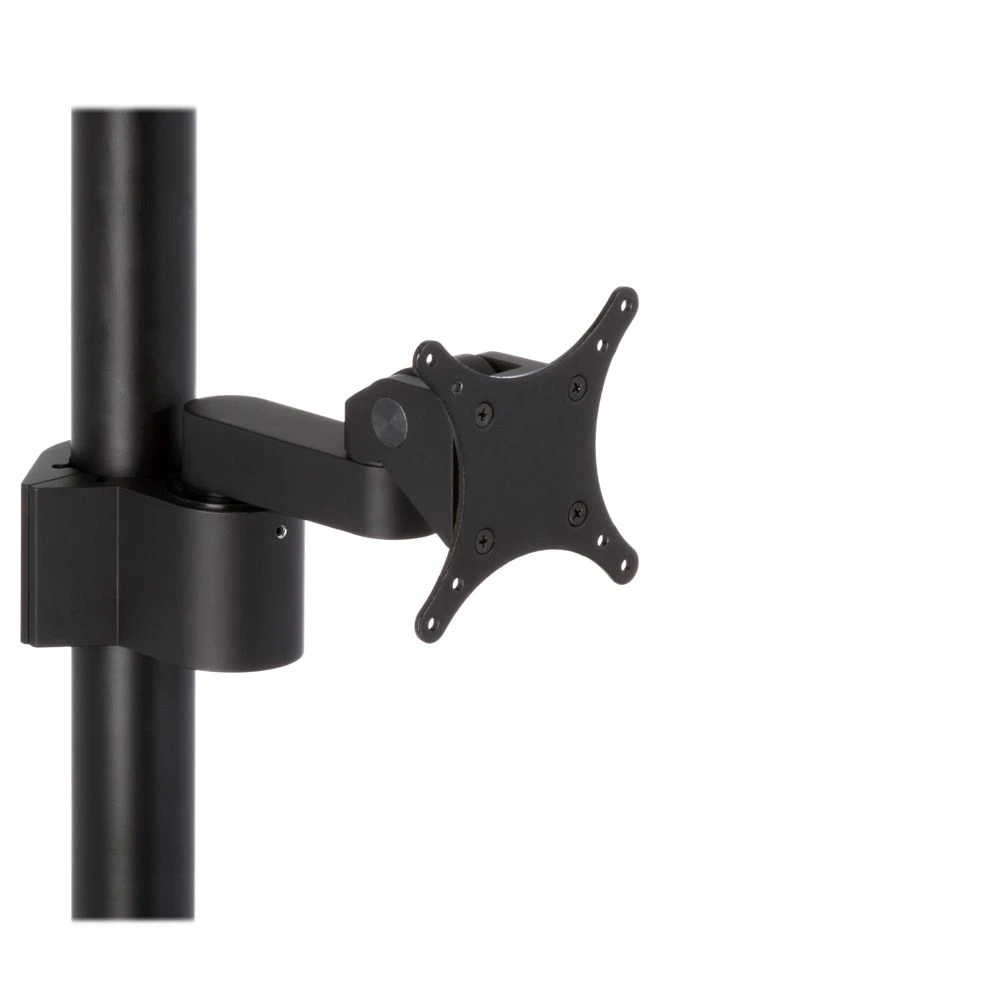

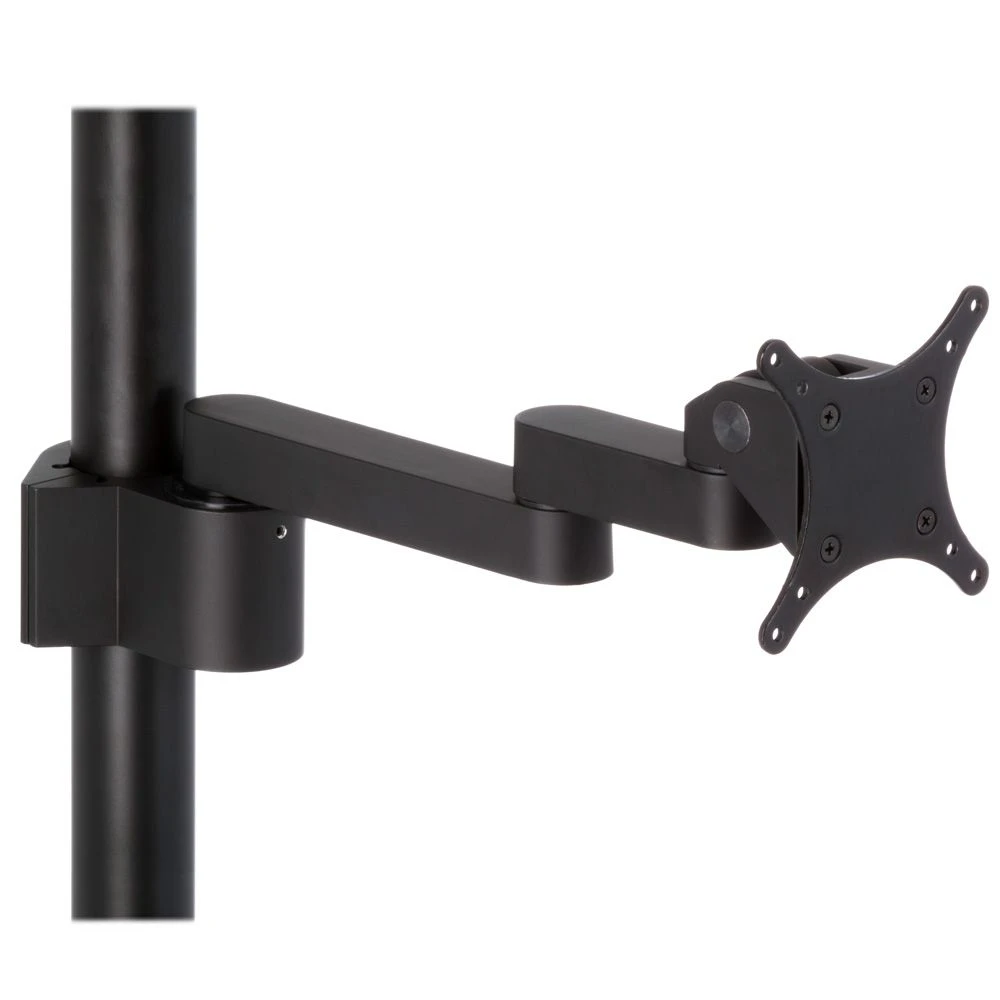

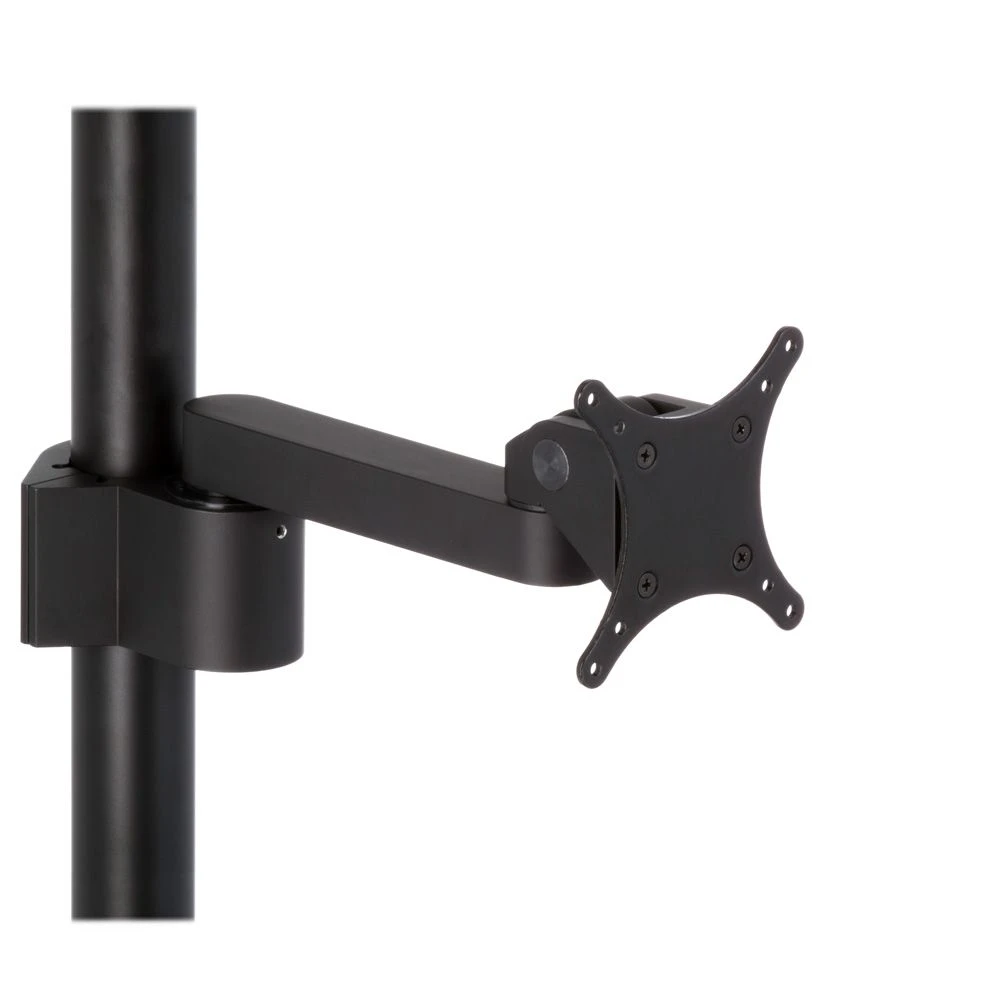

Optional extensions increase reach and articulation: The 3.5 inch extension has a final weight capacity of 35 lb; the 7 inch extension will handle 32 lb; 10.5 inch extension (3.5 + 7 inch) will handle 23 lb payloads.

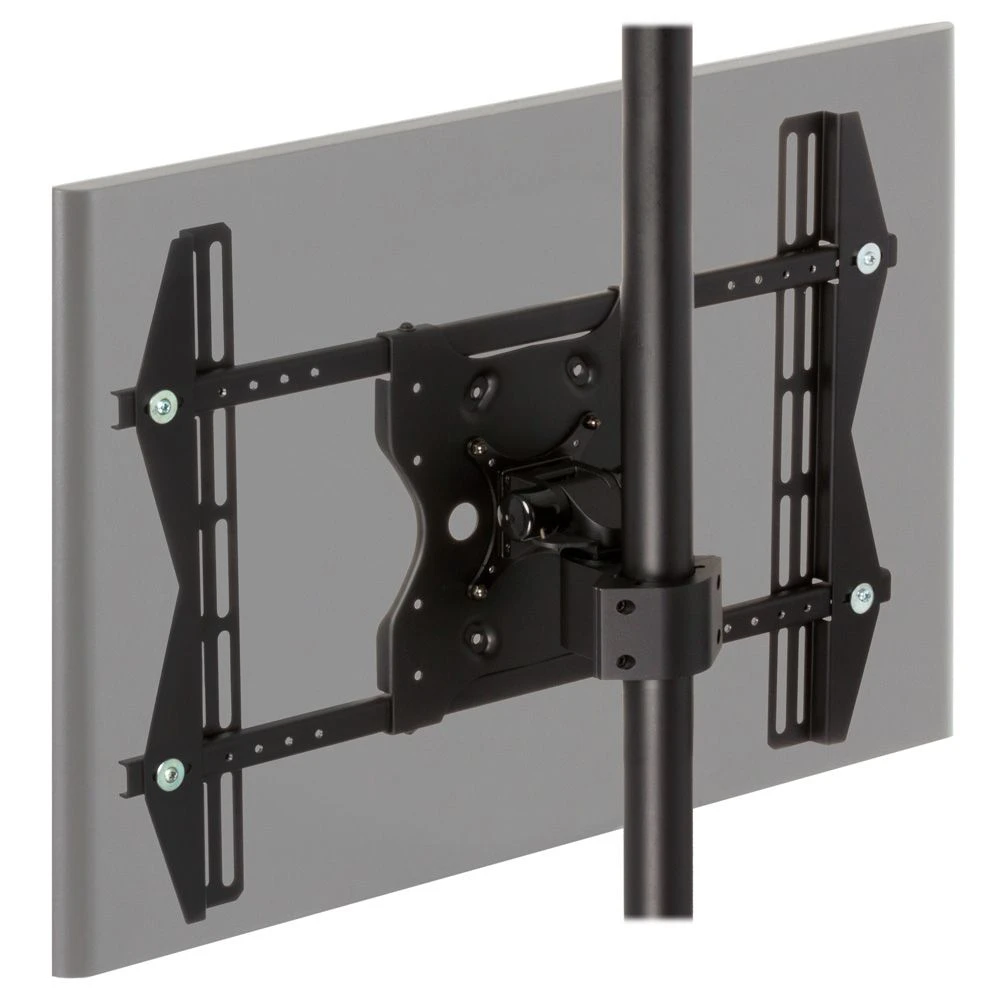

Our monitor pole mounts can handle larger monitor sizes with the Adjustable MSU4X6 VESA adapter, which can fit any VESA hole pattern between 100mm (height) x 300mm (width) and 400mm (height) x 600mm (width). Note that the MSU4x6 is only recommended with the heavy duty spring tilter head and without any horizontal extensions. The weight of the MSU4x6 is 9 pounds and must be added to that of the monitor to determine the suitability of the mounting solution.

If you need to mount extra heavy monitors, please see the Heavy-Duty PM80 Pole Mount.

Black is our Quick Ship (QS) color. Please call us about custom colors with four to six week lead times. Orders are usually shipped within 48 hours. Questions? We are here to help you! Please call 888 420 3200 or 214 742 6066.
