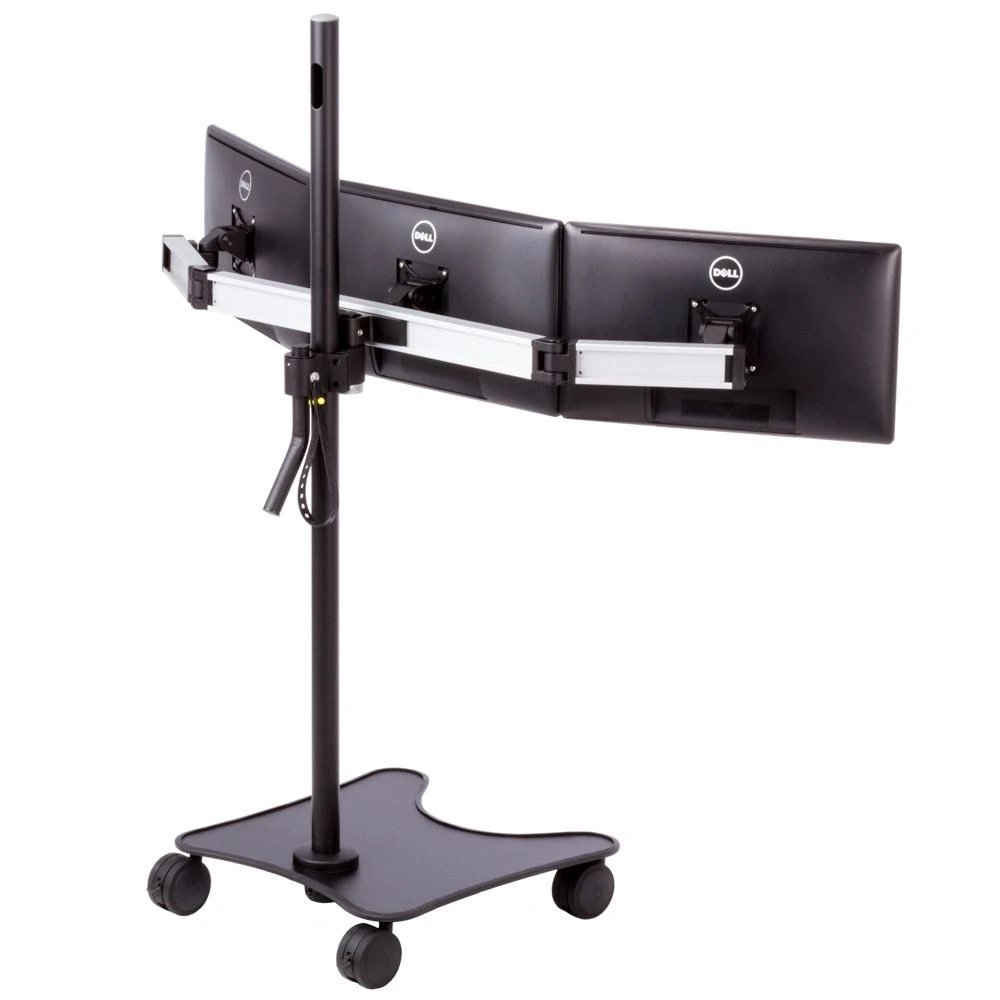

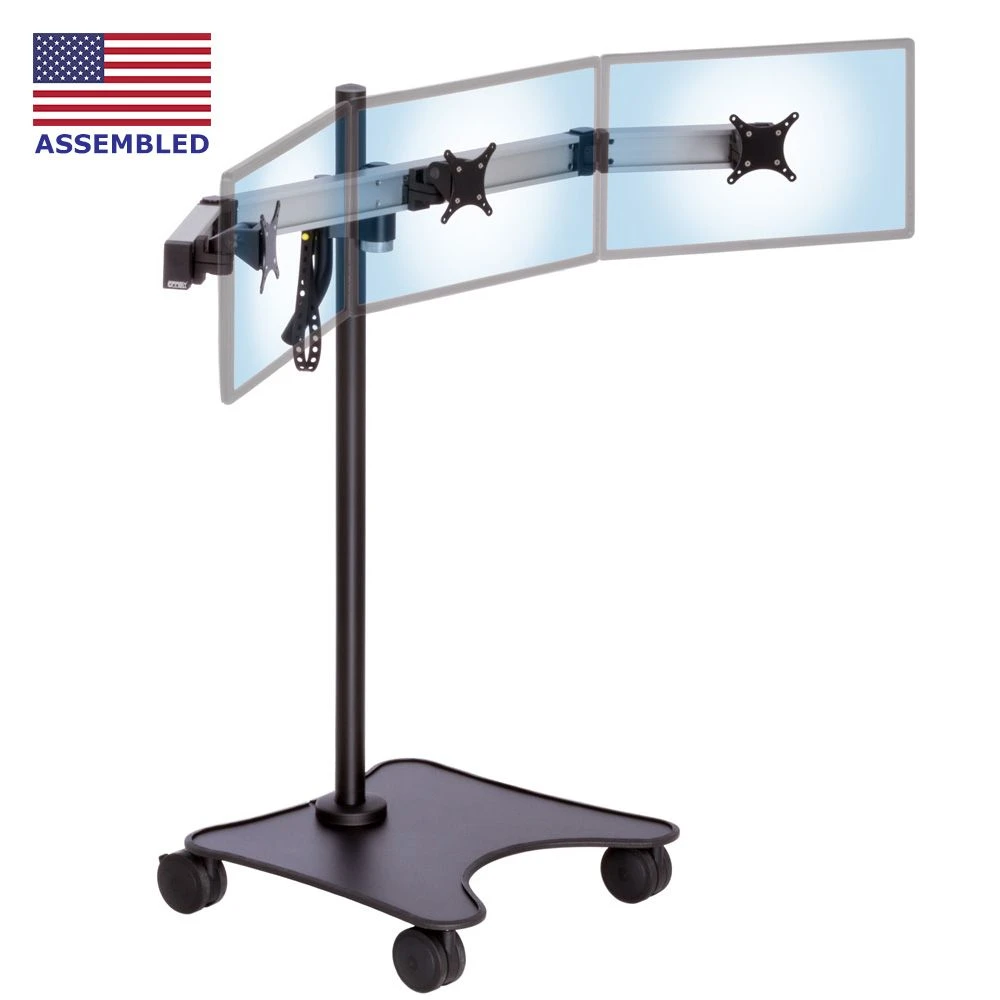

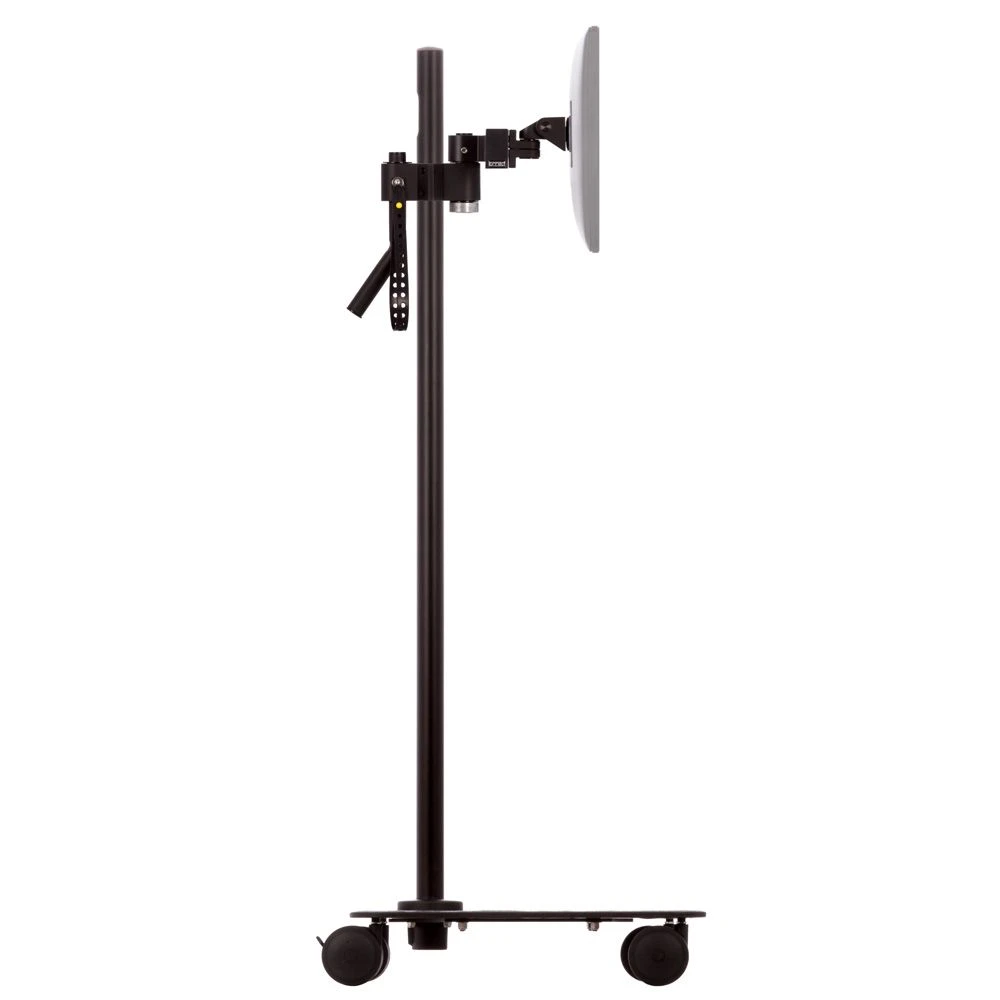

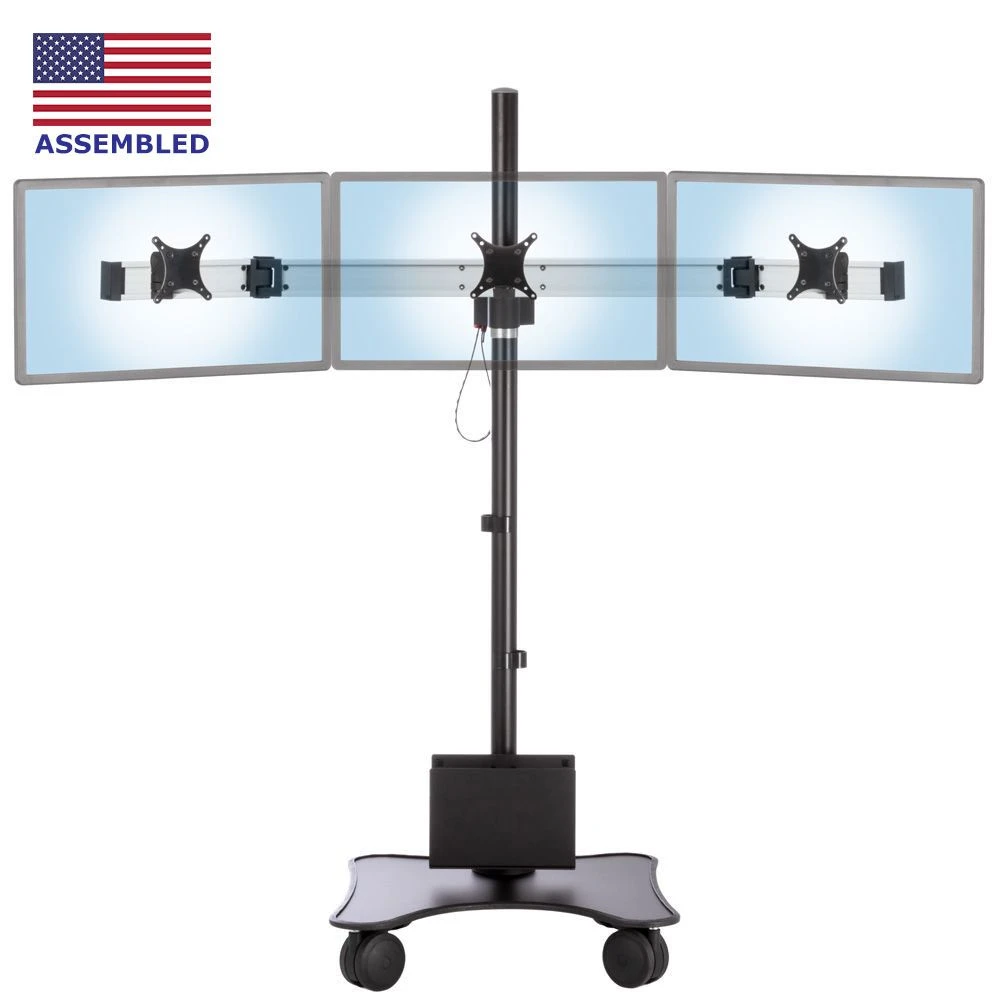

MCART-EZ3 Heavy-Duty Mobile Triple Monitor Cart

ROLLING, THREE MONITOR, POLE MOUNTED DISPLAY IS EASILY MOVED AND LOCKED INTO PLACE

HIGHLIGHTS:

• Informational mobile display for education, storefronts, lobbies or medical environments
• Supports three 0-30 lb monitors, each measuring up to 27″ in width, placed side-by-side
• The three-section, articulating beam allows for monitor placement at any point
• The left and right beam sections can curve inwards to create an arc formation
• When they are curved inwards by 20 degrees, the maximum monitor width is reduced to approximately 24″
• Each VESA-compatible mounting mechanism can be individually swiveled, rotated and tilted
• The unit sits on four sturdy casters, two of which can be locked
• A flexible curved handle is easily grasped for unit movement
• This cart can be built to your specific application:
• Easily adaptable with the addition of compatible modular components
• Direct Mounts include the Pole Mounted CPU Holders and all “PM” monitor/keyboard mounts
• Compatible mount adapters MKIT-E (single), MKIT-J (dual), or MKIT-Y (pole top) accept all our SERIES-118 devices
• To add a keyboard and mouse, use a MKIT-E and select a SERIES-118 keyboard arm
• Standard color is Black. Call for availability in Silver or White.
• Standard pole is 5 feet tall. Call for other sizes.
• Do not hesitate to contact us for help with further customization

DESCRIPTION:

Ergomart’s mobile triple monitor cart is a heavy-duty, sturdy unit that can support the substantial weight of three monitors while still providing easy movement of the entire device. Its large informational display area makes it ideal for many applications, including lobbies and storefronts, education environments and medical facilities such as operating rooms and other patient care environment monitoring.

Each of the monitors is attached via a VESA-compatible Tilter Head that provides individual tilt, swivel and rotation movement. The monitor attachments can be placed anywhere along the three-part articulating beam. If placed at the edges, the beam can accommodate three equally-sized monitors of 27″ in width. The two outside monitors can be curved inwards for an arc-like formation, providing their size allows it. The maximum size is approximately 24″ in width for the arc formation with equal sized monitors with bezel depths of 2″.

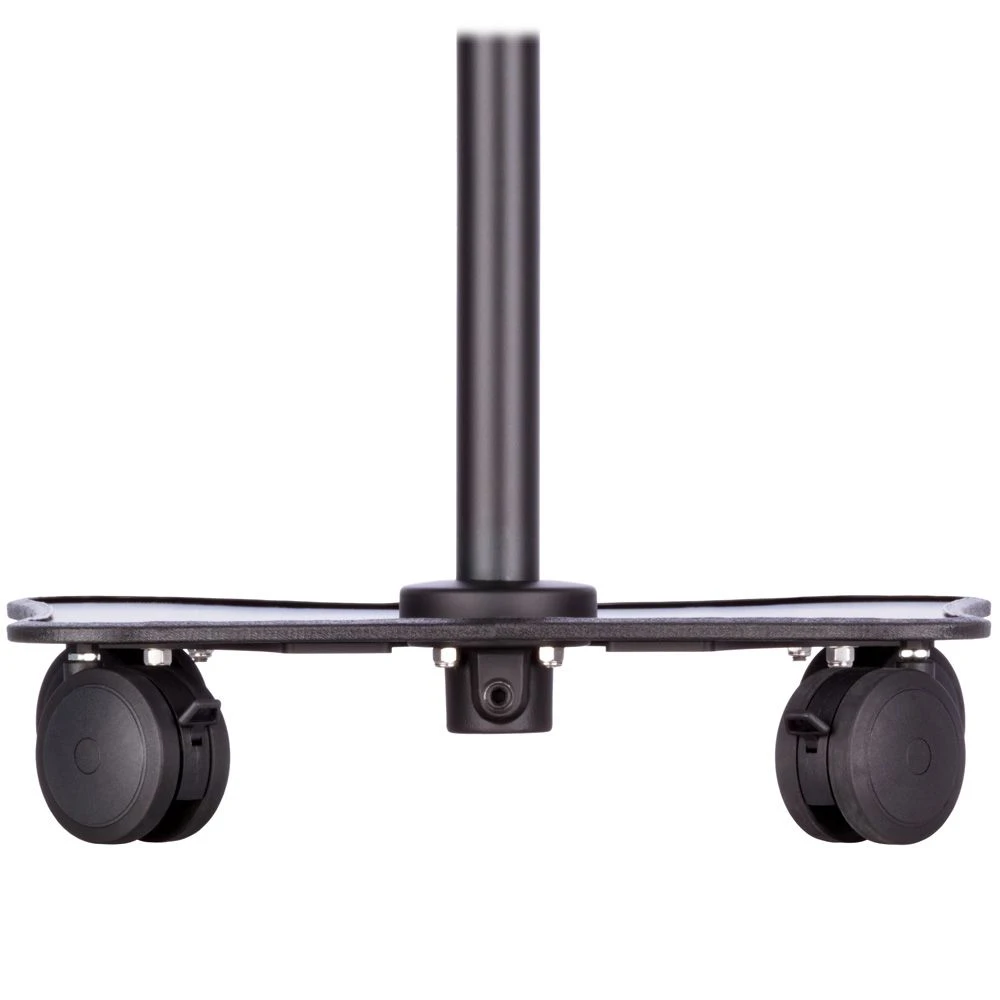

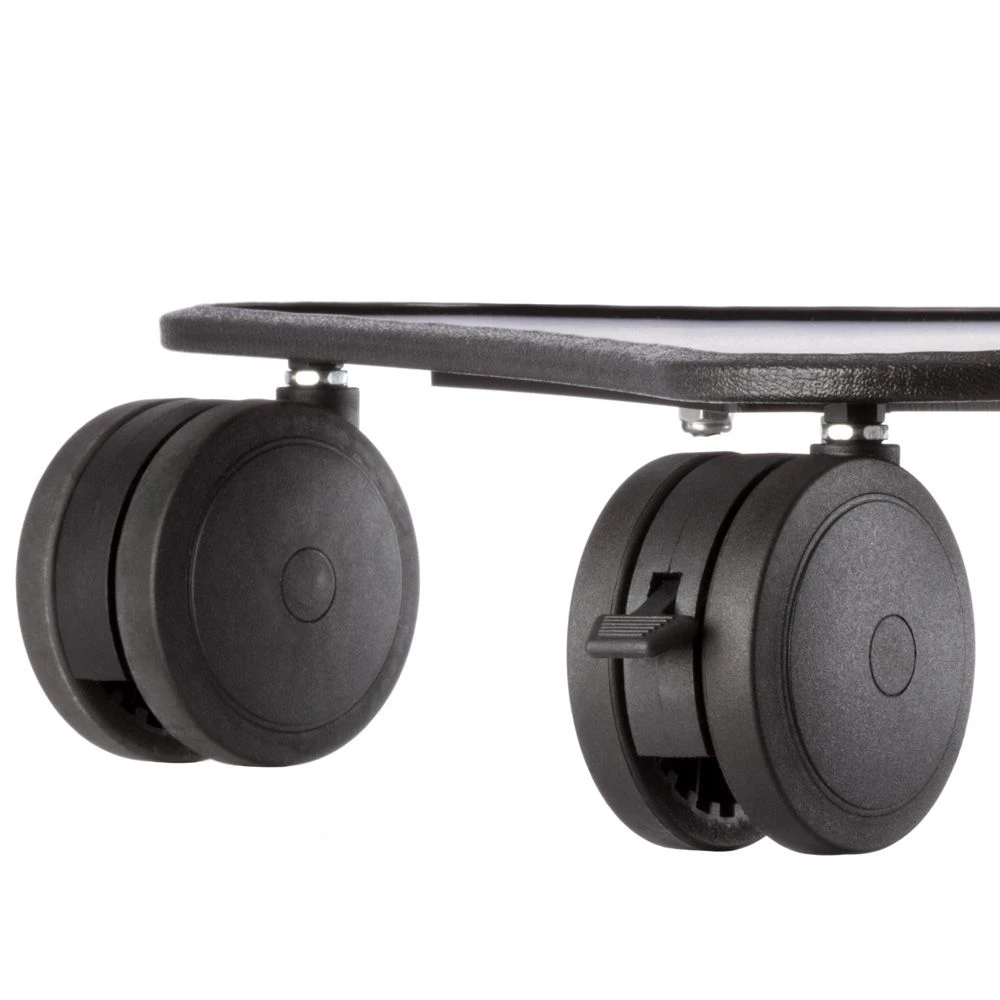

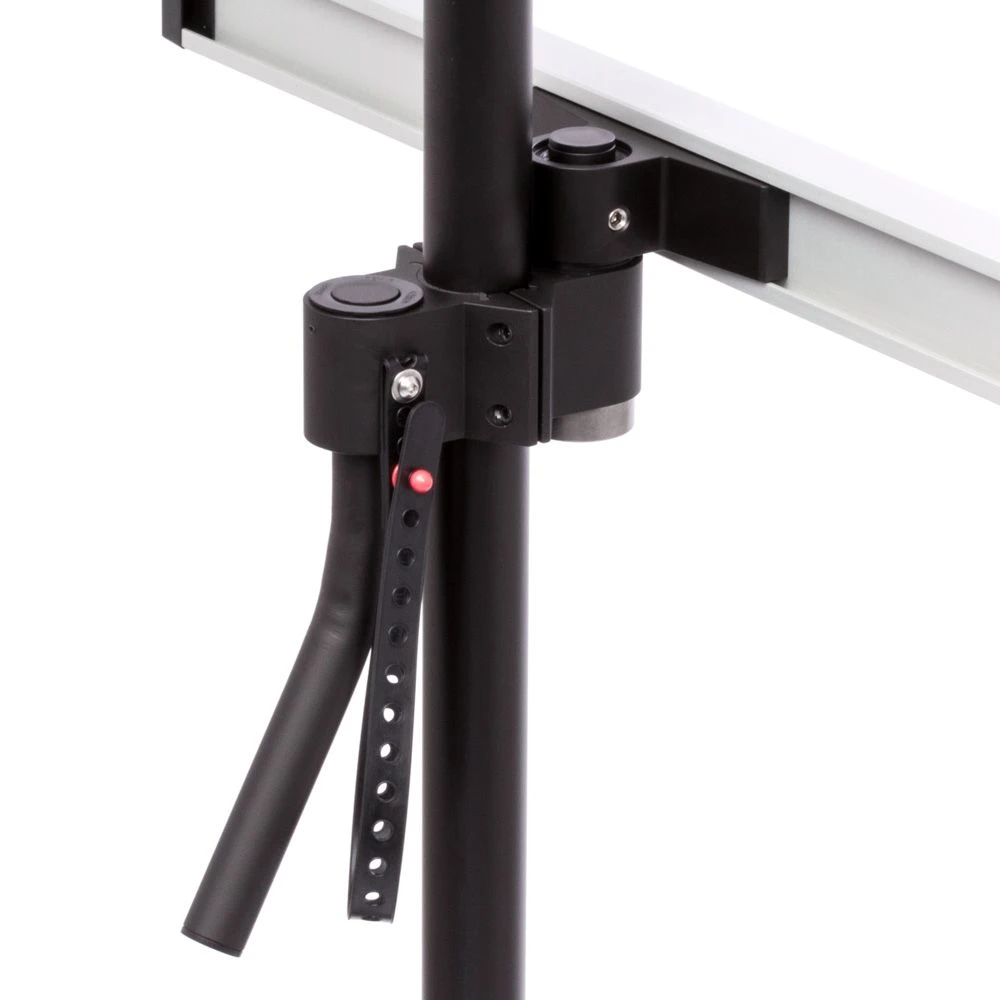

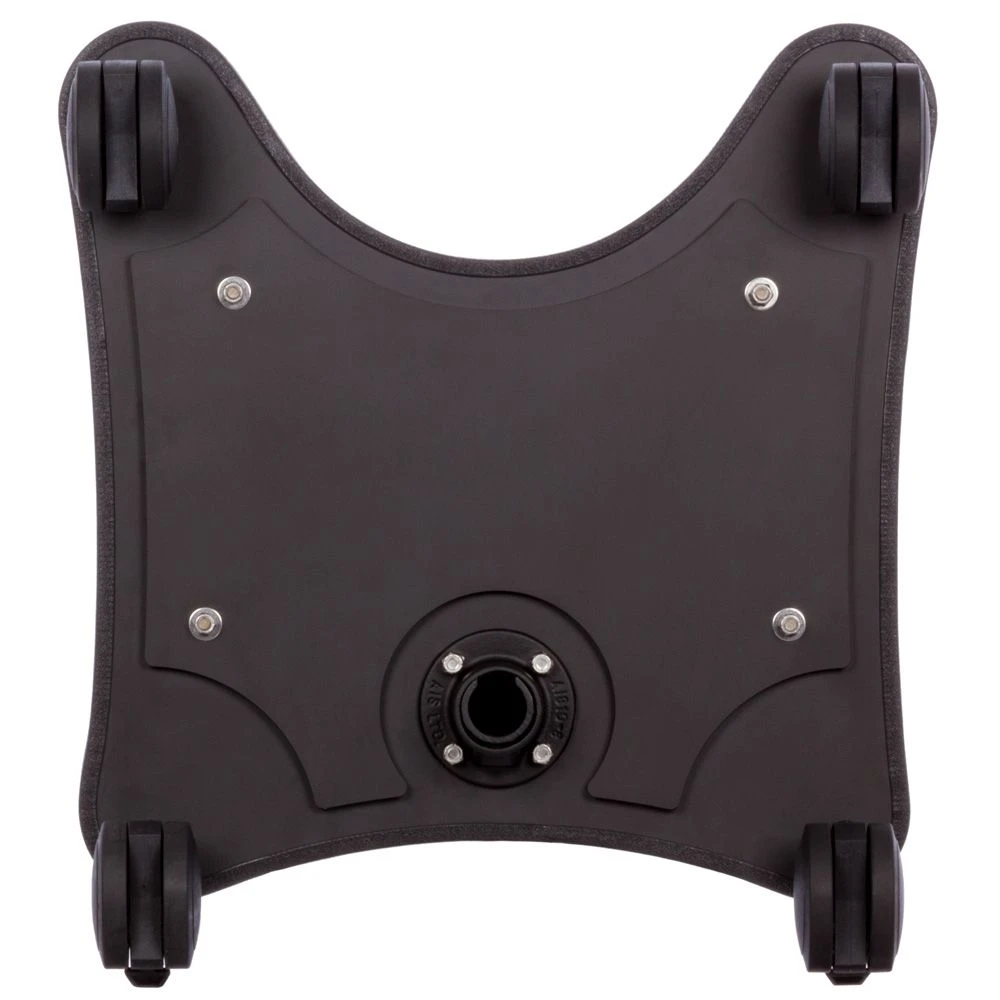

At the base sit four heavy-duty casters which provide easy movement even when the largest monitors are attached. An easy-to-grip, flexible handle located under the monitors facilitates this movement. When the unit is stationary, two of the casters lock to keep the device stable and in place. Cables and wires are kept close to the pole via cable clips attached at various locations.

The mobile monitor cart is also available in several other configurations – the dual mobile monitor cart and the compact triple mobile monitor cart with one monitor placed over two.

MODULAR AND ADAPTABLE:

Our heavy-duty monitor carts can be augmented to support a large number of applications. This is because the PM192 mounting pole available on all MCARTs is compatible with many modular devices.

• Direct Mount components can be directly installed on the pole for mounting CPUs, monitors and other devices.
• The pole also accepts three types of mount kits, namely MKIT-E (single mount that installs anywhere along the pole), MKIT-J (a similar dual mount) and MKIT-Y (pole top mount). All three of these accept any SERIES-118 monitor arm or other device.
• Accessories, such as monitor adjustment handles, barcode reader cradles and more can be added to these mounts.
• Modularity also means that you can easily modify an existing cart at a later time to accommodate your changing needs
• If you need assistance with additional requirements, please do not hesitate to contact us. We have worked on many interesting solutions over the years and may already have a design that fits your needs.

Please contact Ergomart at [email protected] or 888-420-3200 for more information.
