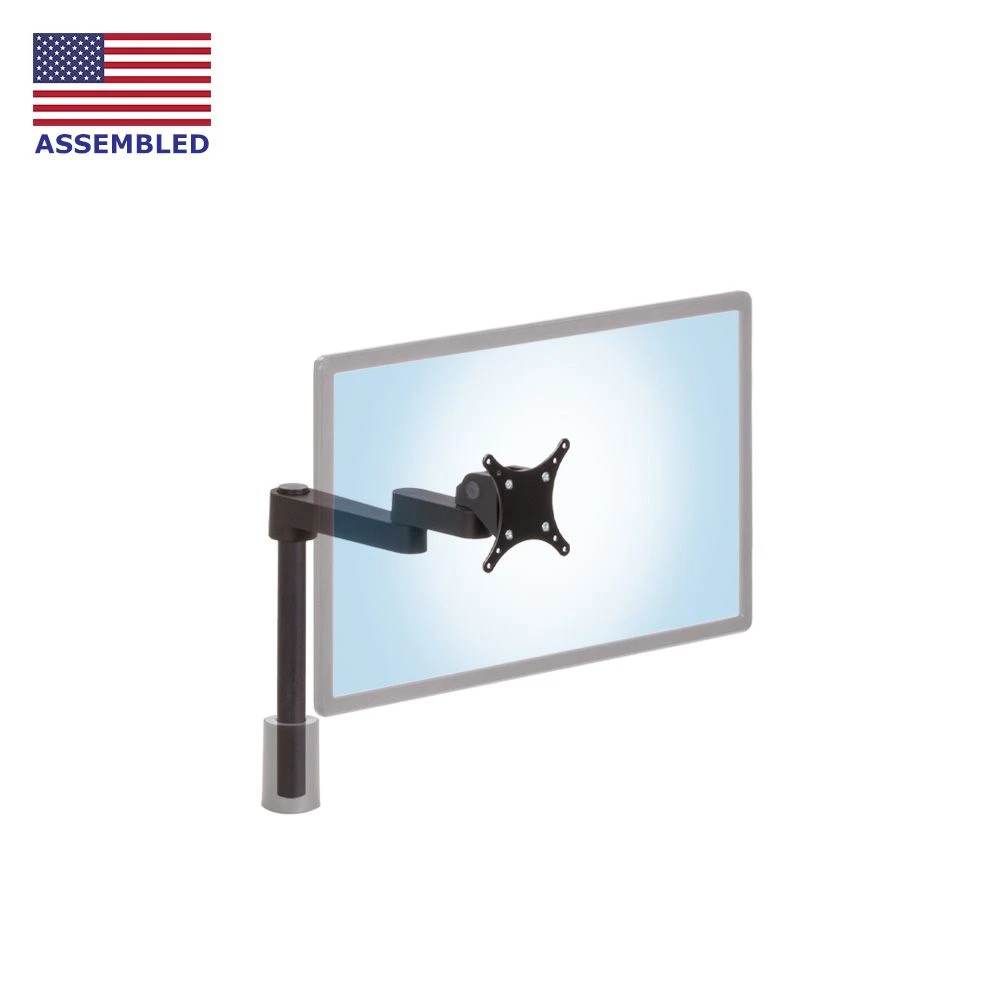

LS9137S Adjustable Monitor Stand

OPTIMIZE WORKSPACE WHILE INCREASING MONITOR ADJUSTABILITY

• Premium triple articulating arm for flexible positioning of a touch screen monitor

• Monitors reach out from mounting point up to 13.5 inches

• Use as a desk stand or integrate into any application (industrial, hospitality, medical, OEM equipment)

• This highly adaptable stand is a SERIES-118 modular mounting device

• Compatible with all SERIES-118 mount kits, enabling countless applications

  • Install on any horizontal or vertical surface: desk, workbench, wall, cabinet, cube, pole

  • Move laterally along wall with our Roller Track system of horizontal sliding mounts

  • Position above an open floor on an existing or Ergomart PM192 ceiling mounted pole

  • Mount on special medical or other OEM equipment using T-slot, Dovetail and OEM mounts

• The user instantly and intuitively rotates from landscape to portrait

• Holds its position under finger-tip pressure

• Effortlessly tilt and swivel your monitor to the most comfortable angle

• Easy to adjust yet holds position firmly once repositioned

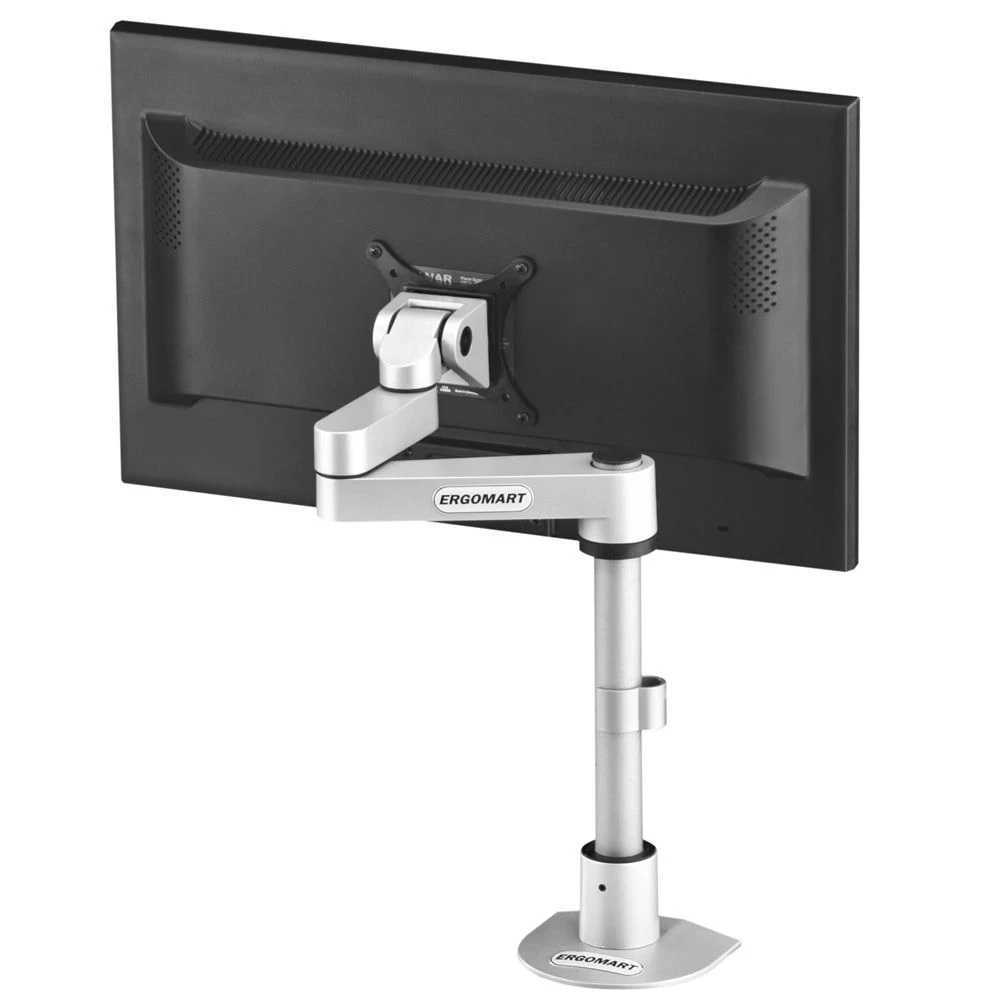

• Designed for VESA 75, 100, 100 x 200 and 200 x 200 VESA hole configurations

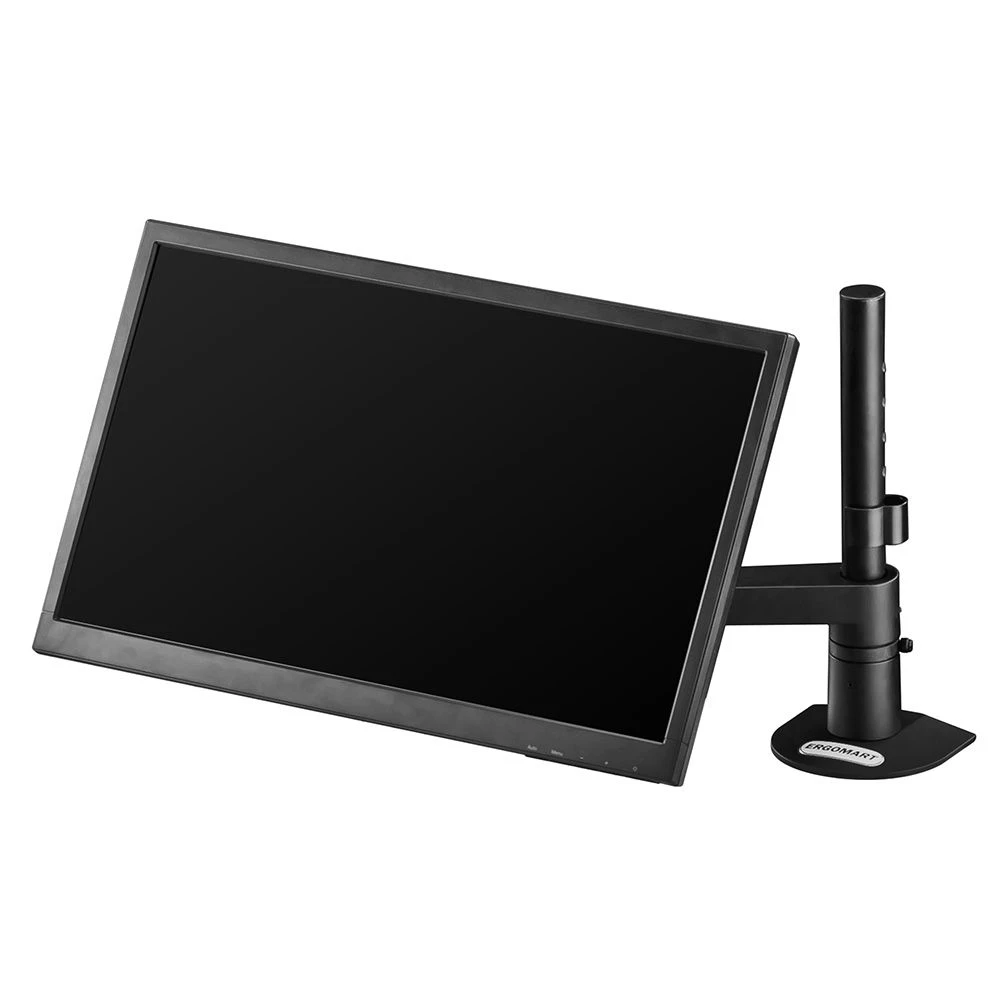

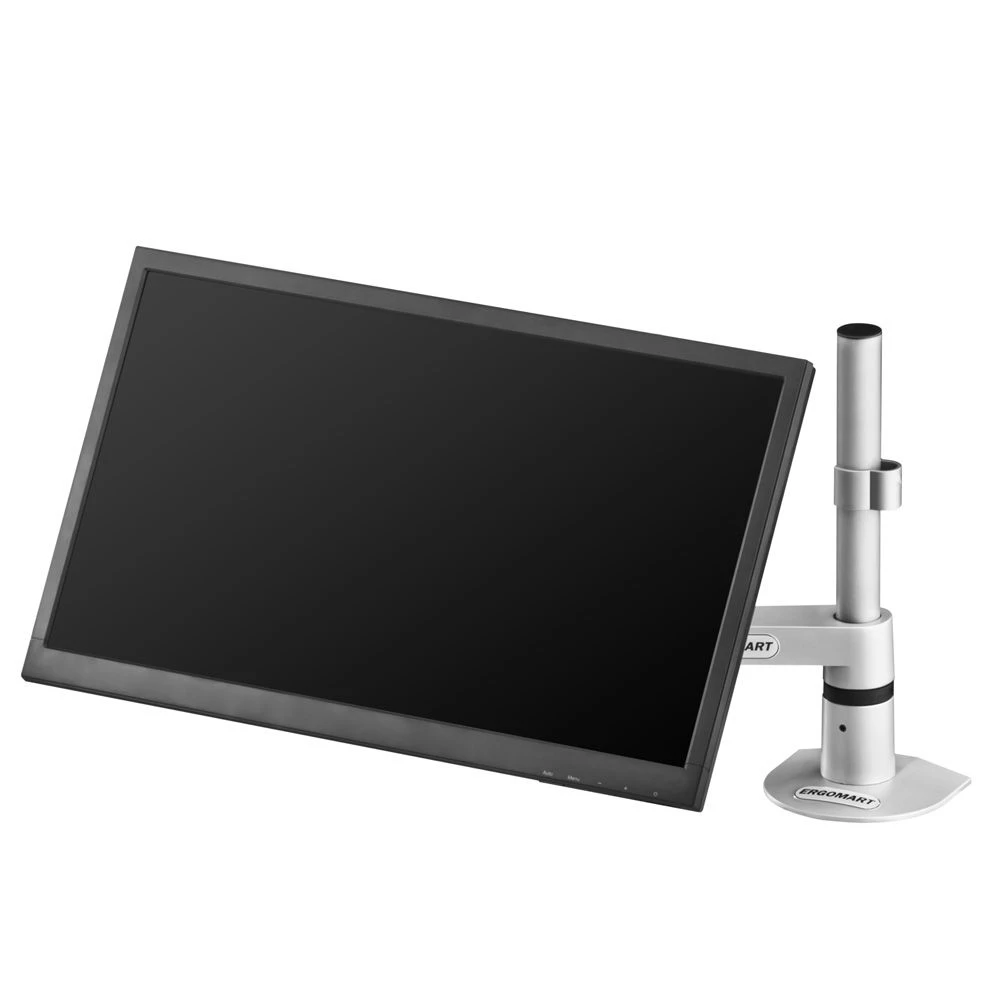

• Compact: LCD arms fold to a depth of less than 4 inches

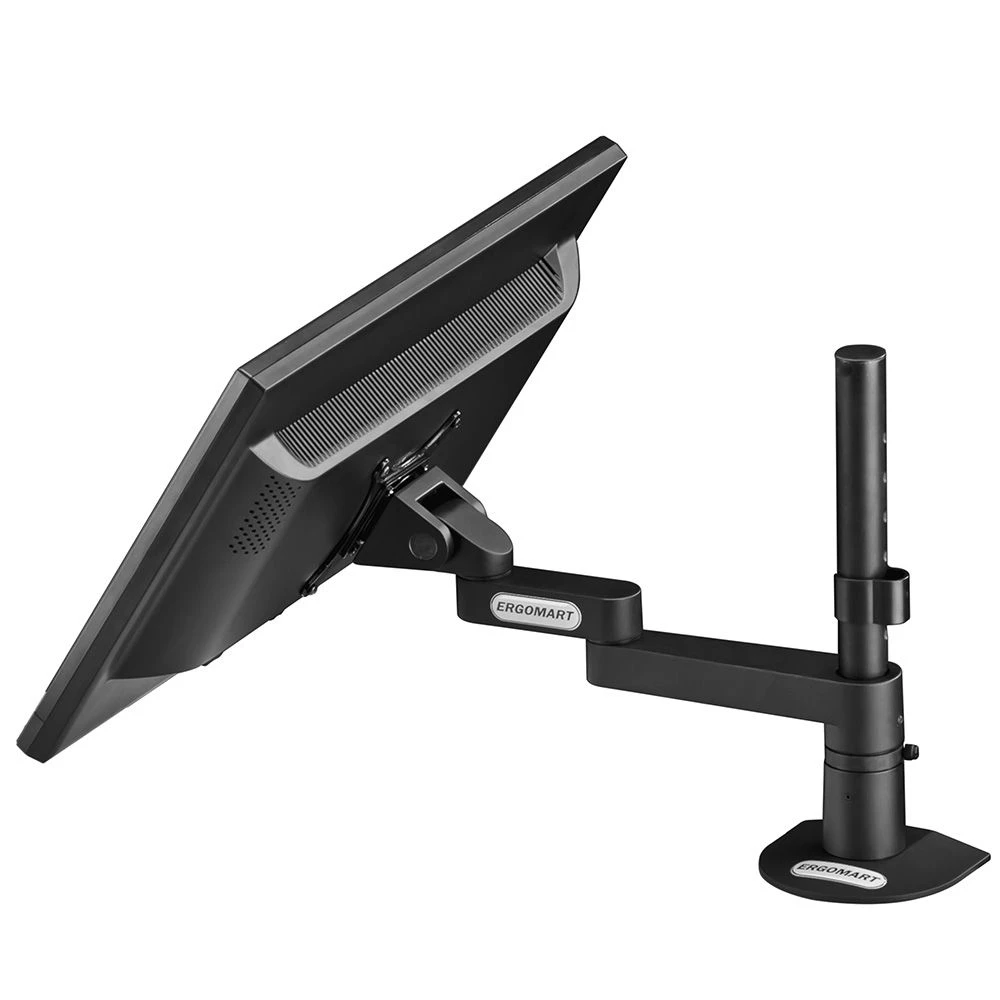

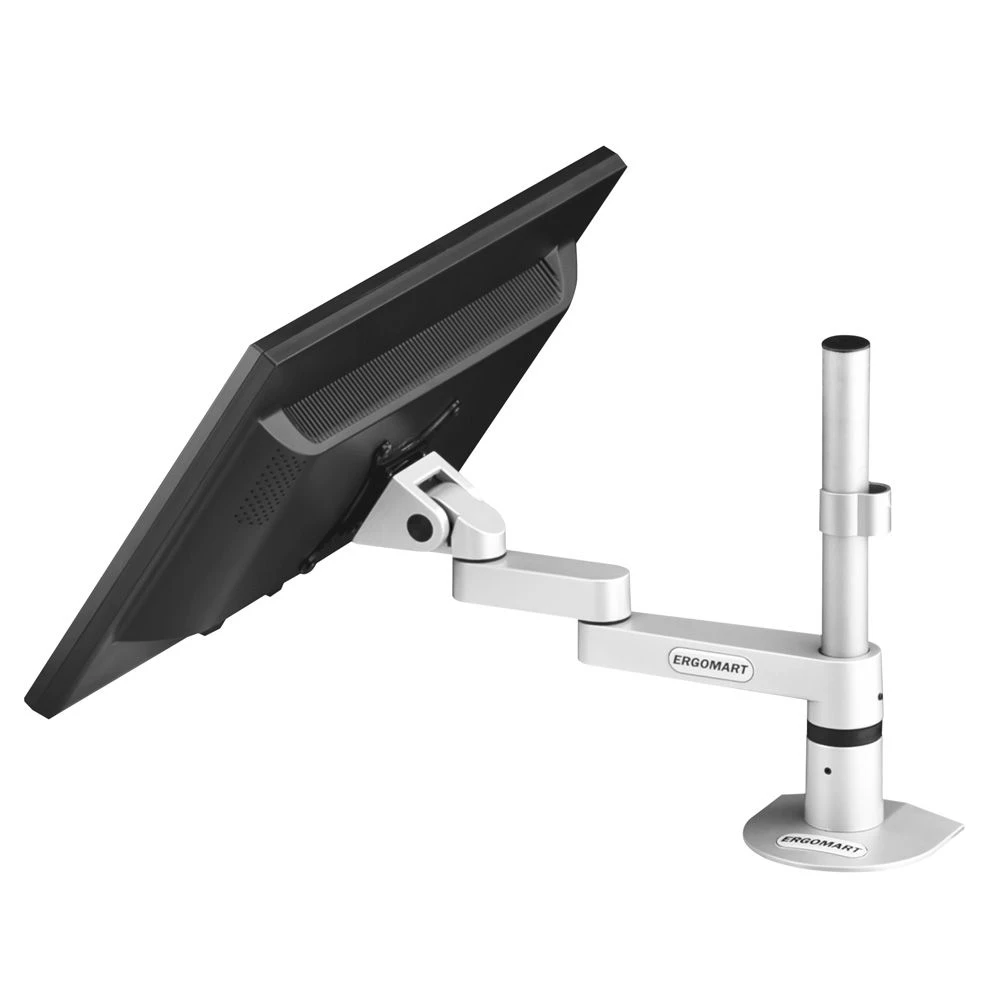

• Adaptable: Over 90° backward tilt & more than 44° forward tilt

Adjustability:

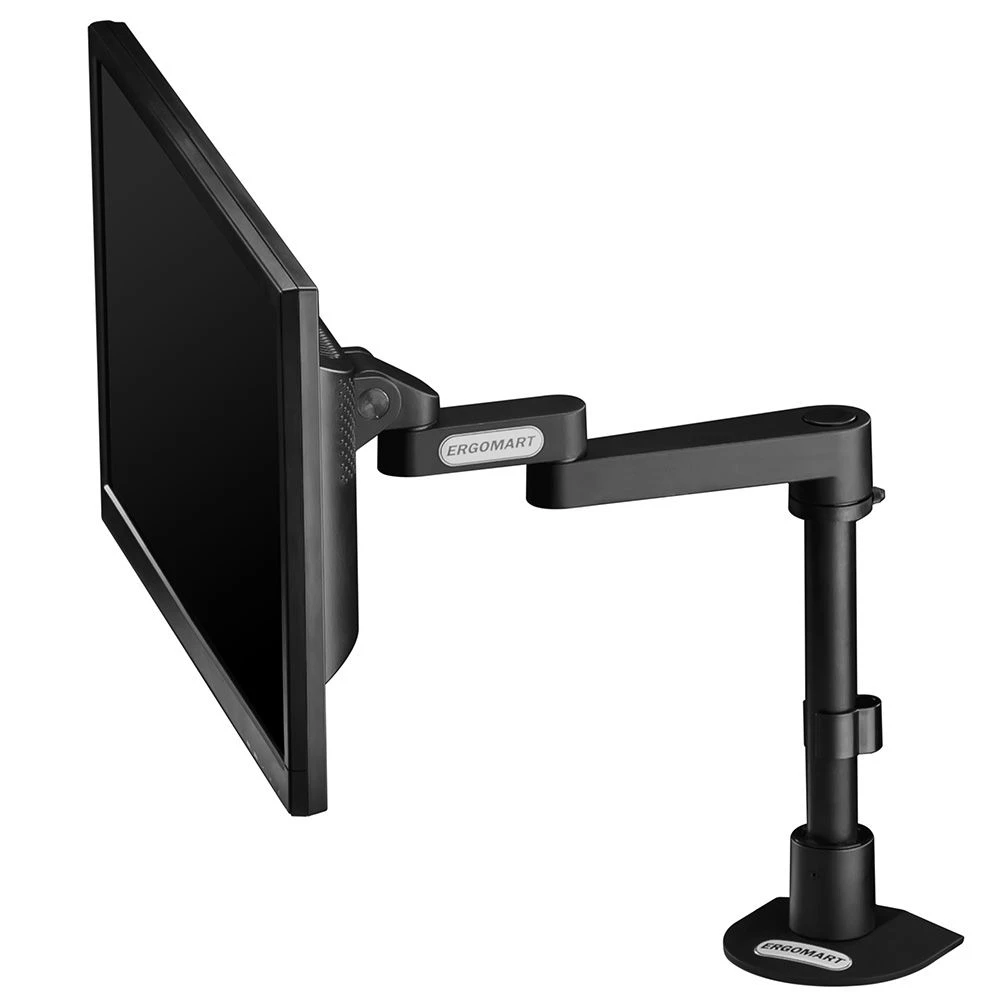

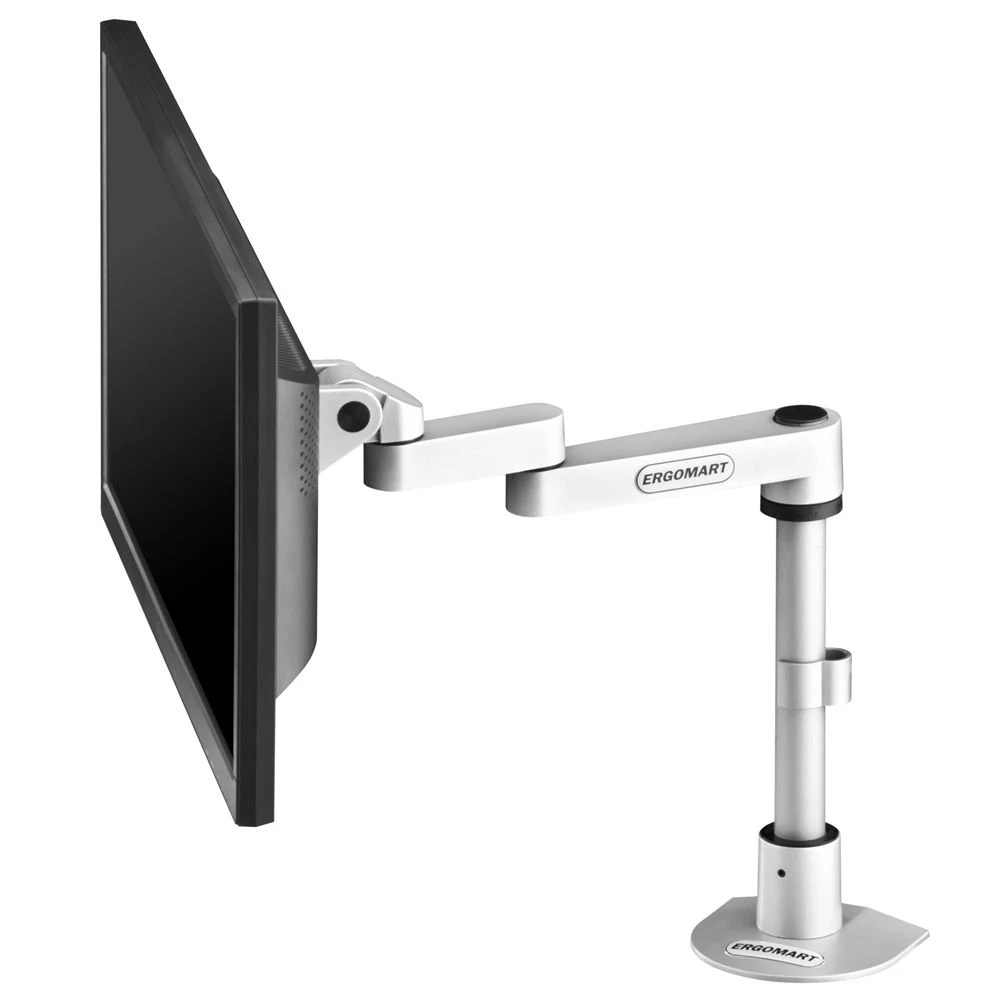

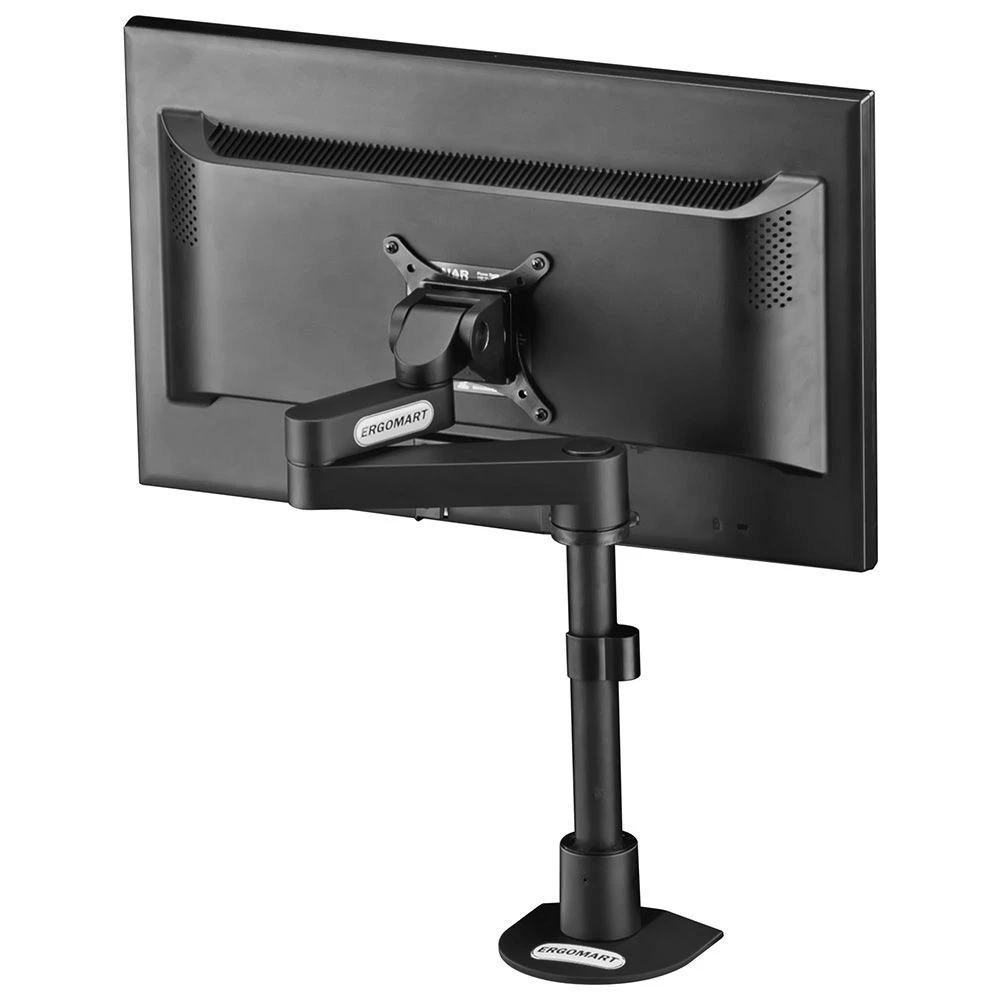

The LS9137S single monitor stand positions a flat screen monitor or VESA compliant device weighing as much as 35 lb. It provides generous tilt and pan as well as portrait/landscape rotation. It comes with a 14” pole but several optional lengths are available. Height can be easily reset for different users by removing the monitor and adjusting the arm assembly to the desired height.

Applications:

The LS9137S is a SERIES-118 mounting device, compatible with our entire selection of SERIES-118 mount kits (known as MKITs). As such, it offers virtually unlimited possibilities for mounting.

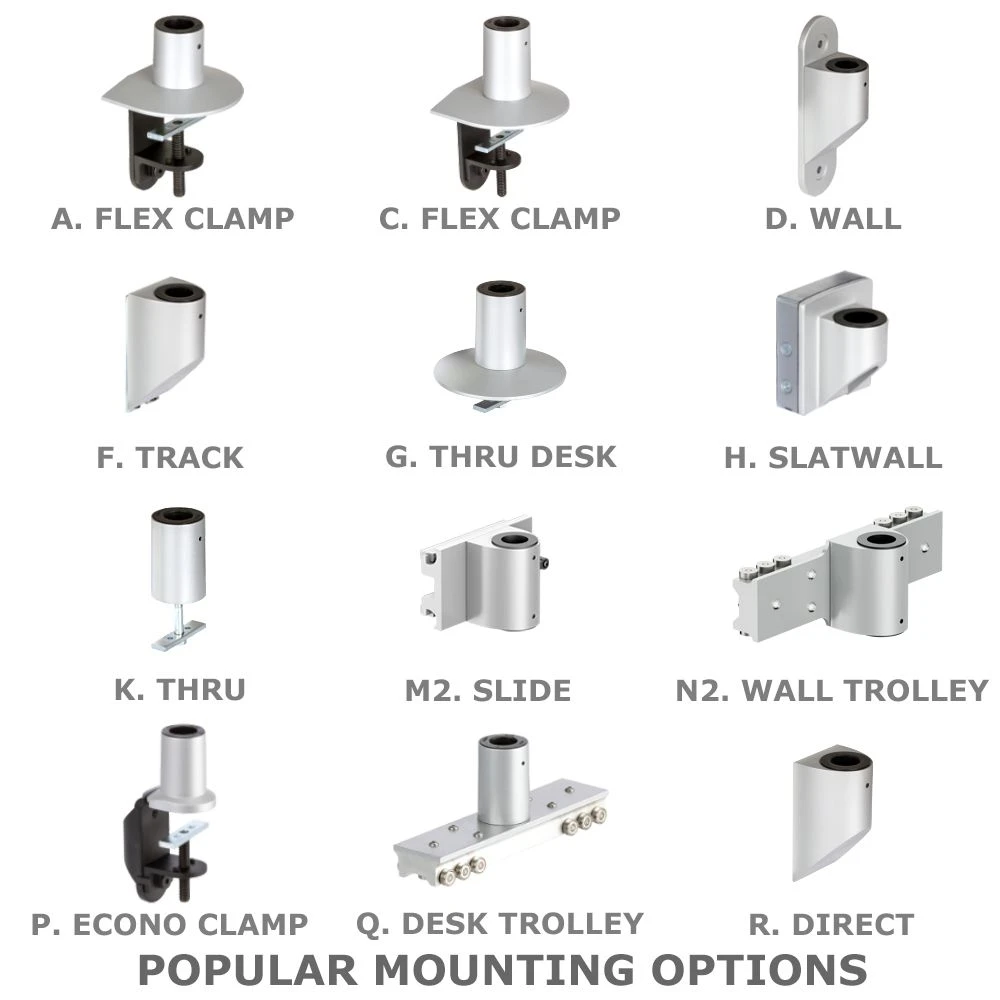

• Horizontal and Vertical Surfaces: The LS9137S mounts to just about any vertical or horizontal surface. It does so in multiple ways: desk clamp, through desk, wall, horizontal or vertical wall track, heavy duty pole, slatwall, cabinet, to name a few.

• Medical, OEM equipment and cabinets:  LS9137S works with the OEM mount, which can be installed on almost any vertical surface including the walls of a cabinet or specialized equipment.  The LS9137S can also be used in medical applications using our Dovetail and T-Slot Mounts. Call us for details.

• Applications With Secure Poles: In some applications the  LS9137S’s SERIES-118 pole is inserted into a “through-hole” of a mount kit such as the repositionable MKIT-M and the sliding MKIT-N for the Roller Track or the single MKIT-E and the dual MKIT-J for PM192 poles. The secure mounting pole (P118RS) has the features to accomplish this safely.

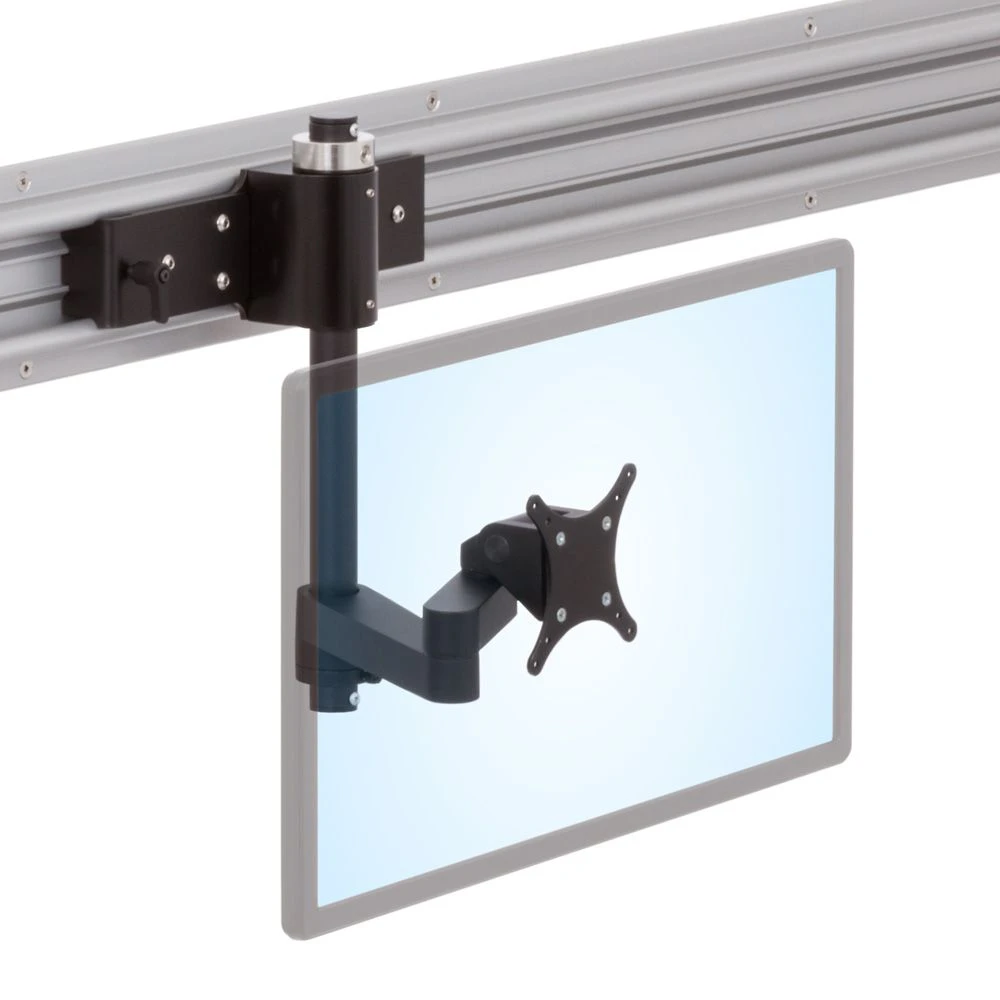

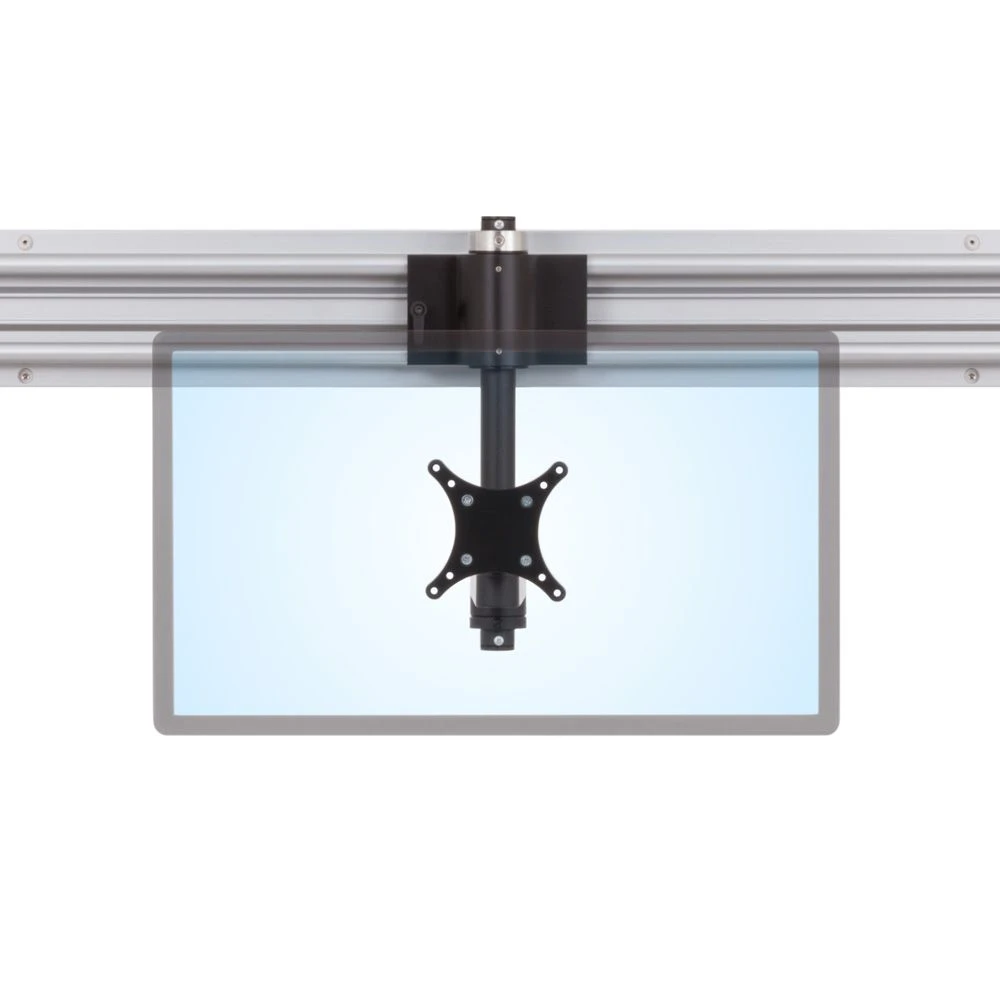

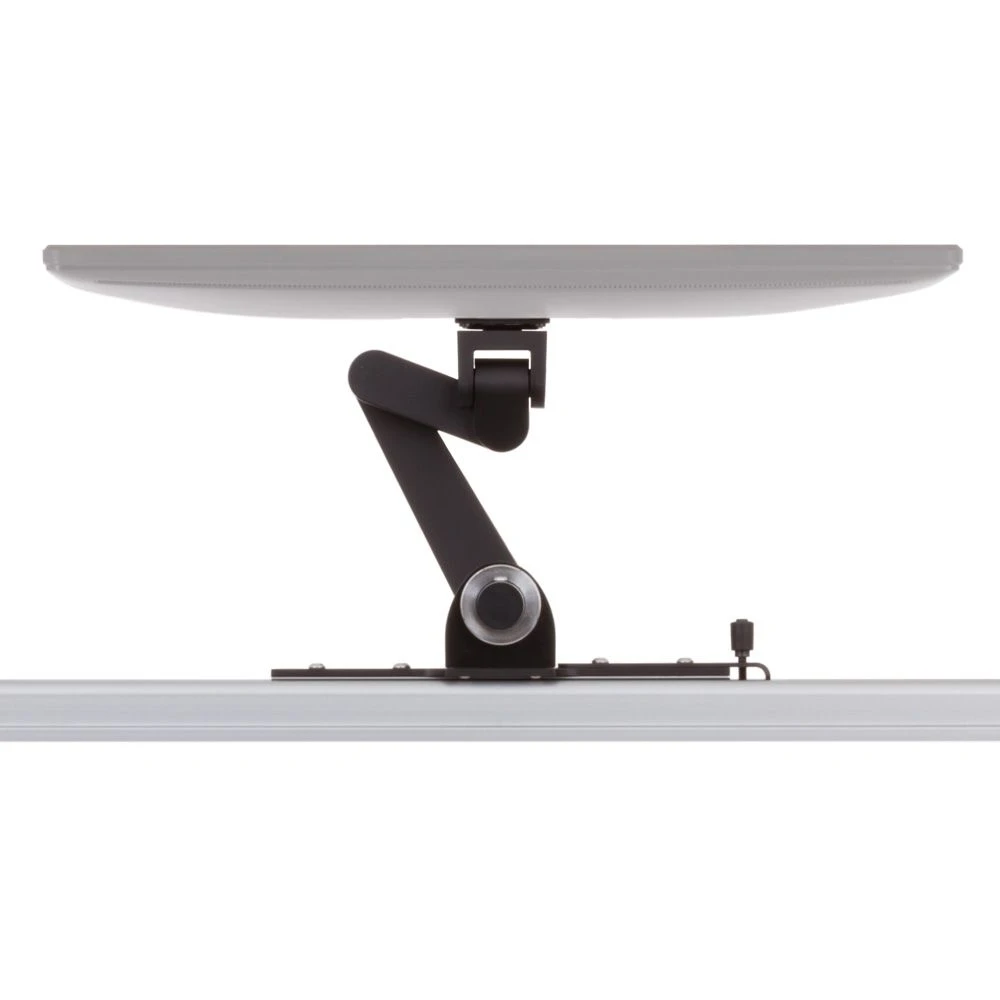

• Roller Track: With our Sliding Horizontal Mount System, the monitor can be positioned above or below the track on either a MKIT-M or MKIT-N.

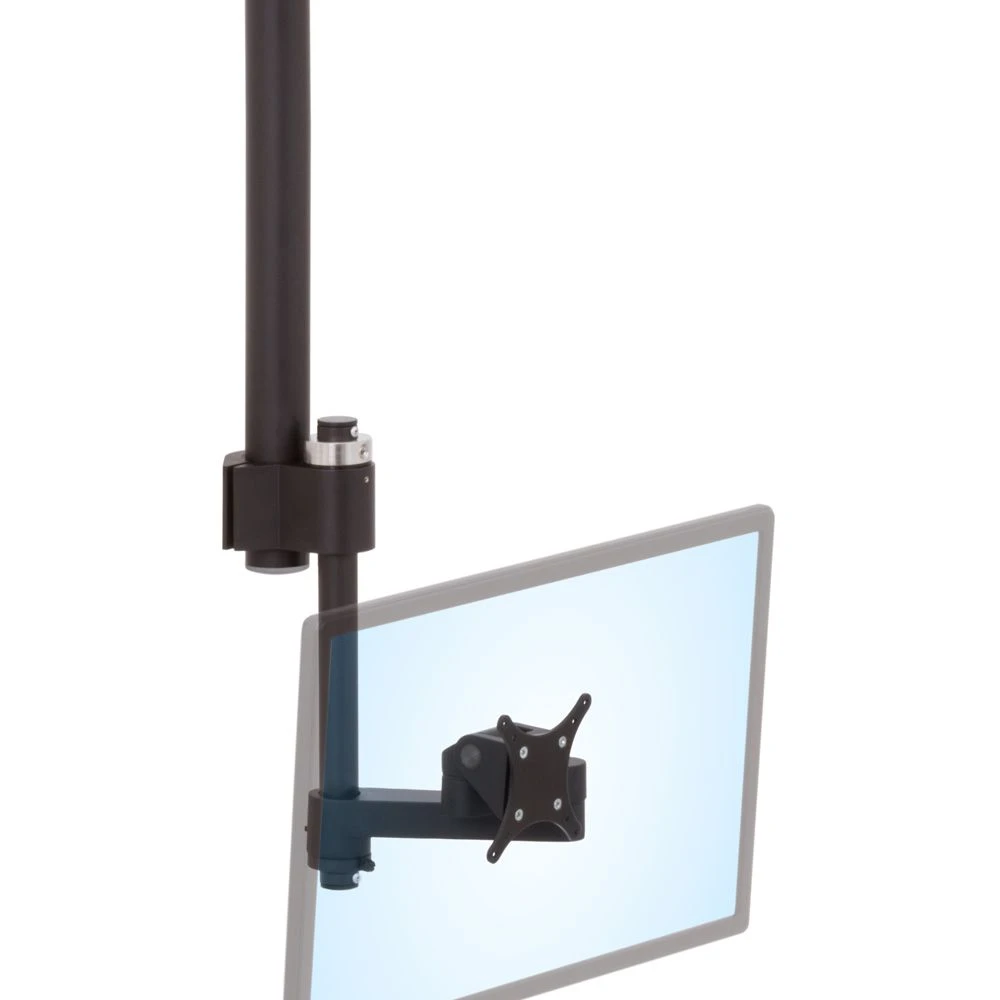

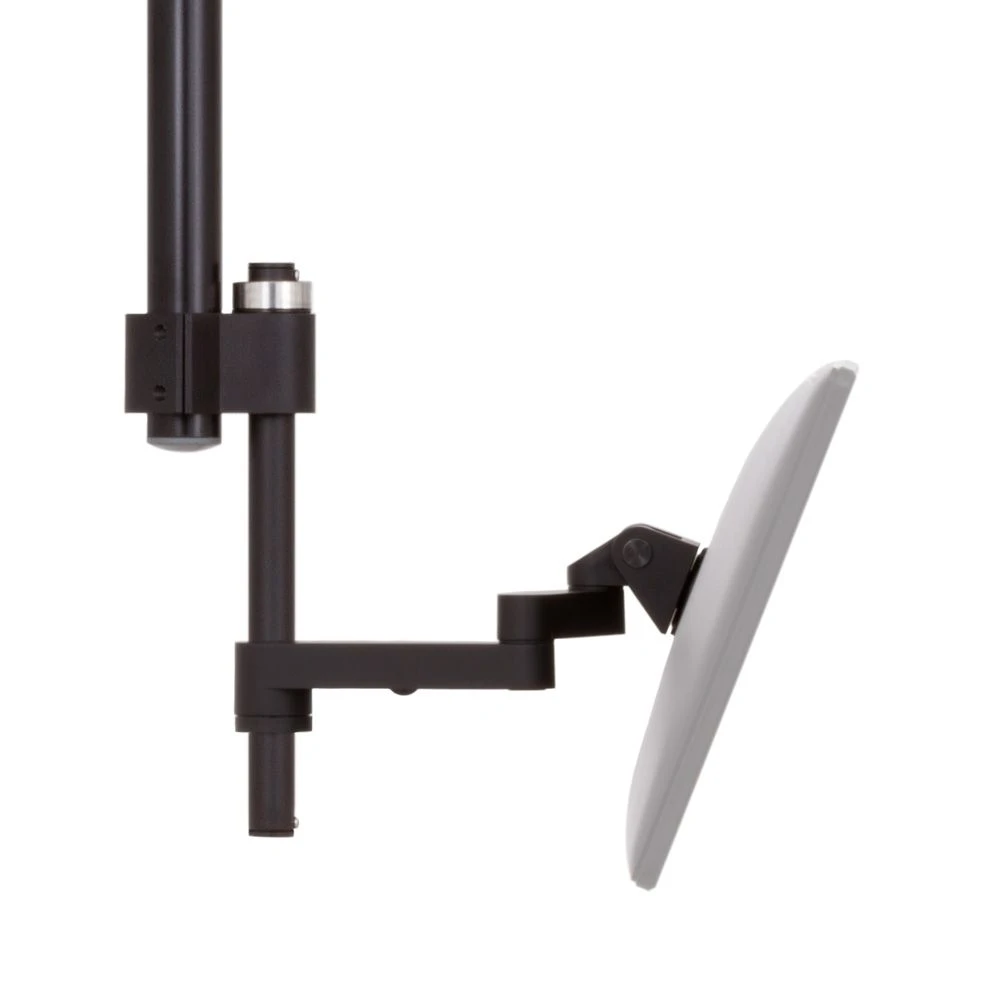

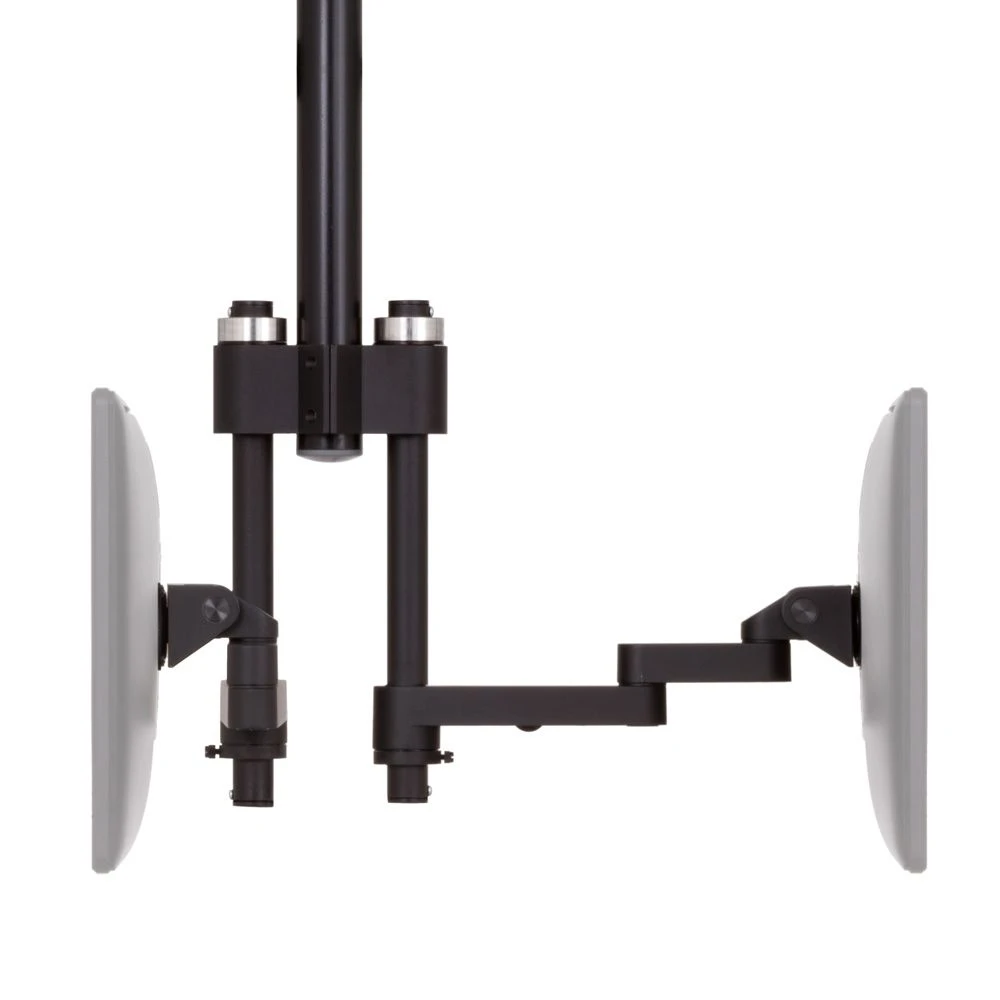

• Overhead mounting:  For workspaces with open floor plans, the monitors can be placed overhead, utilizing a ceiling mounted pole (either pre-existing or Ergomart’s PM192) and an MKIT-E or MKIT-J for one-sided, or two-sided mounting.

• Custom mounts may also be available depending on the application. If you do not see your desired mounting kit in the drop down menu please call us at 888 420 3200 to order an optional mount. Recessed VESA mounting patterns may require an optional Spacer Kit; see bottom of page 2 of instructions.

Want to mount a second monitor along the pole? Check out the LS9137D Dual Monitor Stand.
