LS1512Q Quad Monitor Stand

Four Monitors with Individual Adjustability on a Sturdy Pole

• Exceptional flexibility for positioning four LCD monitors or touch screen displays

• Adapts to any workspace or application (industrial, healthcare, hospitality, and more)

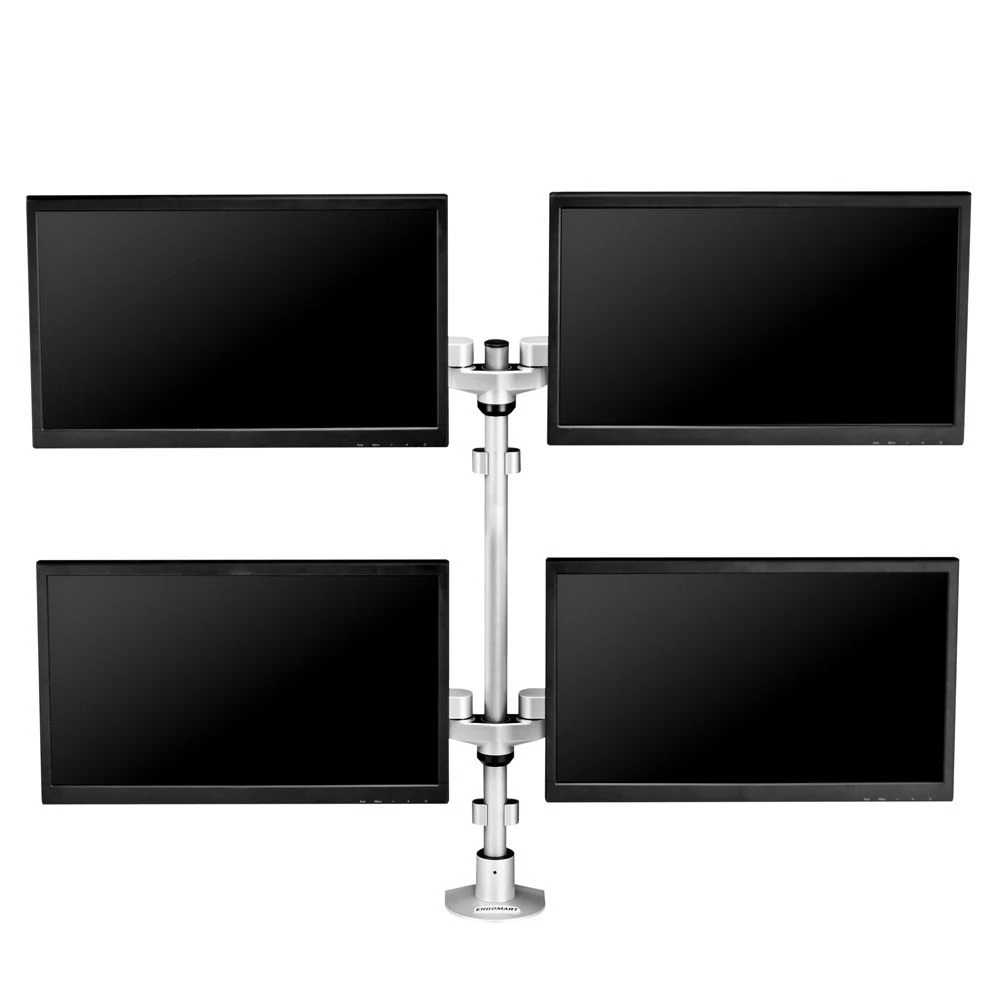

• Four adjustable VESA brackets placed “2-over-2” on a pole that works with all SERIES-118 mount kits

  • Mount to horizontal or vertical surfaces: desk, wall, slat wall with or without a track

  • Adapt to original and medical equipment using OEM, Dovetail, T-Slot mounts

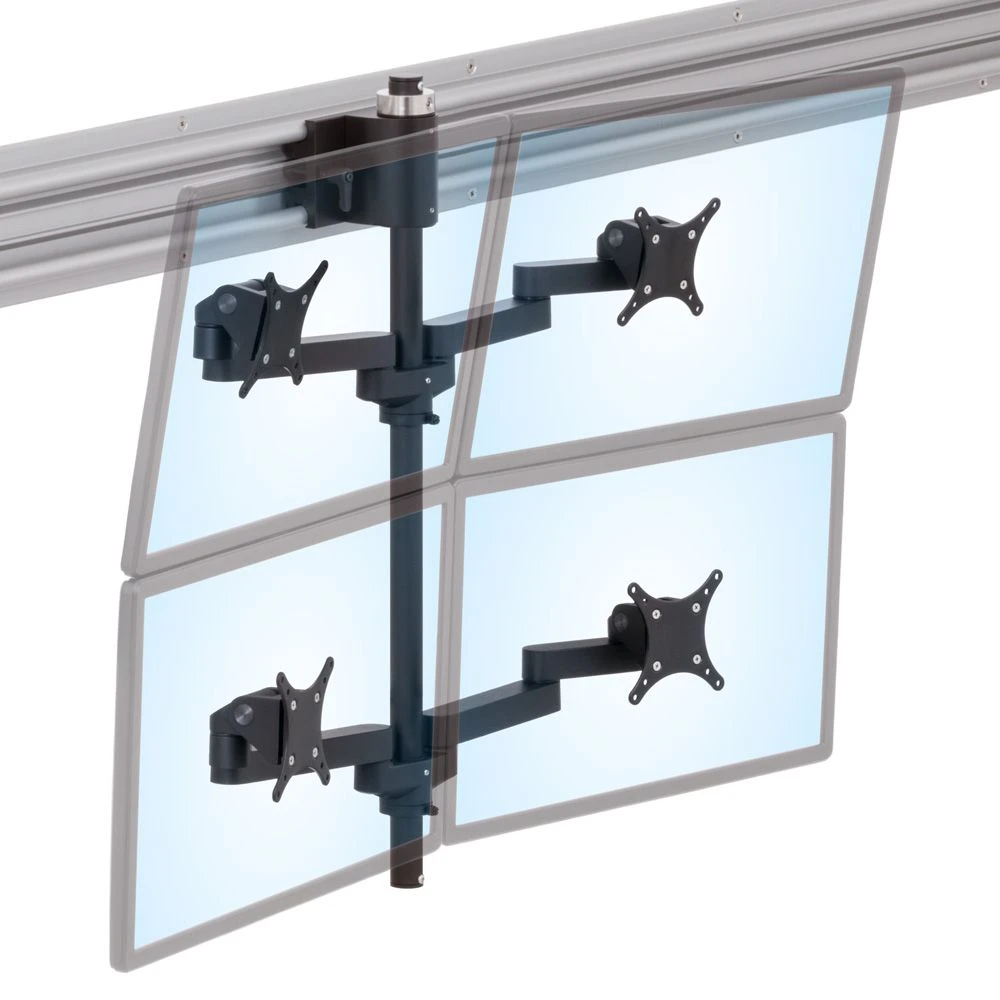

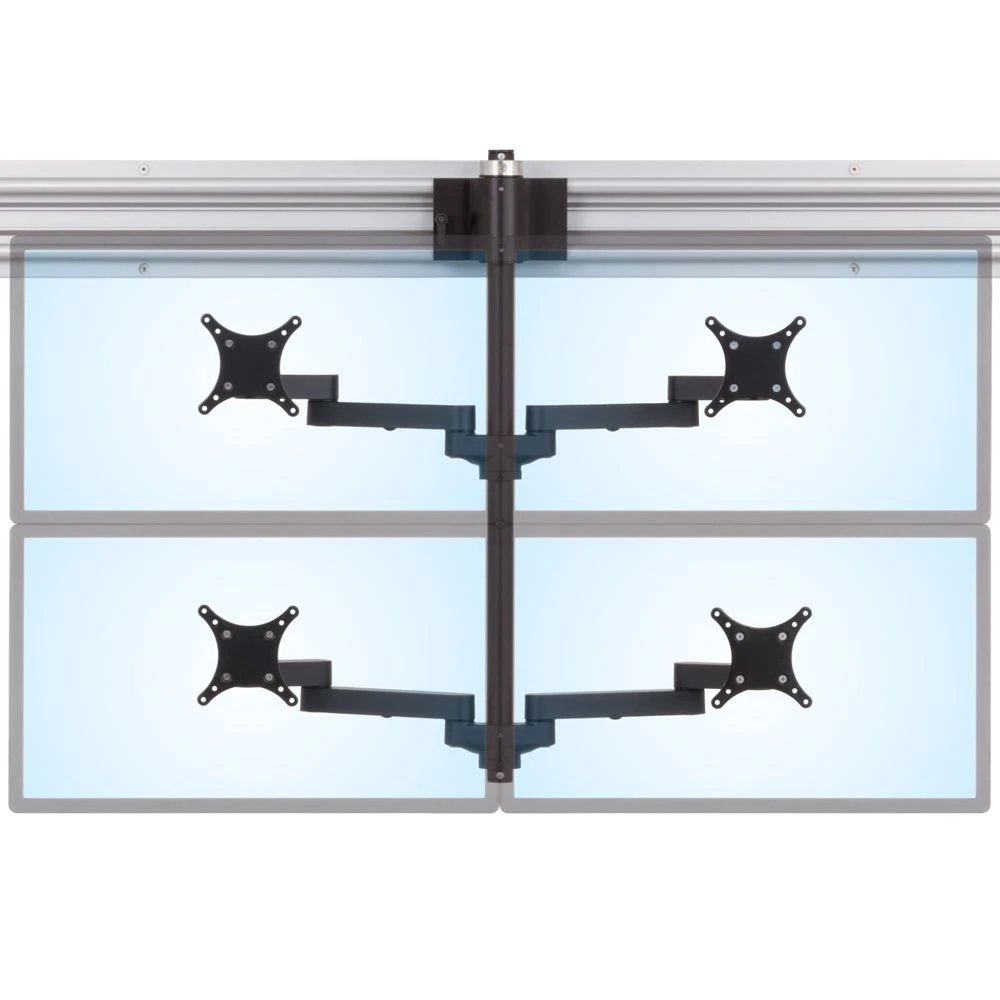

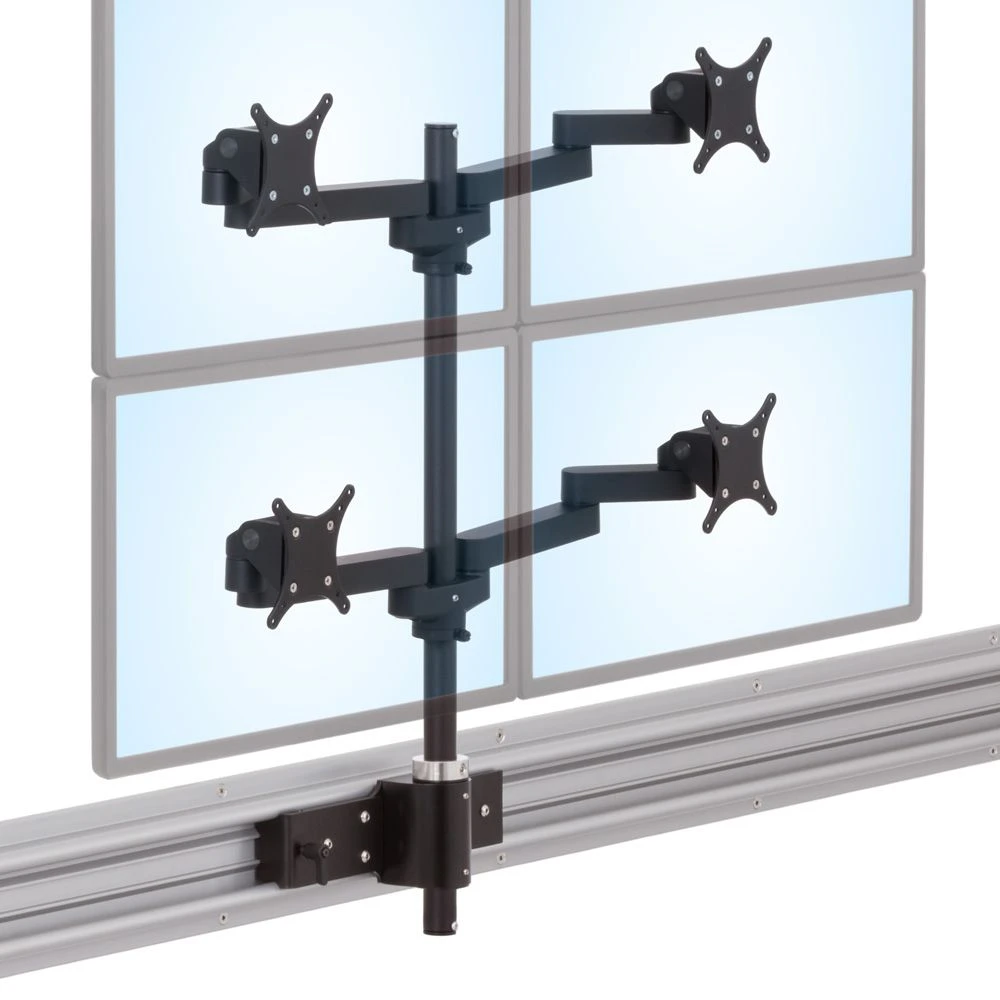

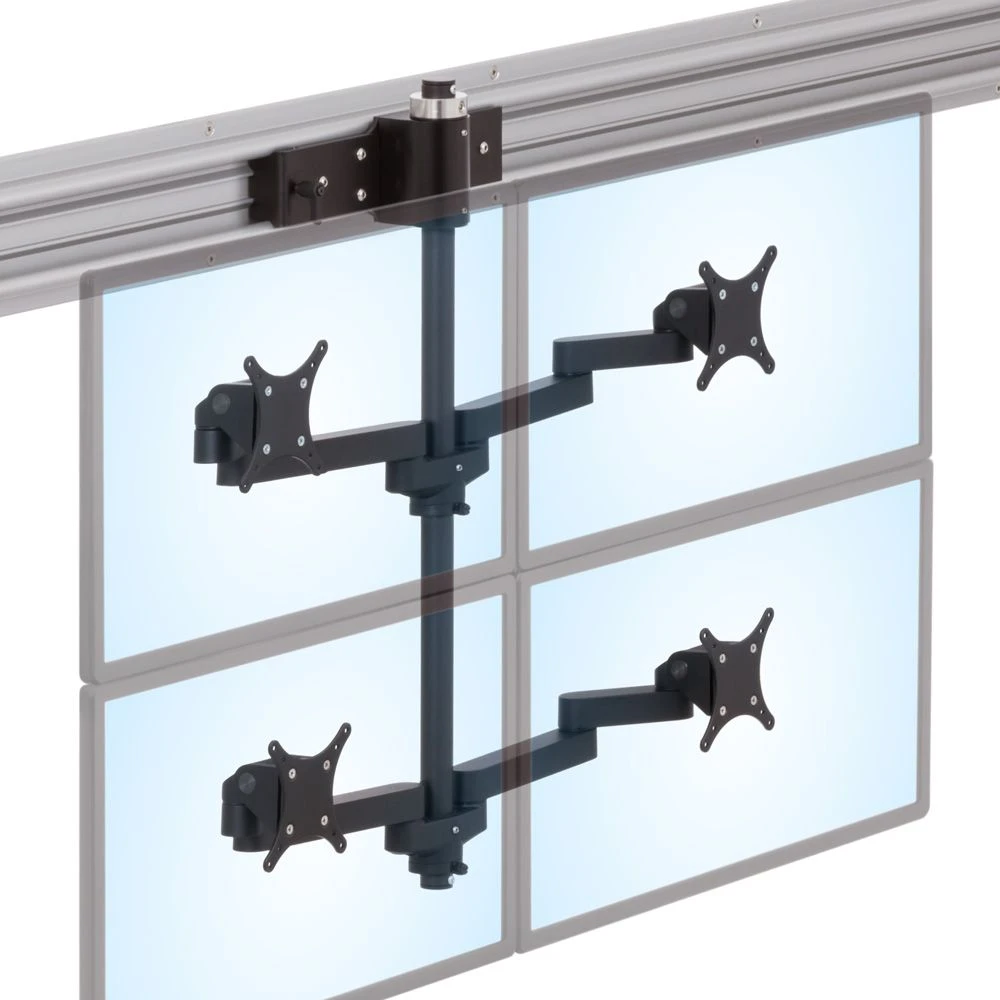

  • Move laterally along a wall using our Roller Track system

  • Install over an open floor with a ceiling mounted PM192 pole

• Each display can be as wide as 24.7” and weigh up to 35 lb

• Can be mounted to both horizontal and vertical surfaces

• Securely attaches to Roller Track or PM192 Poles

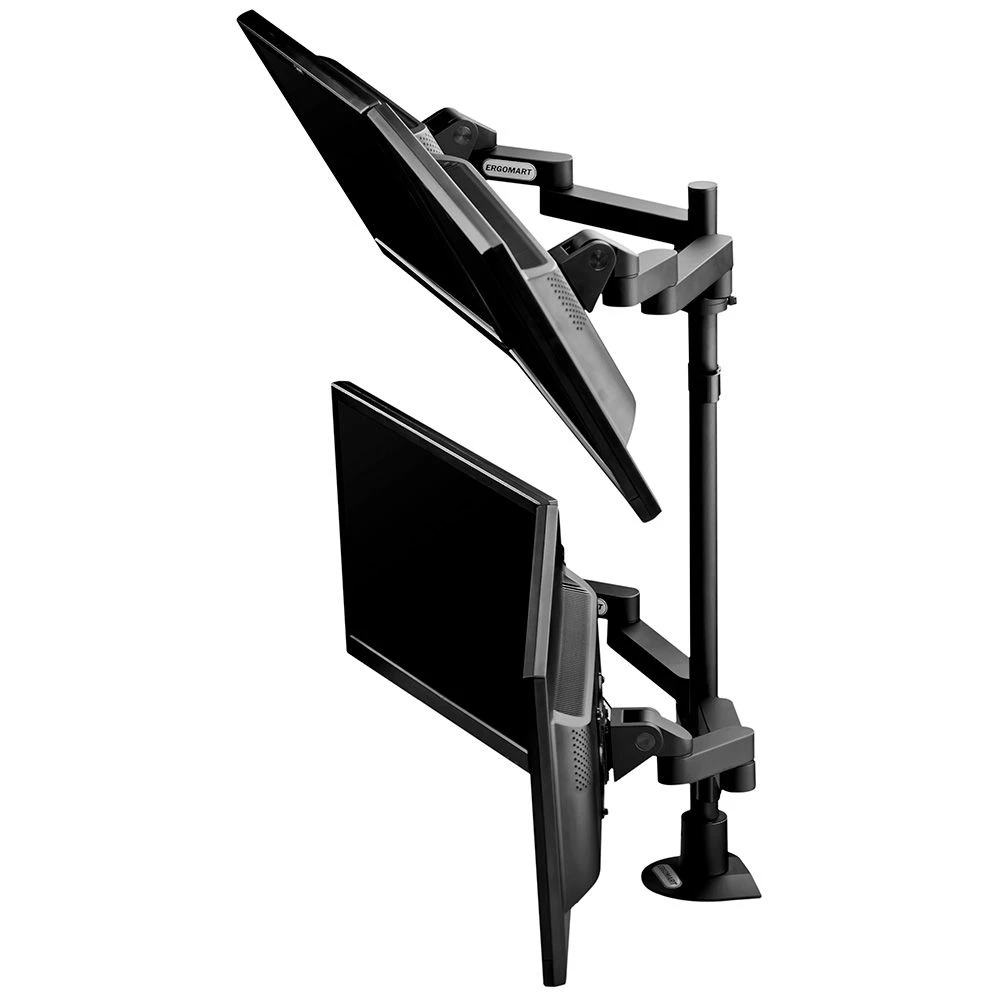

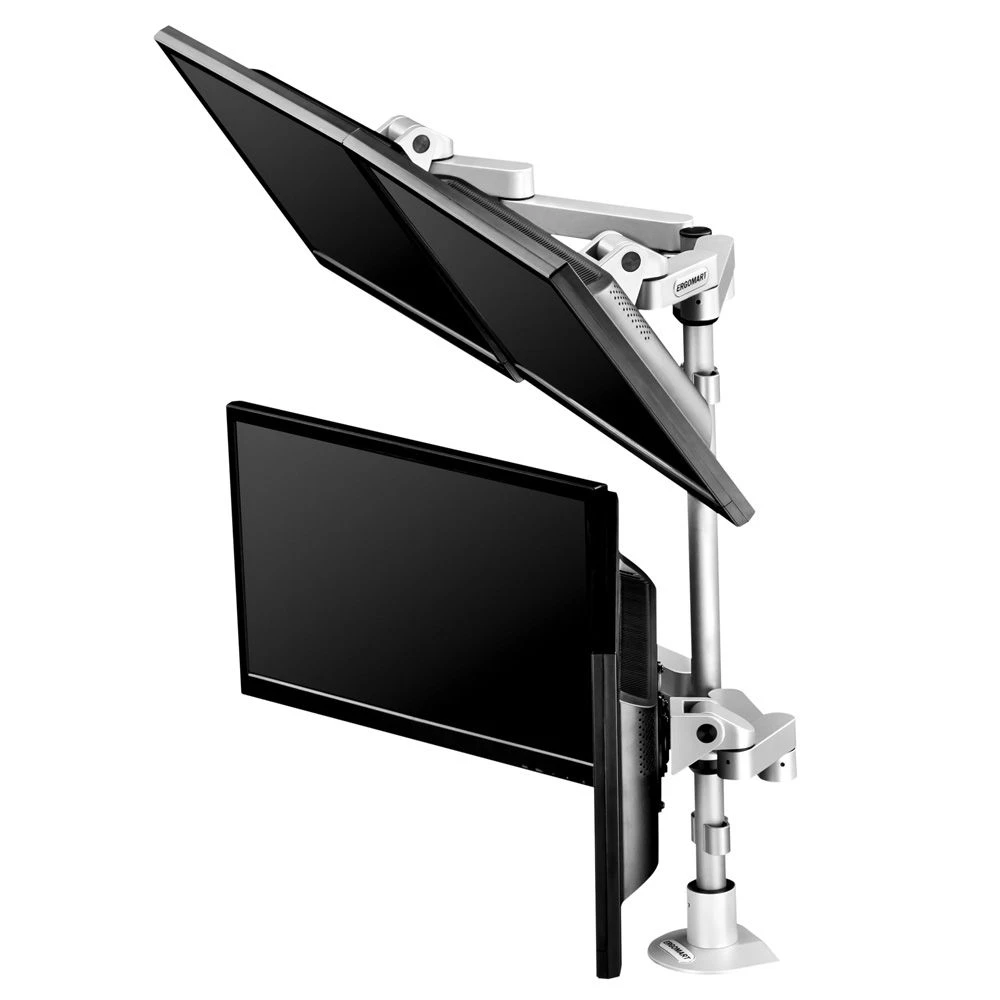

• Each monitor’s tilt and swivel is easily and independently adjusted

• Built-in portrait/landscape support

• Monitor depth is adjusted via individual articulating arms

• Works with both 75mm and 100mm VESA patterns as welll as optional 100mm x 200mm brackets.

Adjustability:

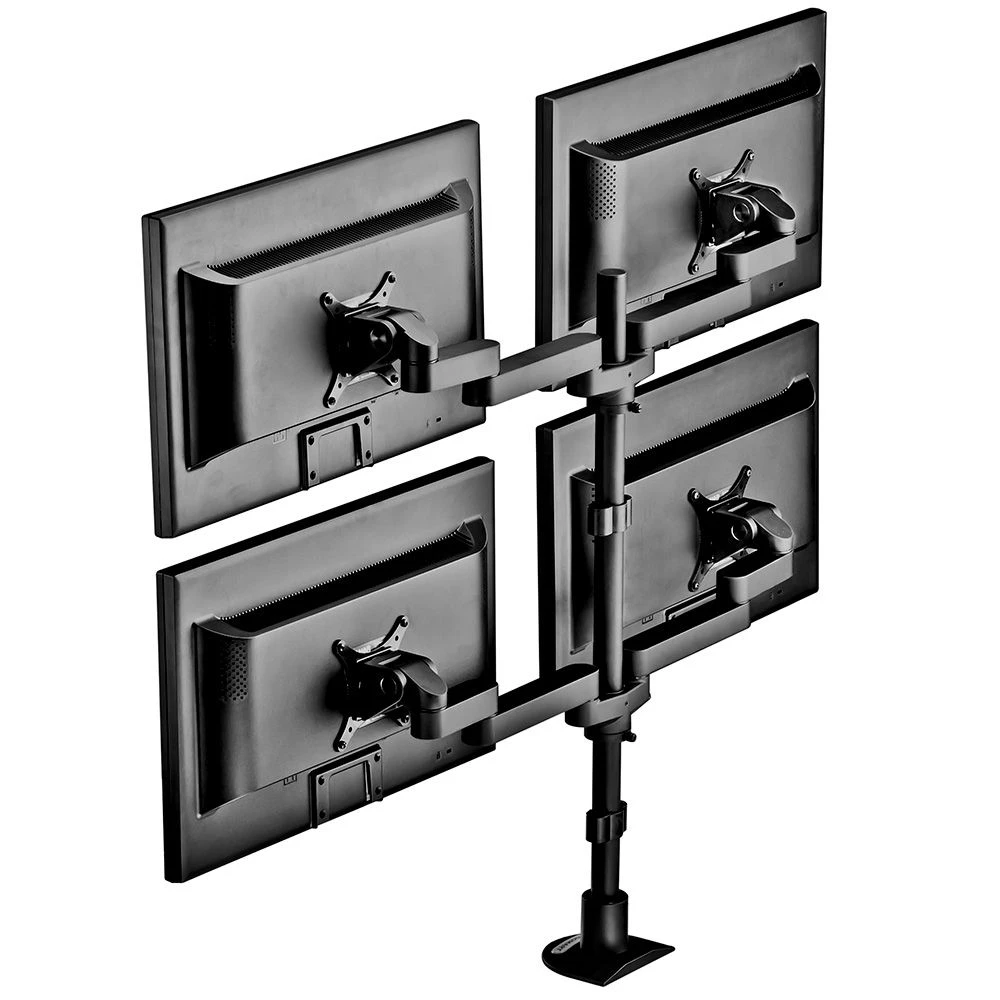

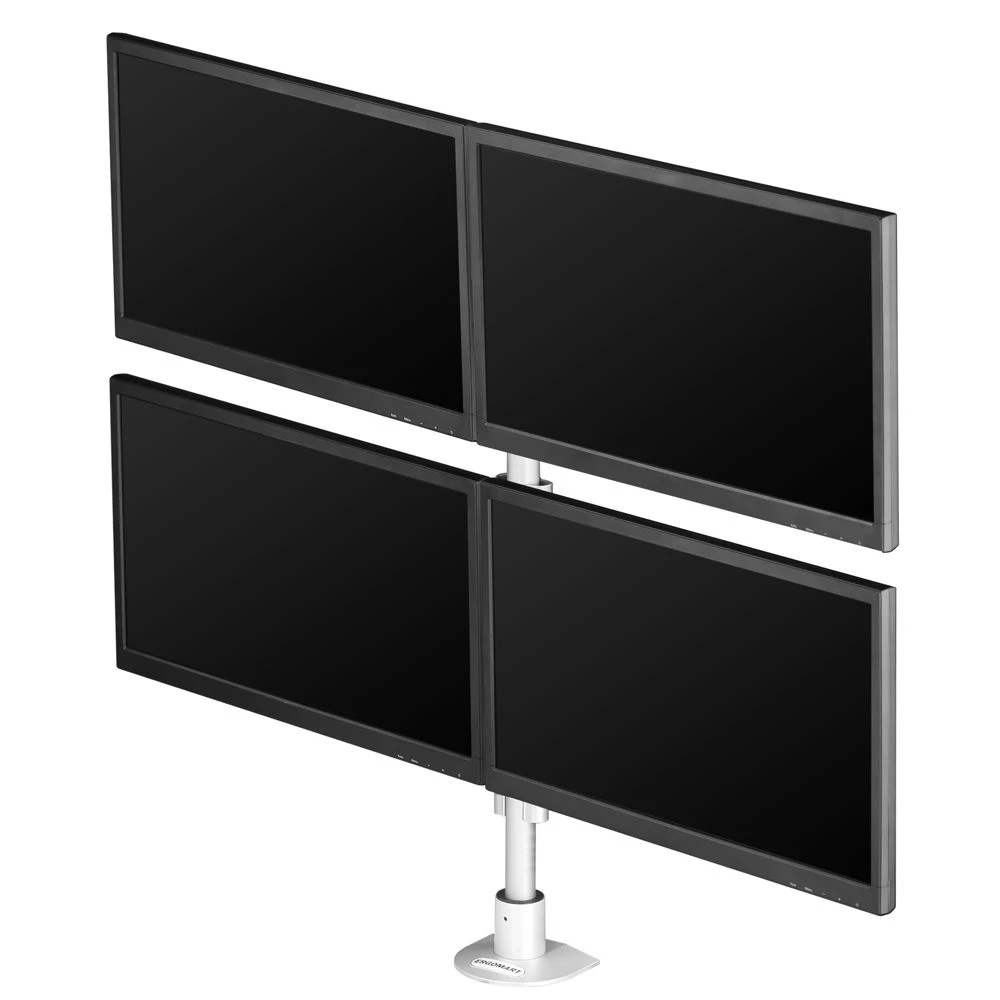

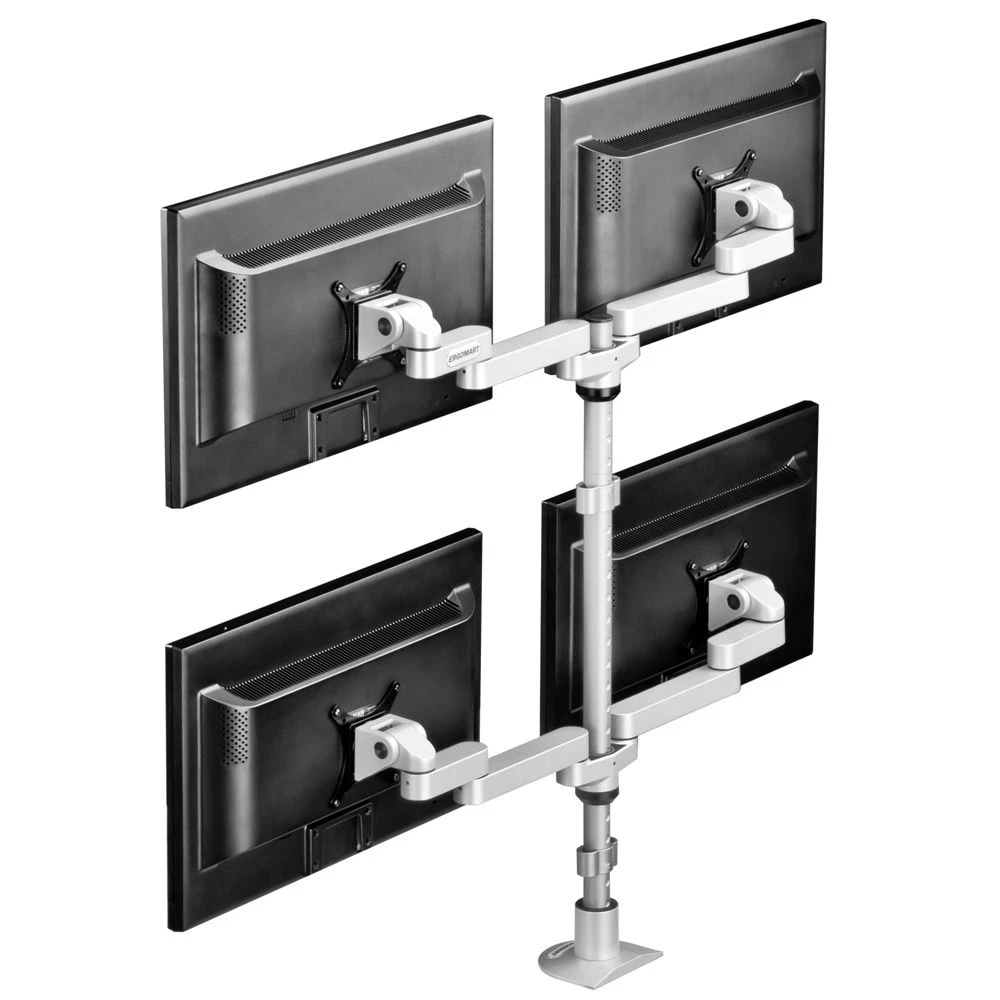

The LS1512Q is a heavy-duty stand that is built around a mounting pole. Its four articulating horizontal arms can be oriented to perfectly position four monitors, with two rows of two mounted side-by-side. Each monitor’s tilt, swivel and rotation can be individually adjusted, allowing for exact placement no matter the user’s preference. Displays up to 24.7”-wide and 35 lb in weight are easily accommodated. The stand is equipped with a 28 inch pole (standard). Other sizes are also available.

Applications:

The LS1512Q is a SERIES-118 mount, which means it works with all SERIES-118 mount kits and provides exceptional function in any workspace.

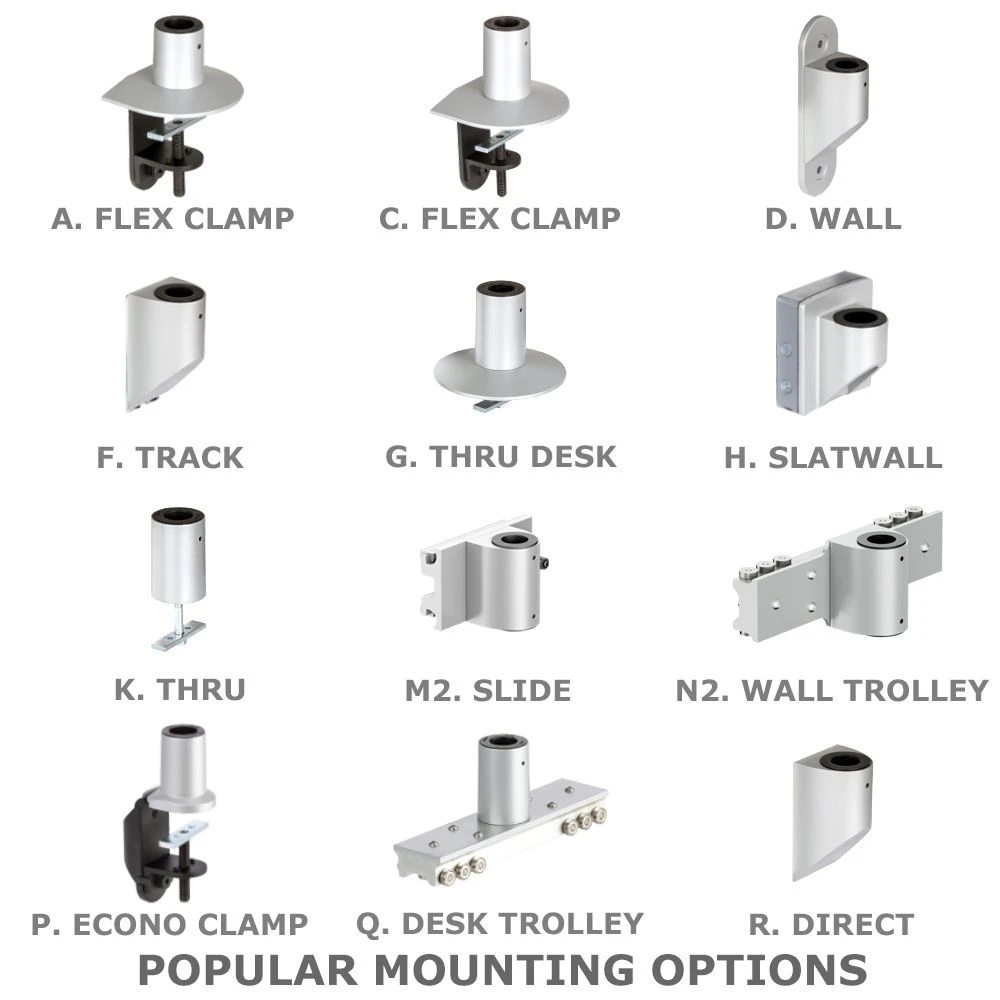

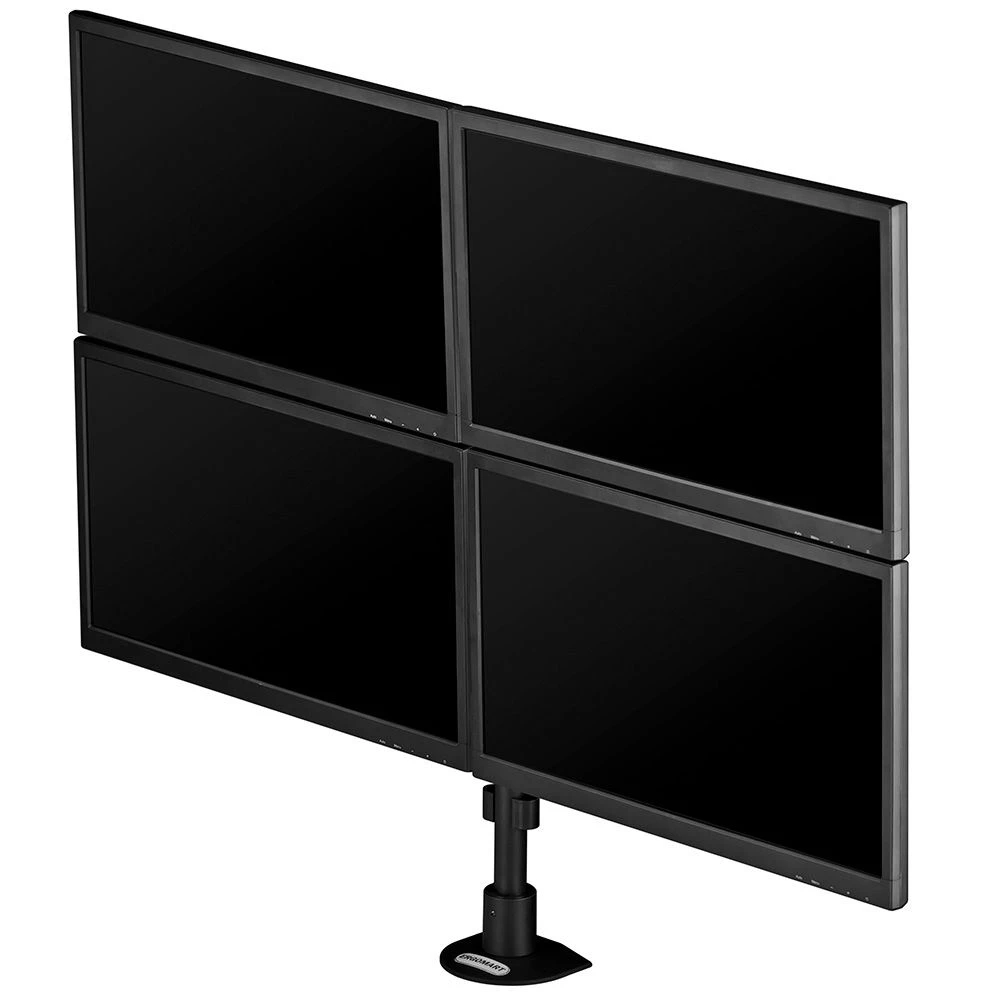

• Standard Wall, Desk Mounting: The standard 4-in-1 mount Kit A provides a number of modular mounting options, including a clamp which can attach to the back of a desk with as little as 1/4 of an inch of space between the desk edge and the wall. It can also be configured to fit an existing grommet holes as small as 2 inches or through a single 3/8″ bolt hole in a surface. Wall mounting is also available.

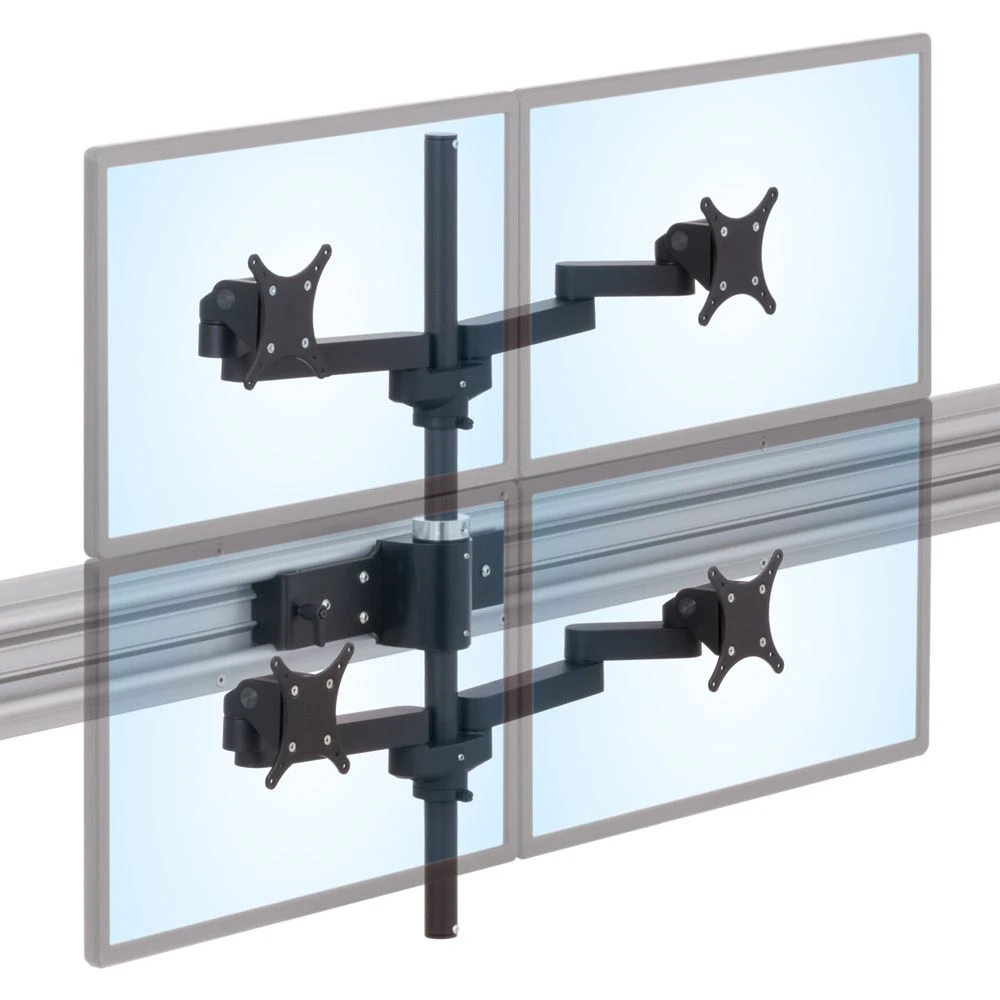

• Applications Requiring Secure Poles: The mounting kits MKIT-M and MKIT-N used with the Roller Track and kits MKIT-E and MKIT-J used with PM192 pole systems feature an open receiver hole that the LS1512Q pole goes through. P118RS secure mounting poles are used in such applications with complete flexibility to place the four monitors along the pole at any height with respect to the mount kit: all four monitors can be placed below or above the mount; alternatively two monitors can be above and two below the mount.

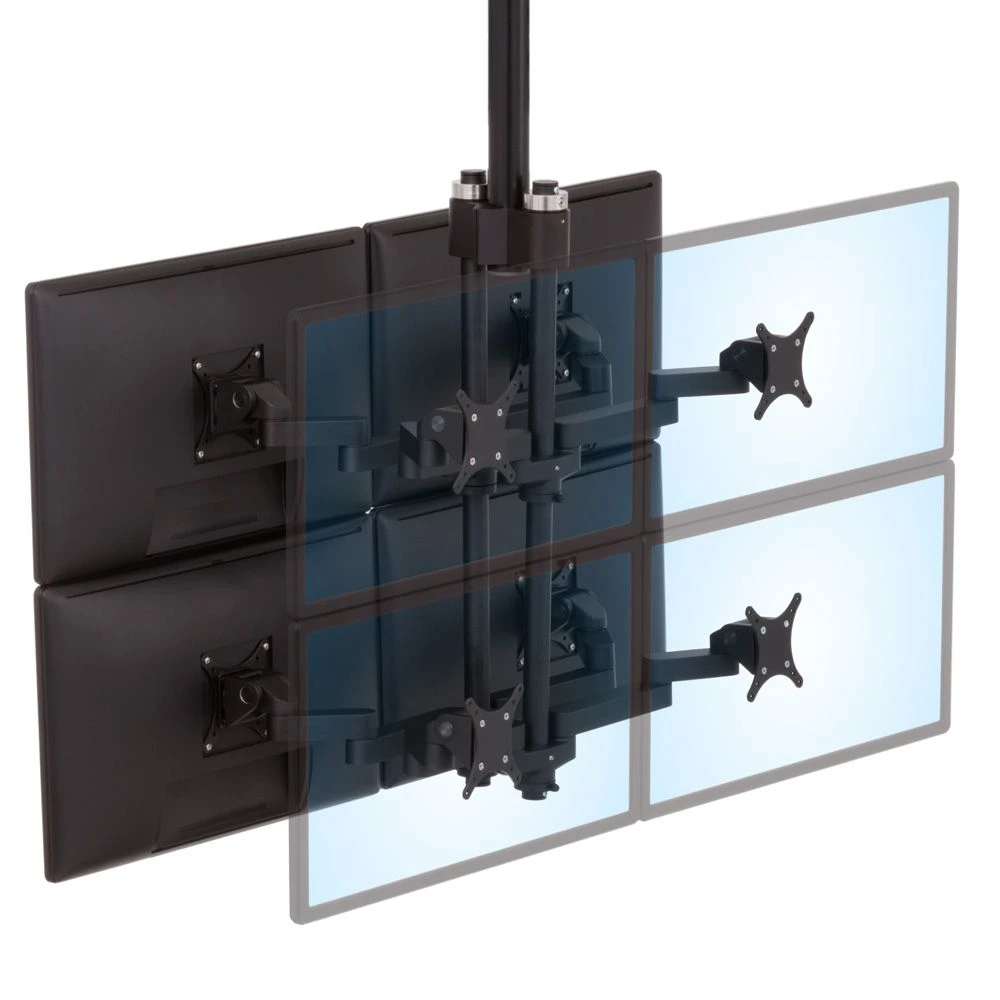

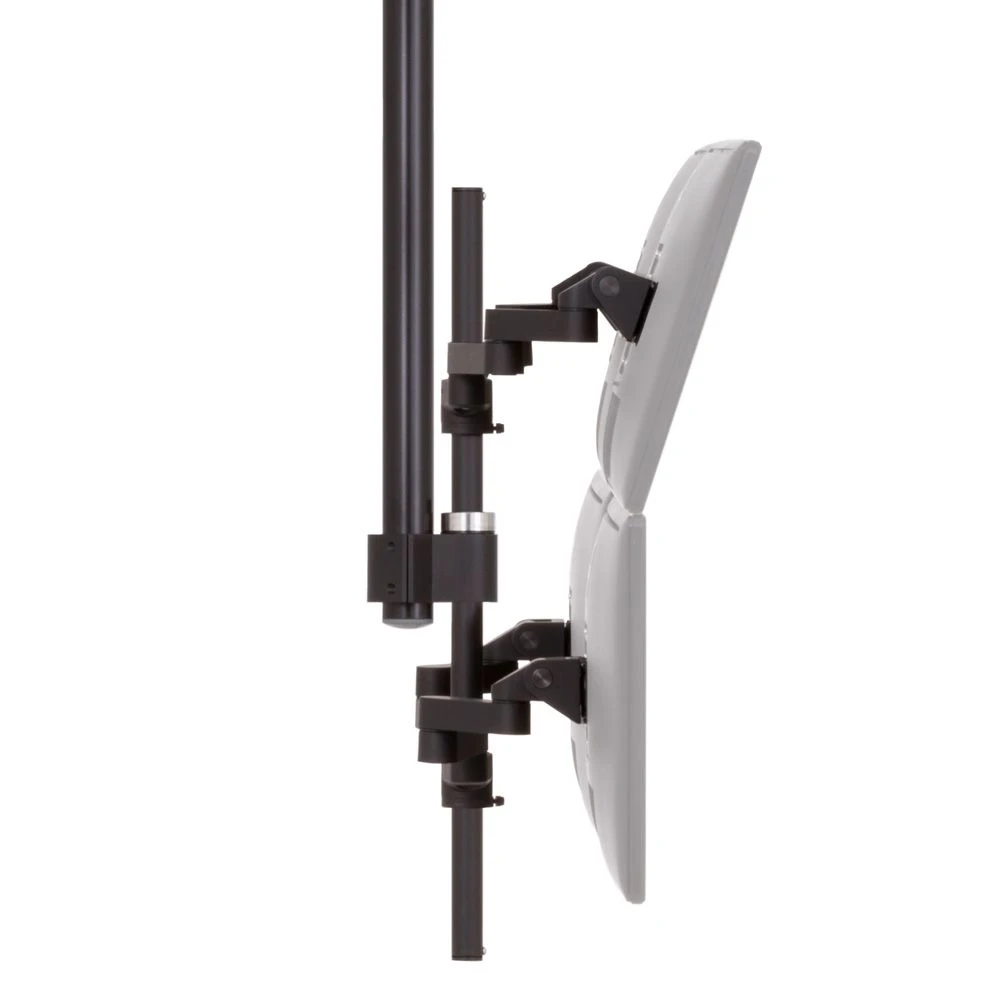

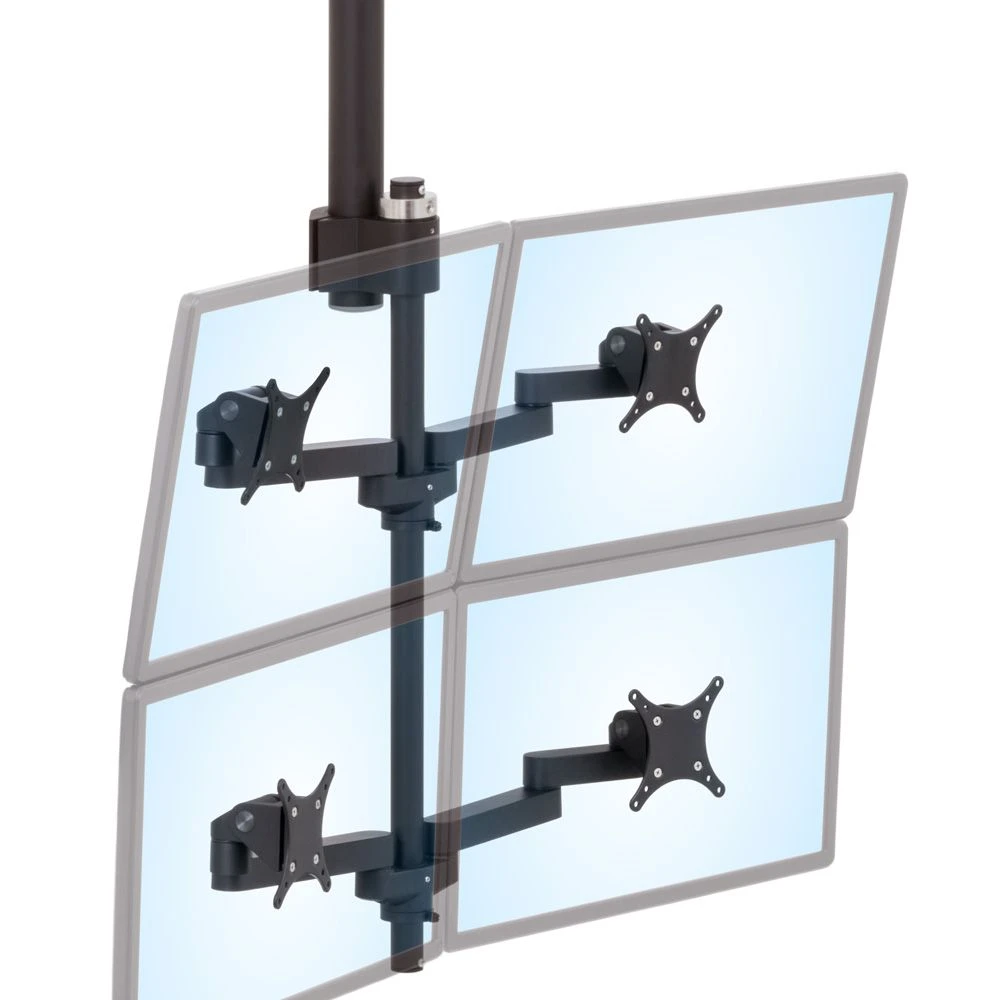

• Install above open workspace: The ceiling mounted pole configuration is a good fit for applications where the monitors need to reach down over an open floor space. One way to accomplish this is to attach the P118RS secure mounting pole to a ceiling mounted heavy duty pole using MKIT-E. You may be able to use a pre-existing heavy duty pole or install our PM192 pole. Two quad monitor mounts can be mounted back to back using MKIT-J.

Additional Mounting:

Optional mounts are also available. Call us with questions at 888 420 3200 or 214 742 6066.

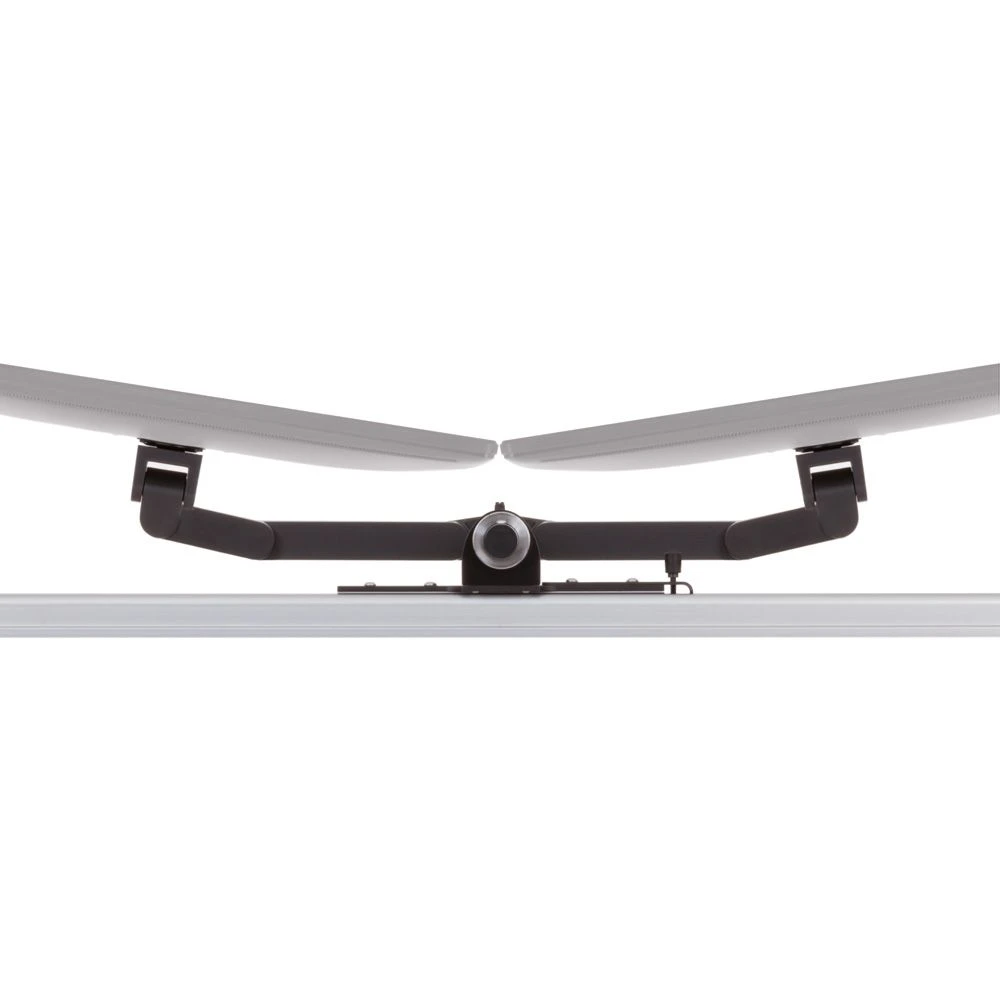

The mount is also available as the LS1512D Dual Monitor Stand, which mounts two monitors side-by-side on a 14-inch pole.
