LS1512D Dual Monitor Stand

Mount Two Monitors Side-by-Side with Exceptional Positioning Versatility

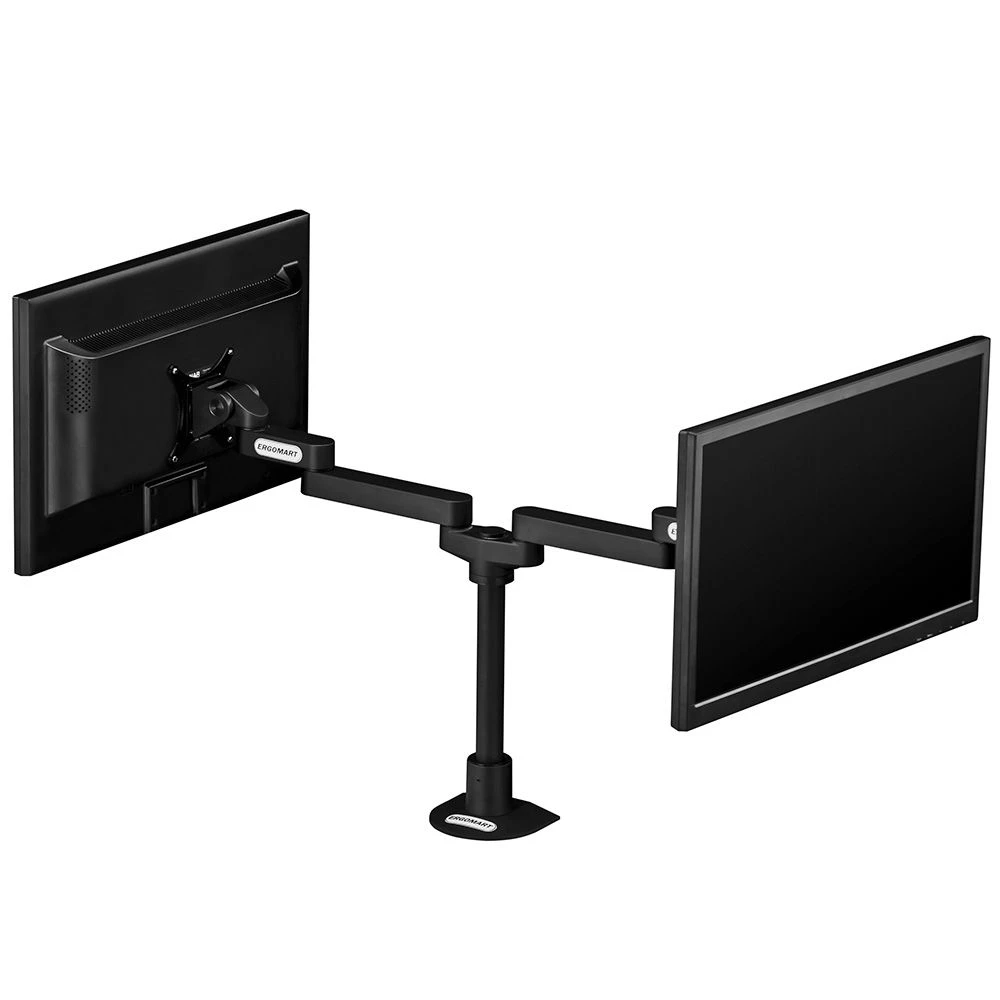

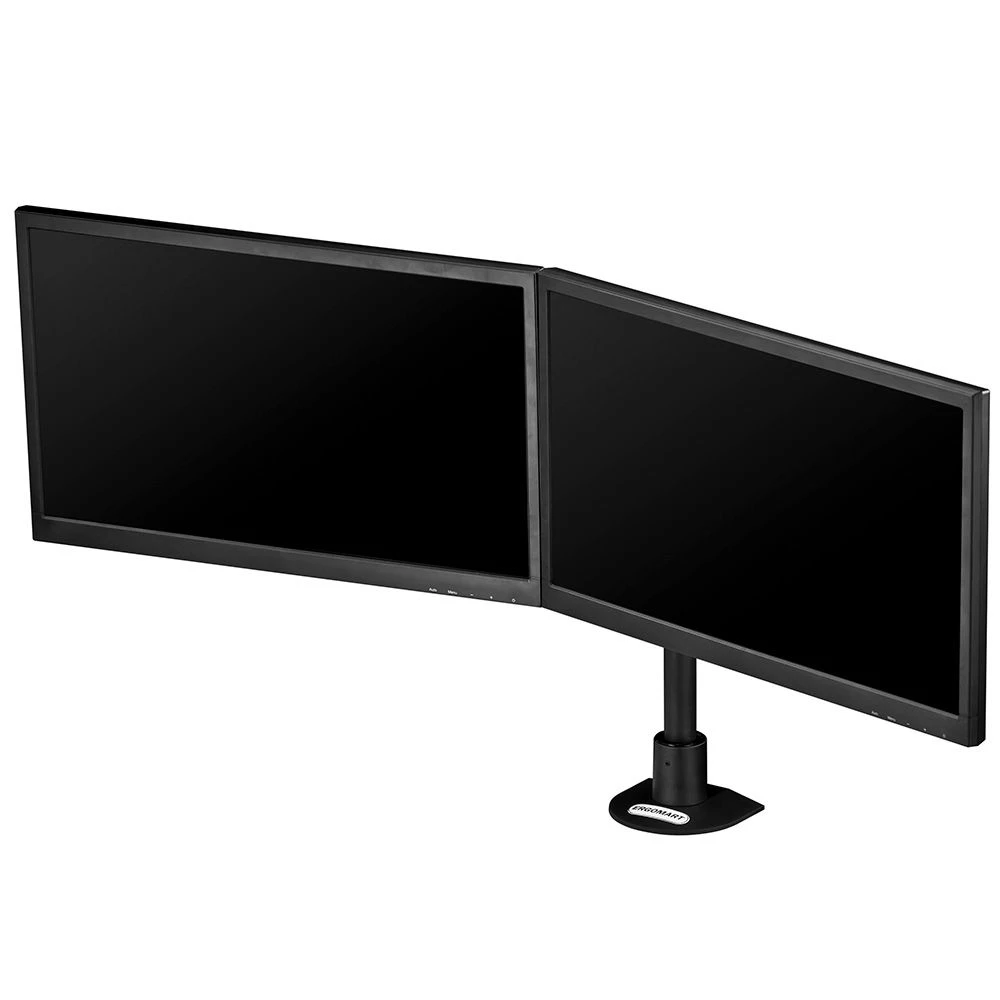

• The LS1512D is a highly adaptable dual monitor mount often used as a desk-mounted stand

• But this SERIES-118 modular mount can adapt to any workspace (industrial, commercial, medical, etc.)

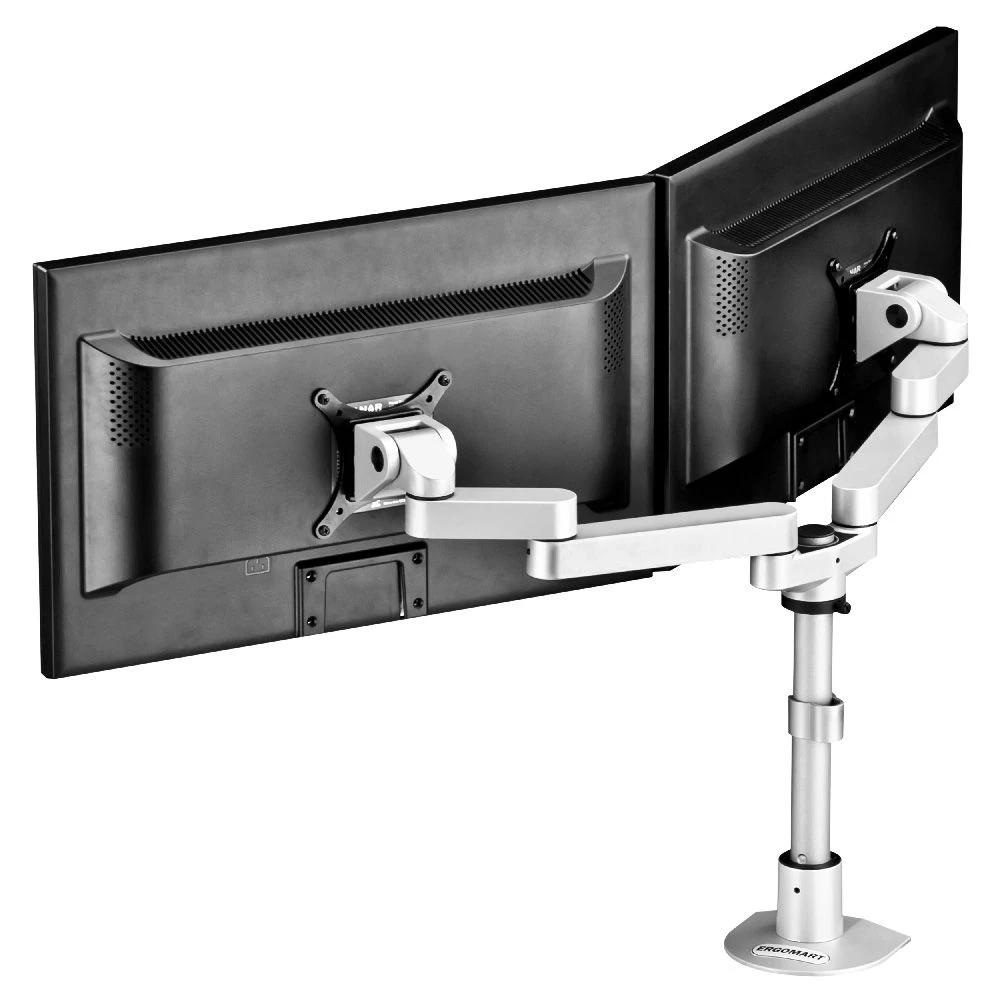

• Two extended, adjustable VESA brackets are mounted on a pole that works with all compatible mount kits

  • Installs on any horizontal or vertical surface: desk, wall (with a track or without ), cabinet, slat wall

  • Moves horizontally along a wall using our Roller Track system

  • “Drops down” over an open floor with a ceiling mounted PM192 pole

  • Mounts on medical or industrial equipment using T-slot, Dovetail and OEM mounts

• Handles two 35 lb flat screens, each measuring up to 24.7” in width

• Instantly adjust up / down flat screen tilt

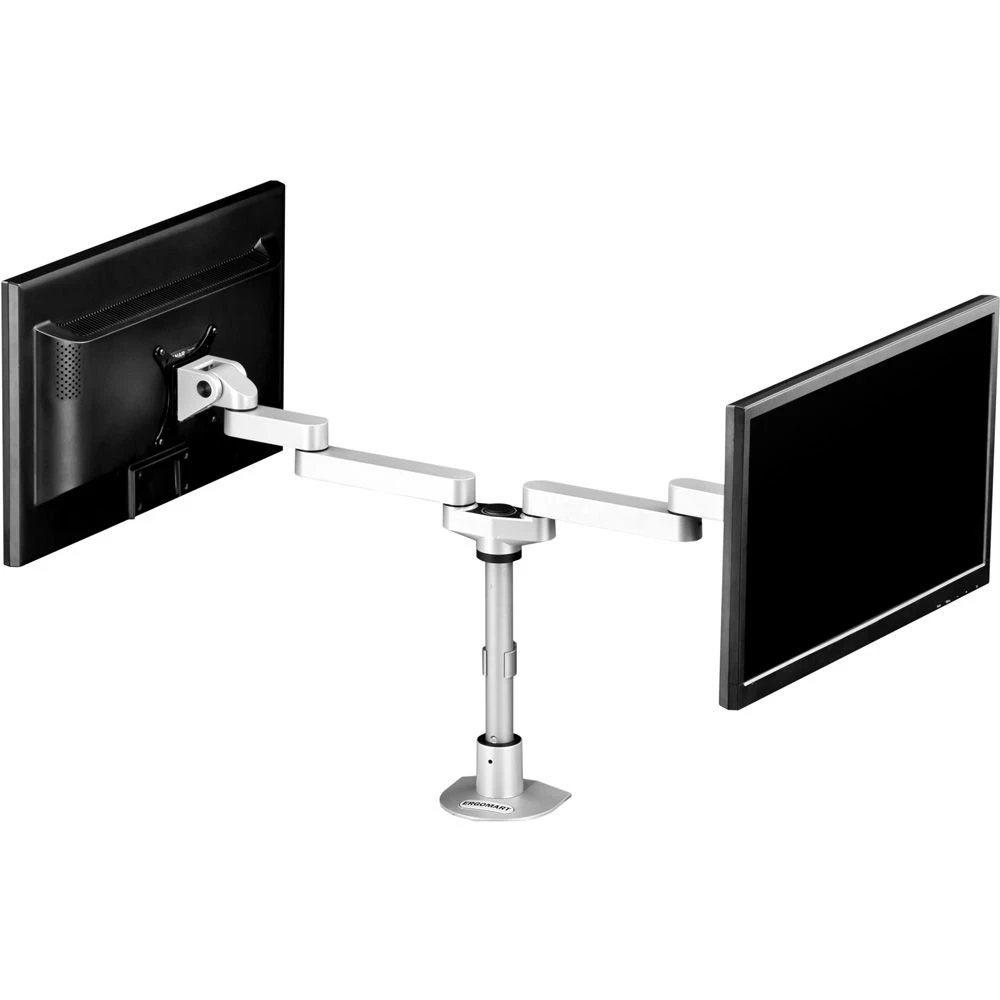

• Instantly adjust left / right swivel

• Easily adjust LCD monitor depth

• VESA 75 and 100 compliant

Adjustability:

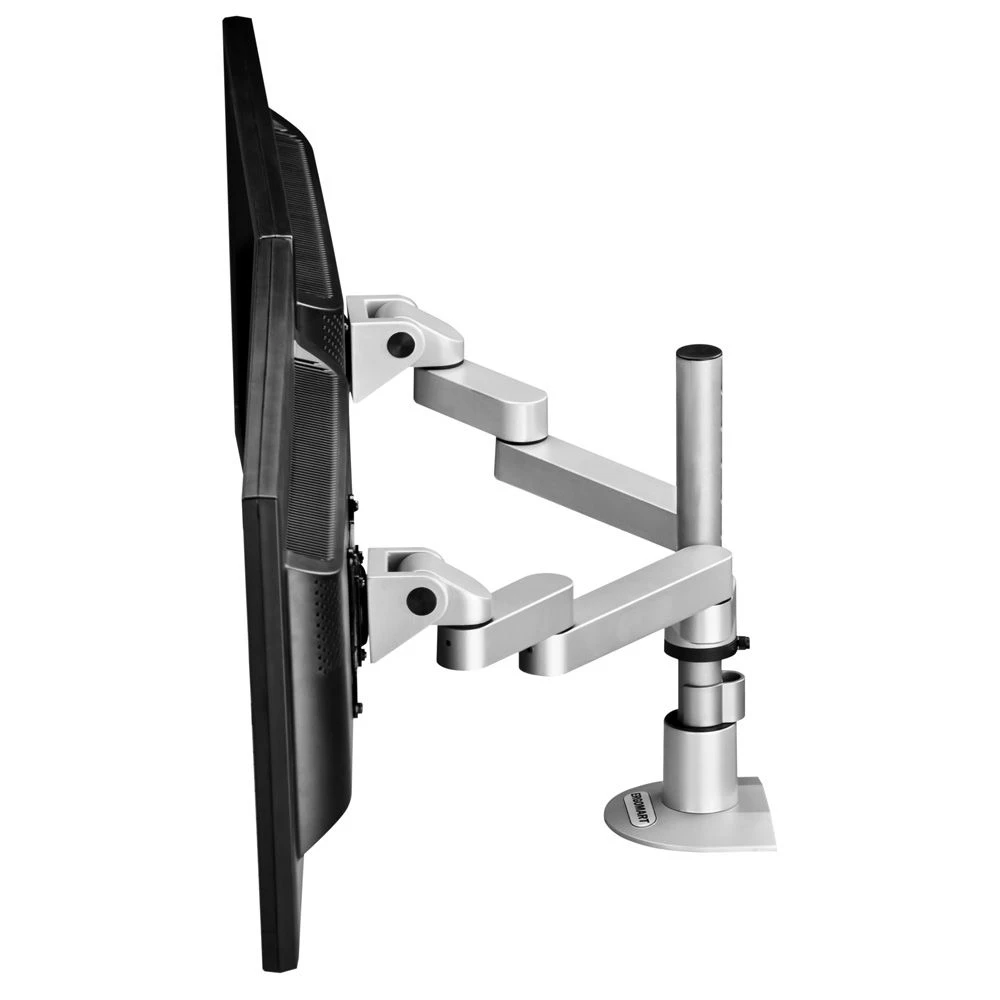

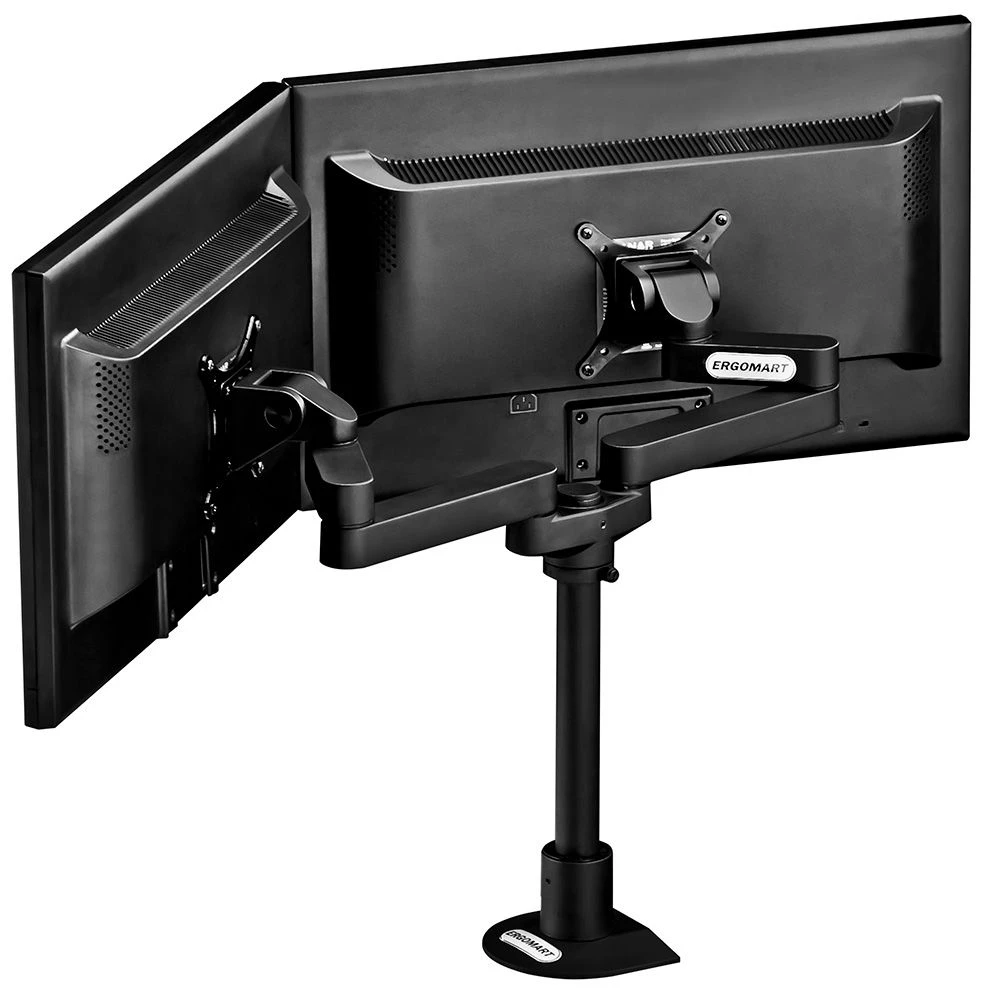

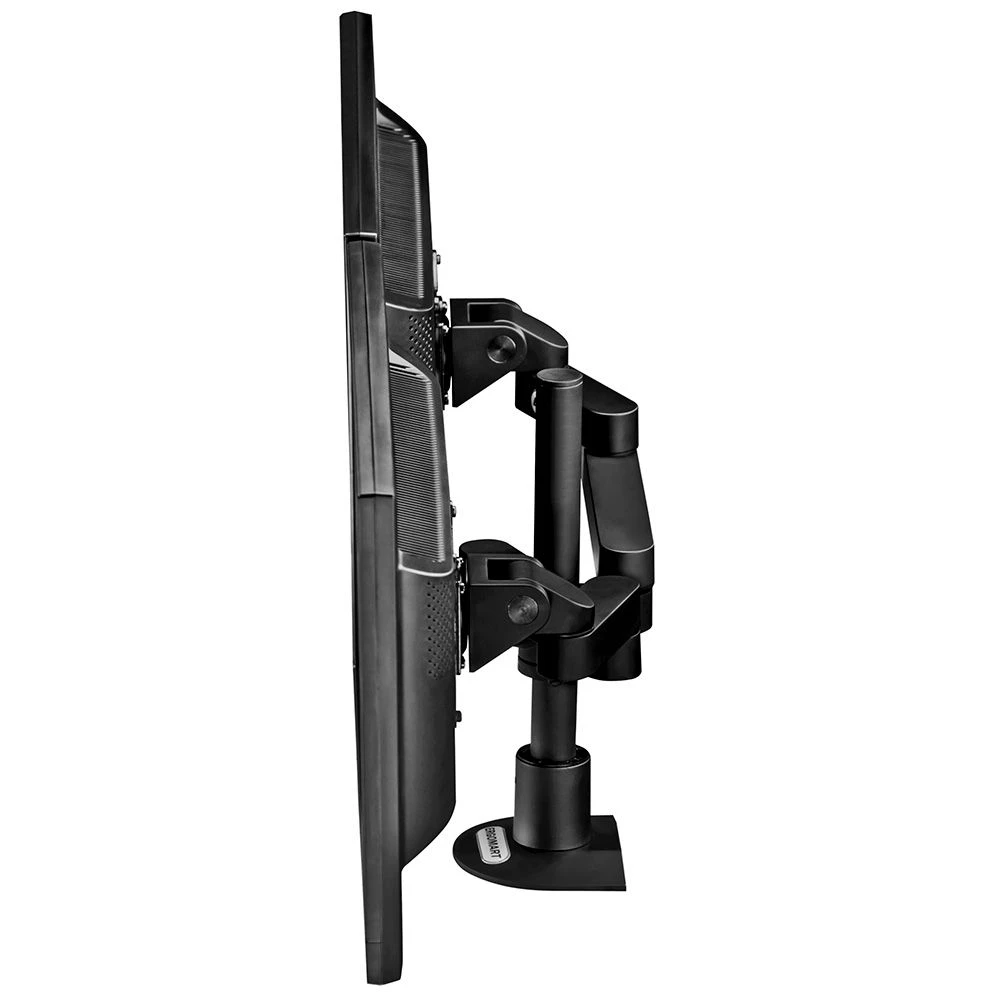

Easily position and precisely adjust the tilt (90° up and 45° down), rotation (portrait/landscape), swivel (generally limited only by monitor size and position) of your LCD monitors. This stand is ideal for multi-user environments where users’ needs vary based on their height and work positioning preferences. The LS1512D stand comes standard with 14 inch pole, but longer poles are also available.

Applications:

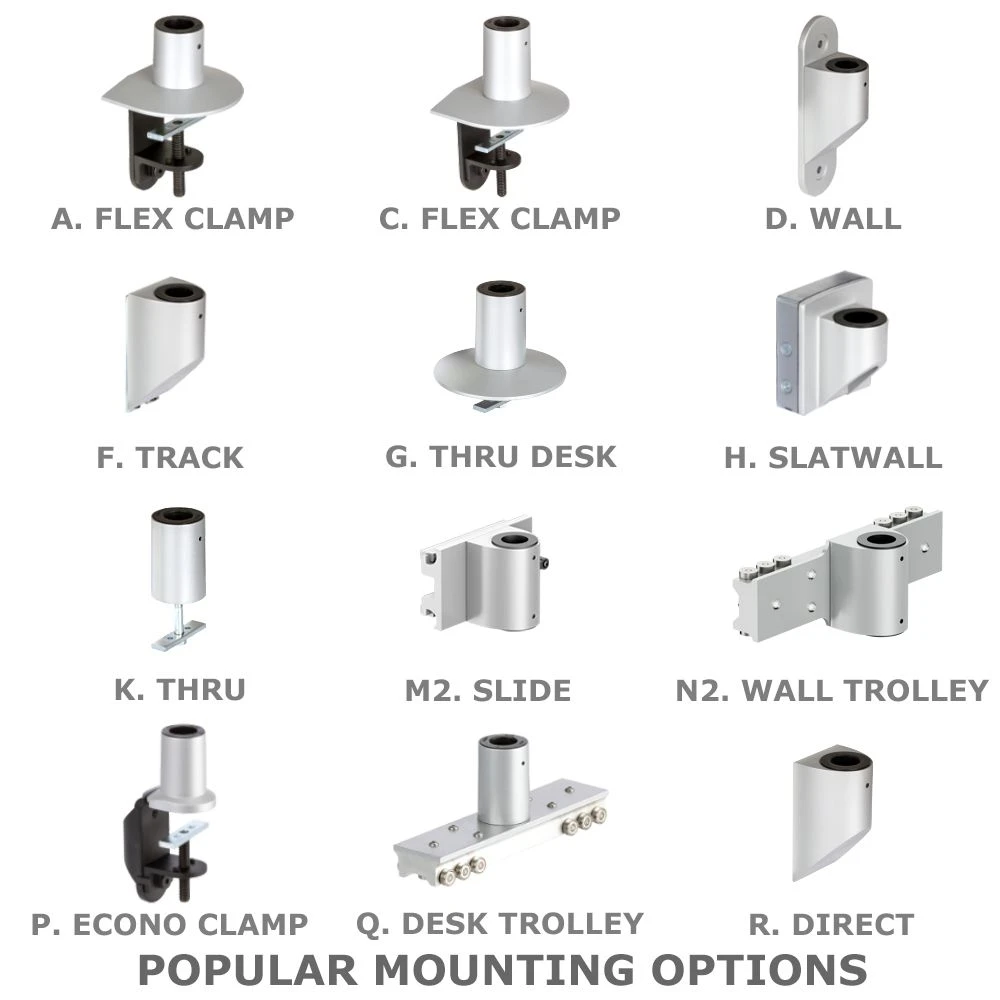

The LS1512D is a SERIES-118 mount, which means it works with all SERIES-118 mount kits and provides exceptional versatility for mounting.

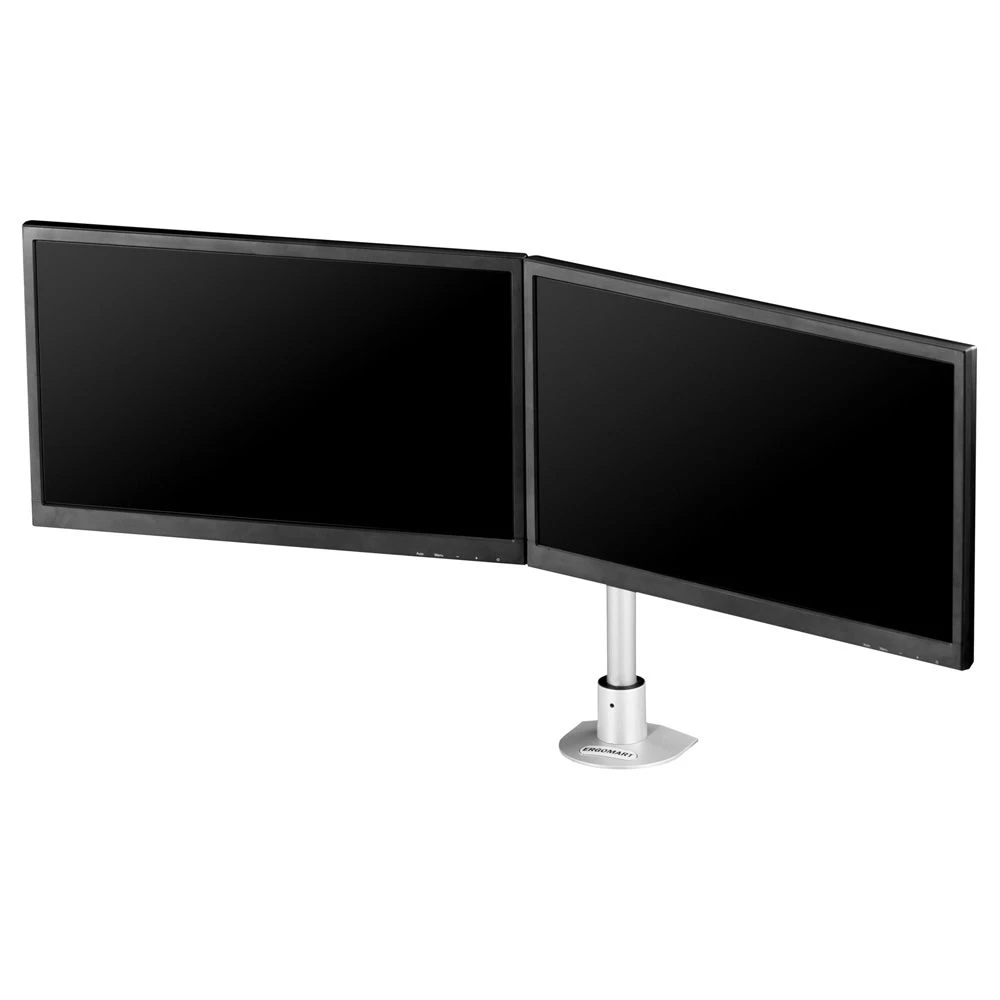

• Desk Mounting: Mounting this LCD could not be easier. The standard 4-in-1 mount Kit A allows stand to clamp to the back of a desk with as little as 1/4 of an inch of clearance between the desk edge and wall. Configure it to mount in an existing grommet hole or securely fasten it through a single 3/8″ hole. Wall mounting capabilities are also included at no additional cost.

• Wall Mounting: Several additional mounting options exist for Wall-Mounting, Wall-Track mounting and other environments.

• Applications Requiring Secure Poles: In certain applications, the LS1512D pole attaches to a mount kit that has a through hole such as MKIT-M and MKIT-N for the Roller Track or MKIT-E and MKIT-J for PM192 poles. In such cases, an P118RS secure mounting pole must be used to keep the pole on the MKIT and the mounting components on the pole.

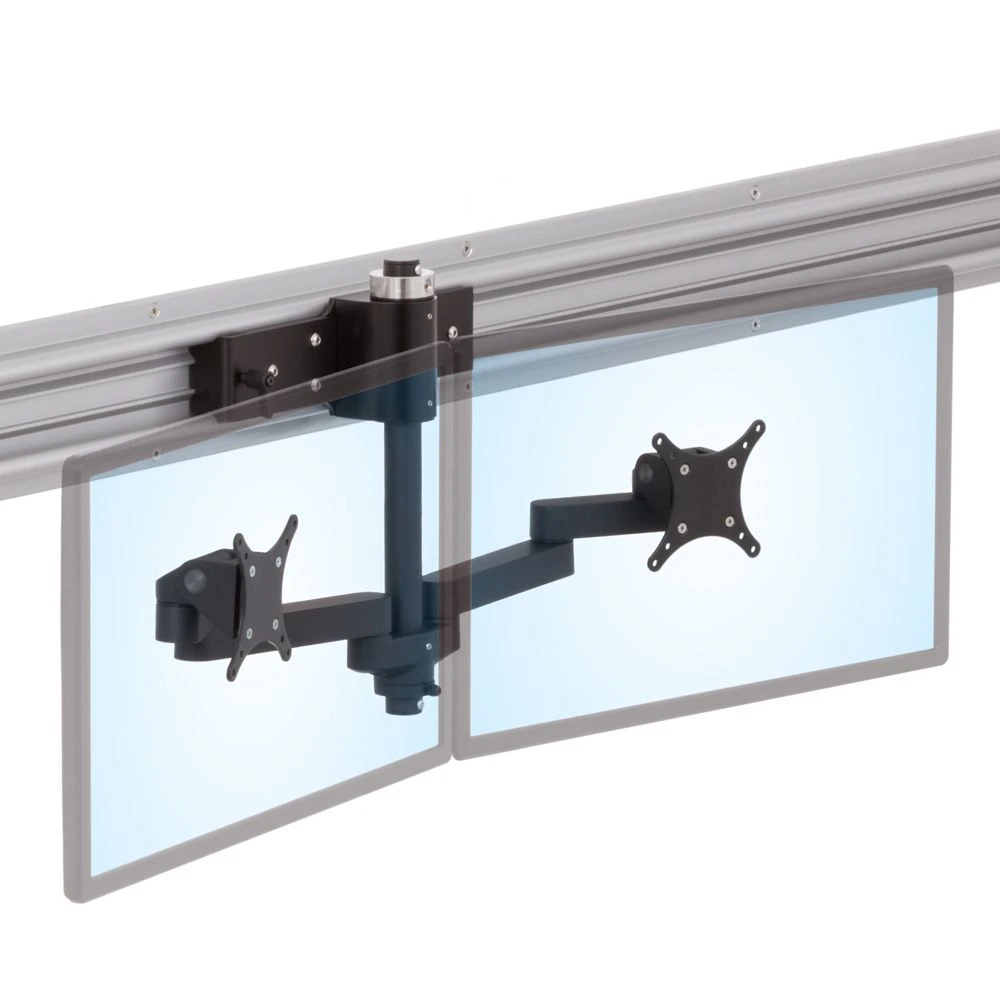

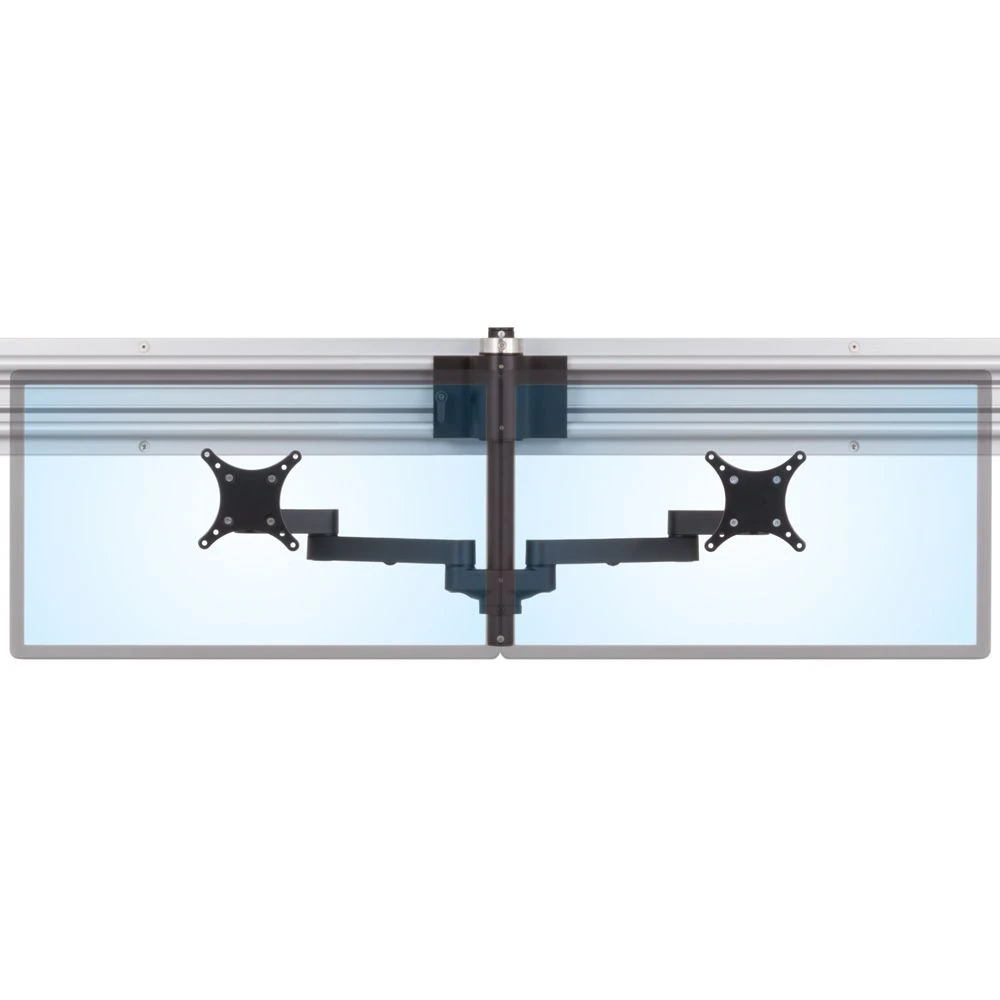

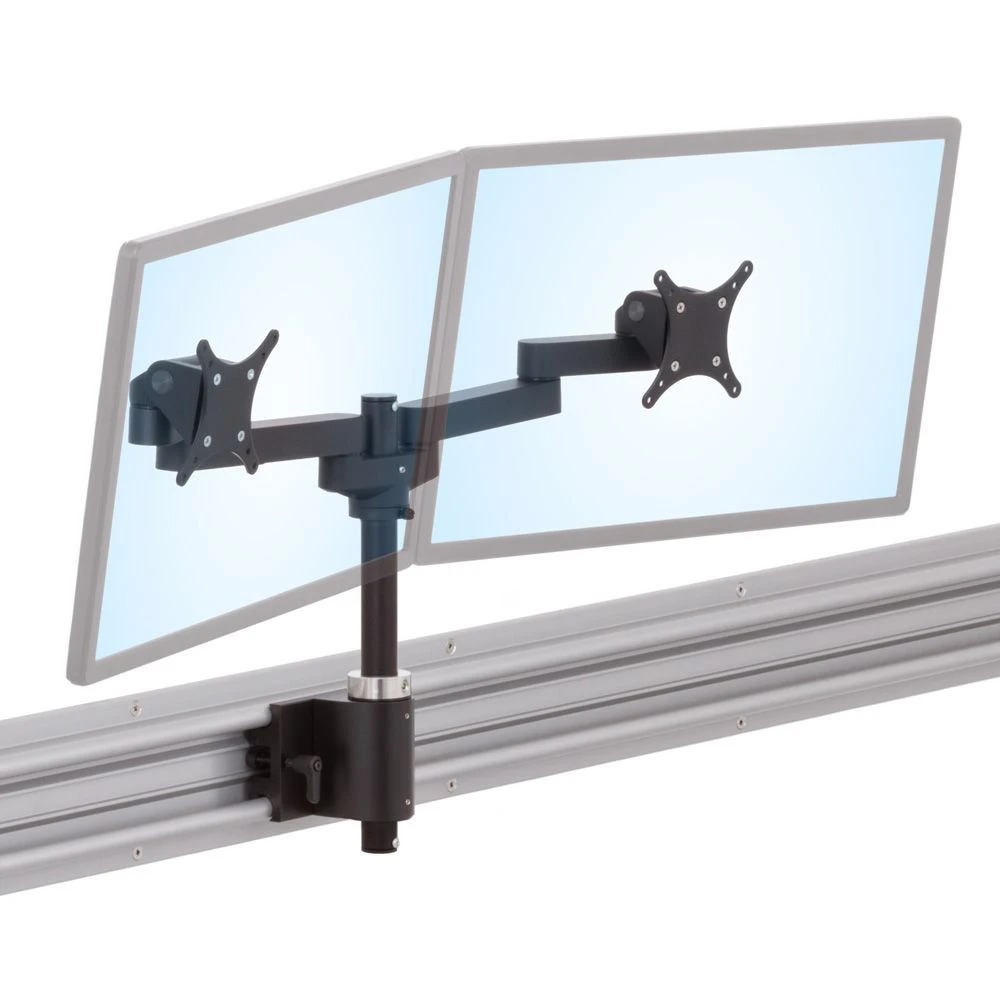

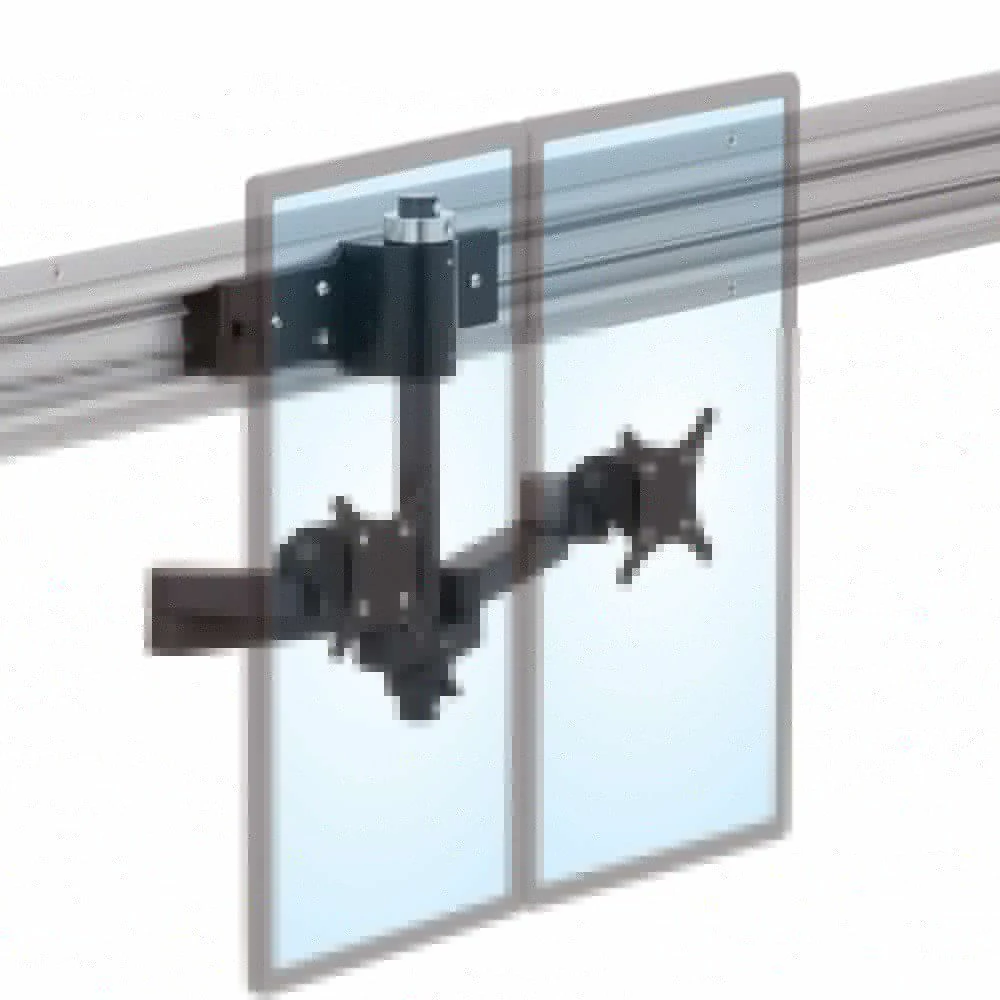

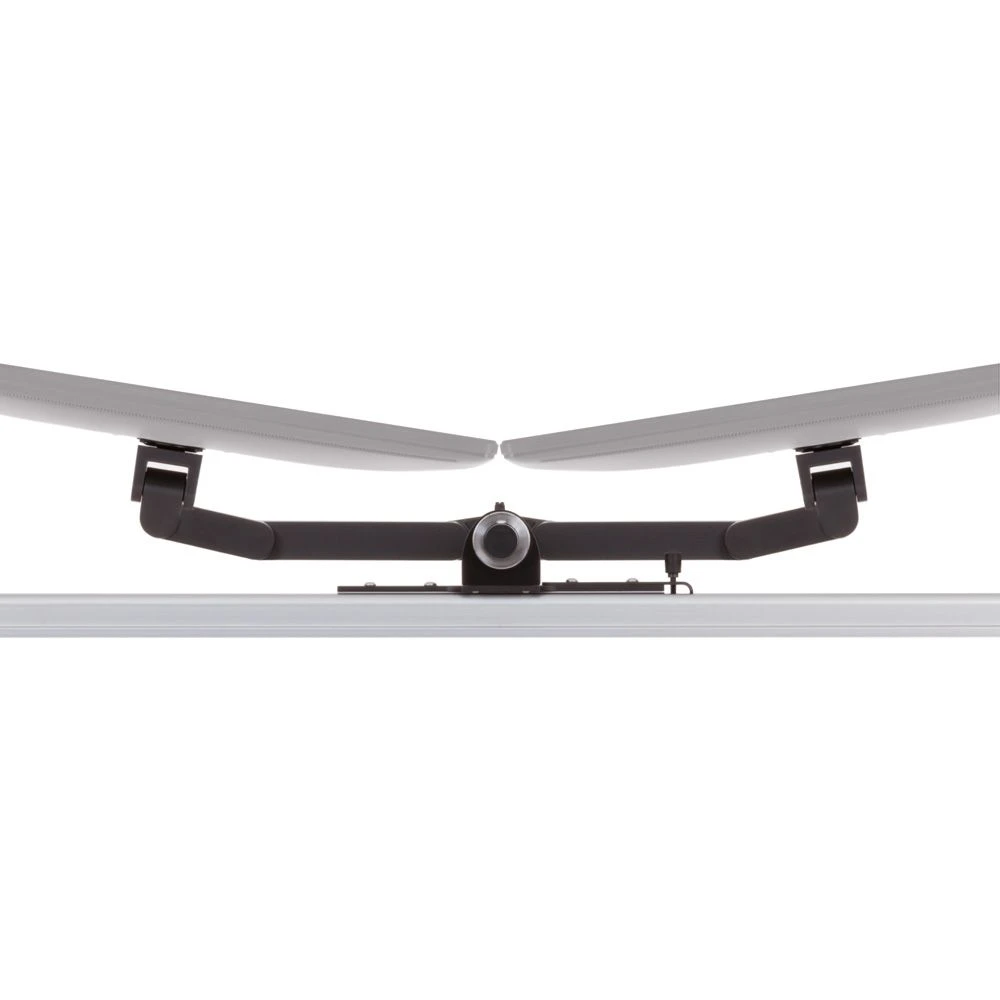

• Roller Track: LS1512D mount works well with Roller Track Sliding Horizontal Mount System, regardless of whether the track is mounted low, at eye level, or overhead. In the latter scenario, the LS1512D mounting pole can be secured to MKIT-M or MKIT-N so that it extends downwards, thus bringing the monitors to eye level.

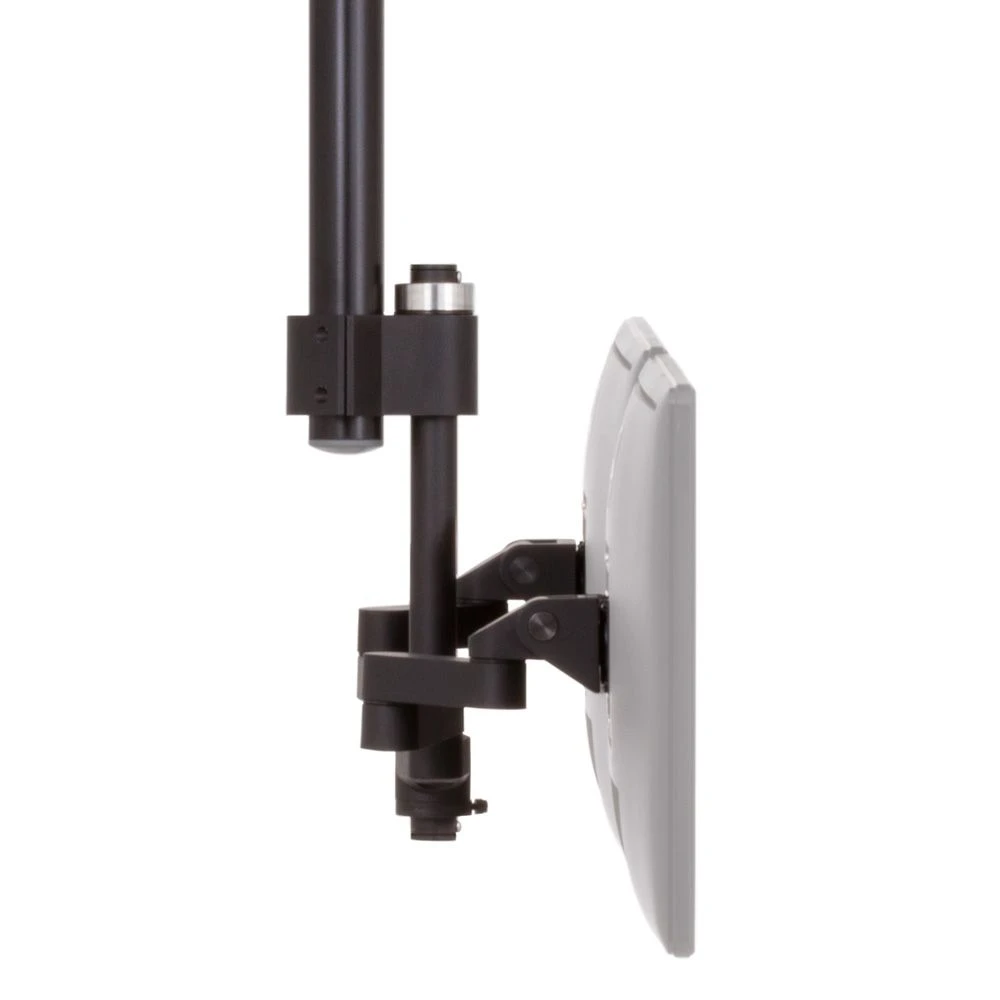

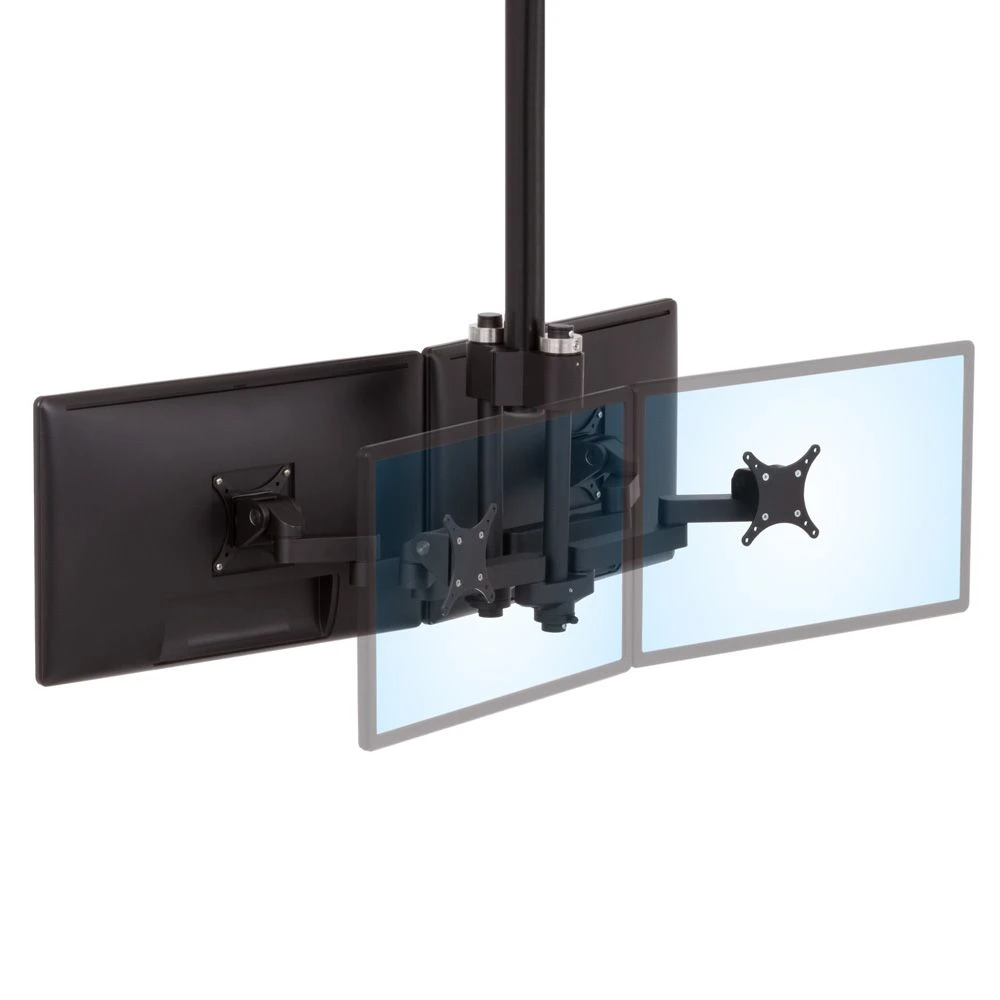

• “Drop-down” Poles: The LS1512D can be used in combination with a ceiling-mounted existing pole or an Ergomart PM192 pole equipped with an MKIT-E to allow monitors to reach down from the ceiling over an open floor space.  Two dual monitor mounts can be mounted back to back using MKIT-J.

Additional Mounting:

Optional mounts are also available. Interested in purchasing the Cube or Slatwall mounts? Just give us a call: 888 420 3200 or 214 742 6066.

This mount can be expanded fit four monitors, with two monitors mounted over two. Check out the LS1512Q Quad Monitor Stand.
