Low Profile Articulating Roller Track Monitor Mount
Original price was: $334.00.$97.99Current price is: $97.99.
- Uncompromising quality, every time.
- Your questions, our prompt answers.
- 7 days return and exchange
- Free Shipping, No Compromise on Quality
Monitor mount tilts, pans, rotates and slides along horizontal track
The Ergomart Low-Profile Articulating Roller Track Monitor Mount is a highly adjustable compact mount that slides along the length of a heavy-duty horizontal track. It is well-suited for technical, manufacturing, industrial and medical environments as well as hospitality, retail, and restaurant applications.
Below is a breakdown of the components of the Low-Profile Roller Track Mount, highlighting the capabilities, similarities and differences of each component. If you have any questions or require more information, please don’t hesitate to get in touch with an Ergomart representative.
VERSATILE • ADAPTABLE • FUTURE-PROOF
Mounting Options

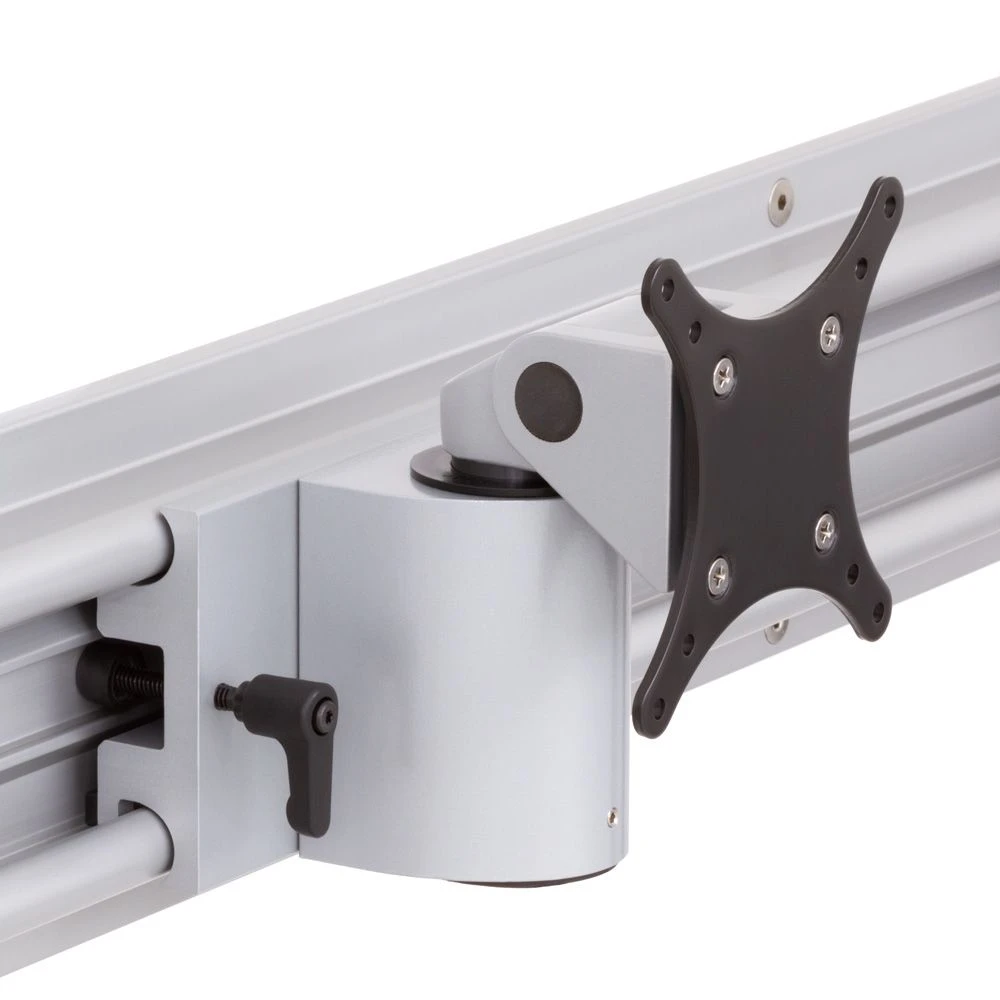

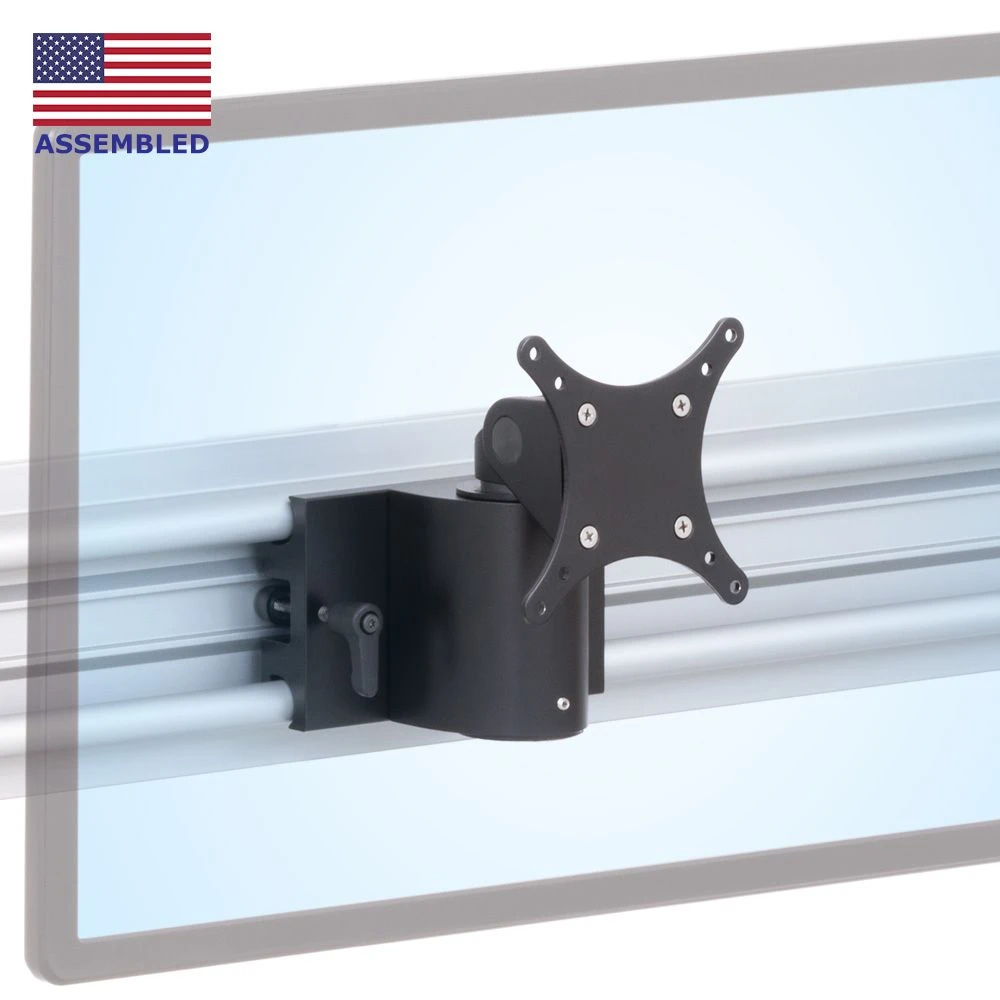

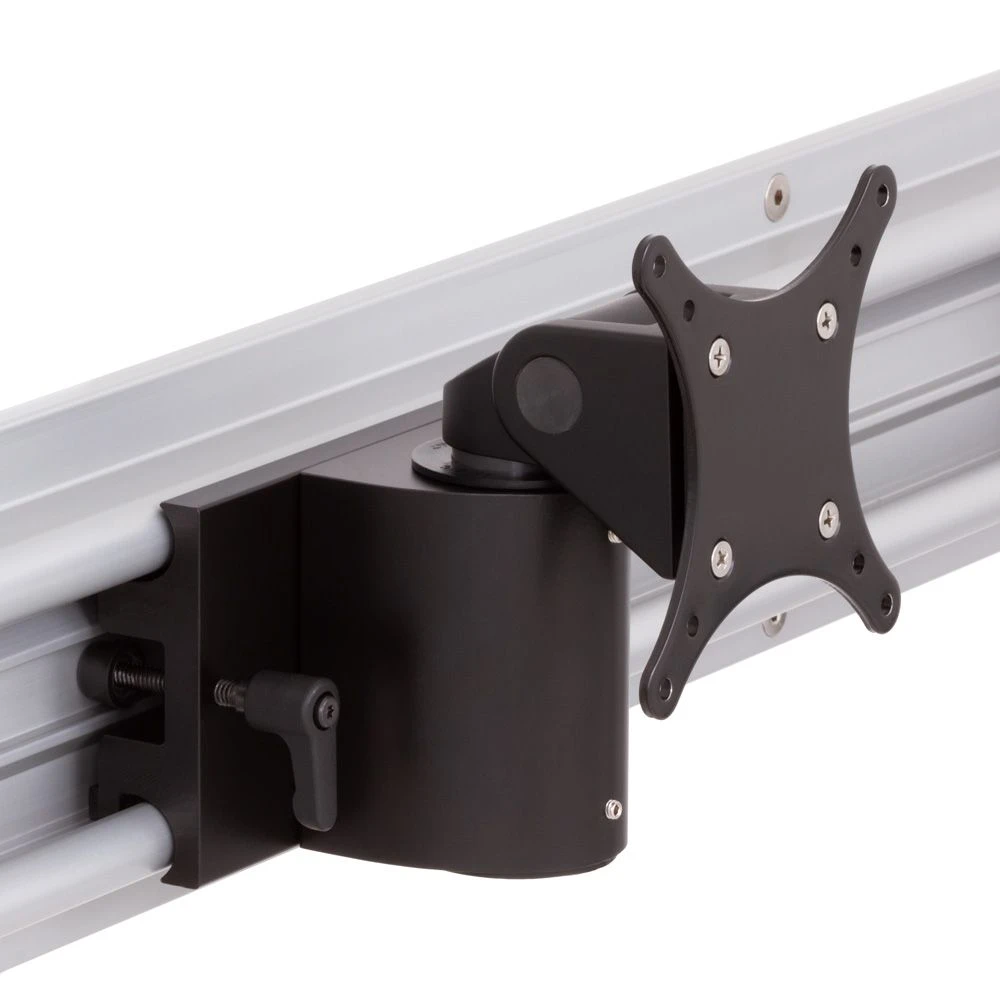

MKIT-M2
- Position anywhere along the track
- Ideal for infrequent repositioning
- To adjust: lift the monitor up, move along track and release
- Included clamp lock immobilizes the mount once positioned
- Mount can be oriented to position brake on either side
- Available in black and metallic gray
- For more details, see the M-KIT M2 Mounting Kit product page
MKIT-N2
- Slide anywhere along the track
- Ideal for frequent, one-touch left/right movement
- To adjust: simply push the device to the desired position
- Available in black and metallic gray
- For more details, see the M-KIT N2 Sliding Mounting Kit product page

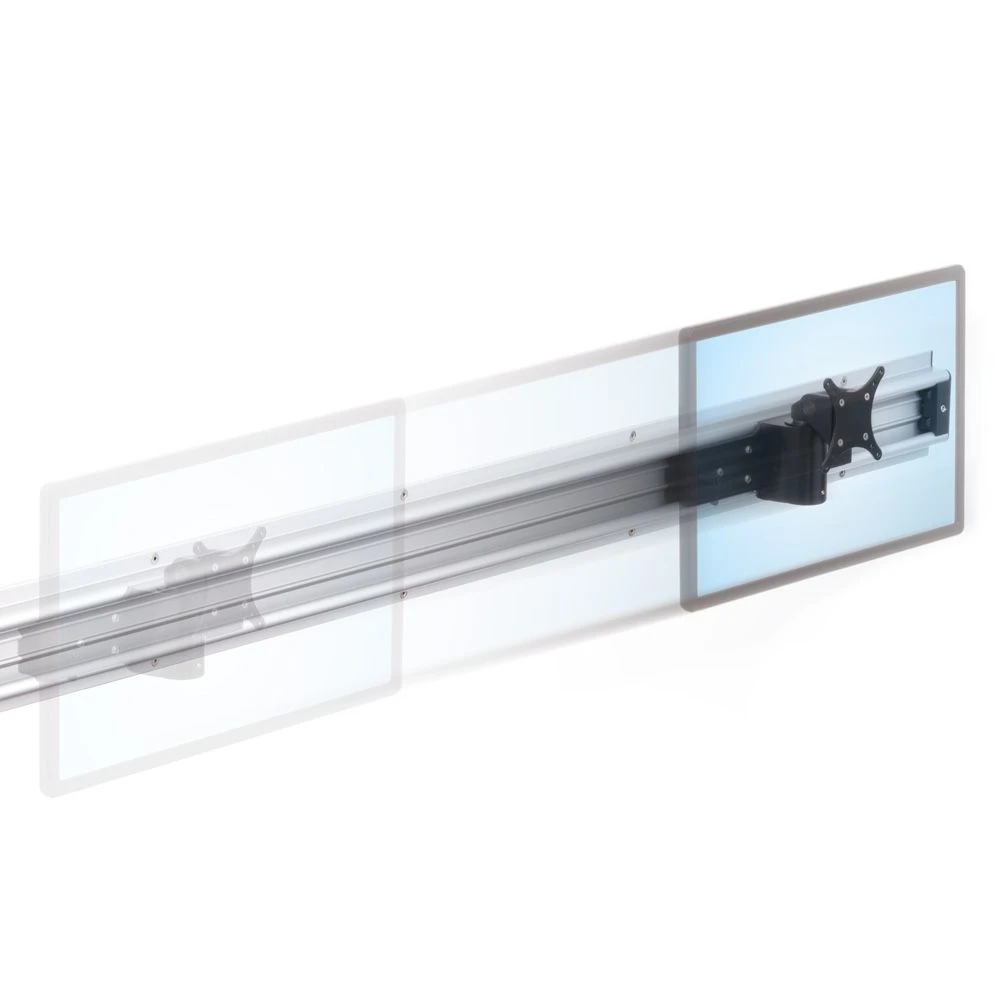

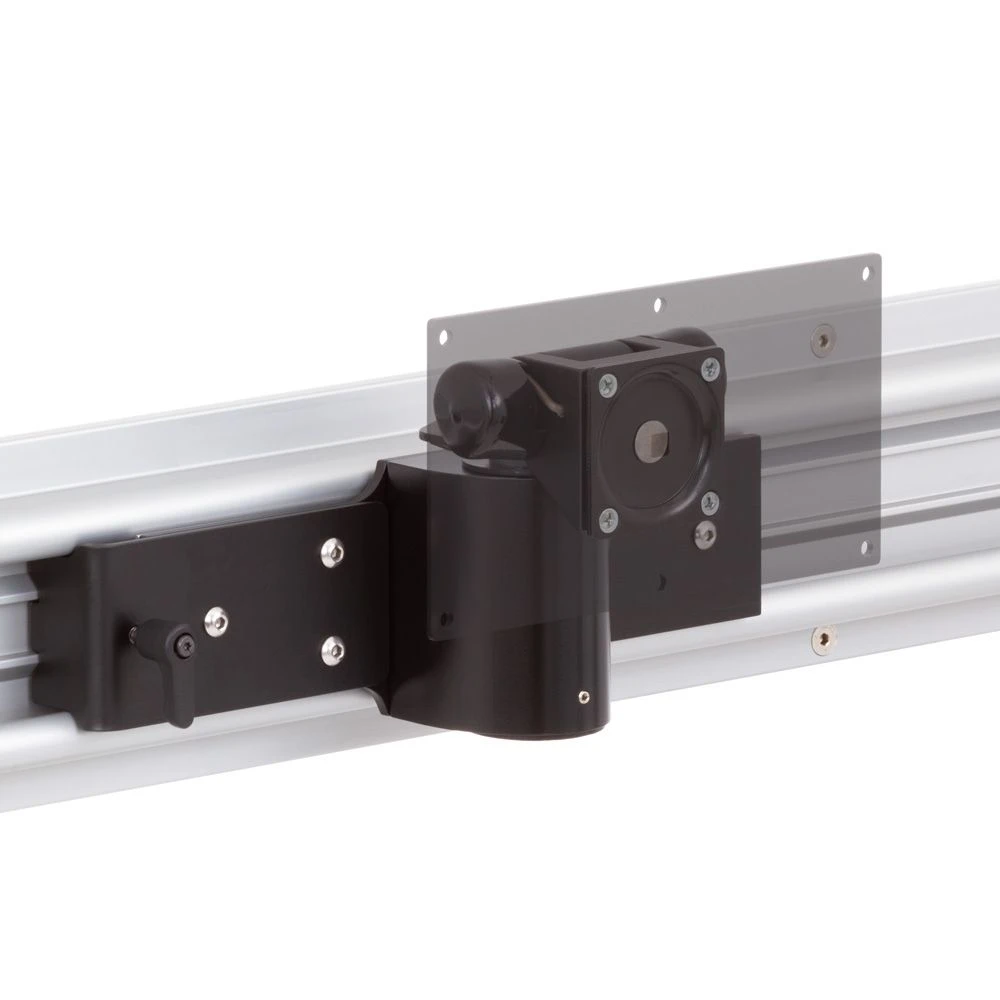

MKIT-N2 with Brake
- Slide and lock anywhere along the track
- Ideal for frequent, one-touch left/right movement
- To adjust: simply push the device to the desired position
- Clamp brake prevents unintentional movement
- Mount can be oriented to position brake on either side
- Available in black and metallic gray
- For more details, see the M-KIT N2 Sliding Mounting Kit product page
Tilter Heads
- The tilter head is the component that provides tilt, swivel and rotation movement for attached monitor
- Installs into the opening in the MKIT track mount
- VESA plate is attached to the front panel
- Two strengths to match the monitor weight and size
Standard Tilter Head
- Handles equipment 0 – 35 lb
- Left/right swivel, inhibited only by monitor edges

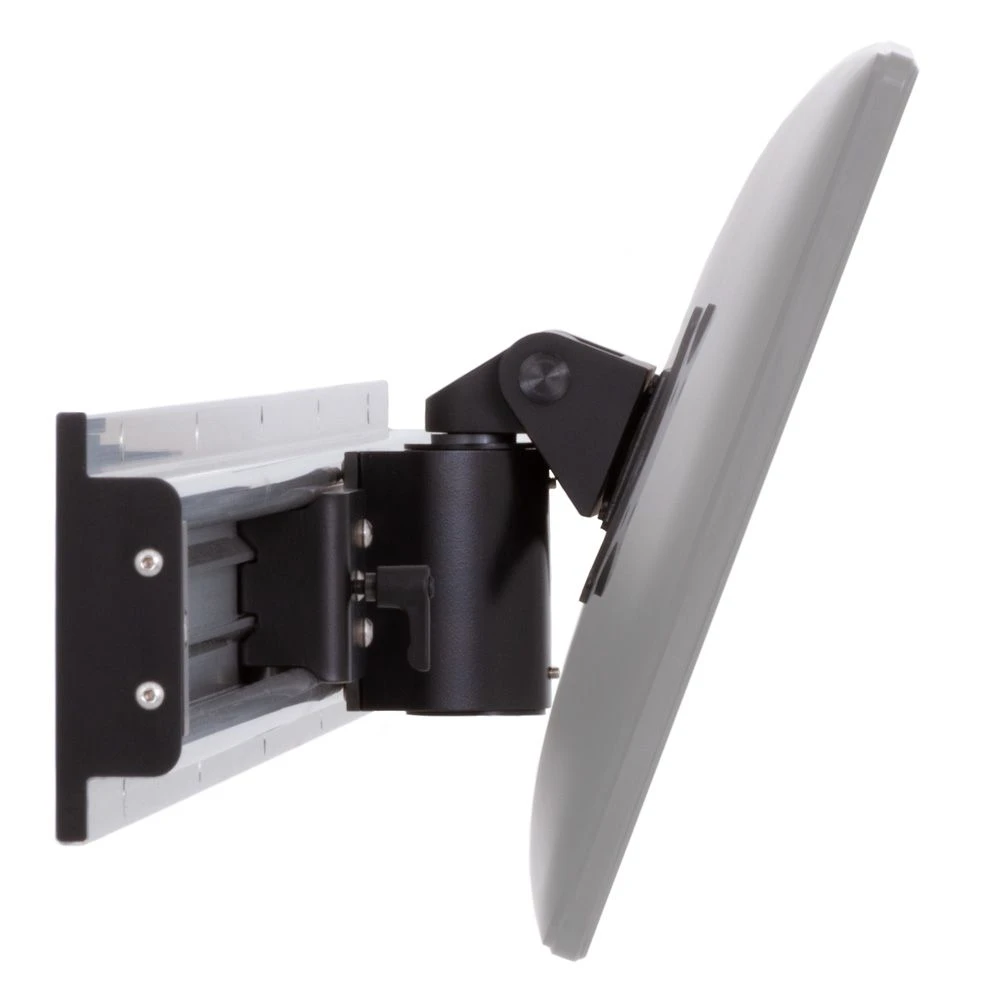

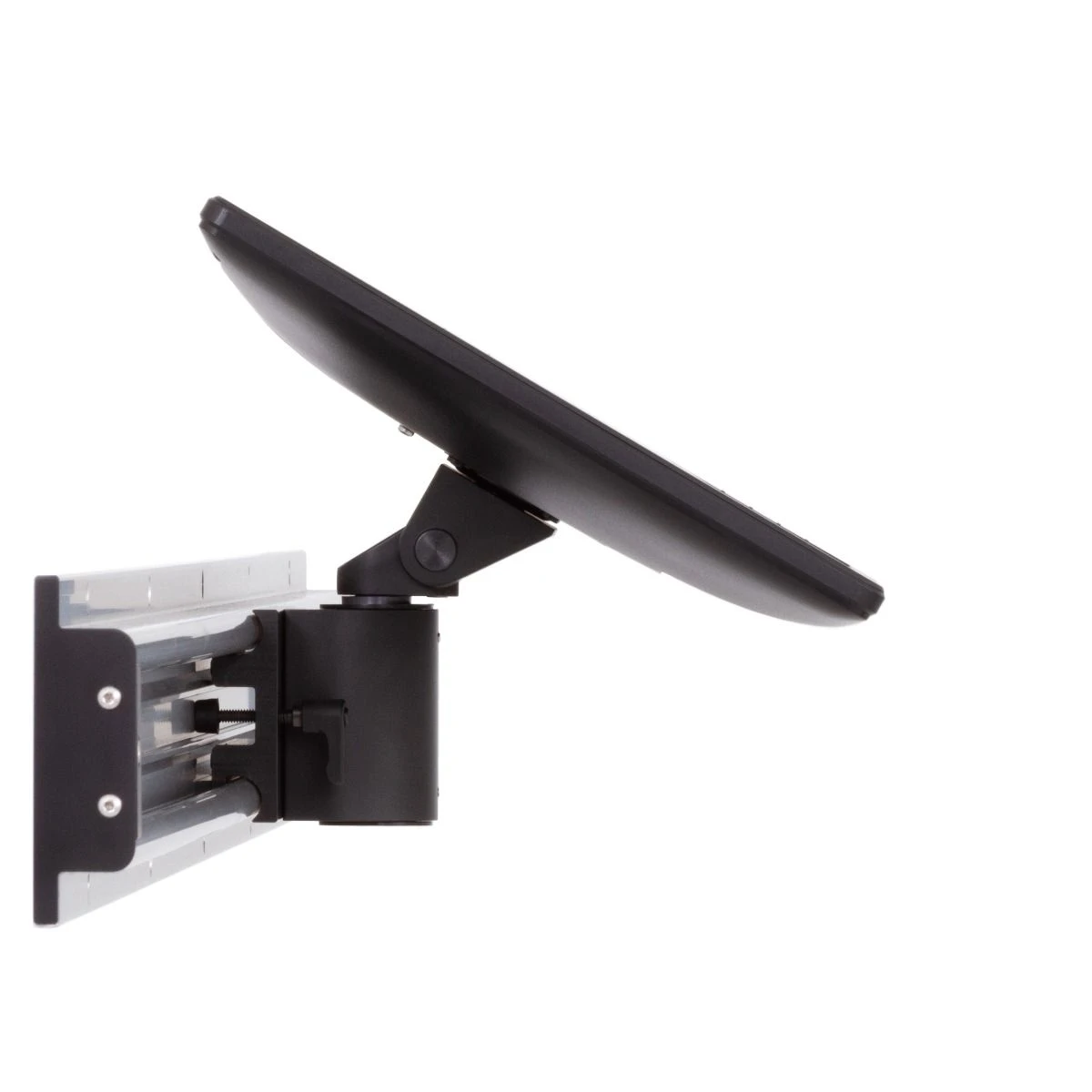

- Tilts 90° up and 45° down when obstruction-free
- Rotates portrait to landscape
- Available in black and metallic gray
Heavy-Duty Tilter Head
- Handles equipment 15 – 55 lb
- Full left/right swivel
- Tilts 90° up and 45° down when obstruction-free
- Rotates portrait to landscape
- Available in black and metallic gray
- For a detailed description of tilter head capabilities, see Ergomart’s Tilter Mechanisms Reference Guide
VESA Plates
75 x 75mm & 100 x 100mm
Star VESA
100 x 200mm
200 x 200mm
(accessories tab)
200 x 400mm
(accessories tab)
100 x 300mm to 400 x 600mm
(accessories tab)
- For a detailed description of VESA plates, see Ergomart’s VESA Reference Guide
Track
- Available in 3 sizes: 39”, 78”, and 156”
- The track is available in clear anodized aluminum
- Includes 2 end caps and stops to secure mount on track
- Custom sizes available – please call to discuss
- Professional Installation required – must attach to wood studs or correctly engineered heavy backer
Wire Management
- Optional channel typically mounted below rail to contain and conceal monitor wires
- Ample space for power strips and multiple monitor cords
- Available in two sizes: 39” and 78”
- Not pre-drilled: fastener and outlet access can be added during installation to suit workspace
- More sophisticated solutions available – please contact us for more info
Additional Considerations:
If you are looking for a monitor mount with height adjustability, the Roller Track Monitor Arm may suit your needs. If you need a keyboard, consider the Roller Track Data Entry Arm which also includes a keyboard tray below the monitor, all with the same easy sliding movement along the track.
The Low-Profile Articulating Roller Track Monitor Mount is part of an entire family of modular mounts that can be assembled to meet almost any need. Our team at Ergomart is always ready to help you design a system that works for your requirements.
Key Features:
- Easily slide a monitor or large TV horizontally the length of the Roller Track
- Optional locking mechanism holds the mount in place when movement is not desired
- Low profile mount with full tilt, pan and portrait/landscape rotation
- Choose from three track lengths: 39, 78 and 156 inches
- Handles monitors weighing up to 55 pounds
- Need to mount a heavier payload? Call us to discuss a solution
- Compatible with standard VESA sizes: 75/100mm and 100x200mm
- Optional VESA sizes for larger monitors available in “Accessories” tab
- High capacity cable management channel holds cables and surge suppressors
- Two color options available: black and metallic gray
- Custom track lengths available: contact Ergomart for assistance
| Box 1 (Monitor Mount) | Box 2 (39-inch Track) | Box 2 (78-inch Track) | |
| Shipping Weight | 5 to 9 lb | 14.5 lb (add 2.4 lb for optional wire manager) | 24.2 lb (add 4.7 lb for optional wire manager) |
| Shipping Dimensions | 15″ x 11″ x 7″ | 41″ x 7″ x 7″ | 80″ x 7″ x 7″ |
| Warranty | 5 year limited | ||
| Color | Black, Metallic Gray |
|---|---|
| Vertical Extensions | Compatible with SERIES-118 VE extensions |
| Monitor Tilt Range | <!– |
| Max Swivel (at Monitor) | <!– |
| Max Swivel (at Elbow) | N/A |
| Max Swivel (at Base) | N/A |
| Portrait to Landscape | Yes |
| VESA Options | 75 x 75 |
| Horizontal Extensions | <!– |
| Vertical Adjustment | None |
| Mount Kit | Roller Track Positioner Kit M2, Roller Track Positioner Kit M2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2, Roller Track Trolley with Brake N2-BR, Roller Track Trolley with Brake N2-BR |
| Weight Range | Can move payloads up to 55 lb |
| Mounting | Wall Track Mounting |
| Number of Monitors | <!– |
| Mount Type | Horizontal Sliding Wall Track Mount |
| Wire Management Trough | 39-inch Trough, 78-inch Trough |
| Track Length | 39-inch Roller Track, 78-inch Roller Track, 156-inch Roller Track |
| VESA | 75 x 75 mm and 100 x 100 mm, 100 x 200 mm |
| Monitor Tilter Head Capacity | Standard Tilter Head, Standard Tilter Head, HD Spring Tilter Head, HD Spring Tilter Head |
| Track Lengths | 39" |
