Lobby Display: Large Monitor Pole Stand

Mount Large LCDs and TVs with this Heavy-Duty Monitor Pole Mount and Floor Stand

• Built to last, this heavy-duty LCD and TV mount will handle even tough environments
• Comes with large monitor mount, sturdy steel pole and base
• Easily handles monitors and televisions from 35 to 80 pounds
• Attached monitor can tilt upwards 45 degrees or down 44
• Compatible with 75x75mm, 100x100mm and 100x200mm VESA patterns
• Optional large VESA adapters available for hole patterns up to 400x600mm
• 3 base options: two free-standing and one secured to the floor
• 5 pole lengths available: 4, 5, 6, 7, and 8-foot
• Optional base cover hides and protects cables
• Large Monitor Pole Stand is black; custom colors are available with large quantity orders

The PM192-EZ1 Lobby Display Large Monitor Pole Stand is an exceptional mounting solution for the largest LCD, LED and Plasma monitors and televisions. The display mount is well-suited for use in medical facilities, retail environments, or anywhere a free-standing display with a minimal footprint would be useful. Its heavy-duty, sturdy construction will last even in the toughest environments.

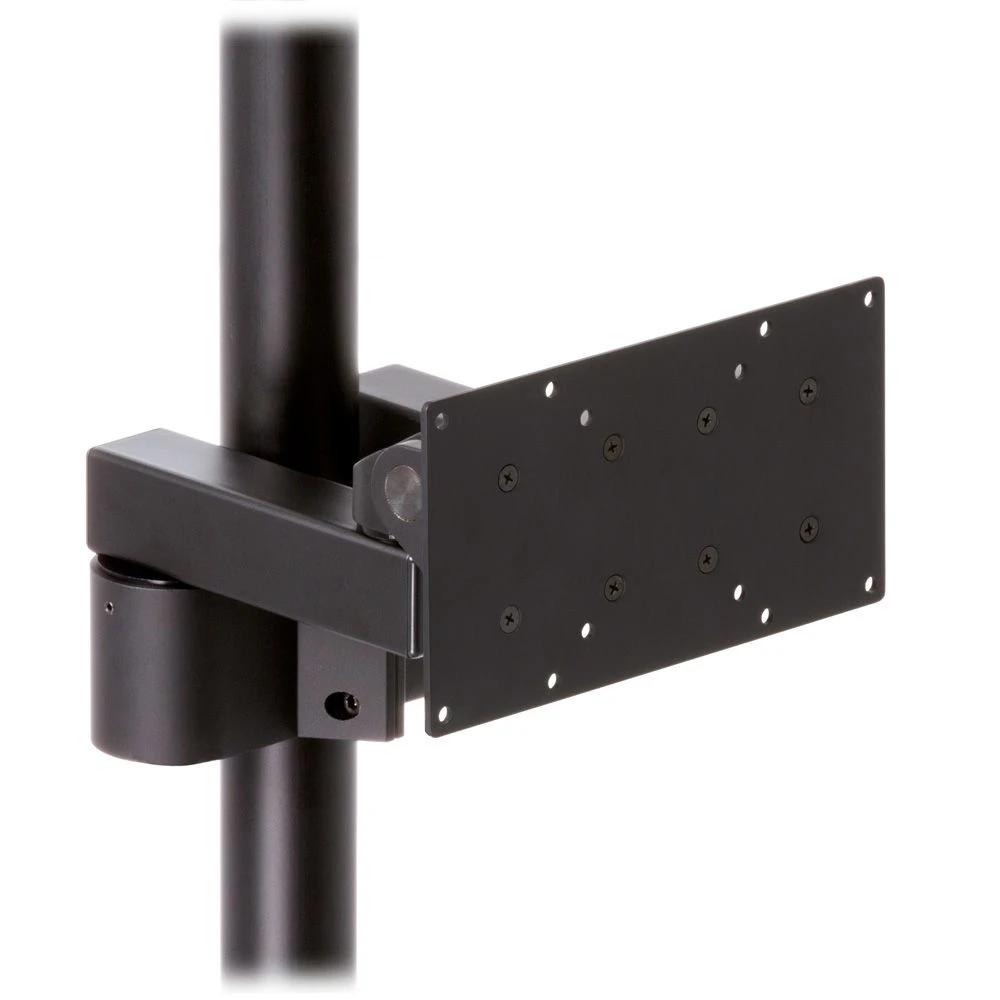

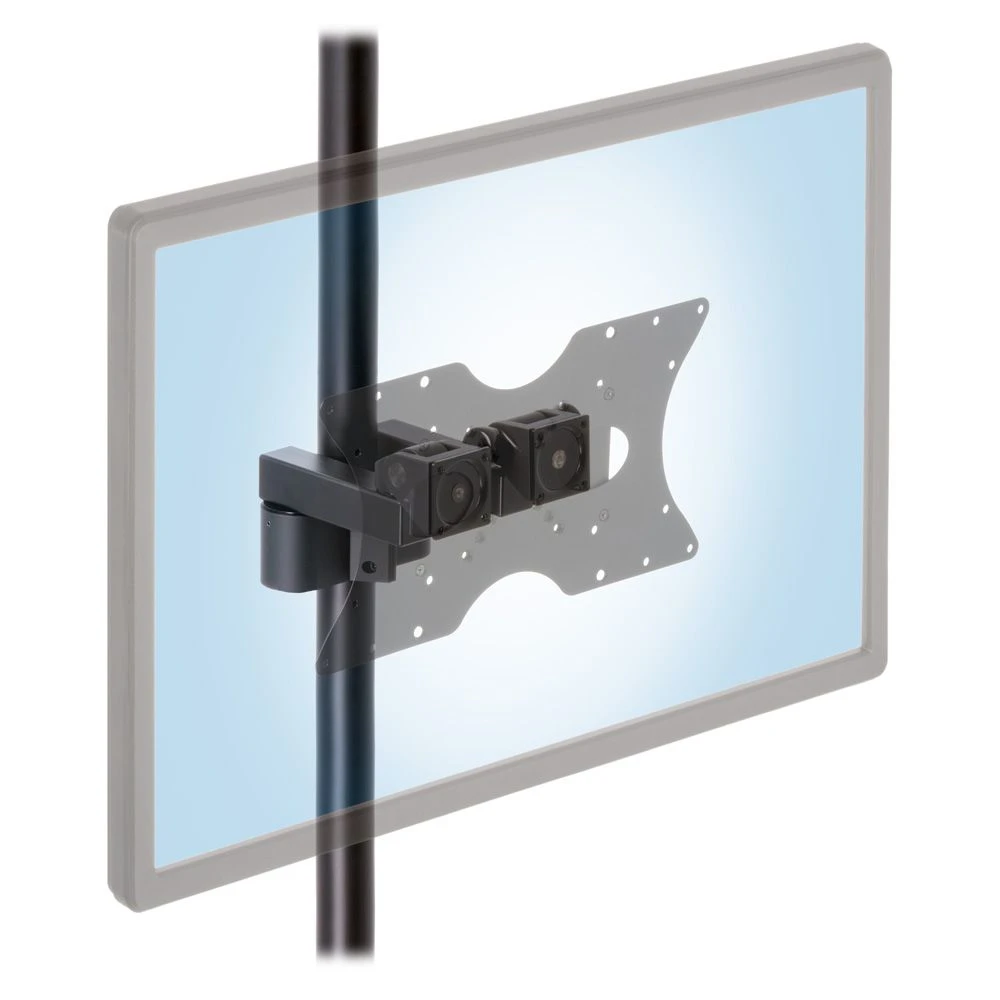

The PM192-EZ1 features the heavy-duty PM80 monitor mount capable of handling devices from 35 to 80 pounds and providing substantial tilt capabilities: 45° upwards and up to 44° down, depending on monitor height, to allow for adjustment to the best viewing angle. Tilt resistance can be modified when needed. This mount is compatible with 75 x 75 mm, 100 x 100 mm and 100 x 200 mm VESA hole patterns. Larger, optional VESA adapters available in the Accessories section of this page support devices with hole patterns ranging from 200 x 200 mm to 200 x 400 mm. An extra-large VESA mount is also available the Accessories tab and is compatible with VESA sizes to 100 x 300 mm up to 400 x 600 mm. For detailed information on the VESA mounting interface, visit our VESA reference page. Please note that the PM80 does not have side-to-side rotation capabilities.

The monitor mount is attached to a sturdy PM192 pole and base. There are 5 pole length options: 4′, 5′, 6′, 7′ and 8′. The largest two sizes may require additional lead time, please contact Ergomart regarding shipping times for the 7′ and 8′ lengths. Each pole features a cable access port at the top and bottom, allowing for wires to be fed through the length of the pole to minimize clutter and safety hazards from loose cables.

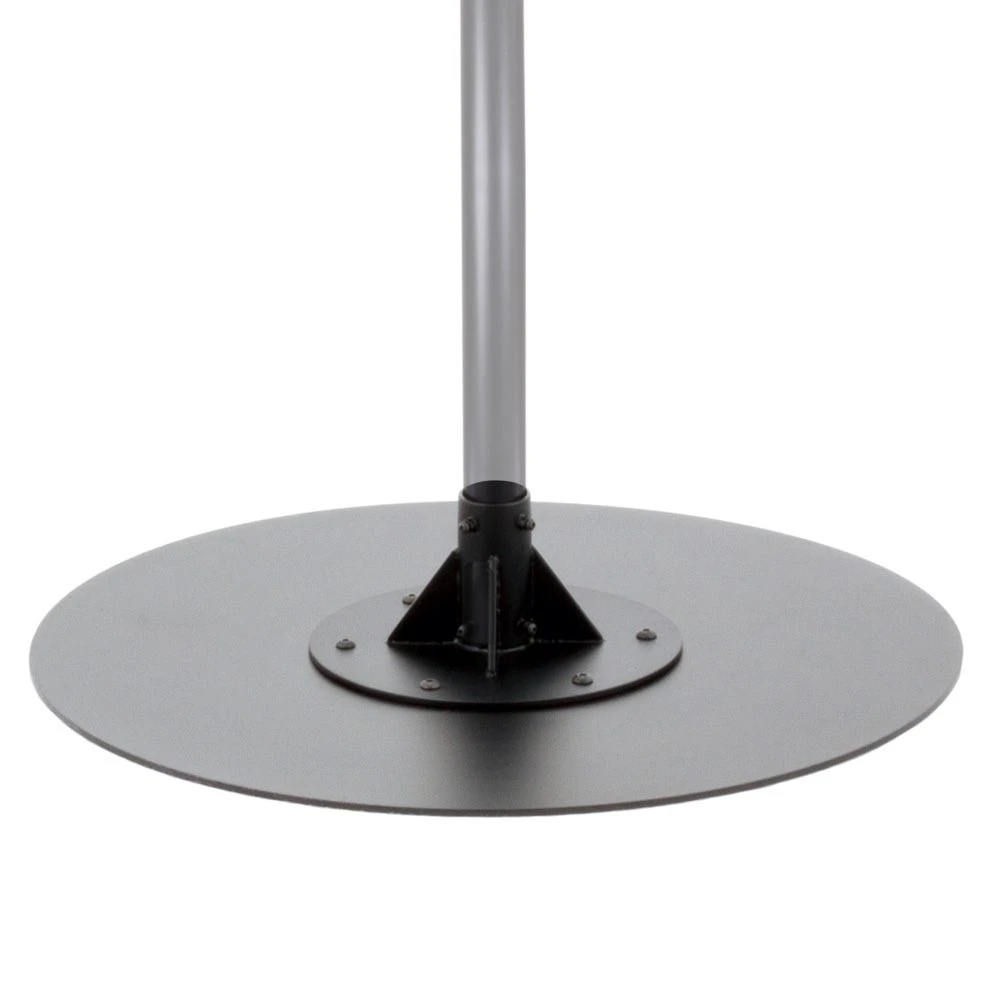

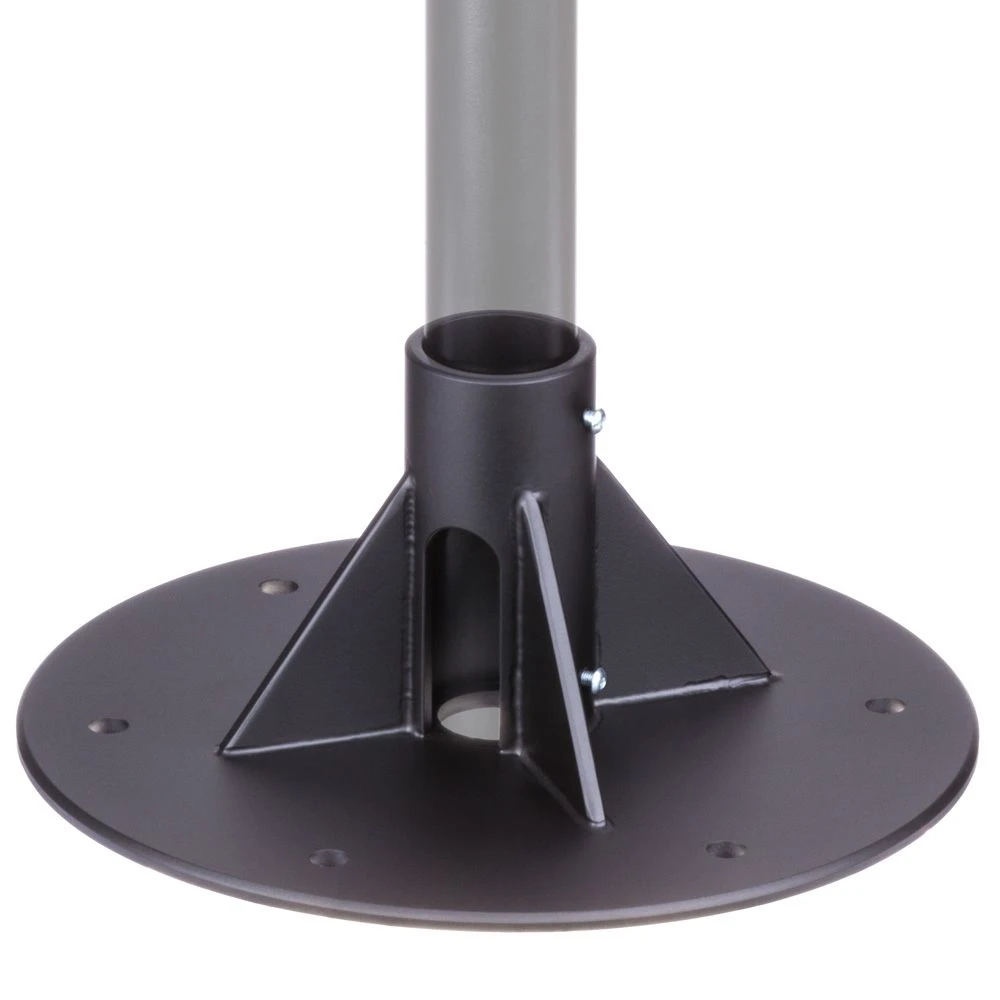

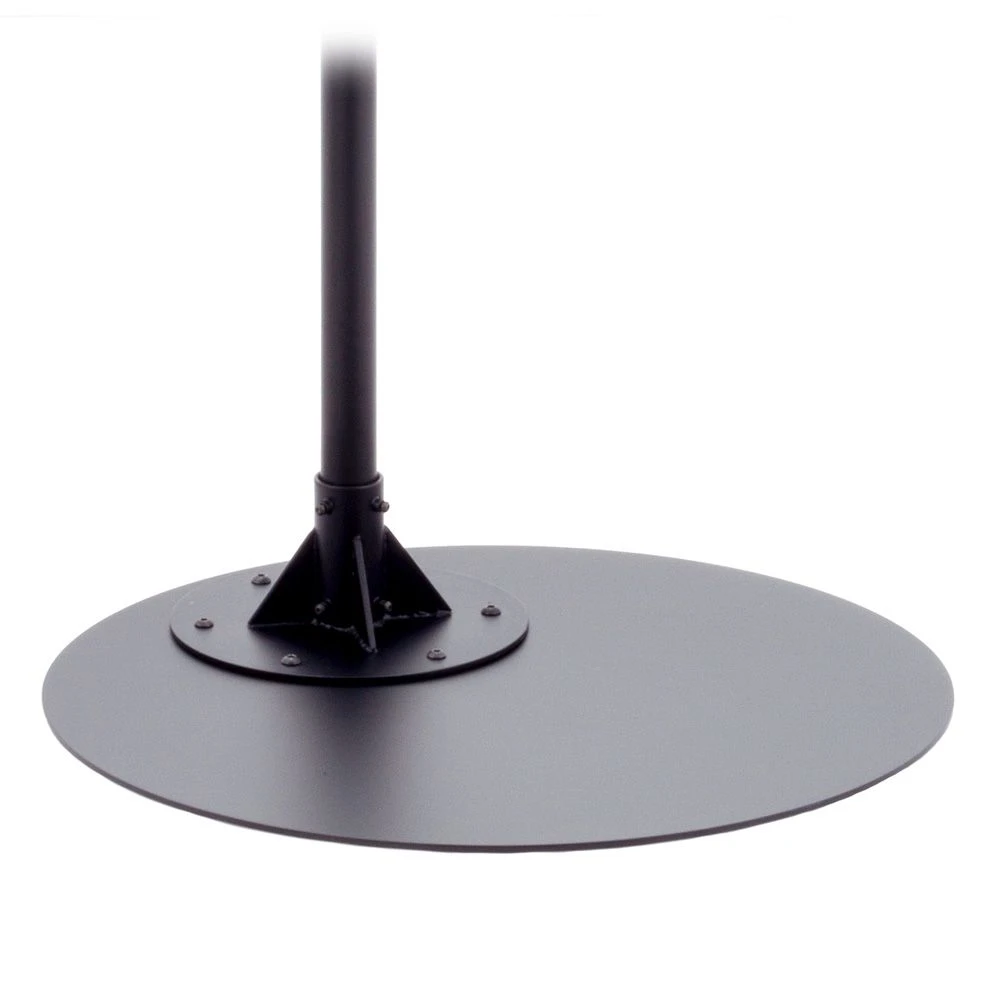

The base of the stand has three options: flange, center and offset. The PM192 Flange Base has the smallest footprint and is designed to be bolted to the floor. This is the ideal option for displays that will remain permanent fixtures as it provides the most stability regardless of the mounted device. The PM192 Center Base is a wide 30-inch base where the pole is positioned directly in the middle. When unloaded, the stand can be re-positioned. The third base is the PM192 Offset Base. This is the best repositionable option for devices that are on the heavier side of the supported weight range. Please contact Ergomart if you have any questions regarding stability or safety of the device based on your mounting needs.

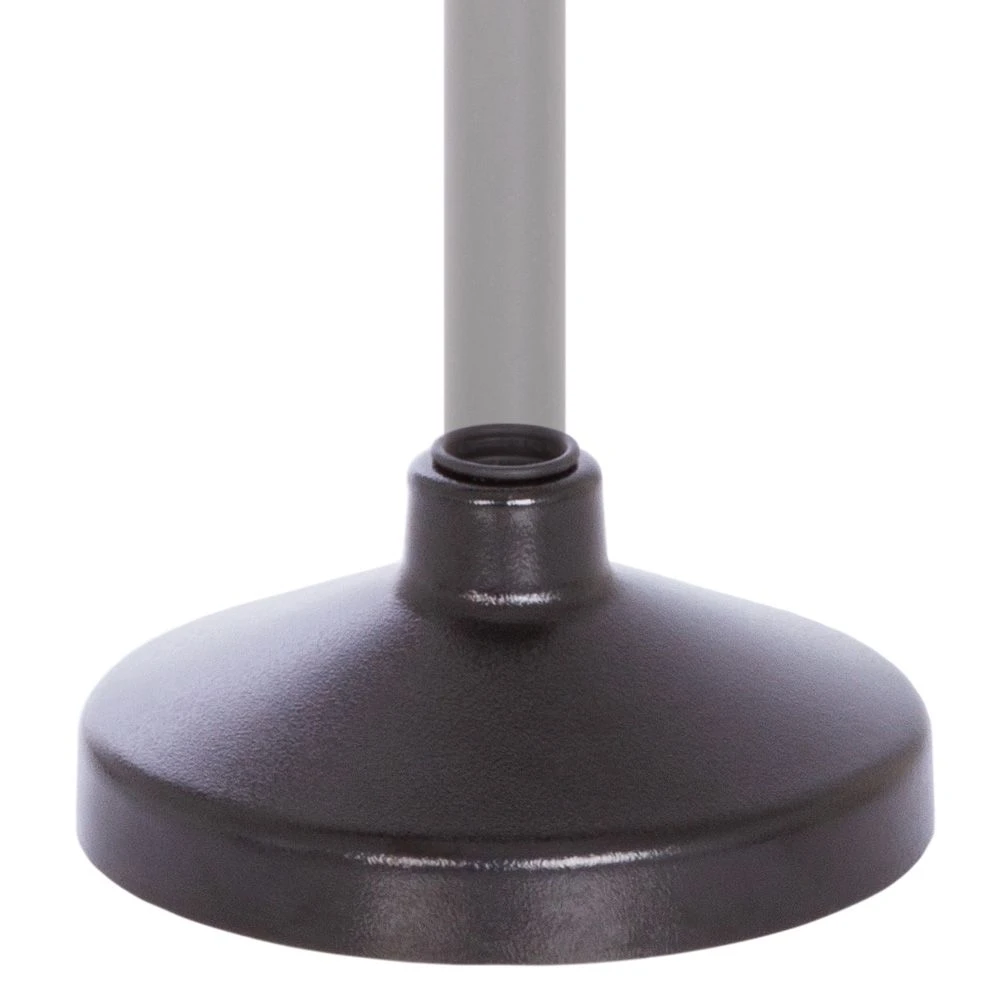

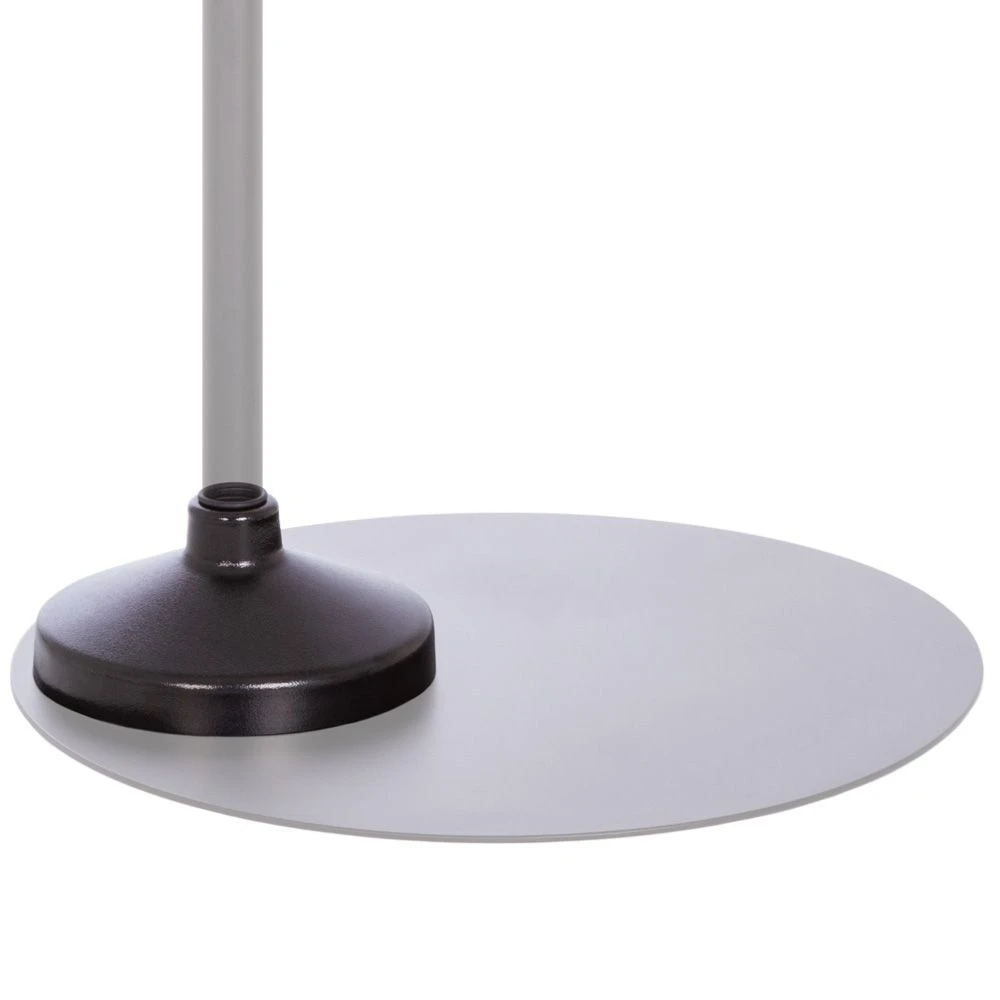

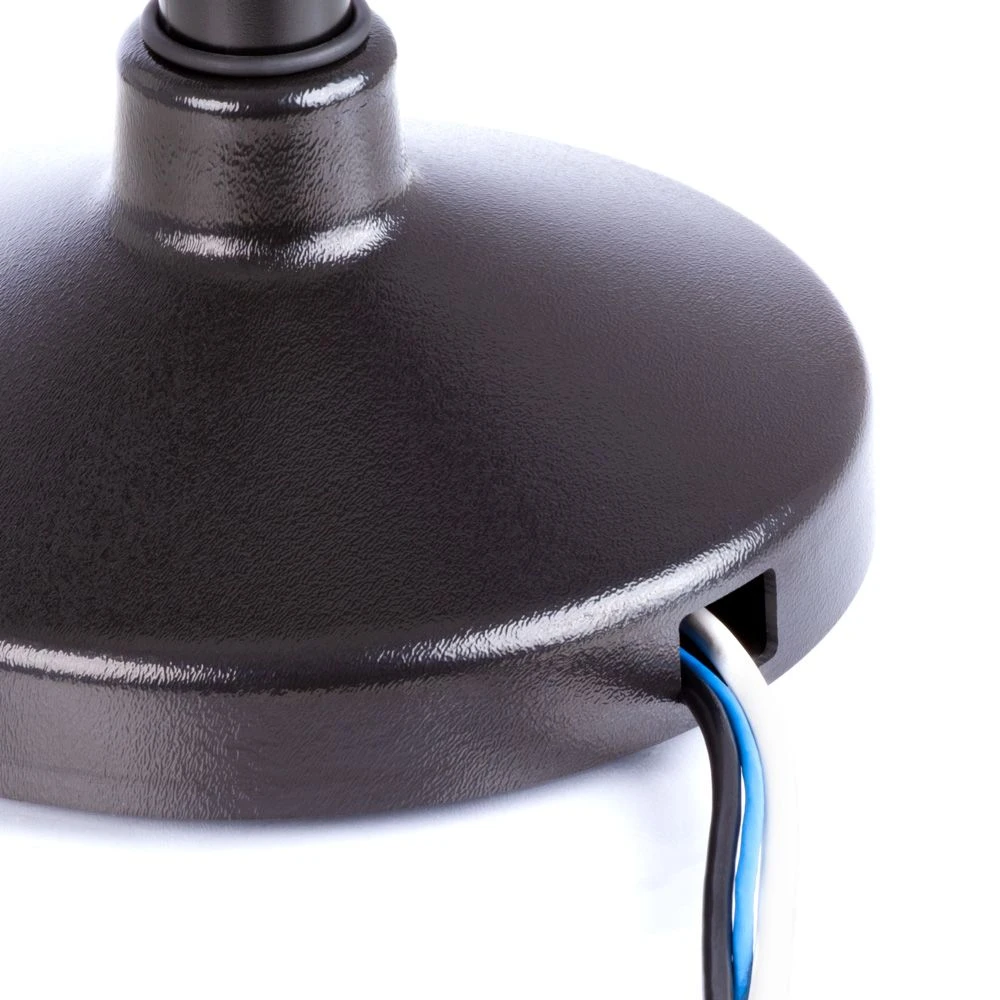

An optional base cover is available for use with any of the bases. The cover fully encloses the base of the PM192 Flange Base and covers the flange component on the PM192 Center and Offset Bases. Constructed of temperature, chemical and impact-resistant ABS, the cover is built to handle the toughest environments while adding an attractive look to the stand that protects and guides cables as they exit the bottom of the pole.

If you require a lobby display mount that will be moved frequently, the MCART rolling monitor cart may be a better option. It features PM192 poles attached to a wheeled base with heavy-duty casters.

The PM192-EZ1 Lobby Display Large Monitor Pole Stand is part of an entire family of modular mounts that can be assembled to meet almost any need. It can be augmented by adding a CPU bracket or any number of “PM” monitor and keyboard mounts. The PM192 pole accepts three mount kits, namely MKIT-E (single), MKIT-J (double), and MKIT-Y (pole top). Each of these kits is compatible with all SERIES-118 arms and mounting devices. A number of VESA and other monitor accessories are also available to address additional usage scenarios. Our team at Ergomart is always ready to help you design a system that works for your requirements.

Black is our Quick Ship (QS) color. Please call us about custom colors with four to six week lead times. Orders are usually shipped within 48 hours. Questions? We are here to help you! Please call 888 420 3200 or 214 742 6066.
