Dorian Multi-Monitor Workstation

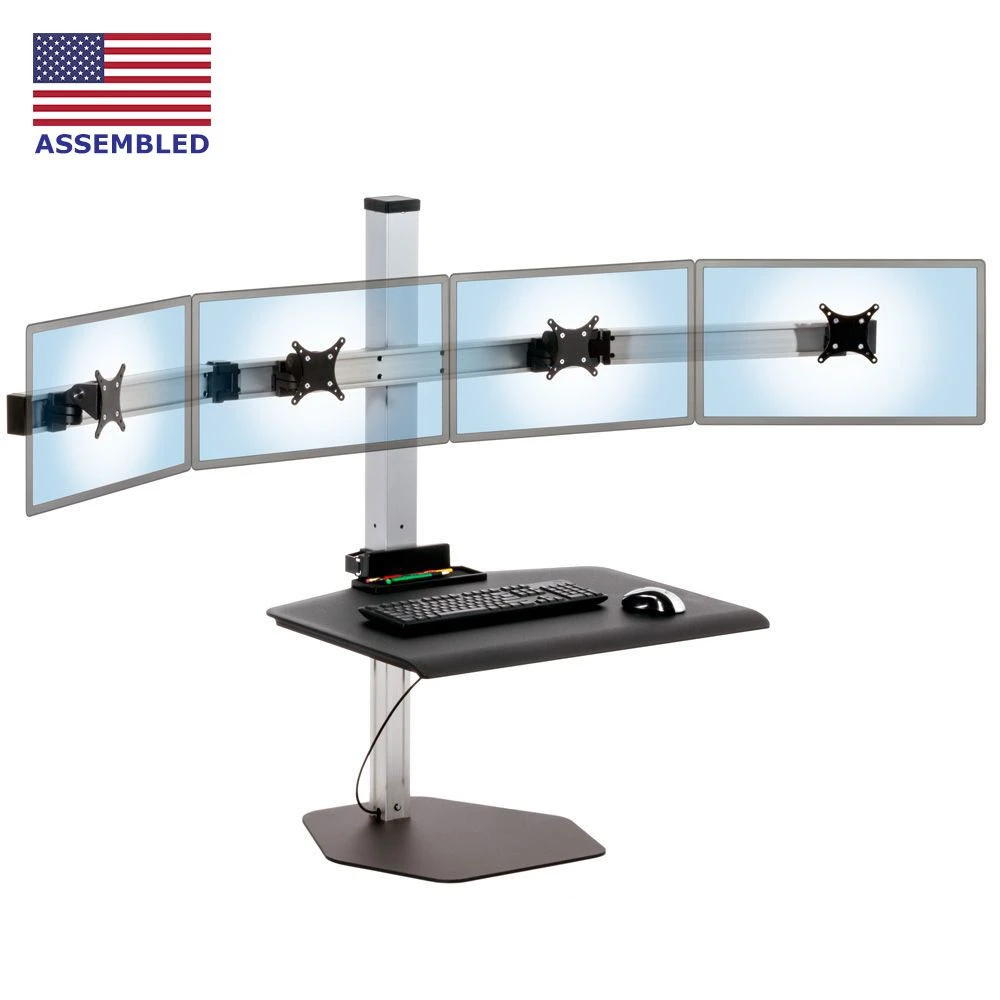

Quad Monitor Dorian Transforms Any Desk to a Sit-to-Stand Computing Workstation

• The Dorian Quad is the premier four monitor adjustable sit-stand workstation for monitors up to 24.67” wide (flat alignment)
• When the outer beams are curved inward 20 degrees max monitor width is approximately 22”
• Press a button, quickly adjust, release, and enjoy stability and security at any height
• 75mm/100mm VESA accepts many monitors and all-in-ones
• Generous worksurface space has room for small items in addition to keyboard and mouse
• The total weight of four monitors and items on the work surface must be between 24 and 40 lb
• Users up to 6′ 5″ tall can adjust the Dorian to standing height
• Each of the four monitors can adjust independently – tilt, swivel and rotate

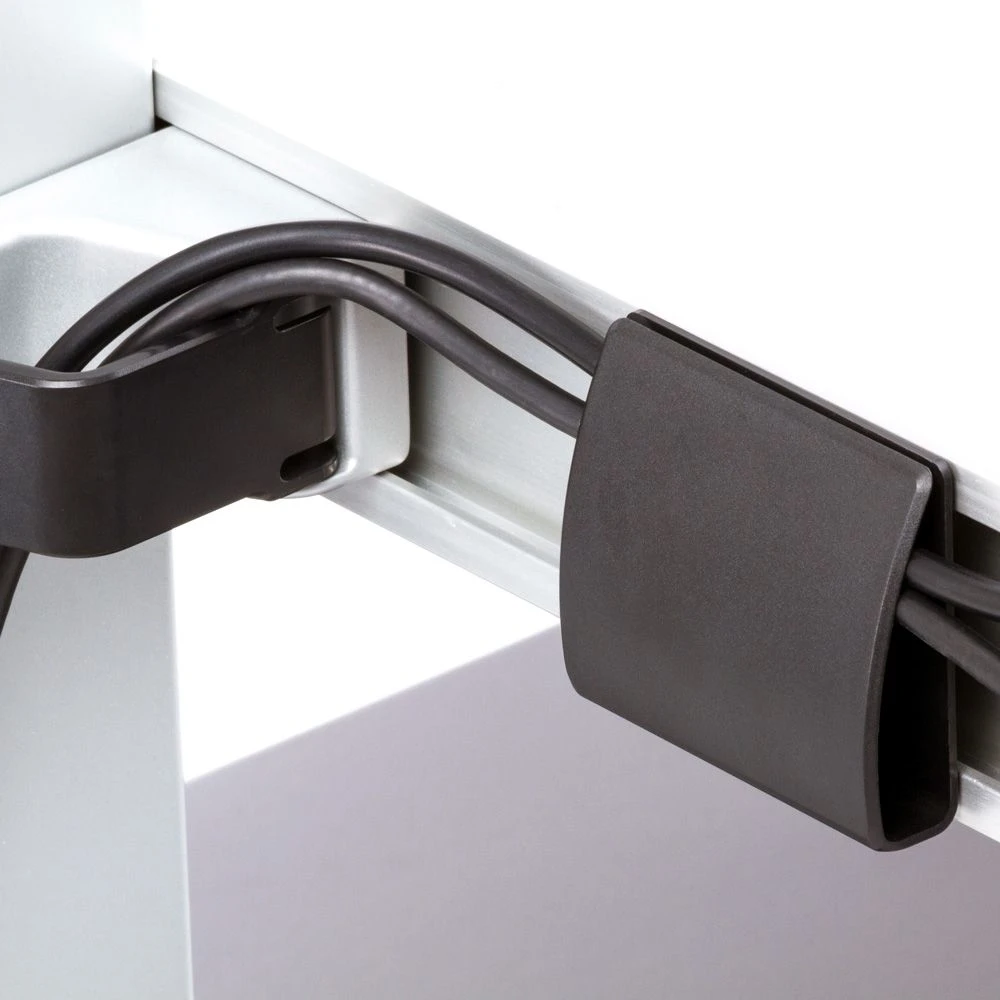

• Route cables along the device using the integrated cable management
• The Standard Color Scheme is the Quick Ship option. Black generally ships within 2-3 weeks
• Dorian single, dual and triple configurations are also available
• Questions? Please call us at 888 420 3200

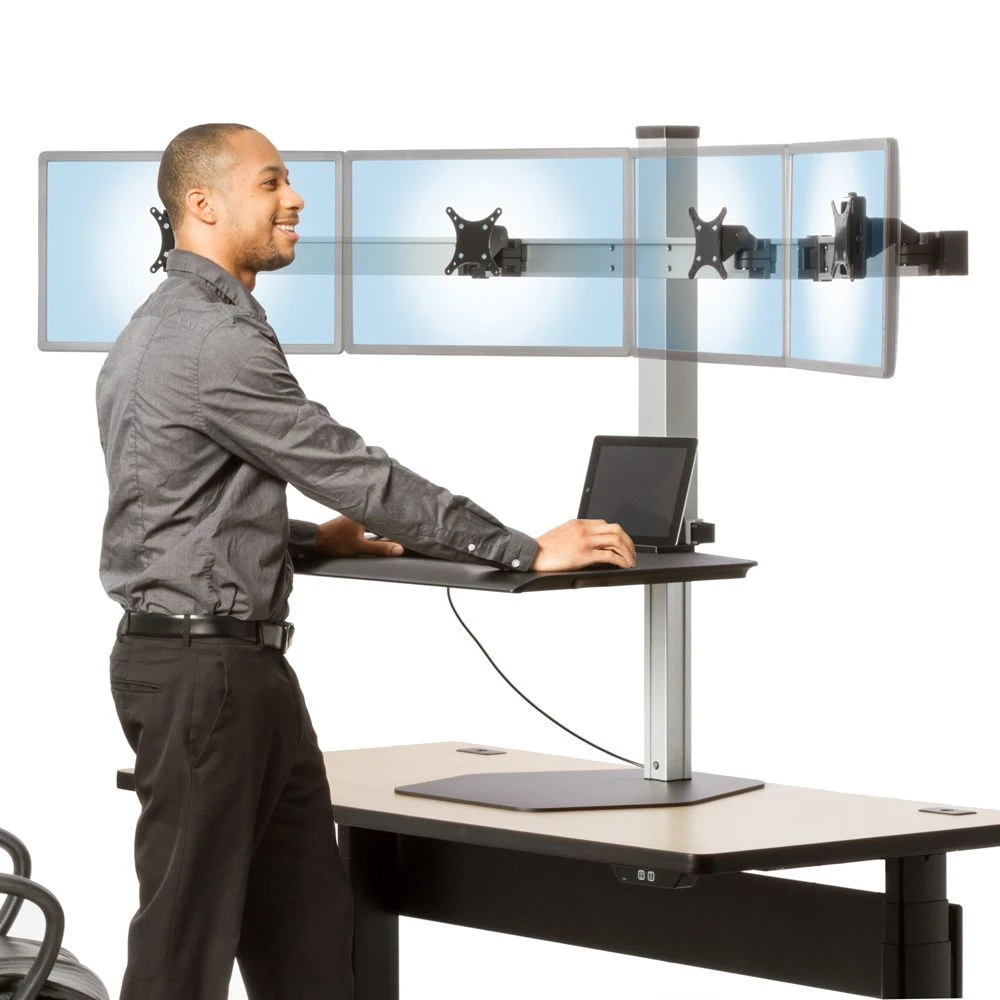

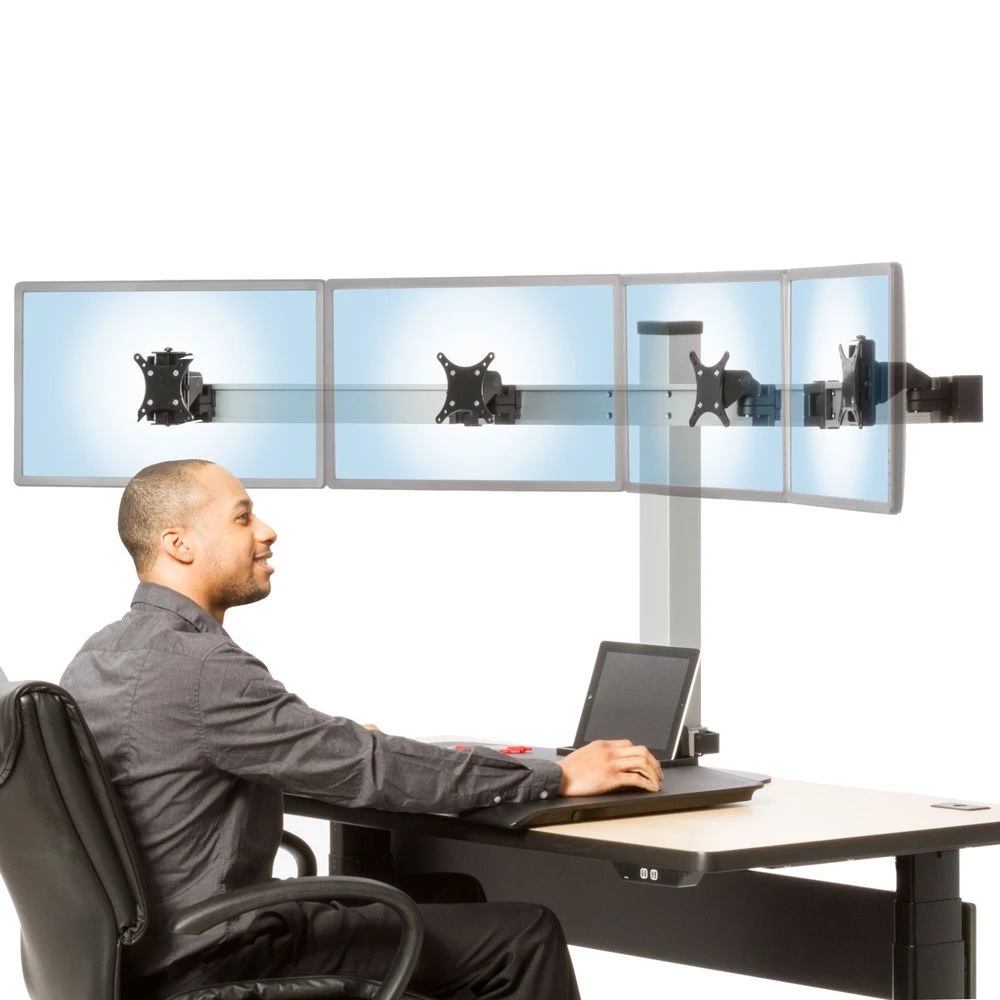

Benefit from the increase in productivity and improvements in well-being facilitated by a sit-to-stand work area. The height of the Dorian can be quickly and easily adjusted with just the press of a button anywhere in its 17-inch vertical adjustability range.

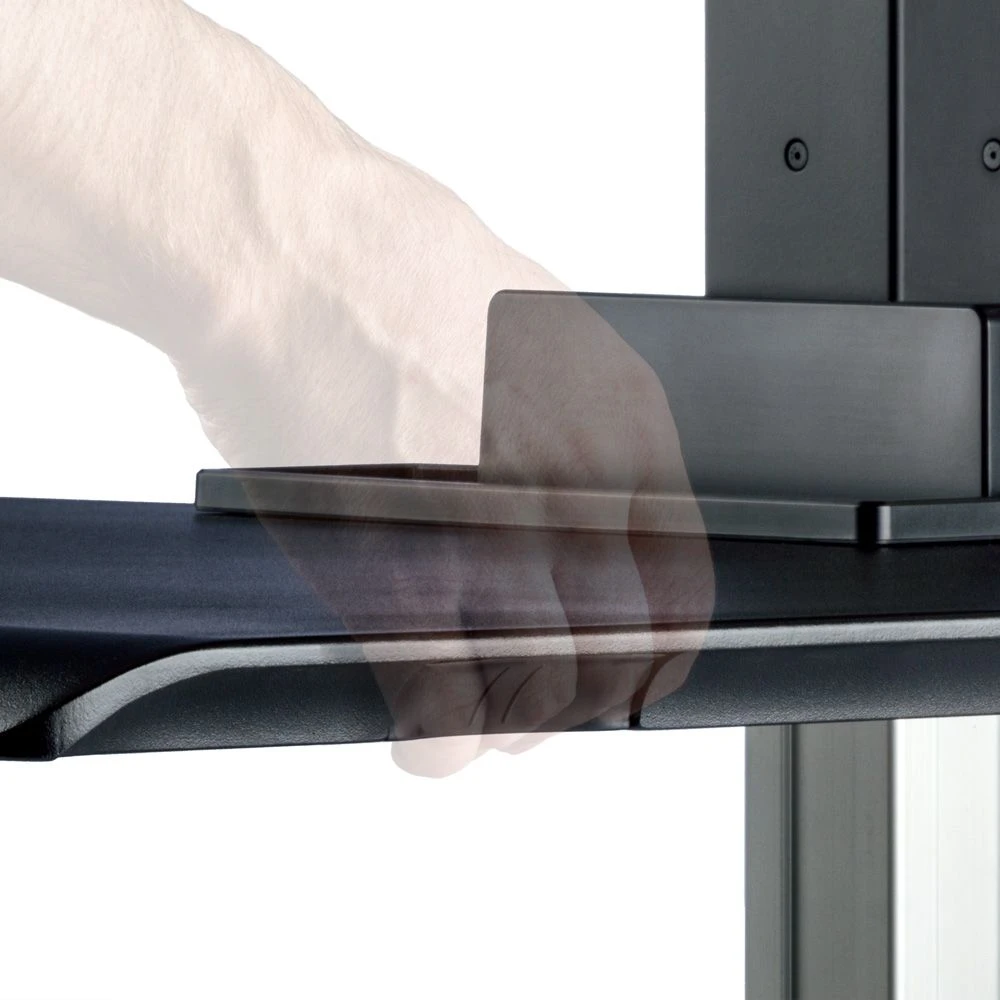

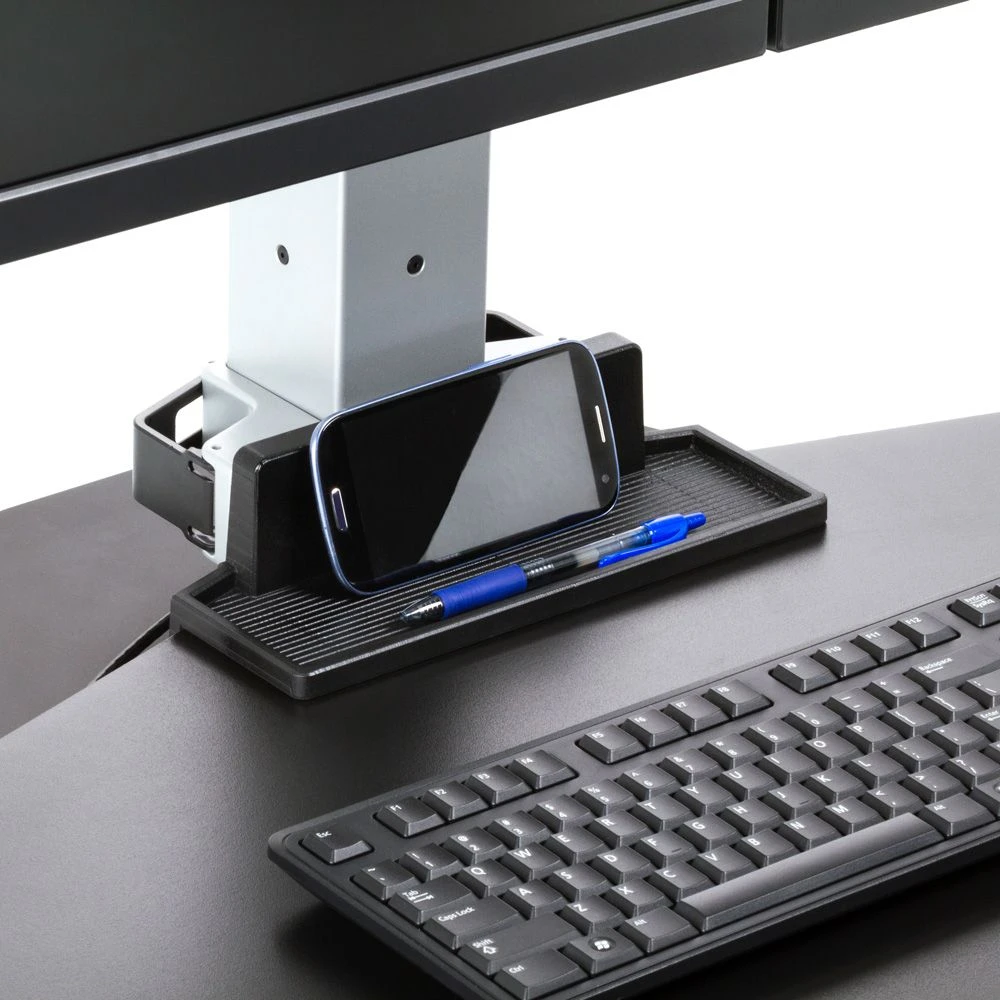

The 30″ x 24″ work surface can hold a keyboard and mouse in addition to various small essentials. This allows for items to stay in easy reach even when the Dorian is lifted above the desktop. The height is changed by pressing a button on the edge of the worksurface and simply moving the device up or down to the desired location. The movement is facilitated by a built-in motion assist mechanism inside the column. Once the correct position is reached, the user can simply release the button and the unit will stay firmly in position without falling over time. The device remains stable even during heavy keyboarding. A small tray is positioned underneath the monitor and holds small items in a convenient and safe location.

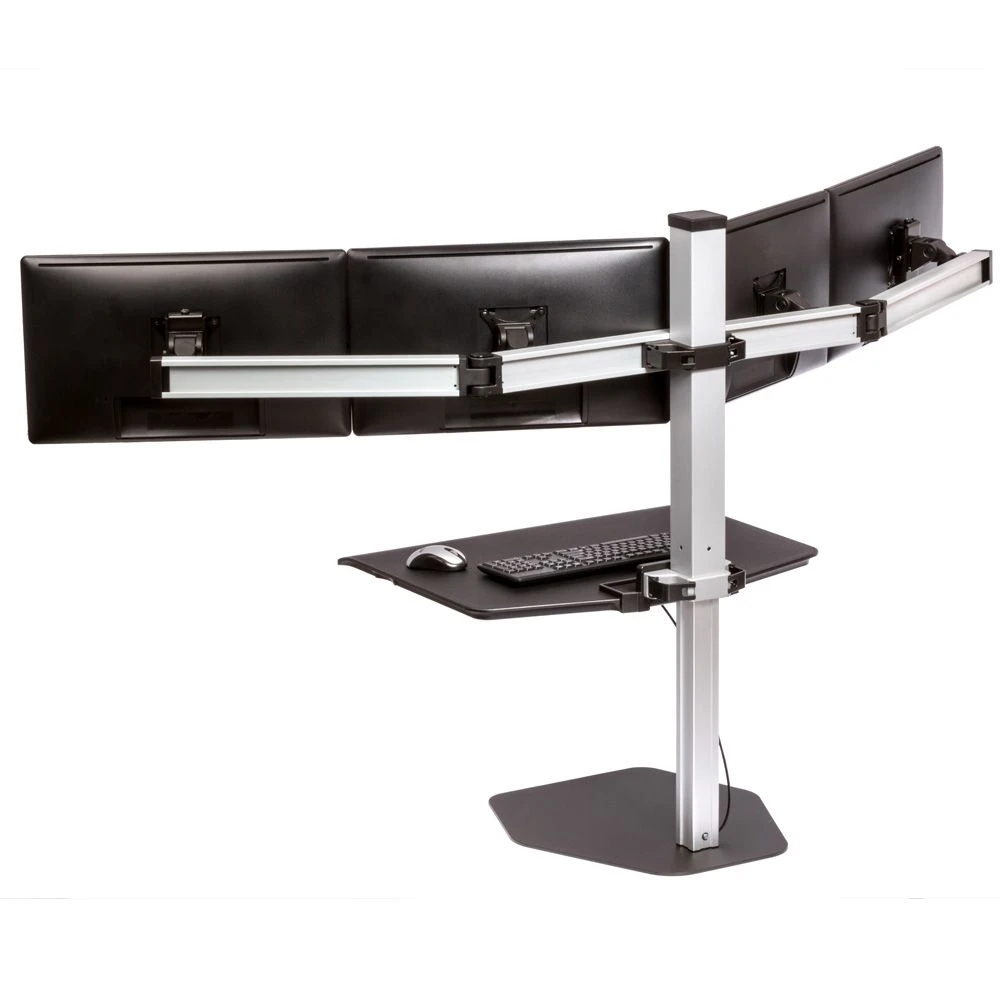

The position of the monitors in relation to the work surface is set during assembly. This can be adjusted in less than two minutes at a later time if required. Once the device is complete, both the monitor and work surface will move vertically together as a single unit. Each monitor can tilt, swivel and rotate landscape to portrait independently. The two outside monitors are attached to extension beams which can be angled on the hinges inwards to create an arc positioning.

While the Dorian is typically placed on a desktop surface and maintains its stability via the substantial, weighted base, clamp and through-desk mounting is also an option. Pads located underneath the base allow the unit to smoothly move and swivel for better positioning.

The total weight capacity of the Dorian Quad is between 24-40 pounds. This weight is the total of all elements attached to and placed on the device.

Questions? Please call us at 888 420 3200.

Shipping Weight	Box 1: 32 lb | Box 2: 56 lb | Box 3: 18 lb
Shipping Dimensions	Box 1: 28″ x 26″ x 3″ | Box 2: 35″ x 33″ x 7″ | Box 3: 40″ x 14″ x 6″
Warranty	5 Year limited

• SCREEN SWIVEL

  Each of the four monitors can independently swivel left and right.

• VERTICAL ADJUSTABILITY

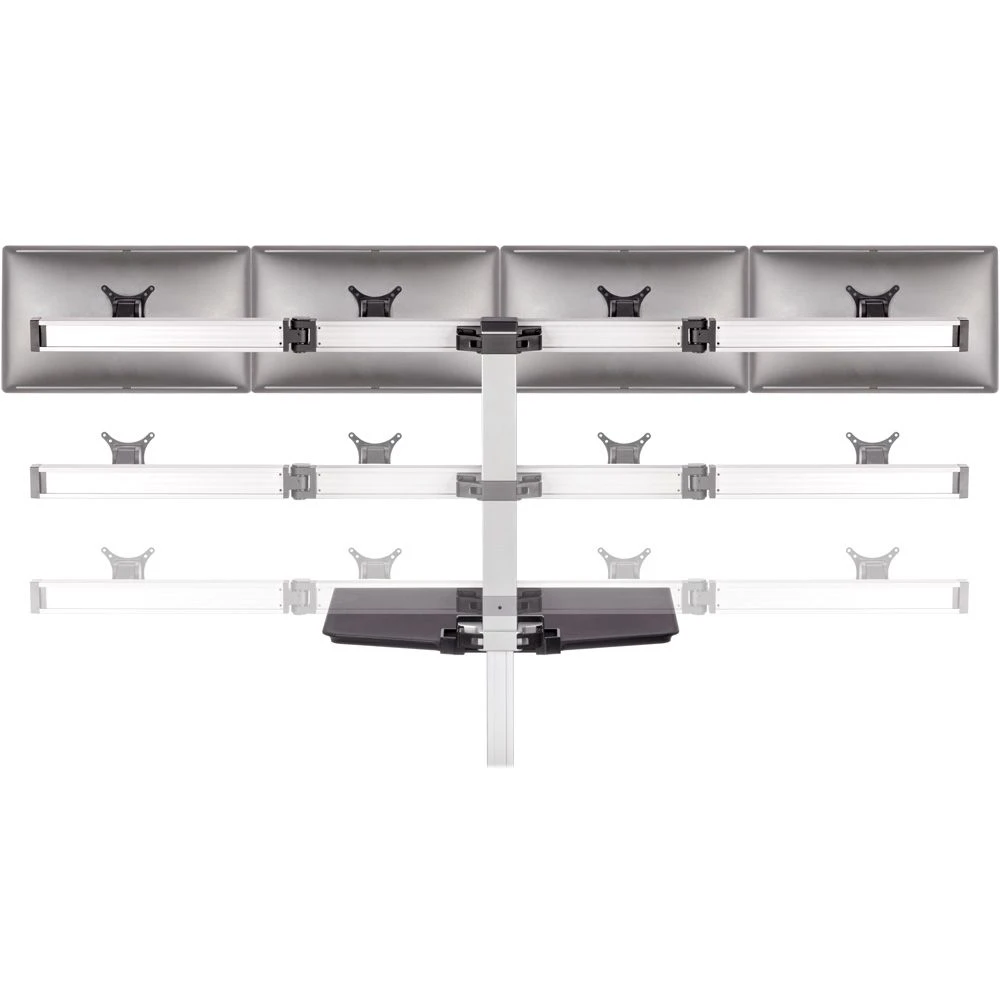

  Lift or lower the Dorian over 17.1″ of vertical travel, providing sit-to-stand capability for most users.

• TILTERHEAD ADJUSTMENT

  Each individual monitor can be tilted 90° or 45° from its vertical position, providing the user with the optimal viewing angle.

• PORTRAIT & LANDSCAPE

  Every monitor can independently be rotated from landscape to portrait.

• HORIZONTAL ADJUSTMENT

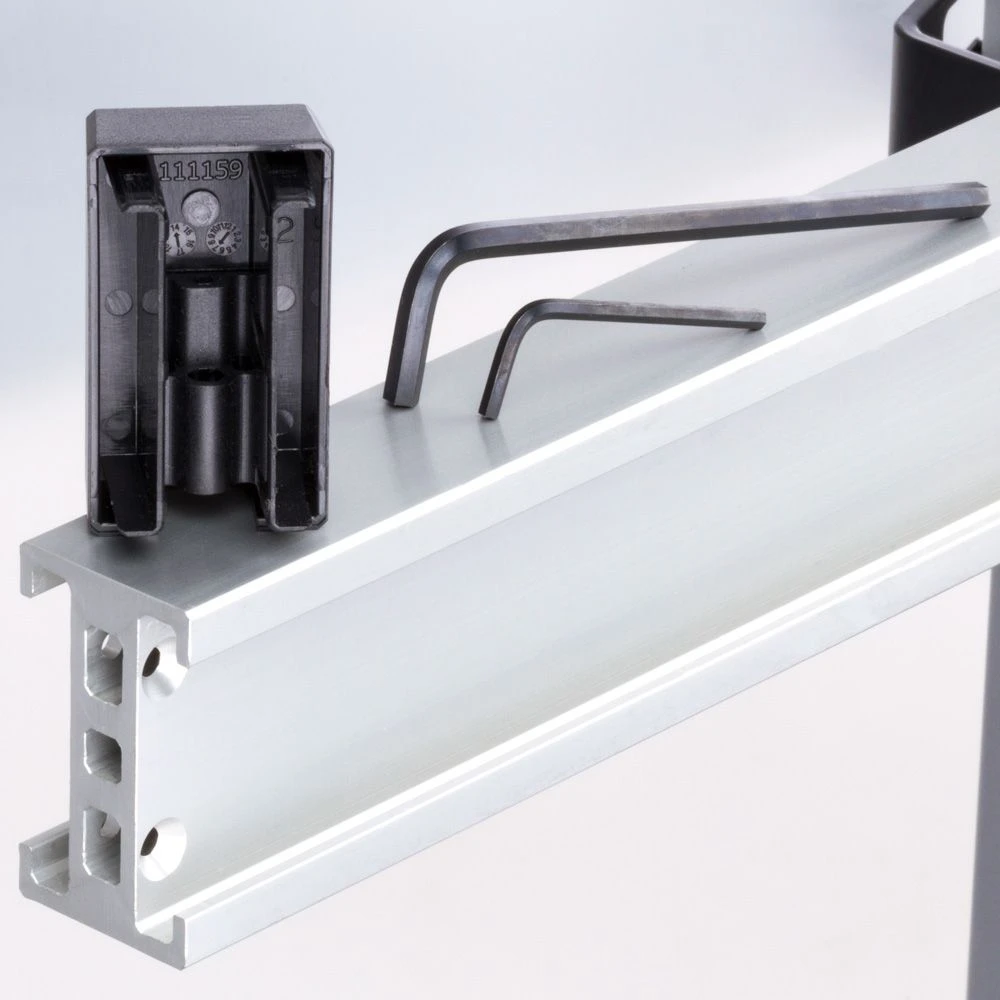

  Each monitor can be attached where desired along the horizontal beam. This flexibility allows for accommodation of a wide range of screen sizes.
