Dissatisfaction 30

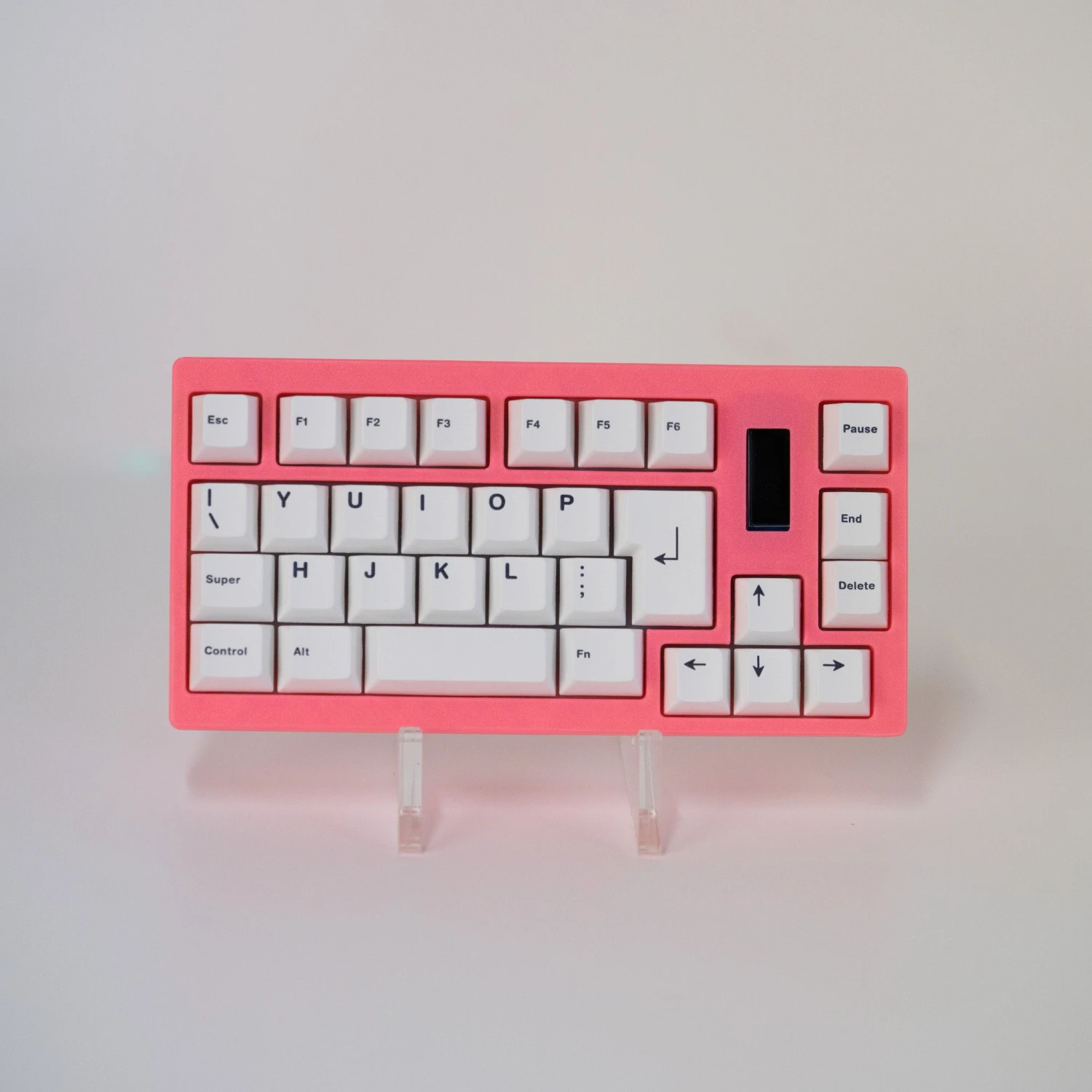

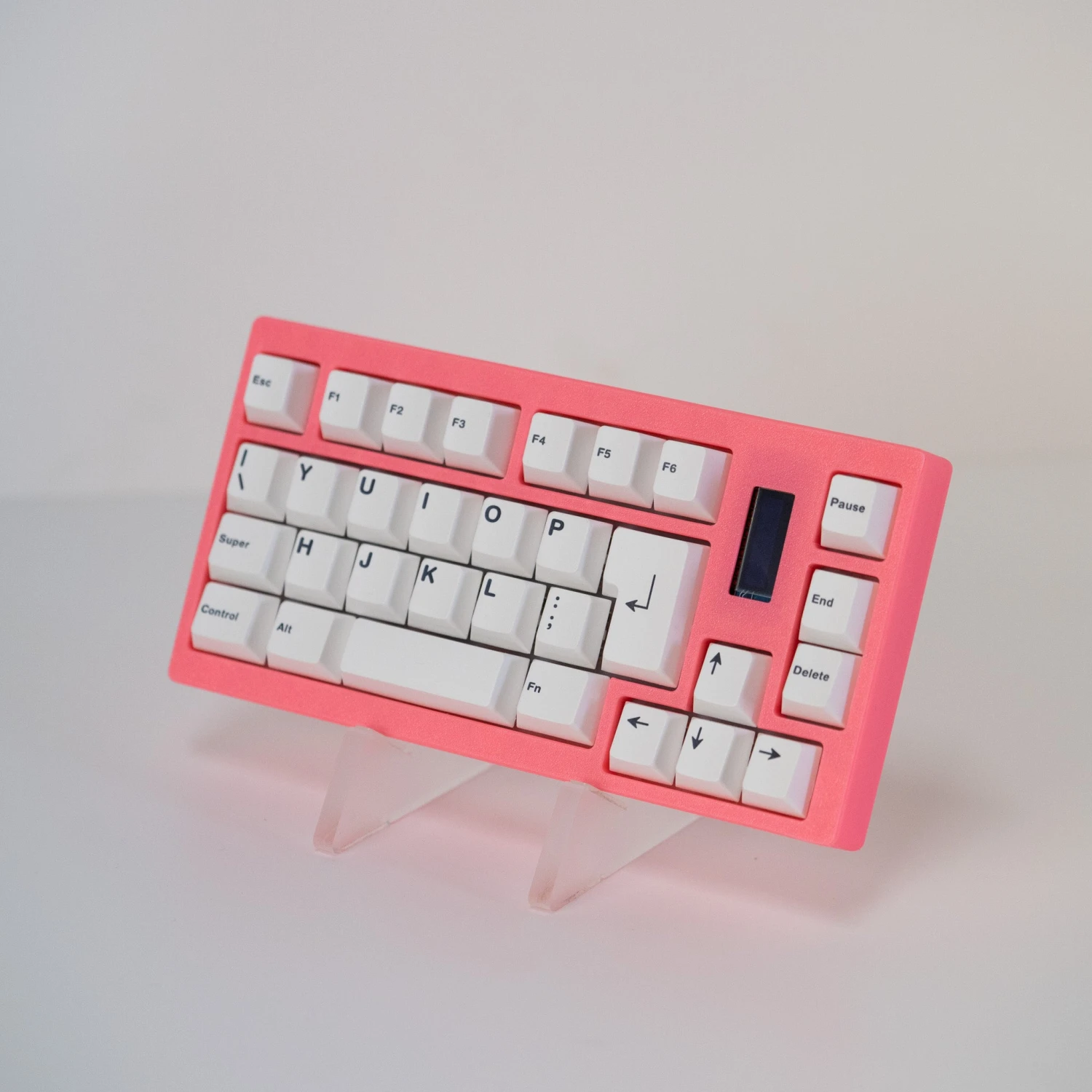

This is an ISO adapation of  Dissatisfaction30. The PCB supports both the original 75% layout and extended 1800 layout for the Dissatisfaction30 and Disorder30.

This fun DIY kit is powered by a pro-micro (or compatible clone). It requires some through hole soldering for the diodes, OLED and micro-controller.

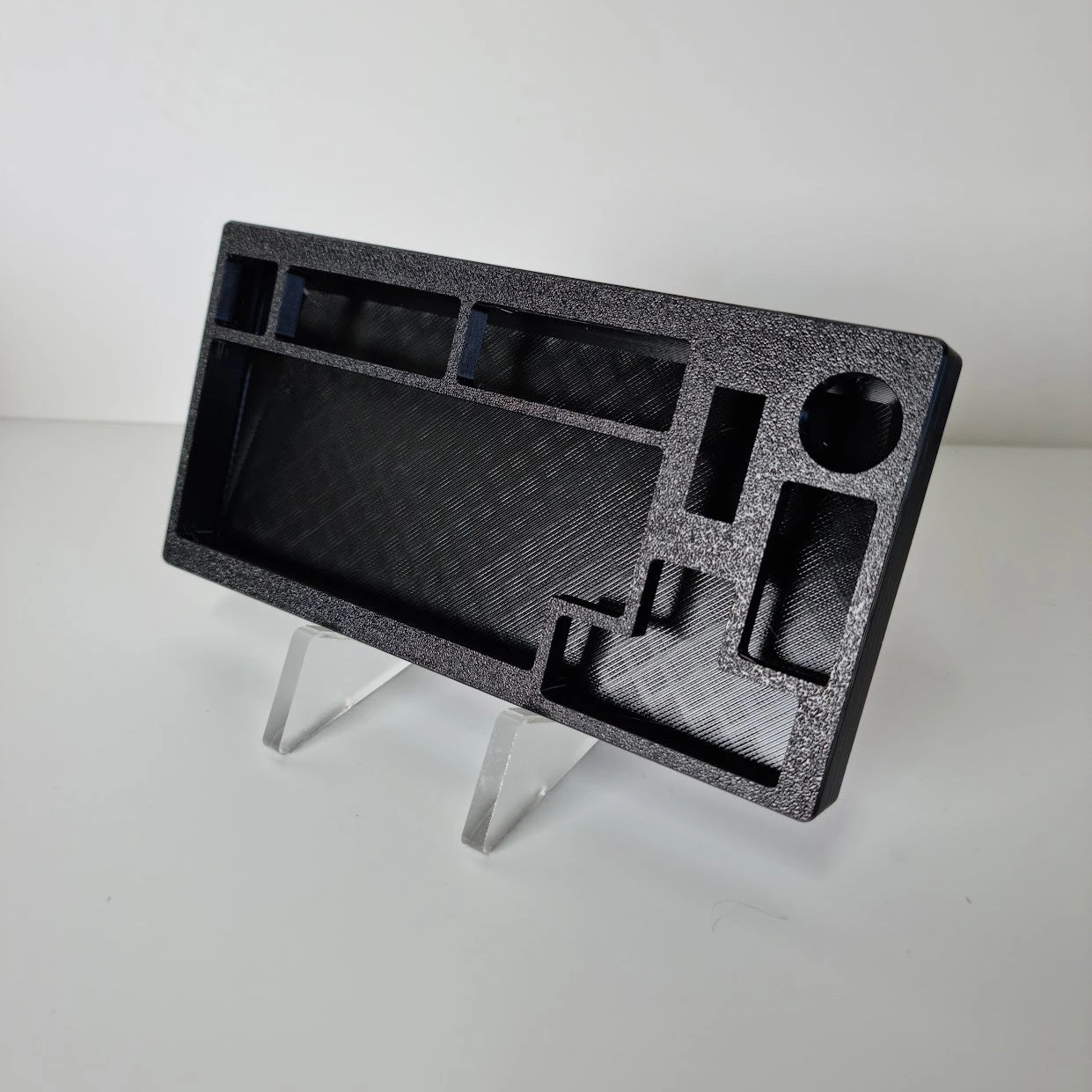

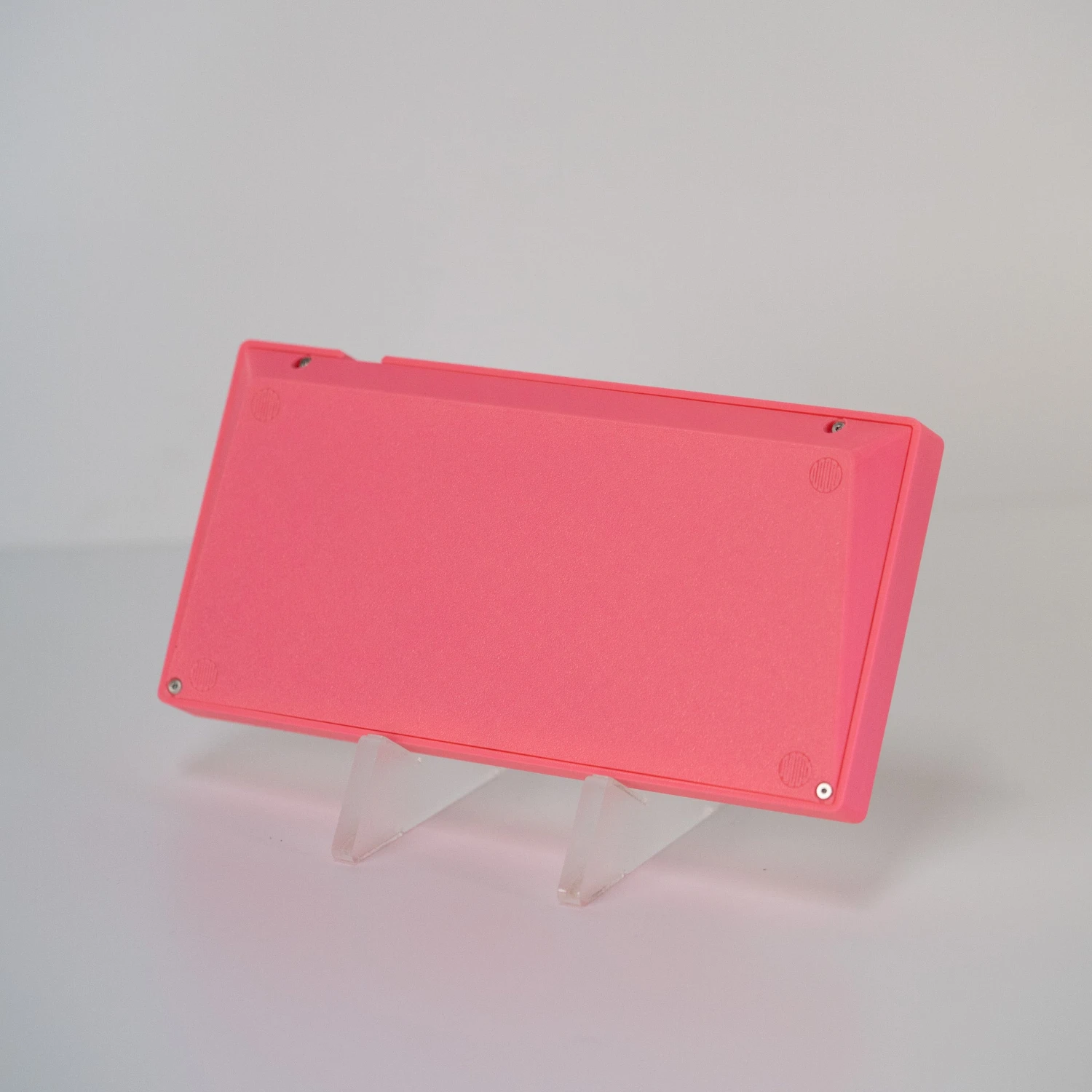

A 3D Printed case is provided, with along with some brass heat-set inserts.

Layout

Firmware

The keyboard supports both via and vial. Firmware files can be found on the github here.

Kit Contains

• Disorder30 PCB
• 50 Through-hole Diodes
• 3D Printed Case
• 12x M2 Case/Plate Screws
• 0.91″ OLED Screen
• POM Plate

Required to complete

• Pro-Micro or Sea-Micro

Credits

The Dissatisfaction30 was designed by dcpedit. The ISO adaptation was made by mkylama. Github source files can be found here.
