Connect-44 Dual Tier Eight Monitor Stand

HEAVY-DUTY EIGHT MONITOR DESKTOP STAND

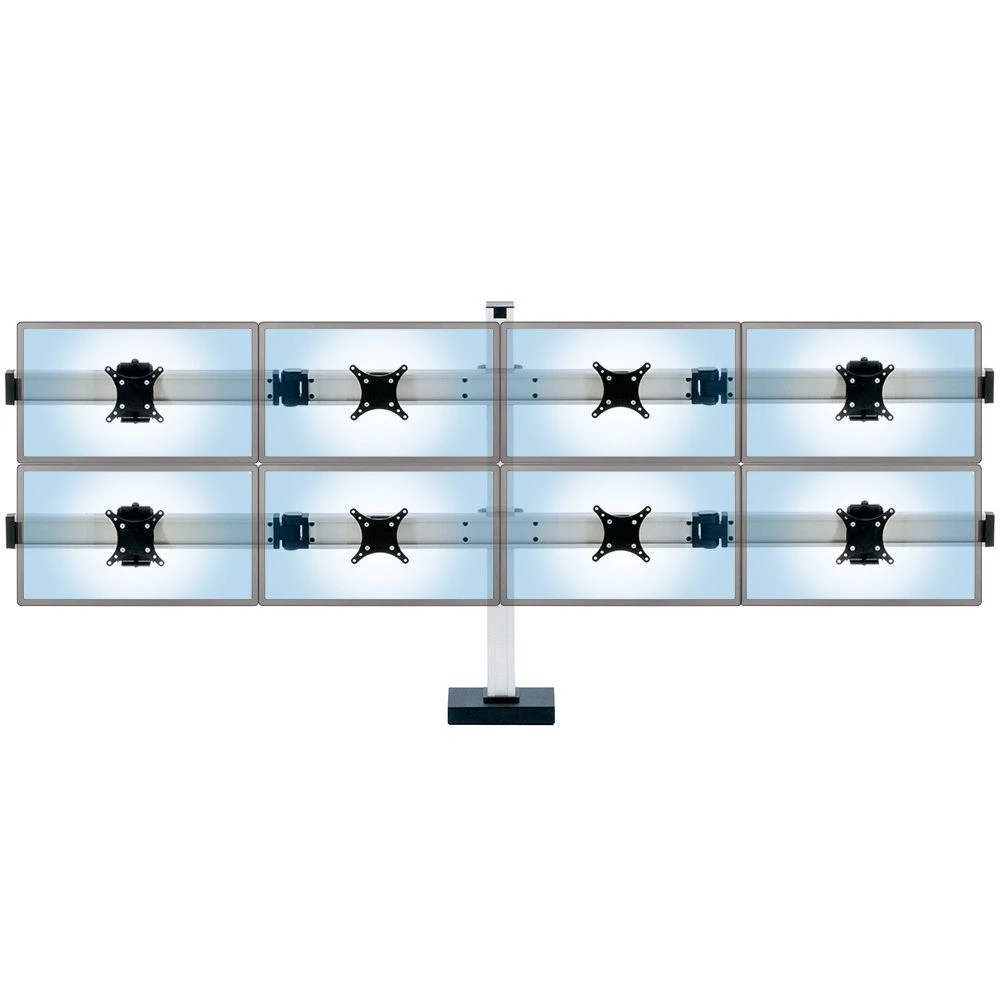

• Connect-44 is our highly adjustable display stand for using 8 monitors in a 4-over-4 configuration with each monitor up to 24.67” wide (flat alignment)

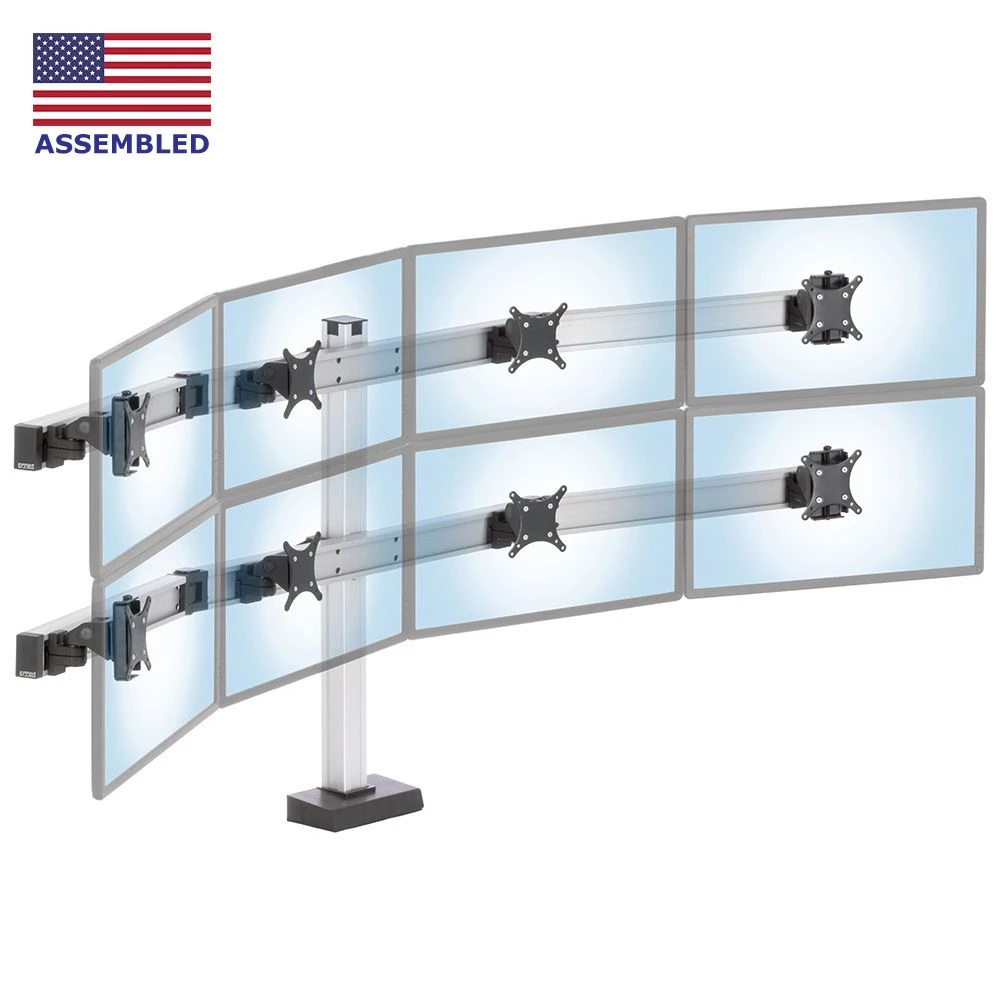

• Max monitor width is slightly reduced to approximately 22” when beams are curved inward 20 degrees
• Tilter heads allow for precise positioning: tilt, swivel and rotate
• Mount to a desk surface with thru-desk or C-clamp
• Cable routing keeps wires organized and clutter-free
• Start with a smaller stand and upgrade later with maximum reuse of parts

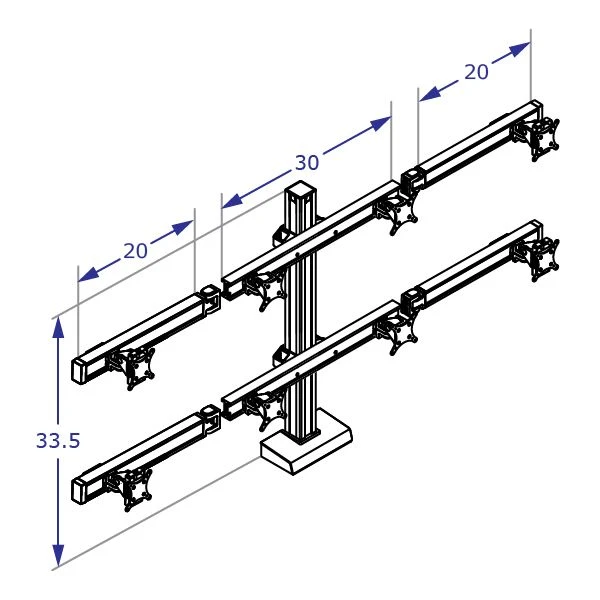

The impressive CONNECT-44 manages eight monitors in a dual-tier, four-over-four configuration. If the monitors are all equal in size, the stand can accommodate screens with a maximum of 24.67 inches in width and weighing up to 30 pounds each. When being assembled, each of the horizontal beams can be attached at any height along the 33 inch central vertical column. The monitors can be attached anywhere along the horizontal beams and each monitor can be individually swiveled and tilted as well as rotated between landscape and portrait. On each tier, the outer horizontal beams can be tilted inwards to create an arc shape. Wires are kept clean and out of the way by routing the cables along the back of the stand. The stand can be mounted to a surface using either a clamp on the edge or through the desk itself.

The CONNECT-44 is the largest CONNECT offering, but there are many other configurations from anywhere to two to six (in a 3-over-3 set-up) monitors. Due to the modularity of the CONNECT system, a smaller stand could later be reconfigured to a CONNECT-44, or any other larger system, reusing most of the original parts. This ability to expand and adjust in the future is optimal for those with evolving needs.

Connect-44 Shipping Weights and Dimensions
Static Column	Box 1: 39 lb, 41″x15″x15″, Box 2 & 3: 18 lb, 39″x14″x6″
Clamp Mount	Adds 7 lb to Box 1
