Connect-33 Dual Tier Six Monitor Stand

FUTURE-PROOF HEAVY-DUTY SIX MONITOR STAND

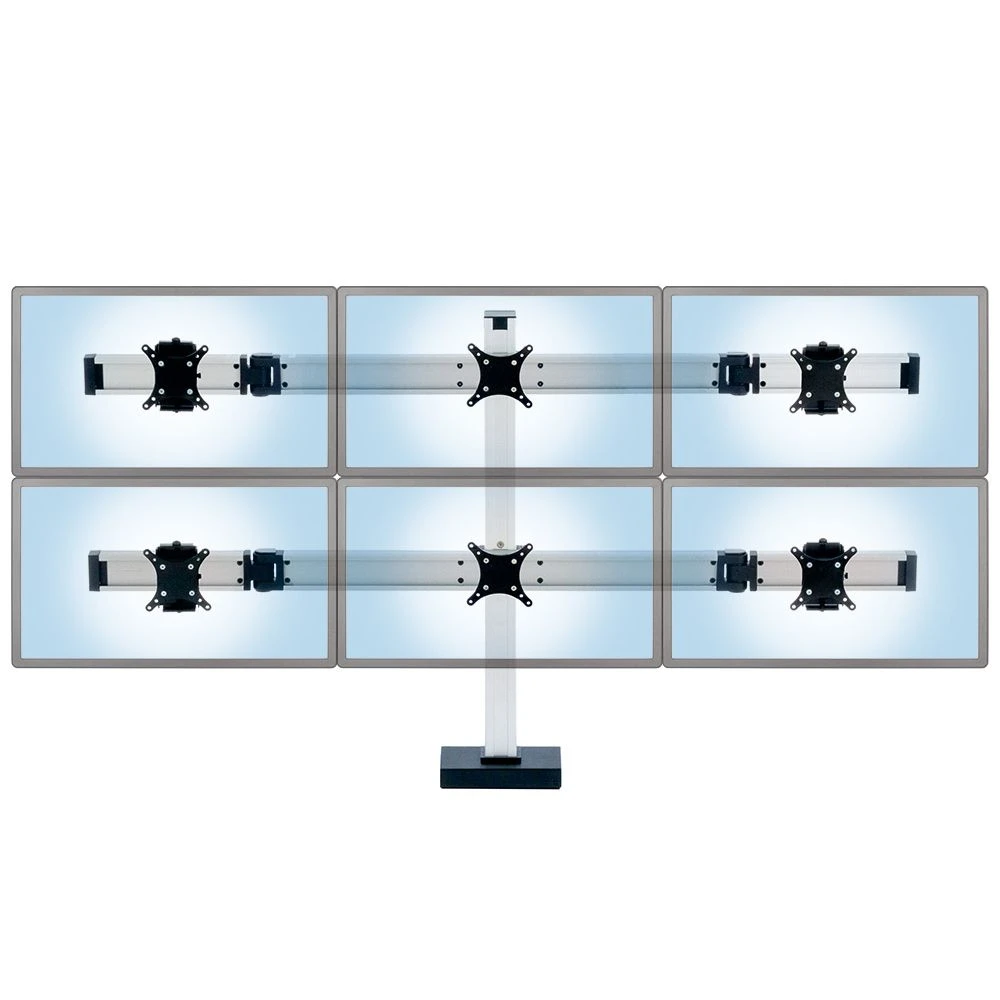

• Connect-33 is a highly adjustable two-tier stand that can hold 6 monitors each up to 27” wide (flat alignment) in a 3-across setup

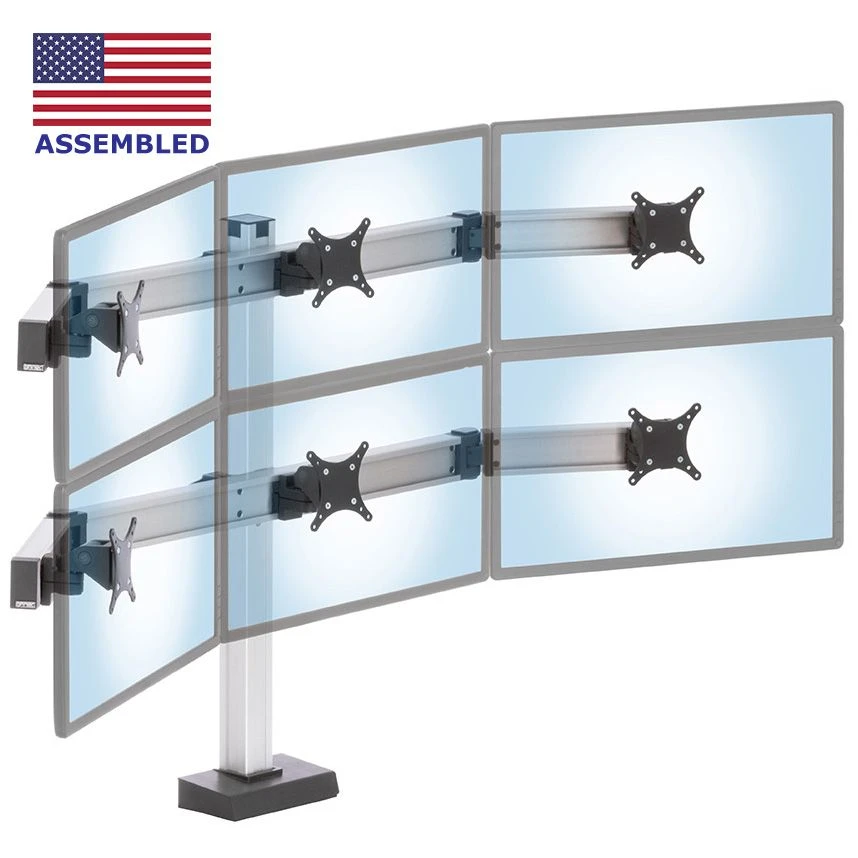

• When curving the outer beams inward by 20 degrees the max monitor width will be reduced to around 24”
• Top quality components offer maximum flexibility in monitor positioning

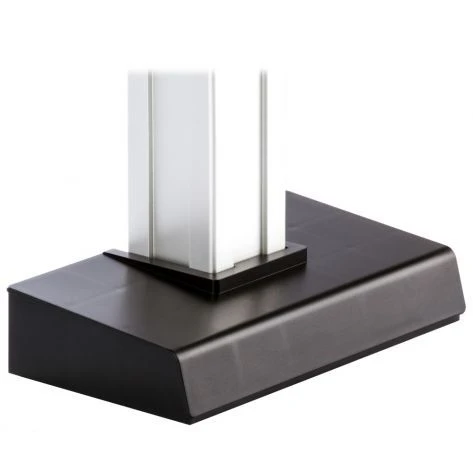

• Two mount options: thru-desk or C-clamp
• Discreet, no-nonsense cable management
• Modular design allows upgrading to eight monitors without wasted parts

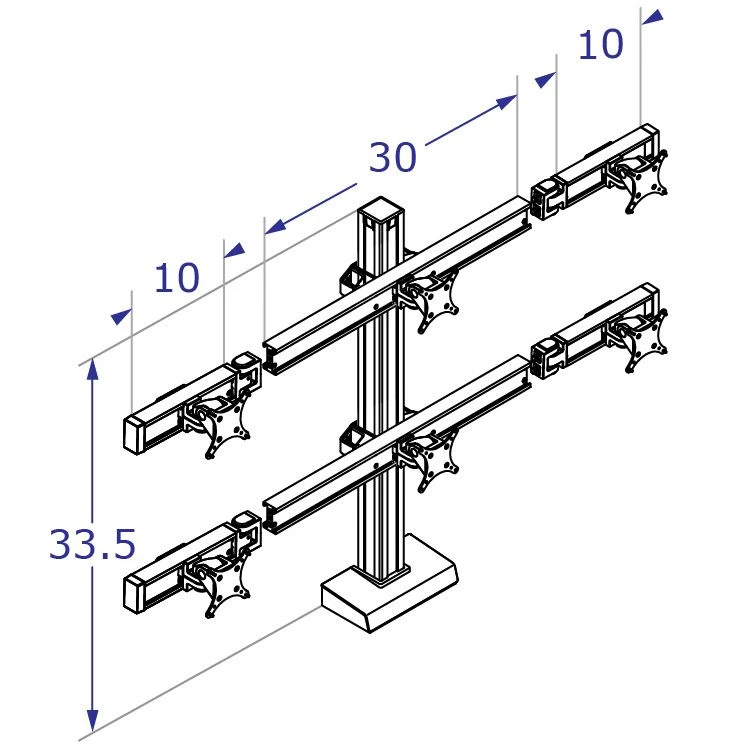

The CONNECT-33 is a premium stand is designed to handle six monitors in a dual-tier, three-over-three configuration. Assuming that the monitors are identical in size, the maximum monitor width that can be accommodated is 27 inches. At installation, the two horizontal beams can be positioned at any height on the 33 inch tall central column. The CONNECT’s articulating VESA mounts can be secured anywhere along the beams and accept monitors weighing up to 30 pounds each. These tilter mechanisms provide instant landscape/portrait orientation adjustment, as well as full swivel and tilt capability. The expansion beams on the right and left articulate to achieve an arc-shaped design. The simple and elegant wire management system routes the cables along the column and the beams to eliminate clutter. Two options are available for mounting the stand on the work surface: a thru-desk mount or a C-clamp mount.

The CONNECT-33 is just one of many configurations for the CONNECT multiple monitor mounting system. The CONNECT easily scales from a simple 2 monitor set-up to a 4-over-4, eight monitor configuration. Asymmetrical systems are also supported. The modular nature of the design allows going from a relatively modest system to a more complex one over time, by adding expansion components and reusing nearly all the original parts of the mounting system. This rational approach to design makes the CONNECT the ideal choice for professionals that expect their computing needs to evolve over the years.

Connect-33 Shipping Weights and Dimensions
Static Column	Box 1: 39 lb, 41″x15″x15″, Box 2 & 3: 11 lb, 39″x14″x6″
Clamp Mount	Adds 7 lb to Box 1
