CMT2415 Triple Monitor Arm
Original price was: $378.00.$97.99Current price is: $97.99.
- Uncompromising quality, every time.
- Your questions, our prompt answers.
- 7 days return and exchange
- Free Shipping, No Compromise on Quality
TRIPLE LCD-LED / PLASMA SCREEN HEIGHT ADJUSTABLE ARM
- The CMT2415 is our popular arm for holding 3 monitors up to 27” wide each in a flat configuration
- Max monitor width may reduce to around 24” with beams curved inward 20 degrees
- CMT2415 floats three monitors up to 22 pounds over a 15” vertical range
- Clamp, wall, track and pole mounts are among the available mounting options
- The side beams can be adjusted in an arc configuration
- Each monitor has its own tilter mechanism to allow exact positioning
- Independently tilt, swivel, rotate, and adjust each monitor
- Wire management features ensure clean and tidy cable routing
- Questions? Please call us at 888 420 3200
- Please watch our YouTube Video for tips on installing and adjusting the arm component included with this product

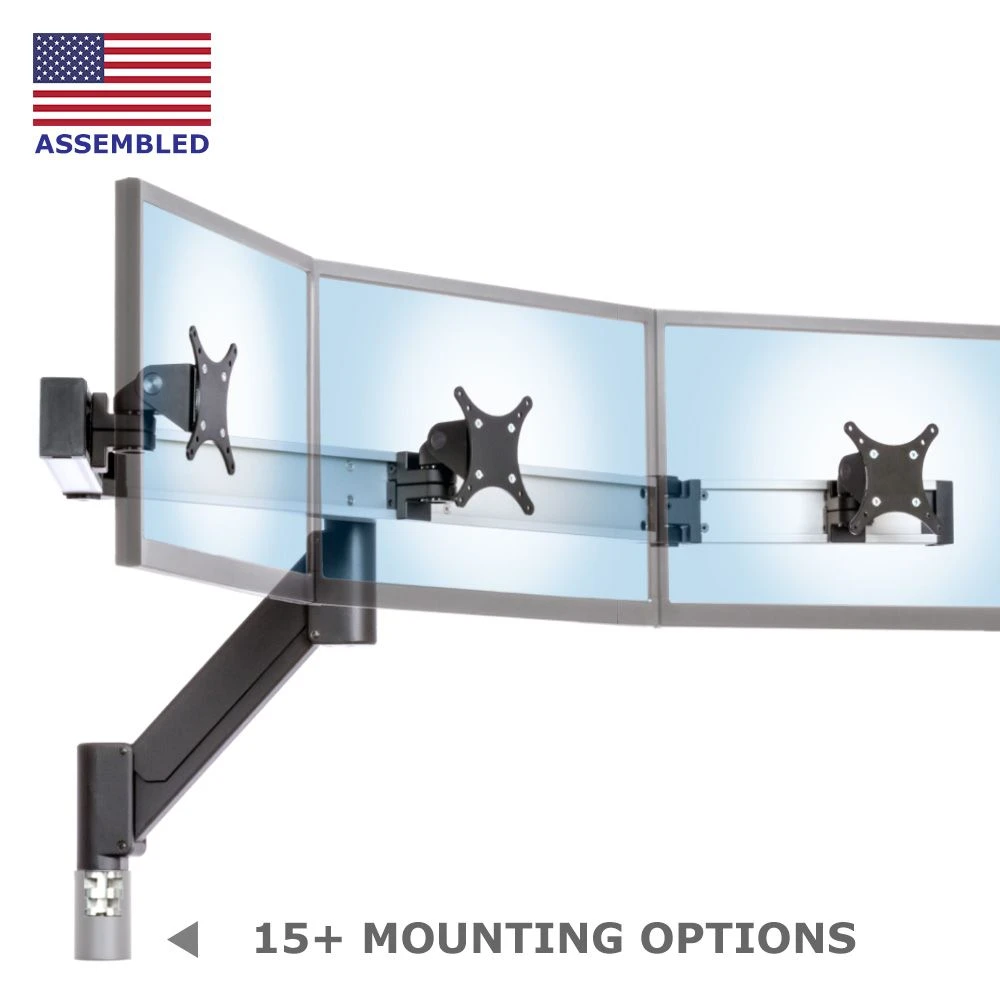

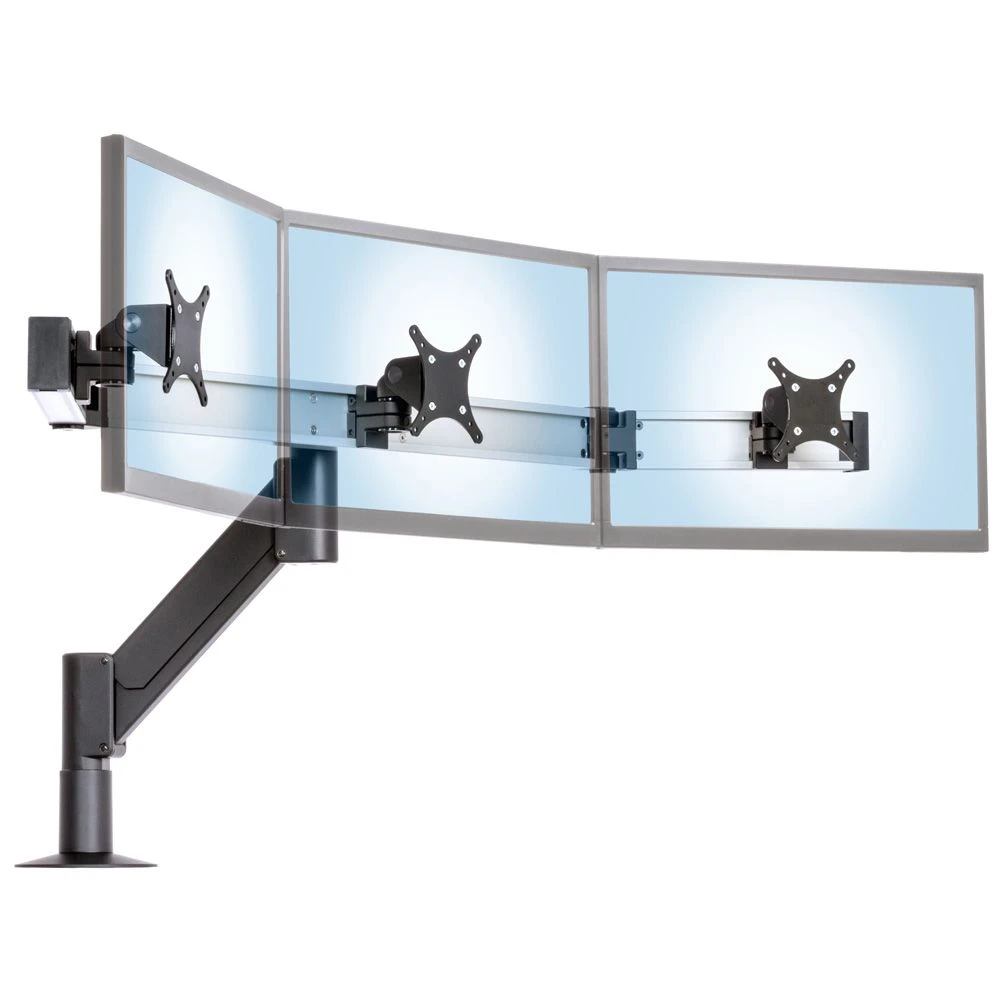

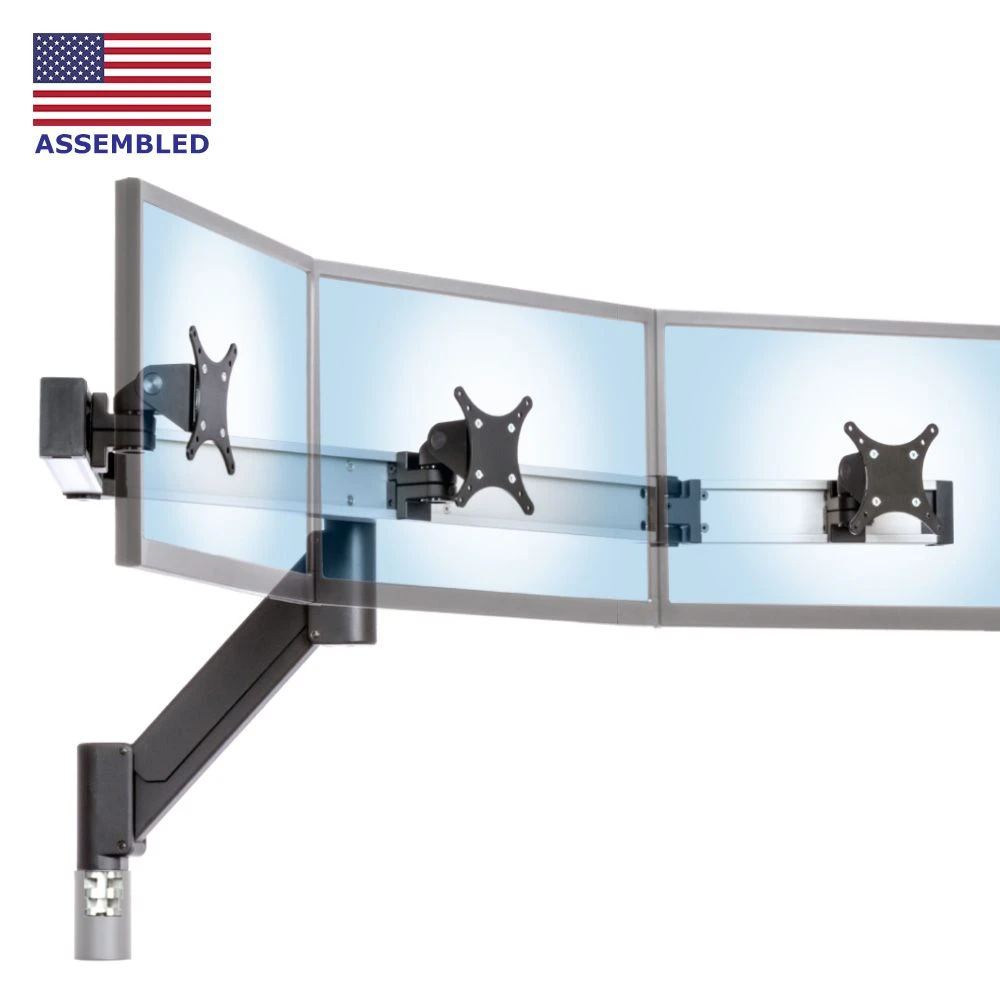

The CMT2415 mounts three monitors from 5 to 22 pounds each and up to 27″ wide (from outside edge to outside edge). Using the new CONNECT beam and the heavy-duty 2415 arm, the user can easily float the monitors into the desired position. Full tilt, swivel and rotation on sliding tilter head mounts allow each monitor to be placed precisely and independently of the others. Two lateral beams are connected to a 30″ central beam with articulating hinges that can be angled to create an arc shape.
The CMT2415 arm provides 20.1″ of reach from the center of the mounting point of the unit to the back the monitors in addition to two points of lateral articulation and 15″ of vertical travel.
Black is the standard color on this arm. Metallic Gray may require longer lead times. Call for other color options.
For comprehensive information, detailed specifications, and larger images of the CONNECT family of monitor stands, and to view additional product configurations, please visit our CONNECT page.
Questions? Please call us at 888 420 3200.
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
| Shipping Weight | Box 1: 12 lbs | Box 2: 24 lbs |
| Shipping Dimensions | Box 1: 21″ x 14″ x 4″ | Box 2: 41″ x 15″ x 15″ |
| Warranty | 5 Year limited |
INSTALLING AND ADJUSTING YOUR SAA ARM:
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
FLOOR STAND
WALL TRACK
CART
TRACK SLIDING
ADAPTABLE • FUTURE PROOF
-
ARM EXTENSION
At its maximum reach, the arm extends out 21.5″. When the monitors are not in use, the arm can be pushed back to take up a mere 8″ of space.
-
ARM ROTATION
The arm can be rotated 360° at its base providing there are no obstructions to its movement.
-
BEAM ROTATION
The beams holding the three monitors rotates 360° at the point where it is attached to the arm, provided the arm is not below its horizontal position.
-
BEAM ADJUSTMENT
The two outside beams are attached by hinges and can be manipulated to create an arc shape or pushed back completely flat.
-
VERTICAL ARM RANGE
The CMT2415 can travel 14.5″ vertically when wall-mounted. Desk-mounting can restrict some of this movement but it can be reclaimed with an optional vertical extension.
| Color | Black, Metallic Gray |
|---|---|
| Vertical Adjustment | 15" instant adjustment |
| Max Swivel (at Monitor) | Up to 360° based on monitor size/tilt |
| Max Swivel (at Elbow) | Max Swivel (Beam) 360° |
| Max Swivel (at Base) | 360° |
| Portrait to Landscape | Yes |
| VESA Options | 75 x 75 |
| Horizontal Extensions | Call for information. |
| Monitor Horizontal Reach | 20.1" from center of mounting pin to front of VESA plate |
| Monitor Arm Capacity | 5 to 22 lb per monitor, 5 to 22 lb per monitor |
| Weight Range | 5-22 lb per monitor, 15-66 lb total |
| Mounting | |
| Number of Monitors | 3 |
| Mount Type | Monitor Arm |
| Vertical Extension (optional) | 5" Vertical Extension, 5" Vertical Extension, 8" Vertical Extension, 8" Vertical Extension, 12" Vertical Extension, 12" Vertical Extension |

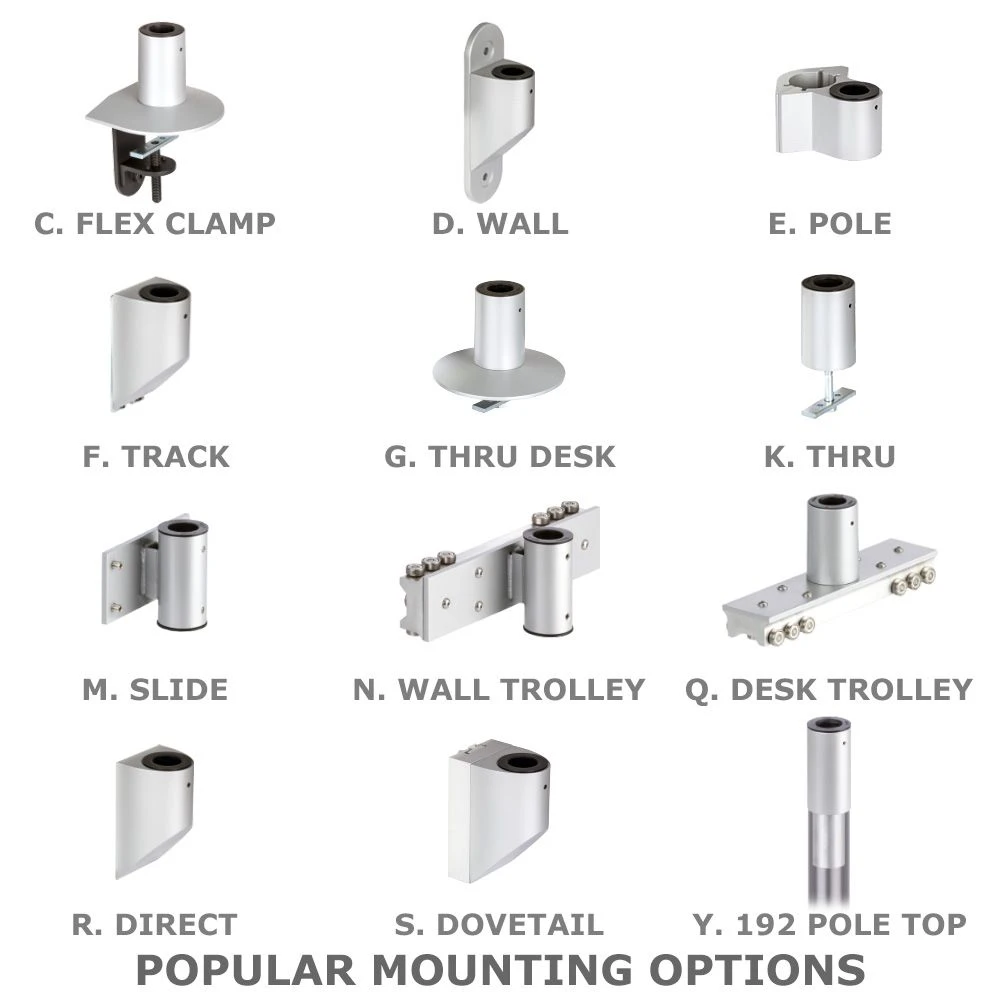

| Mount Kit | No Mount Kit, Flexible Mount Kit C, Flexible Mount Kit C, HD Wall Mount Kit D, HD Wall Mount Kit D, Dual Wall Mount Kit D3, Dual Wall Mount Kit D3, HD Track Mount Kit F, HD Track Mount Kit F, HD Thru Desk Mount Kit G, HD Thru Desk Mount Kit G, Column Mount Kit K, Column Mount Kit K, Dual Arm Mount Kit L, Dual Arm Mount Kit L, OEM Mount Kit R, OEM Mount Kit R, Dovetail Medical Mount Kit S (call), Dovetail Medical Mount Kit S (call), HD Pole Mount Kit E, Dual Pole Mount Kit J, Pole Top Mount Kit Y (call), Horizontal Track Slider Kit M (call), Horizontal Track Slider Kit M (call), Roller Track Positioner Kit M2, Roller Track Positioner Kit M2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2 with Brake, Roller Track Trolley Mount N2 with Brake, Desktop Roller Trolley Kit Q (call), Desktop Roller Trolley Kit Q (call), Ceiling Roller Track Kit U (call), Ceiling Roller Track Kit U (call) |
| Monitor Tilt Range | +90° up, -45° down |
