CMD2415 Dual Monitor Mount
Original price was: $391.00.$97.99Current price is: $97.99.
- Uncompromising quality, every time.
- Your questions, our prompt answers.
- 7 days return and exchange
- Free Shipping, No Compromise on Quality

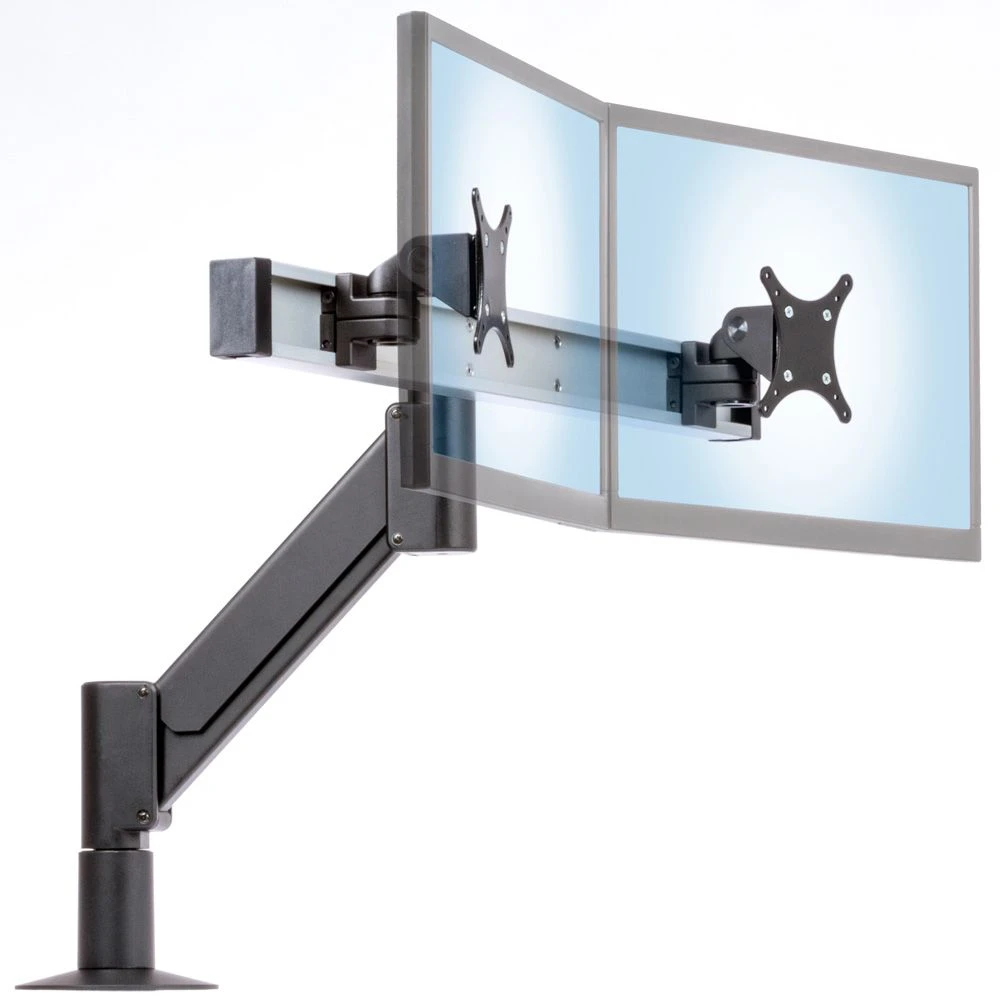

DUAL LCD-LED MONITOR ARM SOLUTION
- CMD2415 is a heavy duty monitor arm capable of holding two monitors each up to 28.5” wide (flat alignment)
- Maximum monitor width is approximately 27” when monitors are curved inward approximately 10 degrees
- Dual monitor arm supports heavy monitors up to 35 pounds while providing 15” vertical and 20.1” lateral travel
- Precisely adjust LCD monitors for users in shared workspace operating from a seated posture
- Choose from wall, desk clamp, pole, through desk and numerous other specialty mounting solutions
- Once properly installed, this arm floats LCD monitor and touchscreens effortlessly for true ergonomic comfort
- This heavy-duty workhorse is future-proofed against upgrades and changes as it handles 10 to 35 lb monitors
- Please call for solutions for heavier monitors
- Articulation points have friction resistance adjustability
- Wire management cleanly and efficiently handles cables
- Please watch our YouTube Video for tips on installing and adjusting the arm component included with this product
GRASP – MOVE – RELEASE. We have combined our new, hyper-functional CONNECT beam mount with our extra heavy-duty 2415 arm to provide 15” of effortless vertical travel and 20.1” of horizontal reach for a dual display solution. This arm fits the bill for anyone who requires precise control of two LCD monitors. This system allows the user to slide the tilter head mechanisms anywhere along the 30” horizontal beam to fit a variety of monitor sizes up to 28.5” in width. Each screen can be tilted, swiveled and rotated individually for precise positioning.
Black is the standard color on this arm. Metallic Gray may require longer lead times. Call for other color options.
For comprehensive information, detailed specifications, and larger images of the CONNECT family of monitor stands, and to view additional product configurations, please visit our CONNECT page.
Questions? Please call us at 888 420 3200.
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
| Shipping Weight* | Box 1: 12 lbs | Box 2: 14 lbs |
| Shipping Dimensions | Box 1: 21″ x 14″ x 4″ | Box 2: 40″ x 14″ x 6″ |
| Warranty | 5 Year limited |
This product ships in two boxes.
*Weights are approximate.
INSTALLING AND ADJUSTING YOUR SAA ARM:
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
FLOOR STAND
WALL TRACK
CART
TRACK SLIDING
ADAPTABLE • FUTURE PROOF
-
VERTICAL ARM RANGE
The CMD2415 features a large 14.5” vertical range when unobstructed by the desk surface or other objects.
-
ARM EXTENSION
The arm extends out up to 21.5” and folds into 8” to create space when not in use.
-
ARM ROTATION
The arm can be rotated 360° at its base providing there are no obstructions to its movement.
-
BEAM ROTATION
The beam holding the two monitors rotates 360° at the point where it is attached to the arm, providing the arm is not below its horizontal position.
-
MOUNT POSITIONING
The monitor mounts can be placed anywhere along the horizontal beam which allows for a variety of monitors sizes up to a maximum of 28.5” in width in the landscape position.
-
SCREEN SWIVEL
The monitors independently swivel left and right until they are obstructed by the beam so positioning is easy for optimal viewing.
-
SCREEN TILT
Each monitor can be individually adjusted upwards 90° and downwards 45° for the most comfortable viewing angle.
-
SCREEN ROTATION
Each screen can rotate a full 360° on the tilter head allowing for easily switching between landscape and portrait views.
| Color | CMD2415 in Black, CMD2415 in Metallic Gray |
|---|---|

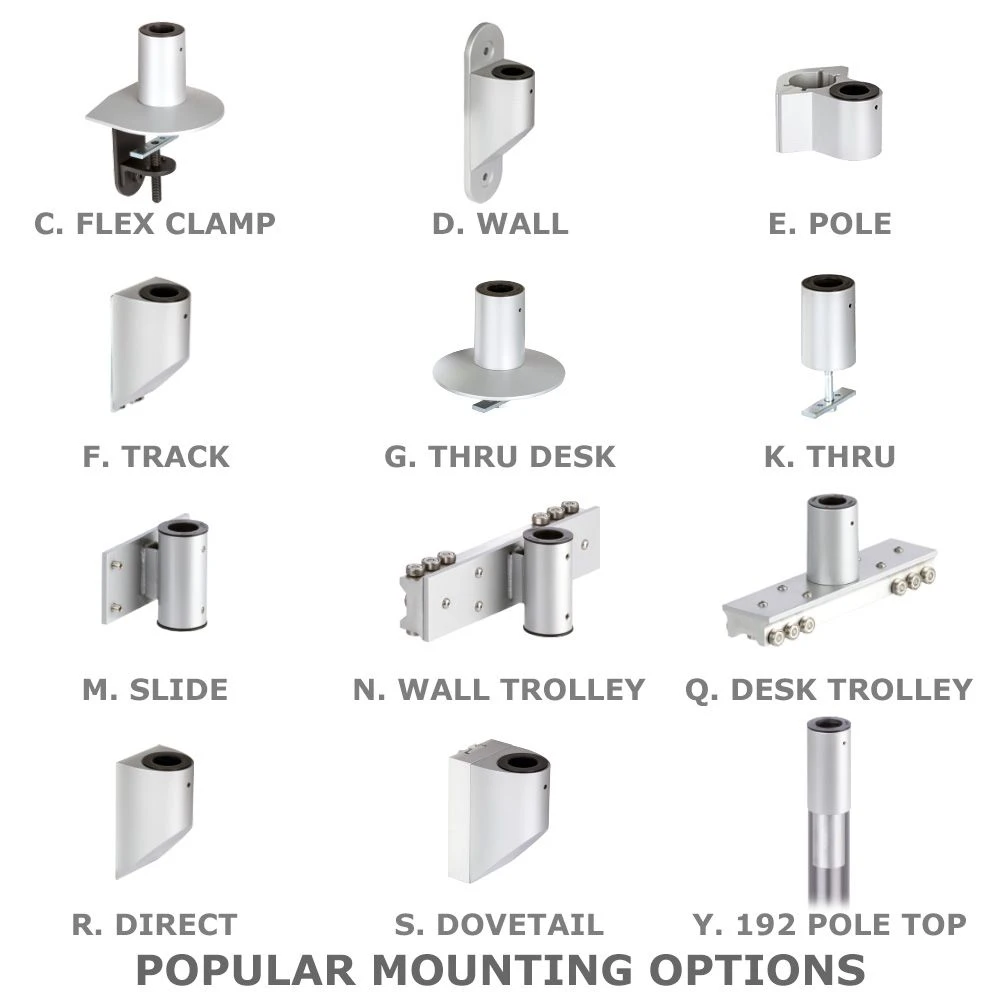

| Mount Kit | No Mount Kit, Flexible Mount Kit C, Flexible Mount Kit C, HD Wall Mount Kit D, HD Wall Mount Kit D, Dual Wall Mount Kit D3, Dual Wall Mount Kit D3, HD Track Mount Kit F, HD Track Mount Kit F, HD Thru Desk Mount Kit G, HD Thru Desk Mount Kit G, Column Mount Kit K, Column Mount Kit K, Dual Arm Mount Kit L, Dual Arm Mount Kit L, OEM Mount Kit R, OEM Mount Kit R, Dovetail Medical Mount Kit S (call), Dovetail Medical Mount Kit S (call), HD Pole Mount Kit E, Dual Pole Mount Kit J, Pole Top Mount Kit Y (call), Horizontal Track Slider Kit M (call), Horizontal Track Slider Kit M (call), Roller Track Positioner Kit M2, Roller Track Positioner Kit M2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2, Roller Track Trolley Mount N2 with Brake, Roller Track Trolley Mount N2 with Brake, Desktop Roller Trolley Kit Q (call), Desktop Roller Trolley Kit Q (call), Ceiling Roller Track Kit U (call), Ceiling Roller Track Kit U (call) |
| Vertical Extension (optional) | 5" Vertical Extension, 5" Vertical Extension, 8" Vertical Extension, 8" Vertical Extension, 12" Vertical Extension, 12" Vertical Extension |
| Mount Type | Monitor Arm |
| Number of Monitors | 2 |
| Mounting | |
| Weight Range | 10-35 lb per monitor, 20-70 lb total |
| Monitor Horizontal Reach | 20.1" from center of mounting pin to front of VESA plate |
| Vertical Adjustment | 15" instant adjustment |
| Horizontal Extensions | Call for information. |
| VESA Options | 75 x 75 |
| Portrait to Landscape | Yes |
| Max Swivel (at Base) | 360° |
| Max Swivel (at Elbow) | Max Swivel (Beam) 360° |
| Max Swivel (at Monitor) | Up to 360° based on monitor size/tilt |
| Monitor Tilt Range | +90° up, -45° down |
