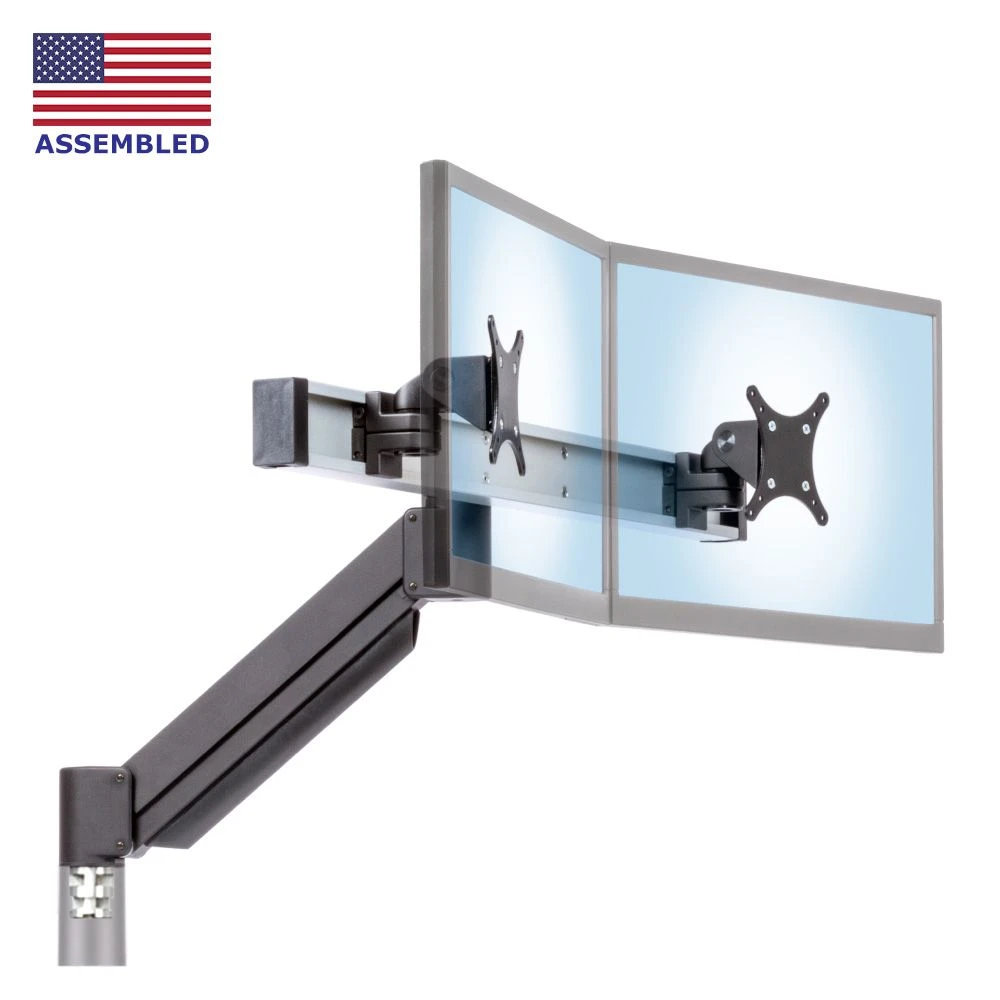

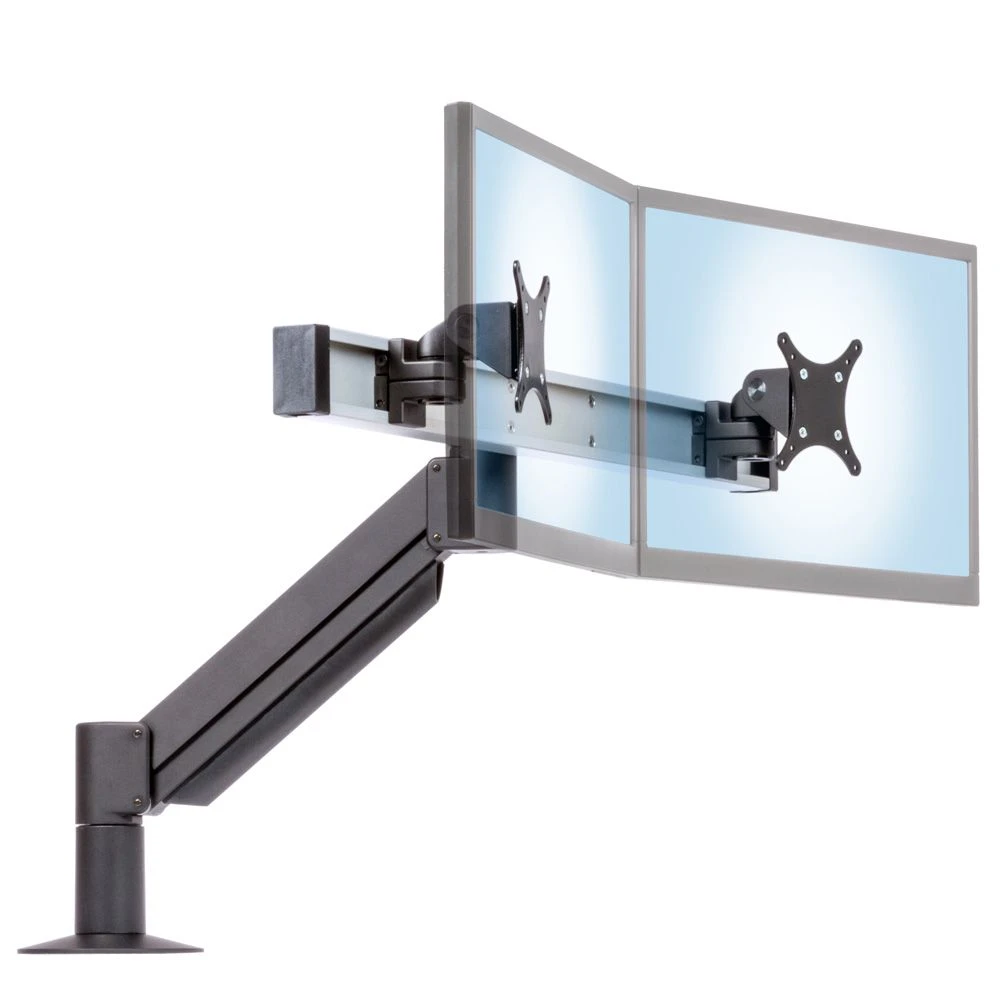

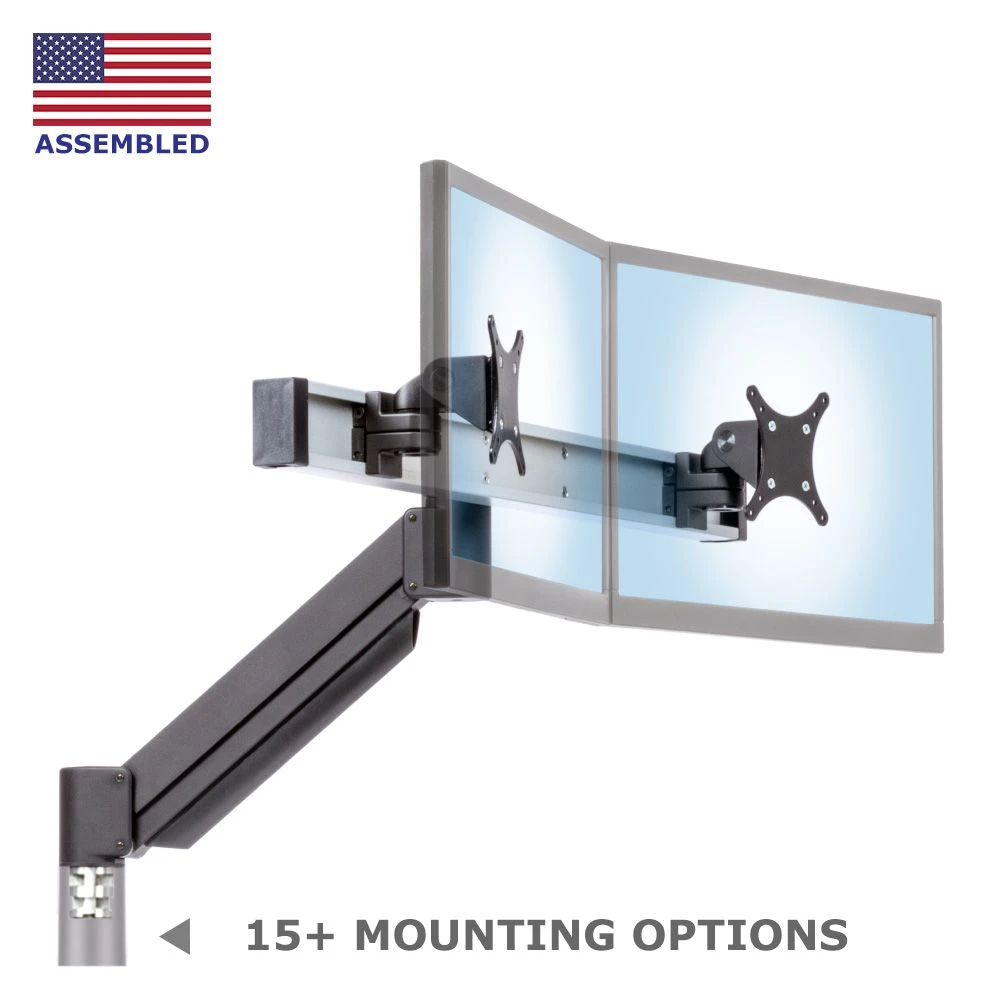

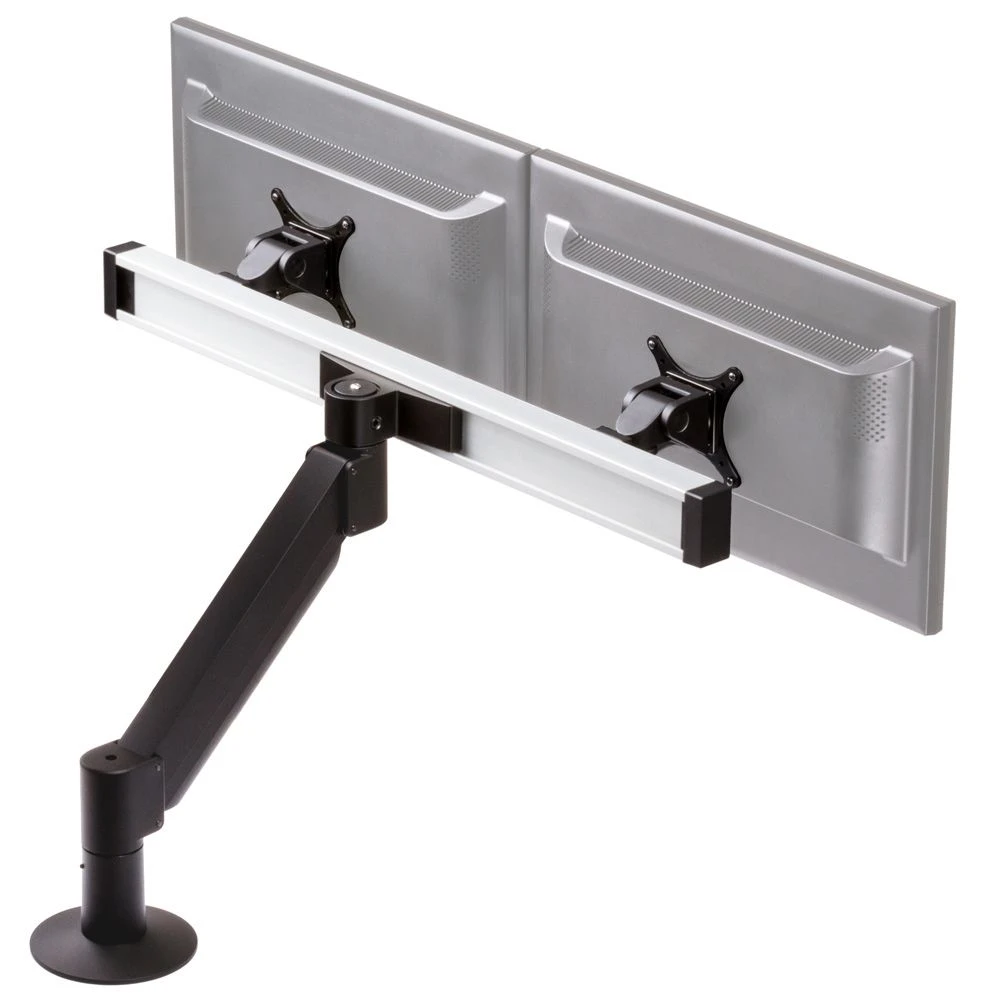

CMD2018 Dual Monitor Arm

DUAL MONITOR BEAM MOUNTED HEIGHT ADJUSTABLE ARM

• CMD2018 is a sturdy monitor height adjusting arm that holds two monitors each up to 28.5” wide (flat alignment)
• Max monitor width is approximately 27” when monitors are curved inward
• Highly adjustable dual monitor arm with 18” of vertical travel
• Arm rotates and provides up to 22.4” of reach from the midpoint of the mounting location
• Handles monitors up to 28.5” in width and up to 12 lb each
• Each monitor mount swivels, rotates and tilts independently
• Wire management efficiently routes cables for a clean look
• See the CMT2415 to mount three monitors in arc formation
• Optional braking system locks arm at any vertical position
• Optional limiters provide precise vertical range limits
• Solutions available for heavier monitors – please call
• Please watch our YouTube Video for tips on installing and adjusting the arm component included with this product

The CMD2018 combines the benefits of the compact SAA2018 monitor arm with the versatility of the CONNECT mounting beam to create an easily maneuverable, space saving solution for mounting two LCDs. Each monitor tilts, swivels and rotates individually on its tilter head mount. These can be placed anywhere along the 30” beam and can accommodate monitors up to 28.5” in width.

The monitor arm provides a maximum of 22.4” of reach, measured from the center of the mounting point of the unit to the back of the monitors. Fully folded inwards, the device will take only 7.2” of horizontal space. The total vertical range is 18” as long as travel is not restricted by an object such as a work surface. Optional vertical extensions are designed to maximize vertical travel when the CMD2018 is desk mounted.

Black is the standard color on this arm. Metallic Gray requires longer lead times. Please call for other color options.

For comprehensive information, detailed specifications, and larger images of the CONNECT family of monitor stands, and to view additional product configurations, please visit our CONNECT page.

Questions? Please call us at 888 420 3200.

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

This product ships in two boxes.

*Weights are approximate.

INSTALLING AND ADJUSTING YOUR SAA ARM:

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

• VERTICAL ARM RANGE

  If unobstructed by the work surface, the CMD2018 offers 18” of vertical travel.

• ARM EXTENSION

  When fully extended, the arm reaches out 23.5” and only takes up 8” when fully retracted.

• ARM ROTATION

  The arm rotates 360° at its mounting point, providing there are no obstructions.

• BEAM ROTATION

  The beam holding the two monitors rotates 360° at the point where it is attached to the arm, providing the arm is not below its horizontal position.

• MOUNT POSITIONING

  The tilter head mounts can be positioned anywhere along the CONNECT mounting beam. The attached monitors can measure up to 28.5” in width in landscape position.

• SCREEN SWIVEL

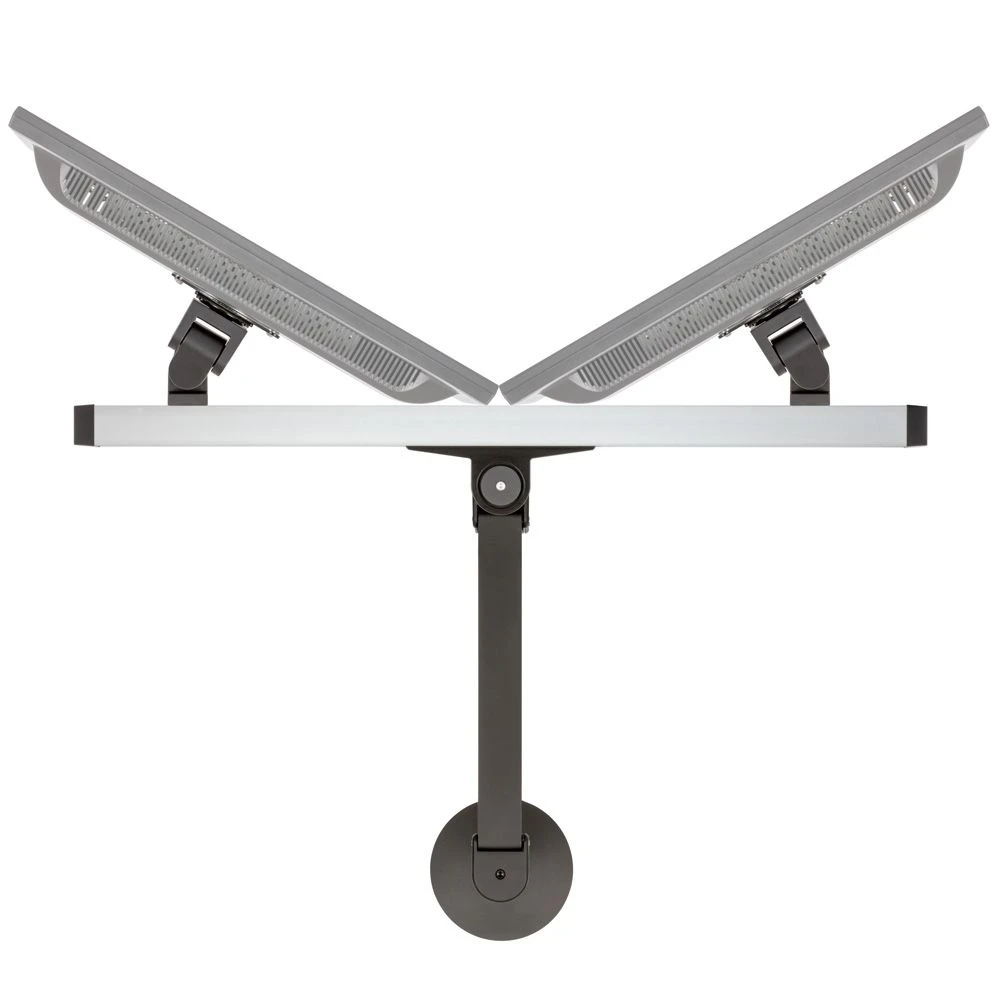

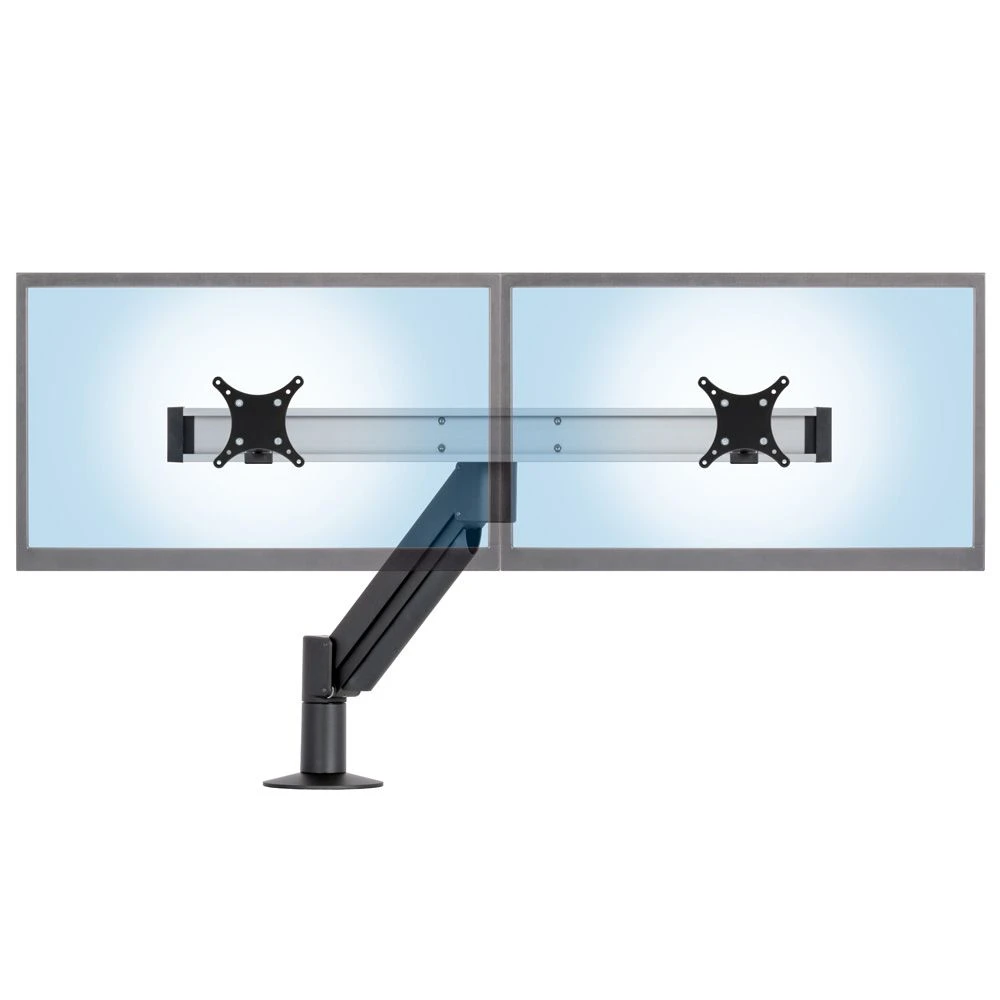

  Each monitor can independently swivel from left to right. Movement is only restricted by the monitor edge meeting the mounting beam.

• SCREEN TILT

  Each screen has 135° of available tilt – 90° upwards and 45° downwards.

• SCREEN ROTATION

  Each monitor can be quickly rotated from landscape to portrait and back again with a full 360° of rotation.
